1. FACTORY ECU & MICROCONTROLLER INSTALLED ON THIS VEHICLEBENCH / BOOT / OBD VERIFIED
| Make & Model (Chassis) | Universal ECU Protocol — Bloki upravleniya AKPP / Robotov DSG / Variatorov (TCU Bench) |
|---|---|
| Engine & Power Spec | Direct Bench / Boot ECU Connector Pinout |
| Engine Control Unit (ECU) | MB_GETRAG_VGS-FDCT MB_GETRAG_VGS-FDCT TC1766 |
| Internal Microcontroller (MCU) | Infineon TriCore / Freescale SPC |
| Read / Write Connection Mode | Platform / Locked Boot Unlock |
| Supported Programmer Functions | Full PFLASH + DFLASH Backup Read/Write (1:1 ECU Cloning) + Auto Checksum Correction |
| Available Files in 800 TB Vault | Exact ECU Maps: 0 (.A2L/.KP/.OLS) | Family Maps: 0 | ROMs: 16 |
2. OFFICIAL BENCH / BOOT ECU CONNECTOR PINOUT DIAGRAM2 DIAGRAMS

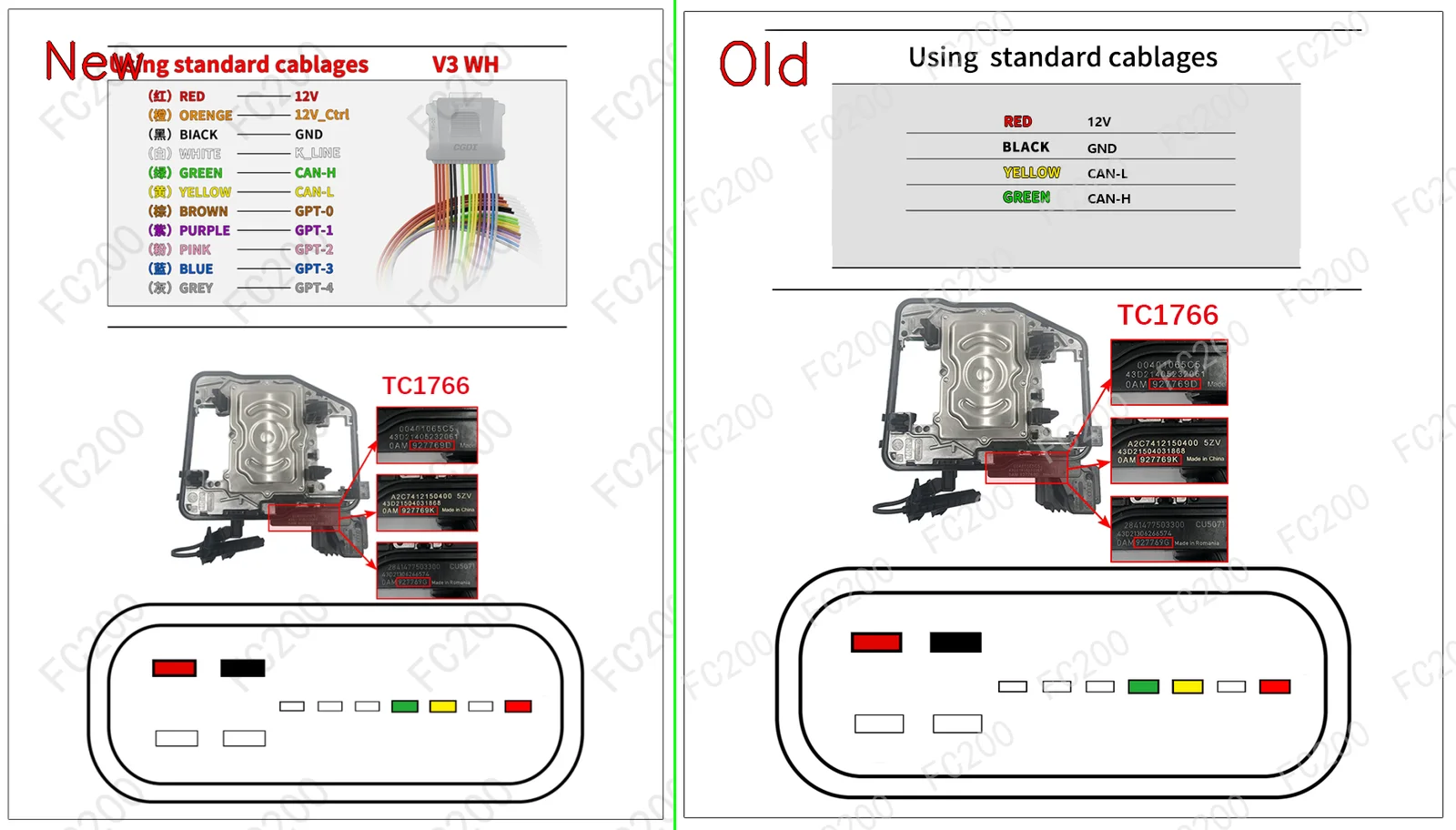

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: DQ200_TC1766.png

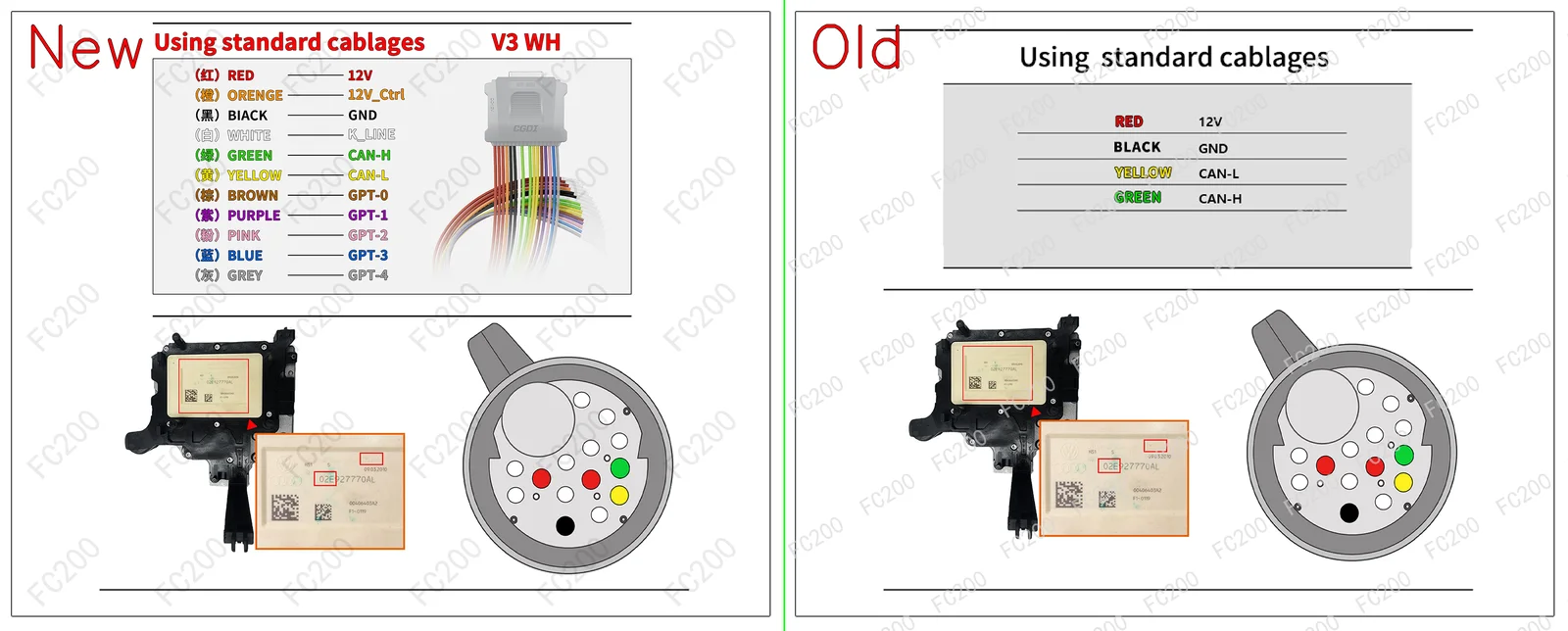

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: DQ250_TC1766.png
