Which Engine Control Unit (ECU) and MCU processor are installed on Dodge Ram (6700 V8 • )?

Vehicle Dodge Ram (6700 V8 • ) is equipped with the BOSCH DCU17HD01 ECU powered by the TC1766. Connection Mode: Platform (Bench No-Open) + Boot.

Where can I get the Bench/Boot pinout diagram for BOSCH DCU17HD01 and stock firmware files?

This page provides the official color ECU connector pinout (2 Bench/Boot diagrams) and 0 linked engineering files: stock firmware (.BIN/.HEX/.FRF), WinOLS map packs (.KP/.OLS/.A2L), coding parameterization, and dealer manuals.

ECUFLASH.PRO FIRMWARE, DAMOS & WIKI

EN • USD / USDT

ECUFLASH.PRO / Vehicle & ECU Catalog / Dodge / Ram (DCU17HD01)

VEHICLE & ECU TECHNICAL PASSPORT • CAR ID #4516

Dodge Ram (6700 V8 • ) — ECU BOSCH DCU17HD01 (TC1766)

POLNYY KOMPLEKT: Tochnye karty (.A2L/.KP/.OLS) + Stokovye proshivki + Skhema Bench/Boot. ECU Connection Mode: Platform (Bench No-Open) + Boot.

1. FACTORY ECU & MICROCONTROLLER INSTALLED ON THIS VEHICLEBENCH / BOOT / OBD VERIFIED

Make & Model (Chassis)	Dodge — Ram
Engine & Power Spec	6700 V8 •
Engine Control Unit (ECU)	BOSCH DCU17HD01
Internal Microcontroller (MCU)	TC1766
Read / Write Connection Mode	Platform (Bench No-Open) + Boot
Supported Programmer Functions	Full PFLASH + DFLASH Backup Read/Write (1:1 ECU Cloning) + Auto Checksum Correction
Available Files in 800 TB Vault	Exact ECU Maps: 3 (.A2L/.KP/.OLS) \| Family Maps: 3 \| ROMs: 0

2. OFFICIAL BENCH / BOOT ECU CONNECTOR PINOUT DIAGRAM2 DIAGRAMS

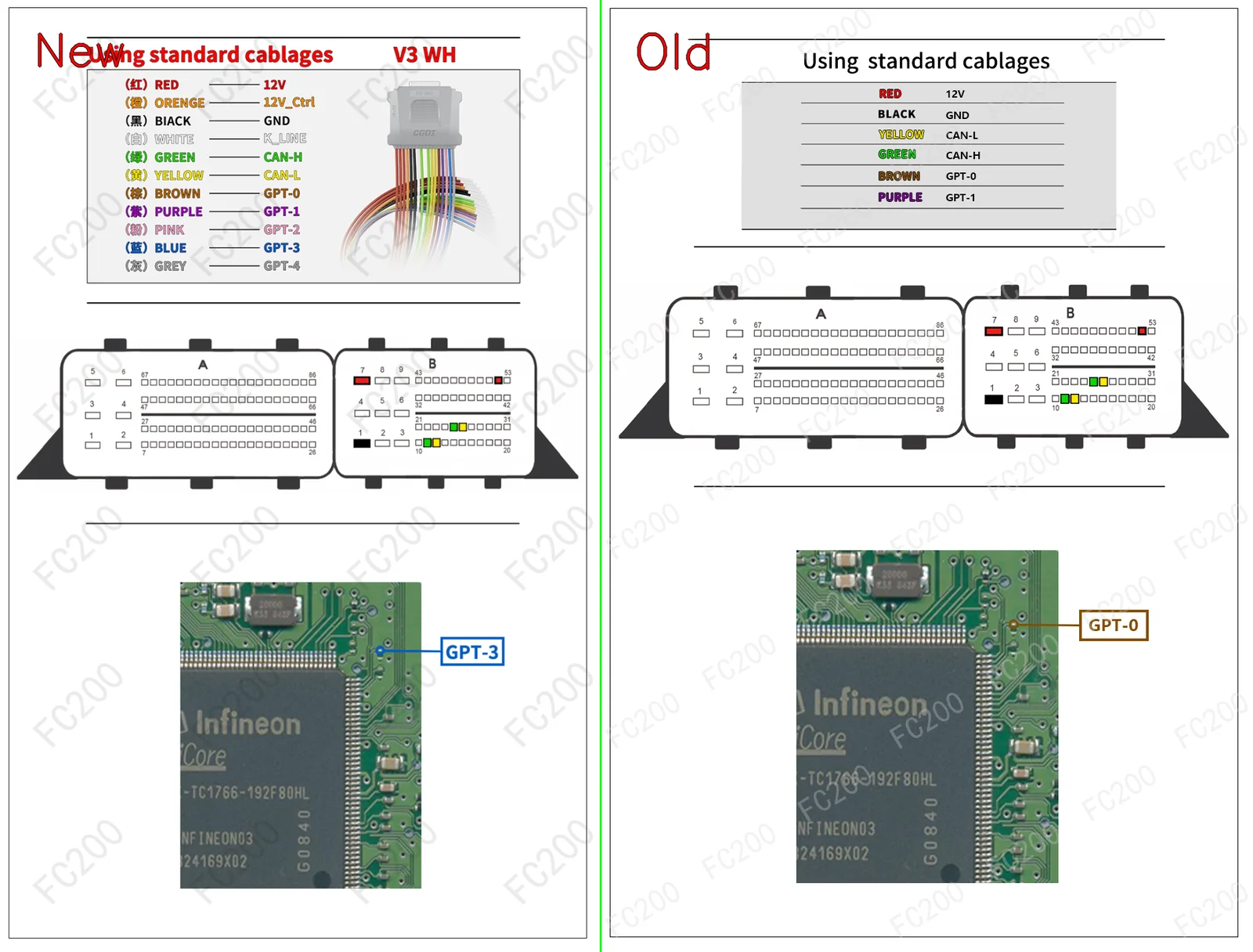

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: BOOT_BOSCH DCU17HD01.png

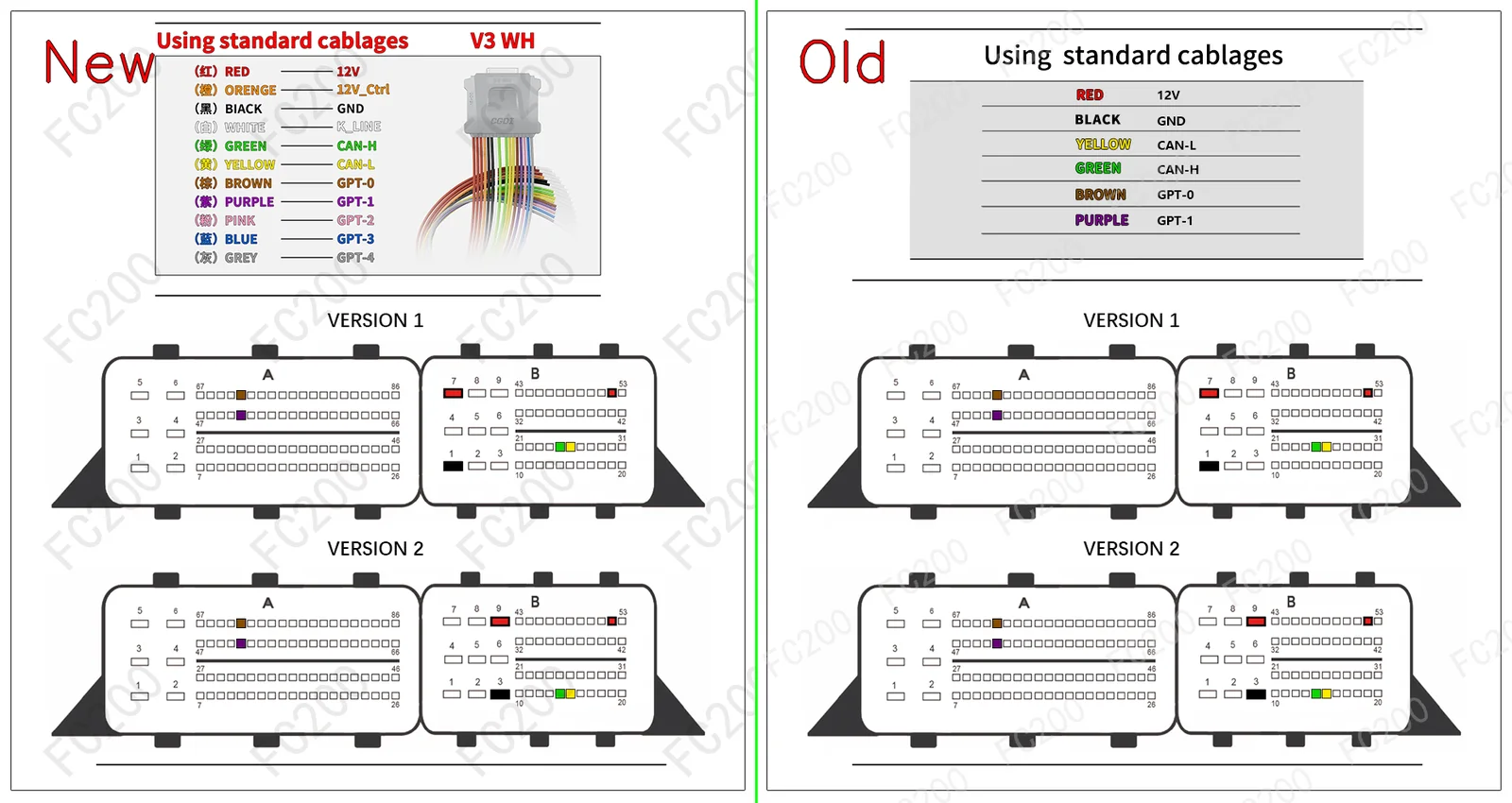

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: BOSCH DCU17HD01.png
