1. FACTORY ECU & MICROCONTROLLER INSTALLED ON THIS VEHICLEBENCH / BOOT / OBD VERIFIED
| Make & Model (Chassis) | Lindner — Forklift |
|---|---|
| Engine & Power Spec | 2.5 TD |
| Engine Control Unit (ECU) | BOSCH EDC16U31 |
| Internal Microcontroller (MCU) | MPC561/2 |
| Read / Write Connection Mode | Platform (Bench No-Open) |
| Supported Programmer Functions | Full PFLASH + DFLASH Backup Read/Write (1:1 ECU Cloning) + Auto Checksum Correction |
| Available Files in 800 TB Vault | Exact ECU Maps: 0 (.A2L/.KP/.OLS) | Family Maps: 0 | ROMs: 3 |
2. OFFICIAL BENCH / BOOT ECU CONNECTOR PINOUT DIAGRAM1 DIAGRAMS

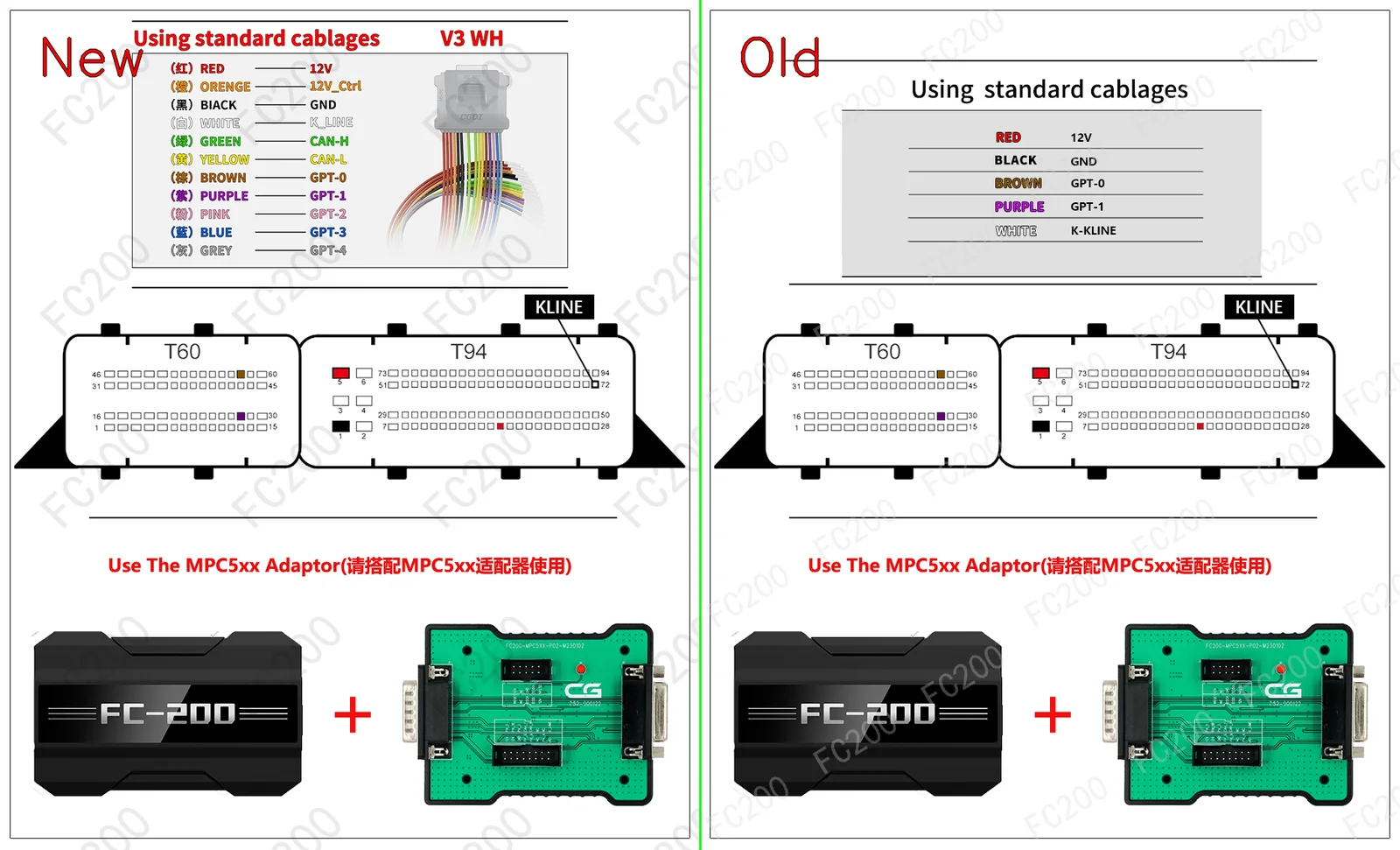

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: BOSCH EDC16U31 MPC563_4.png
