ECU Pinout 17C53 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU 17C53 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

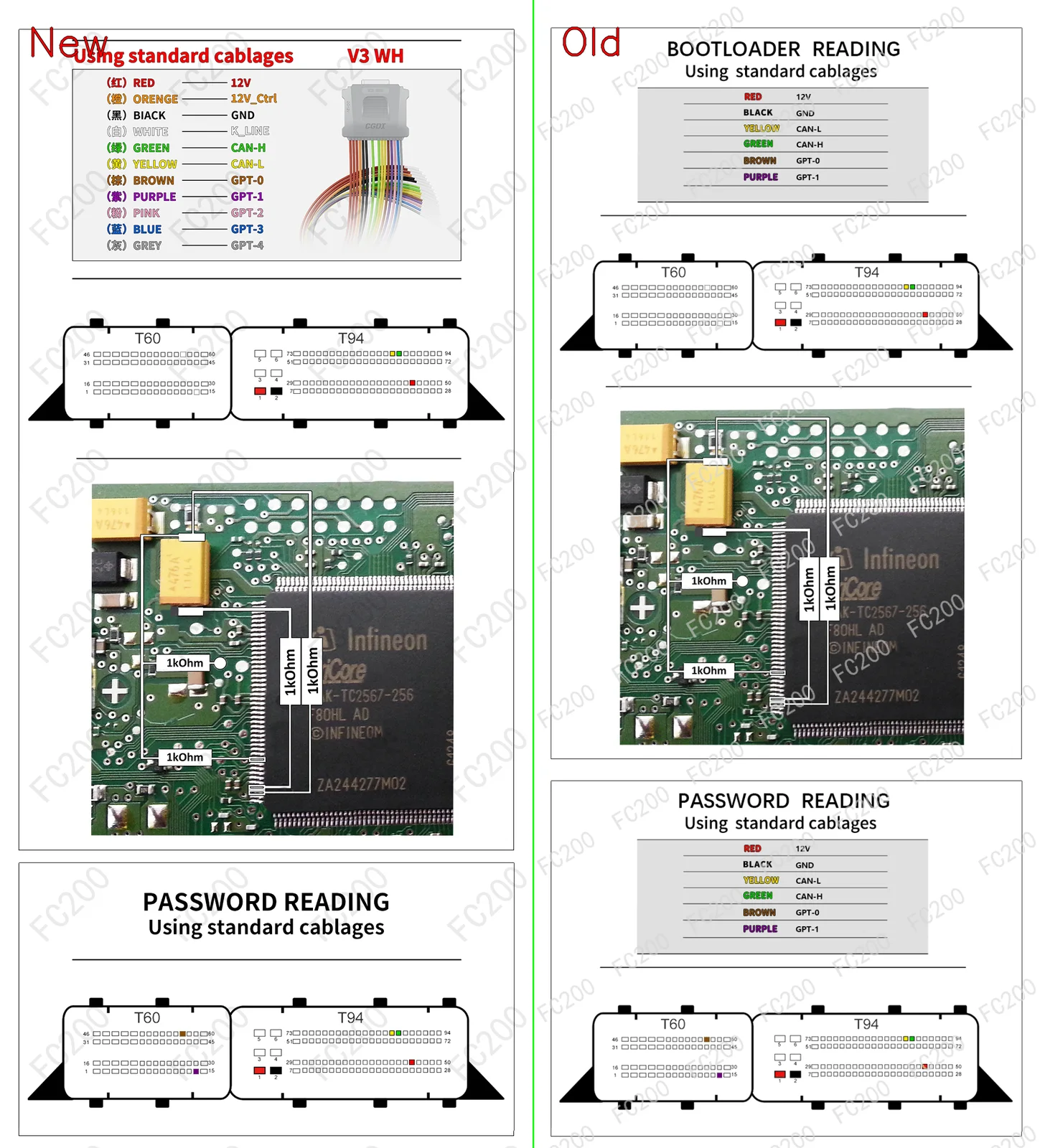

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C53.png (Boot)2,876,898 bytes
BOOT_BOSCH EDC17C53.png

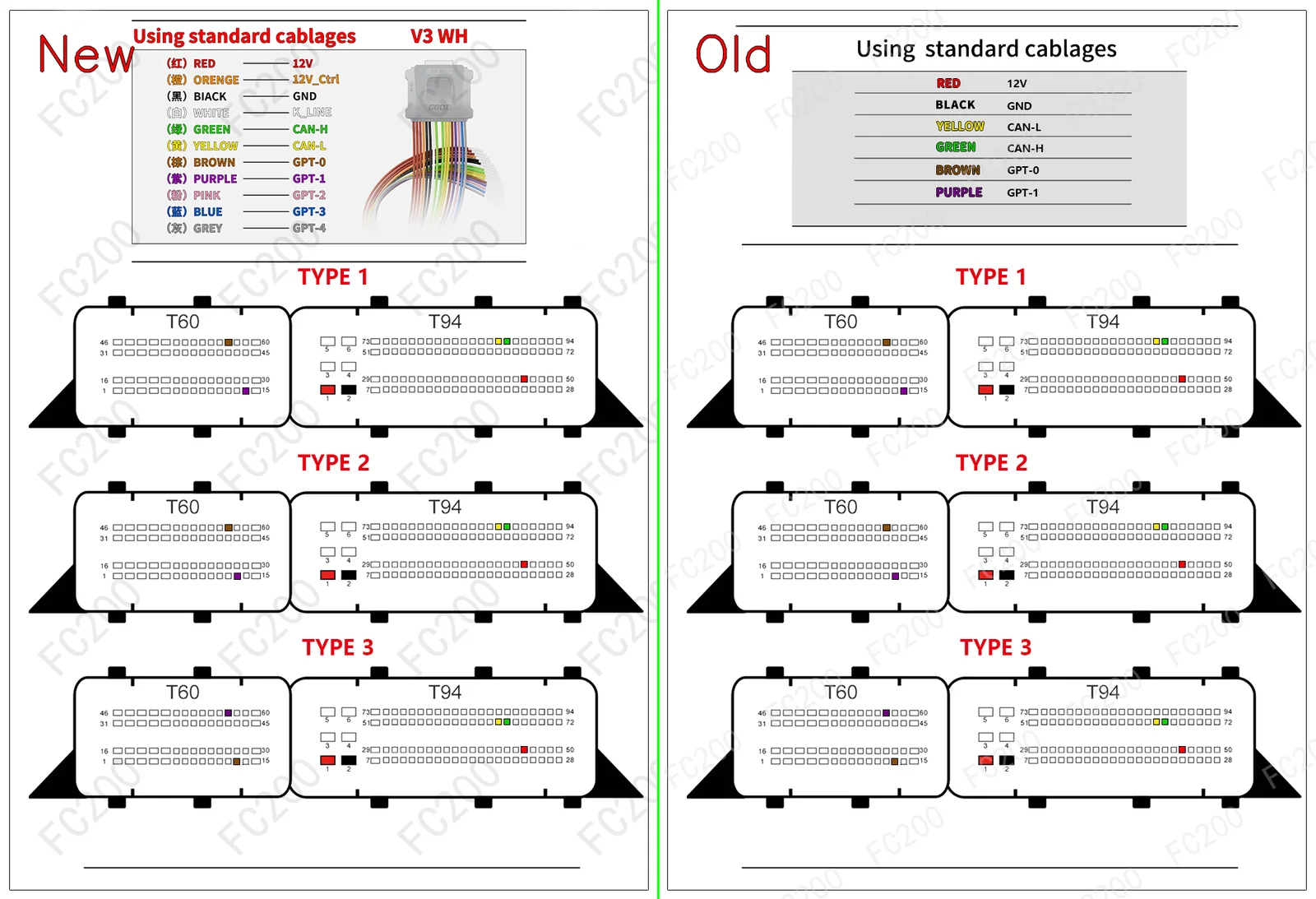

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C53.png (Platform / Bench)893,394 bytes
BOSCH EDC17C53.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU 17C53 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Deutz FAHR 50904 (LS) (3849 KD465TA 84) BOSCH EDC17C53 (TC1767) Open Vehicle →
Dongfeng All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17C53 (TC1767) Open Vehicle →
FODAY Lan Fu(I) (1900 D D19TC1D1 136) BOSCH EDC17C53 (TC1767) Open Vehicle →
Great Wall / Haval / Tank Hower 5 (2000 TD 150) BOSCH EDC17C53 (TC1767) Open Vehicle →
Hyundai i40(I) (1700 CRDi D4FD 136) BOSCH EDC17C53 (TC1767) Open Vehicle →
Hyundai i40(I) (1700 CRDi D4FD 114) BOSCH EDC17C53 (TC1767) Open Vehicle →
Hyundai Ix35(I) (1700 CRDi D4FD 114) BOSCH EDC17C53 (TC1767) Open Vehicle →
Hyundai Ix35(I) (2000 CRDi D4HA 136) BOSCH EDC17C53 (TC1767) Open Vehicle →
Hyundai Ix35(I) (2000 CRDi 4x4 D4HA 136) BOSCH EDC17C53 (TC1767) Open Vehicle →
Hyundai Tucson(iX) (1700 CRDi D4FD 114) BOSCH EDC17C53 (TC1767) Open Vehicle →
Iveco All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17C53 (TC1767) Open Vehicle →
JAC All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17C53 (TC1767) Open Vehicle →
JMC All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17C53 (TC1767) Open Vehicle →
Kia Soul(2) (1591 D5D11 129) BOSCH EDC17C53 (TC1767) Open Vehicle →
Kia Carens(III) (1700 CRDi D4FD 114) BOSCH EDC17C53 (TC1767) Open Vehicle →
Kia Optima(TF) (1700 CRDi D4FD 136) BOSCH EDC17C53 (TC1767) Open Vehicle →
Kia Sportage(SL) (1700 CRDi D4FD 114) BOSCH EDC17C53 (TC1767) Open Vehicle →
MAN Force Tempo Traveller(I) (2200 CRDI • 129) BOSCH EDC17C53 (TC1767) Open Vehicle →
Mahindra Scorpio (2200 CRDI 114) BOSCH EDC17C53 (TC1767) Open Vehicle →
Saic All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17C53 (TC1767) Open Vehicle →
Deutz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17C53 (TC1767) Open Vehicle →
FODAY All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17C53 (TC1767) Open Vehicle →
Force All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17C53 (TC1767) Open Vehicle →
Great Wall / Haval / Tank All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17C53 (TC1767) Open Vehicle →
