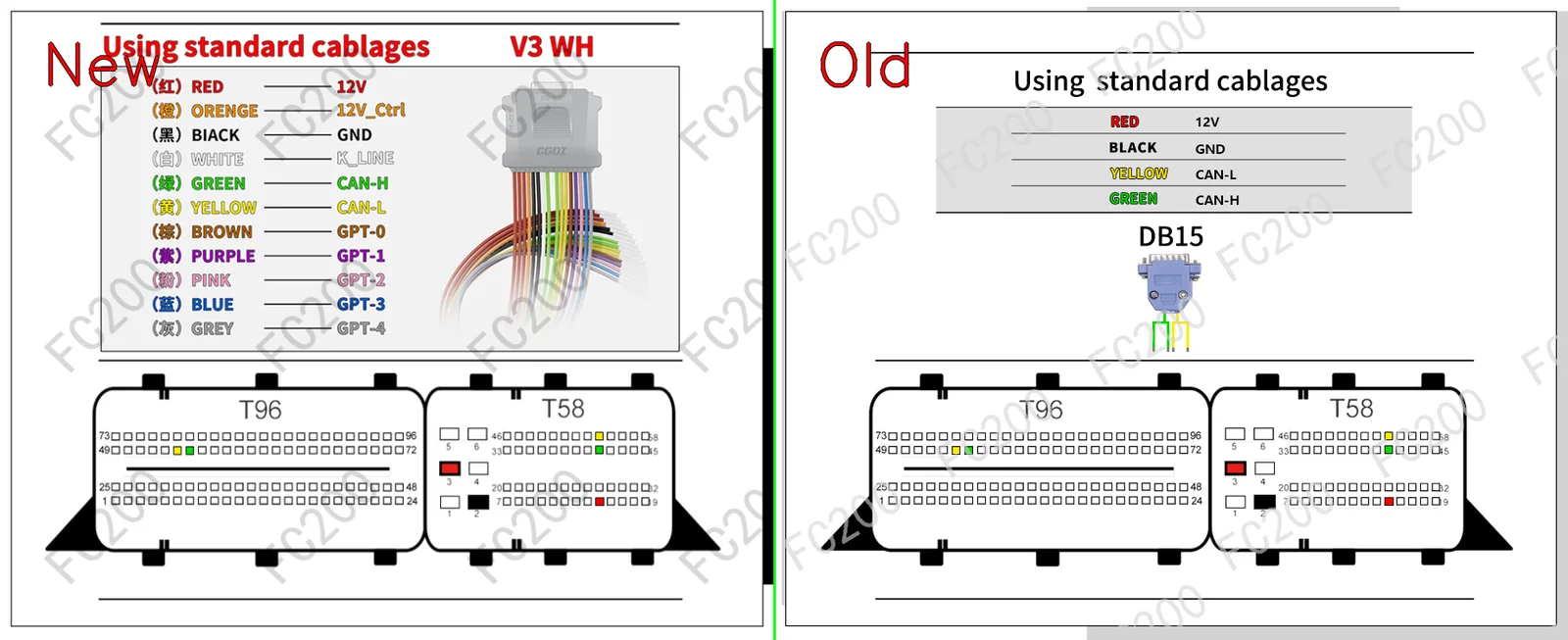

OFFICIAL PINOUT DIAGRAM: 271DE.png (Platform / Bench)610,460 bytes

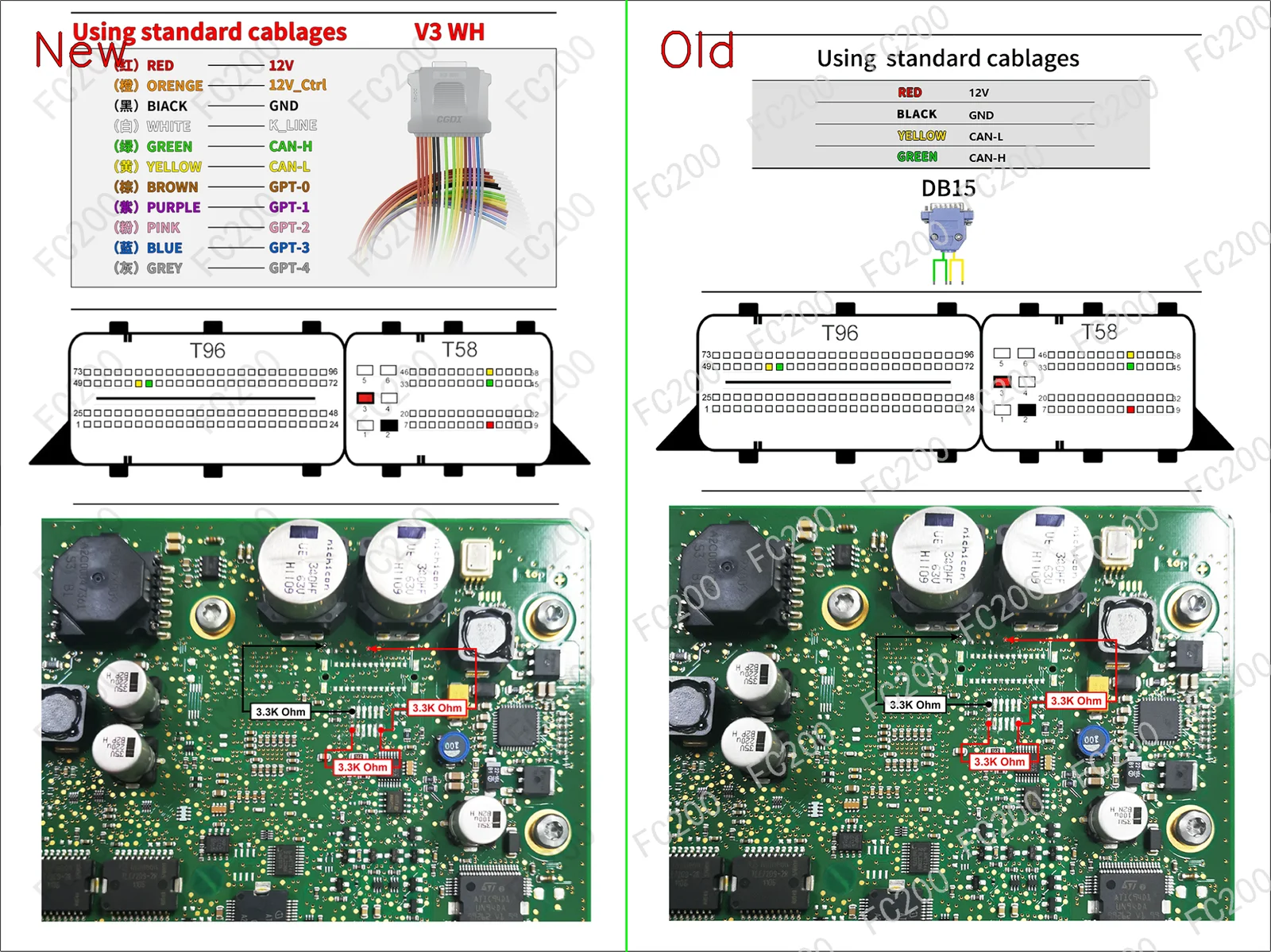

OFFICIAL PINOUT DIAGRAM: 271DE_BOOT.png (Boot)3,112,656 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU 271DE (24)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Mercedes-Benz | C(W204) (180 CGI M271.820 156-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | C(W204) (200 CGI M271.820 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | C(W204) (200 CGI M271.860 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | C(W204) (250 CGI M271.860 204-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | C(W204) (200 KOMPRESSOR M271.946 178-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | C(W204) (200 KOMPRESSOR M271.950 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | C(W204) (180 KOMPRESSOR M271.952 156-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | CLC(W203) (160 M271.911 129-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | CLC(W203) (160 M271.921 129-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | CLC(W203) (180 KOMPRESSOR M271.946 143-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | CLC(W203) (200 KOMPRESSOR M271.957 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | CLK(W209) (200 KOMPRESSOR M271.955 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W207) (M271.820 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W207) (M271.860 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W207) (M271.860 204-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W211) (200 KOMPRESSOR M271.956 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W212) (200 CDI BlueEFFICIENCY M271.820 204-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W212) (M271.860 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W212) (M271.860 204-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | E(W212) (200 NGT M271.958 204-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | SLK(R171) (200 KOMPRESSOR M271.954 184-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | Sprinter(W906) (216 M271.951 156-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | Sprinter(W906) (316 M271.951 156-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
| Mercedes-Benz | Sprinter(W906) (516 M271.951 156-SIM271) | MB_CONTINENTAL_SIM271DE MB_CONTINENTAL_SIM271DE (TriCore) |
Open Vehicle → |
