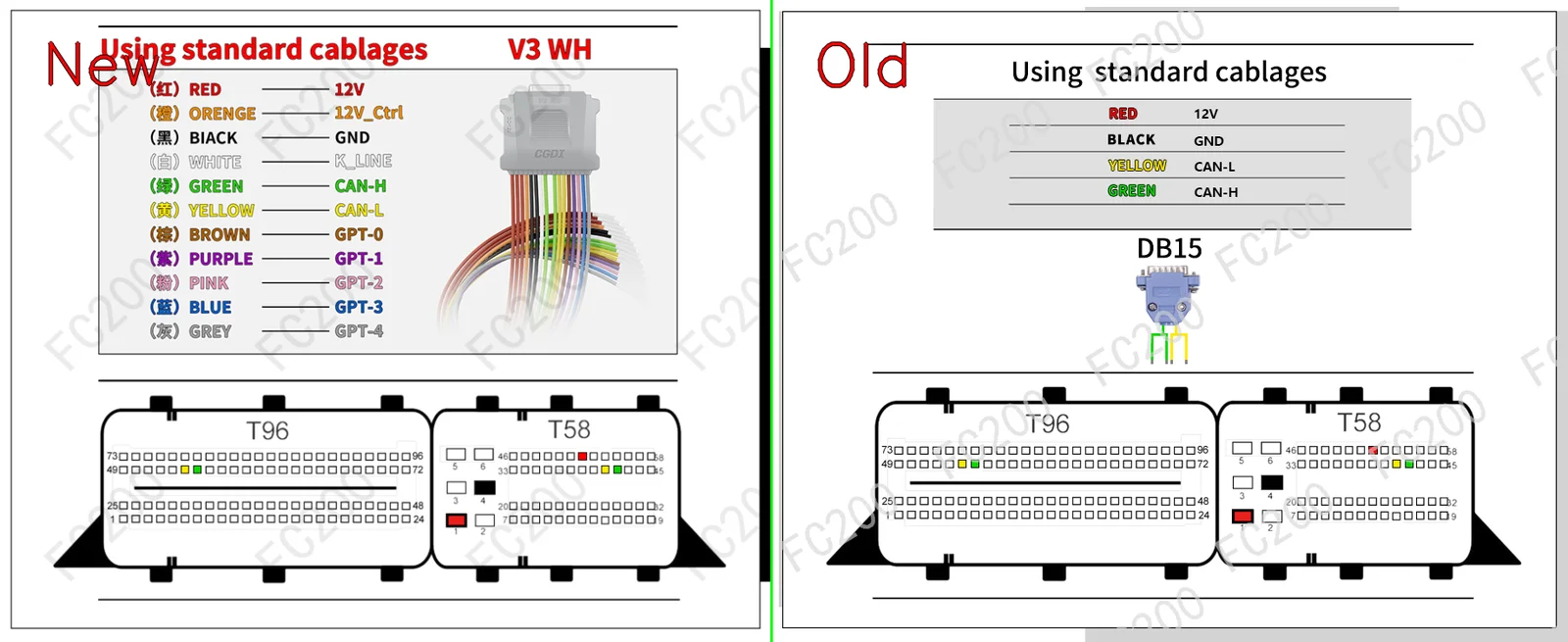

OEM PINOUT DIAGRAM: 271KE.png (Platform / Bench)583,502 bytes
OEM PINOUT DIAGRAM: 271KE_BOOT.png (Boot)2,999,931 bytes
STEP-BY-STEP BENCH CONNECTION PROTOCOL (HOWTO)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 power): Apply stabilized
13.5V — 13.8Vto the permanent power (T30) and ignition (T15) pins, plus ground (GND), following the cable color coding above. - Step 2 (CAN bus & GPT0 / GPT1 generator lines): Connect the
CAN-HandCAN-L, plus the signal wiresGPT0 (S1)andGPT1 (S2)to enter service mode without opening the ECU case. - Step 3 (Full PFLASH + DFLASH backup read): Before any write operation, read and save a full backup of the internal flash (
PFLASH) and the EEPROM area (DFLASH).
VEHICLES FITTED WITH THE 271KE ECU (24)FITMENT
| Brand | Model & Engine | ECU & MCU | Open |
|---|---|---|---|
| Mercedes-Benz | C(W204) (180 CGI M271.820 156-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | C(W204) (200 CGI M271.820 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | C(W204) (200 CGI M271.860 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | C(W204) (200 KOMPRESSOR M271.946 178-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | C(W204) (200 KOMPRESSOR M271.950 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | C(W204) (180 KOMPRESSOR M271.952 156-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | CLC(W203) (160 M271.911 129-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | CLC(W203) (160 M271.921 129-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | CLC(W203) (180 KOMPRESSOR M271.946 143-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | CLC(W203) (200 KOMPRESSOR M271.957 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | CLK(W209) (200 KOMPRESSOR M271.955 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | E(W207) (M271.820 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | E(W207) (M271.860 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | E(W211) (200 KOMPRESSOR M271.956 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | E(W212) (200 CDI BlueEFFICIENCY M271.820 204-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | E(W212) (M271.860 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | E(W212) (200 NGT M271.958 204-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | SLK(R171) (200 KOMPRESSOR M271.954 184-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | Sprinter(W906) (216 M271.951 156-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | Sprinter(W906) (316 M271.951 156-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | Sprinter(W906) (516 M271.951 156-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | Sprinter(W906) (316 NGT M271.951 156-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | Sprinter(W906) (516 NGT M271.951 156-SIM271) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
| Mercedes-Benz | All Models (Direct ECU Connection) (Read/Write DFLASH/PFLASH/ExtEEPROM/Maps, Backup/Restore Data, CheckSum) | MB_SIEMENS_SIM271KE MB_SIEMENS_SIM271KE (TriCore) |
Open vehicle → |
