ECU Pinout CE100 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU CE100 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

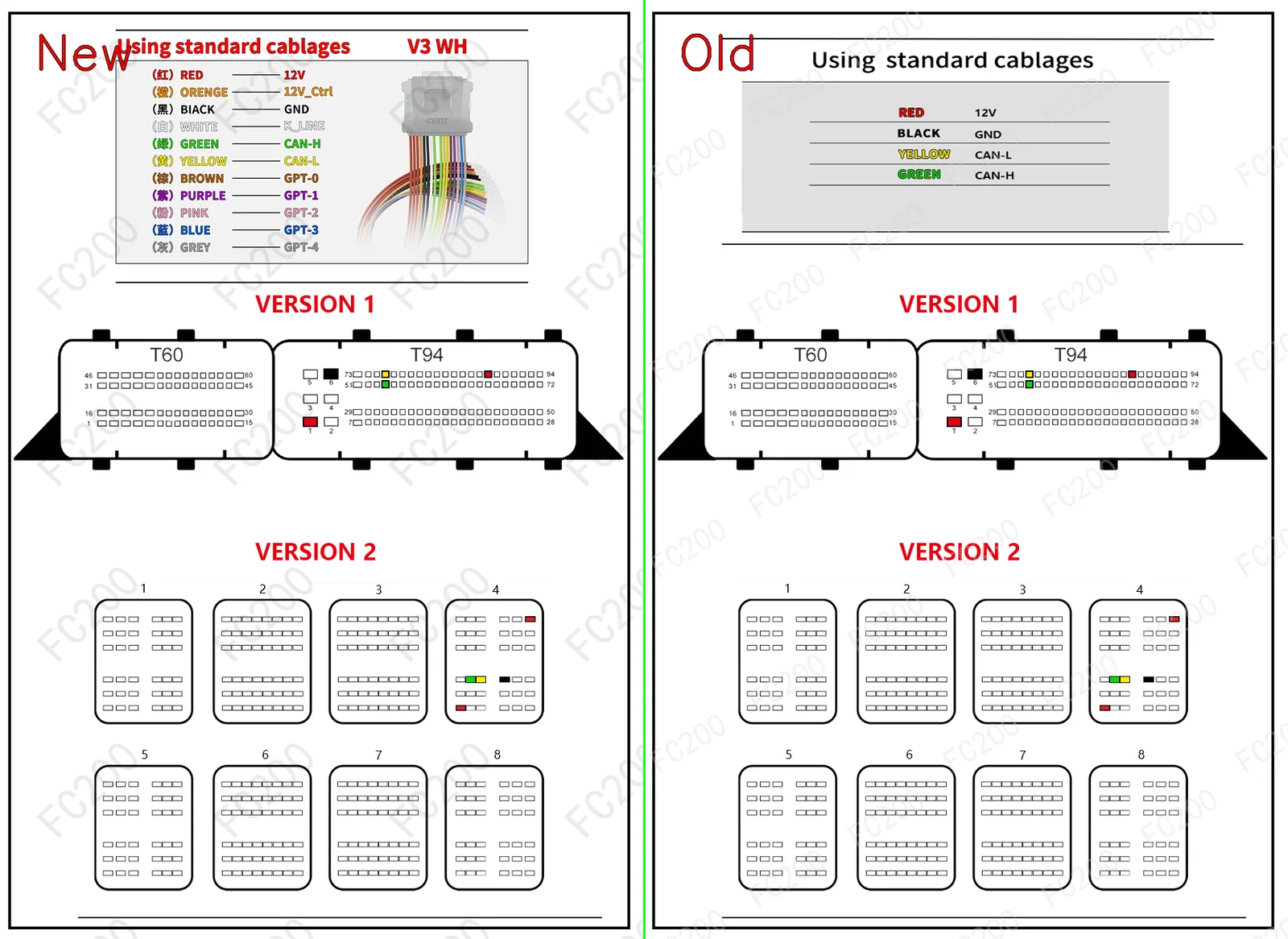

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CE100.png (Platform / Bench)878,558 bytes
BOSCH MD1CE100.png

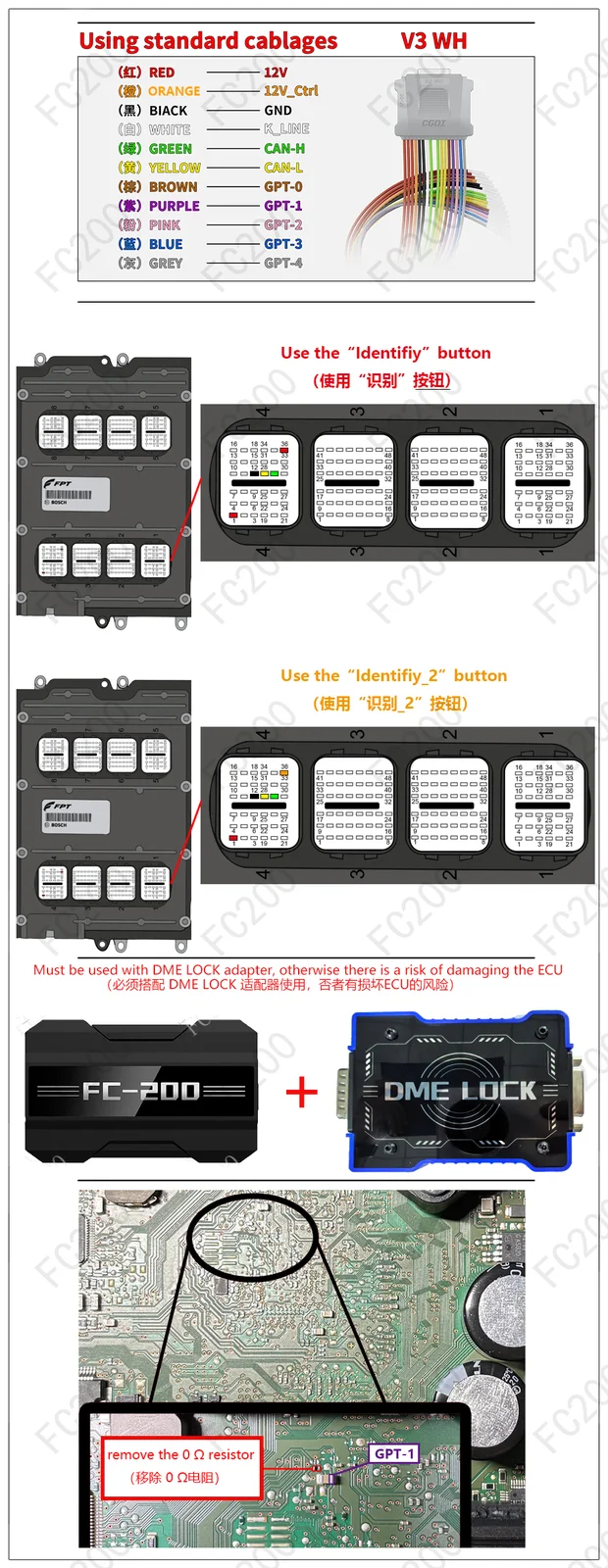

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CE100.png (Locked Boot/Bench)1,705,803 bytes
Locked_BOSCH MD1CE100.png

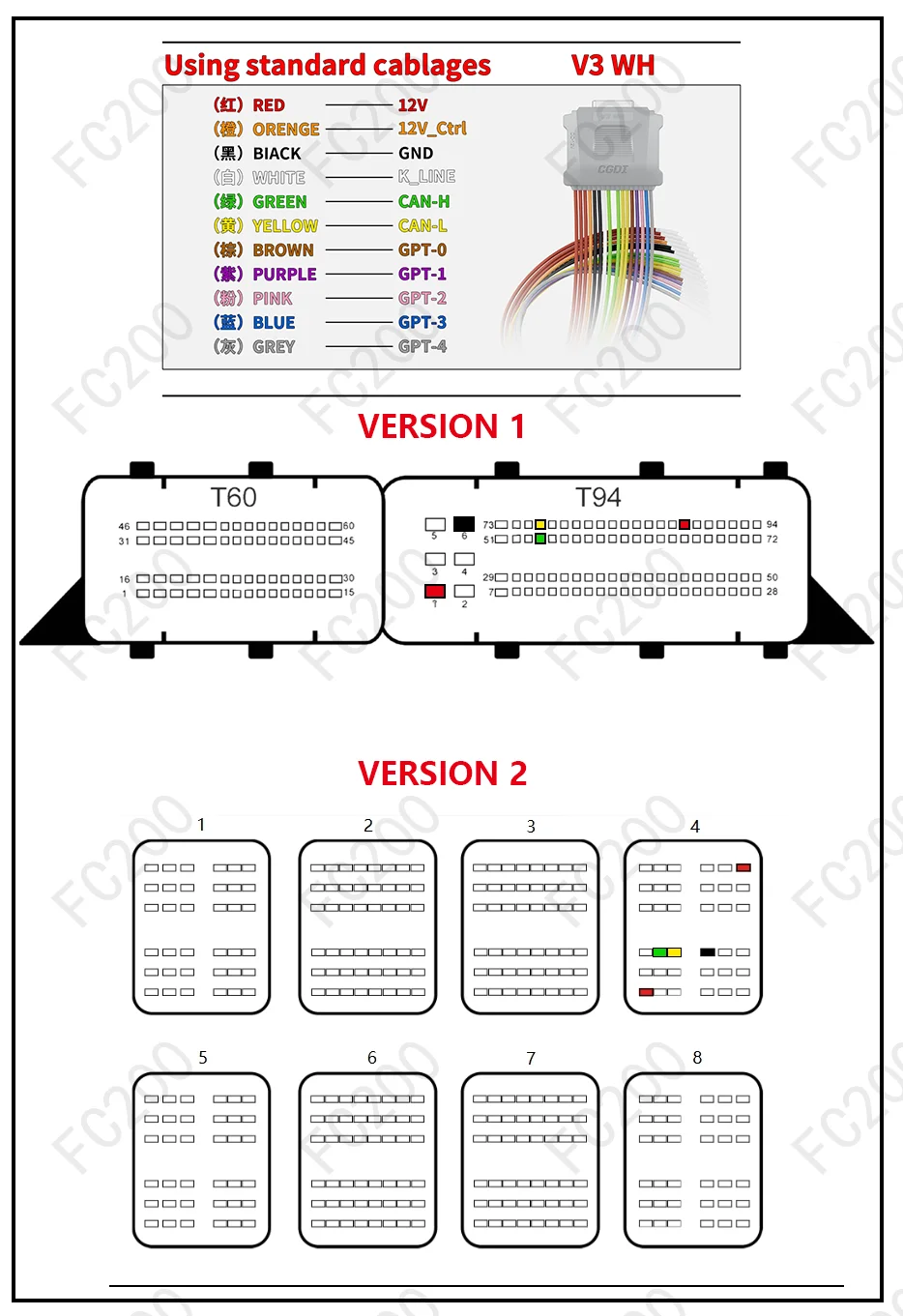

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CE100.png (Locked Boot/Bench)281,606 bytes
Locked_Bench BOSCH MD1CE100.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU CE100 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Dongfeng All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MD1CE100 (TC299TP) Open Vehicle →
MAN TGL(III) (4580 D0834 190) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGL(III) (6871 D0836 250) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGL(III) (4580 D0834 160) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGL(III) (4580 D0834 220) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGM(II) (6871 D0836 250) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGM(II) (6871 D0836 319) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGM(II) (6871 D0836 290) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGX(IV) (15256 D3876 640) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGX(IV) (12419 D2676 430) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGX(IV) (12419 D2676 470) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGX(IV) (12419 D2676 510) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGX(IV) (152256 D3876 540) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGX(IV) (15256 D3876 581) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
MAN TGX 18420 (12000 D26 III version 426) BOSCH MD1CE100 (TC299TP) Open Vehicle →
Dongfeng All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CE100 (TC299TP) Open Vehicle →
MAN All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CE100 (TC299TP) Open Vehicle →
MAN All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CE100 TC299 (test) Open Vehicle →
Sinotruk / Howo / Sitrak P1708_V616_V9 (CN6 / Euro-6) Bosch Bosch MD1CE100 / MD1CE108 / MD1CC878 (Infineon AURIX TC299 / TC277) Open Vehicle →
Heavy Machinery: SANY / XCMG / SDLG / Zoomlion / Shacman P2089_SANY_D09_V6610_CNT (CN6 / Euro-6) Bosch Bosch MD1CE100 / MD1CE108 / MD1CC878 (Infineon AURIX TC299 / TC277) Open Vehicle →
Heavy Machinery: SANY / XCMG / SDLG / Zoomlion / Shacman P2089_SANY_D09_V5610_CNT (CN6 / Euro-6) Bosch Bosch MD1CE100 / MD1CE108 / MD1CC878 (Infineon AURIX TC299 / TC277) Open Vehicle →
JAC P1968_JAC_V5700_CNT (CN6 / Euro-6) Bosch Bosch MD1CE100 / MD1CE108 / MD1CC878 (Infineon AURIX TC299 / TC277) Open Vehicle →
