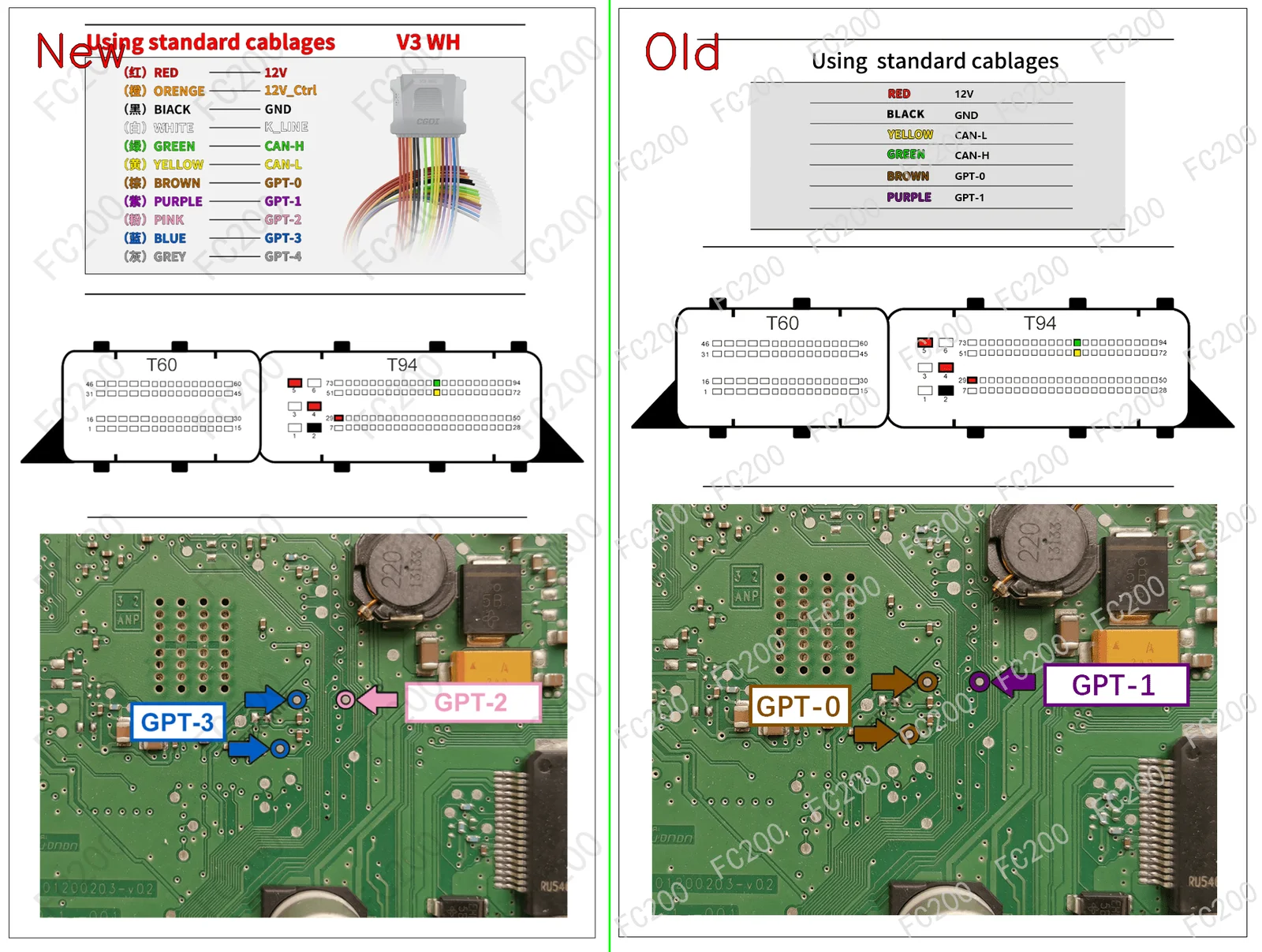

OFFICIAL PINOUT DIAGRAM: BOOT_KEFICO CPEGD2.20.4.png (Boot)2,522,559 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU CPEGD2.20.4 (11)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Hyundai	Elantra GT(GD) (1600 GDI 7 Speed DCT Ecoshift 135)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Hyundai	KonaOS (998 G3LC 120)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Kia	X-CeedX (1389 • 140)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Kia	Ceed (998 G3LC 120)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Kia	Picanto (998 KAPPA 99)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Kia	Stonic(YB) (998 G3LC 120)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Ssangyong	Korando (1500 • 117)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Hyundai	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, CheckSum)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Kia	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, CheckSum)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Ssangyong	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, CheckSum)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →
Universal ECU Protocol	Pryamoy protokol chteniya ECU na stole (Platform Bench Mode 2) (Direct Bench / Boot ECU Connector Pinout)	`KEFICO CPEGD2.20.4` (TC1782)	Open Vehicle →

ECU Pinout CPEGD2.20.4 Bench / Boot / GPT Pinout — Wiring Diagram
