ECU Pinout DCM7.24 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU DCM7.24 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

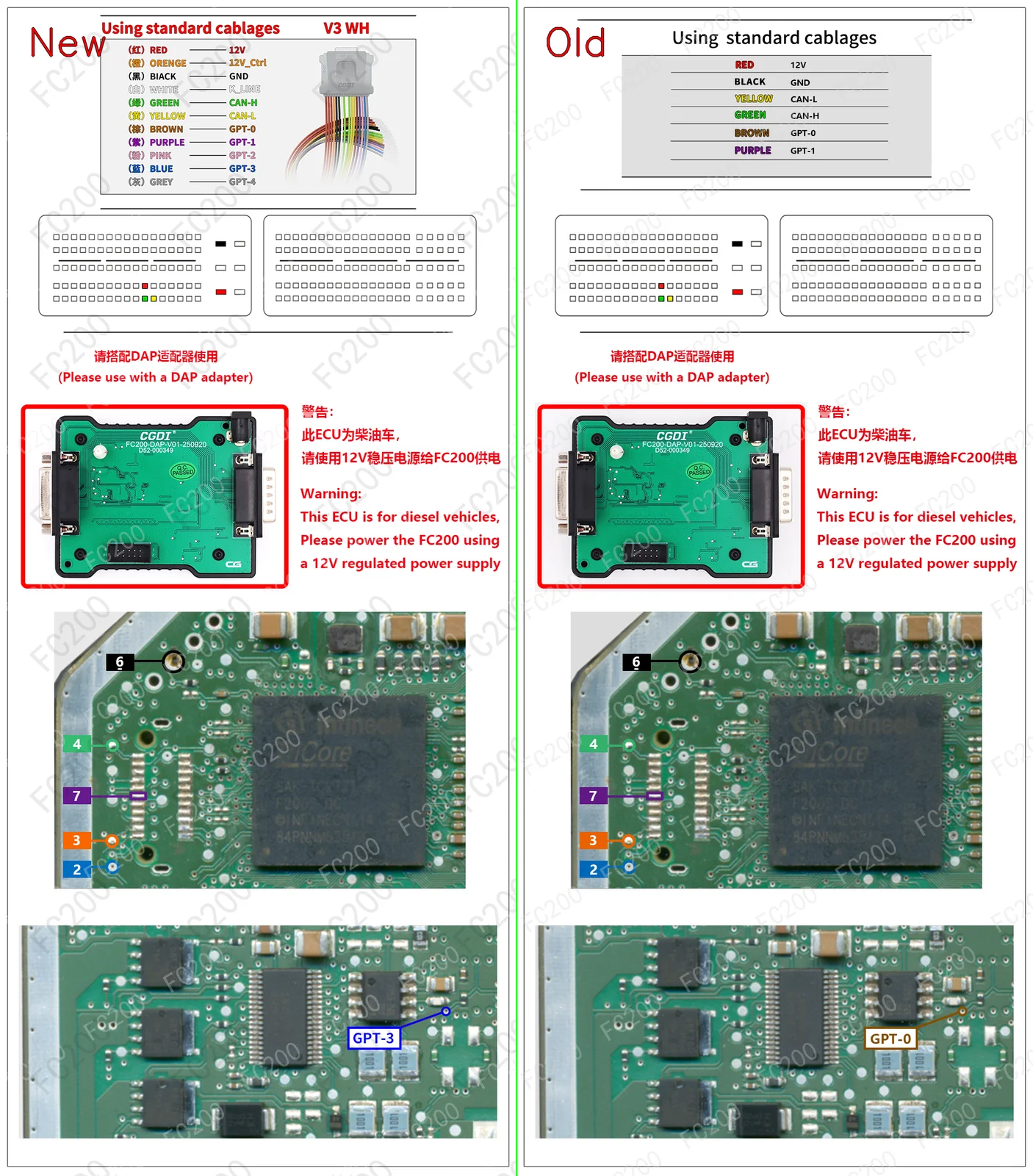

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM7.24.png (Boot)3,763,884 bytes
BOOT_DELPHI DCM7.24.png

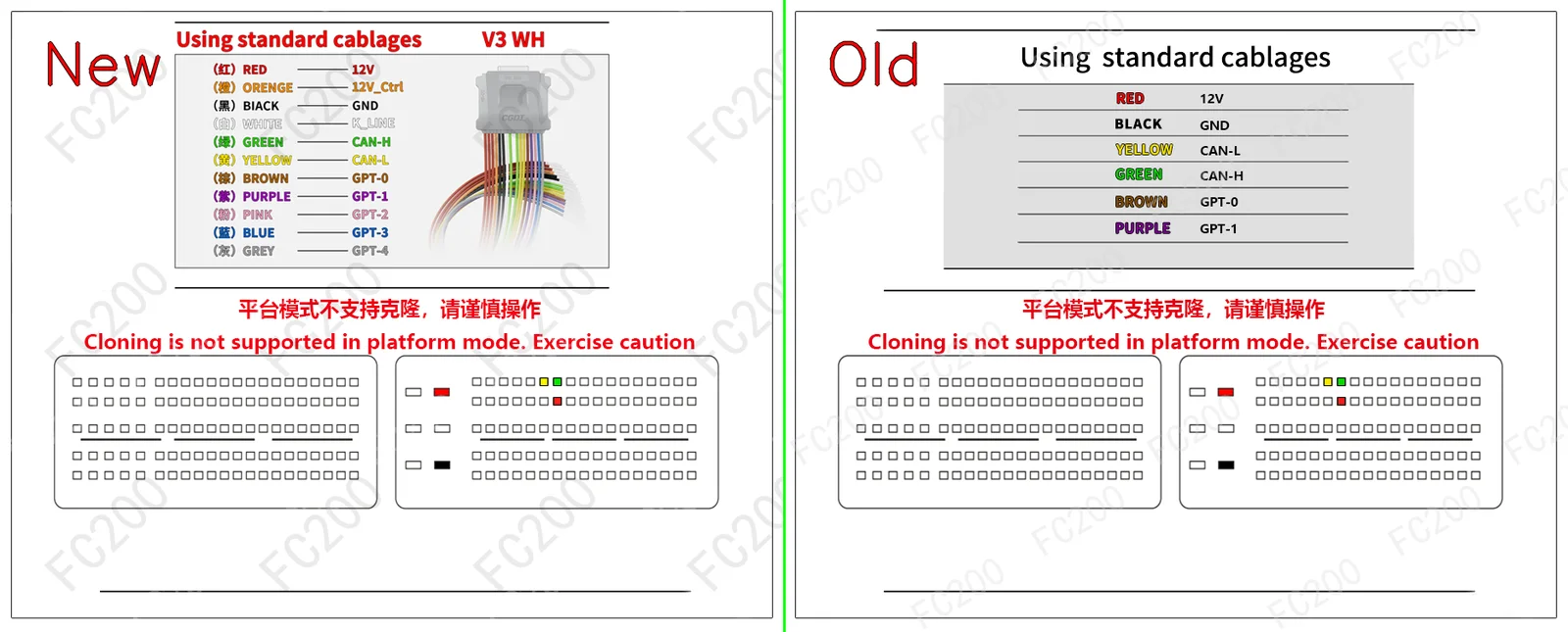

OFFICIAL PINOUT DIAGRAM: DELPHI _DCM7.24_CHINA.png (Platform / Bench)542,147 bytes
DELPHI _DCM7.24_CHINA.png

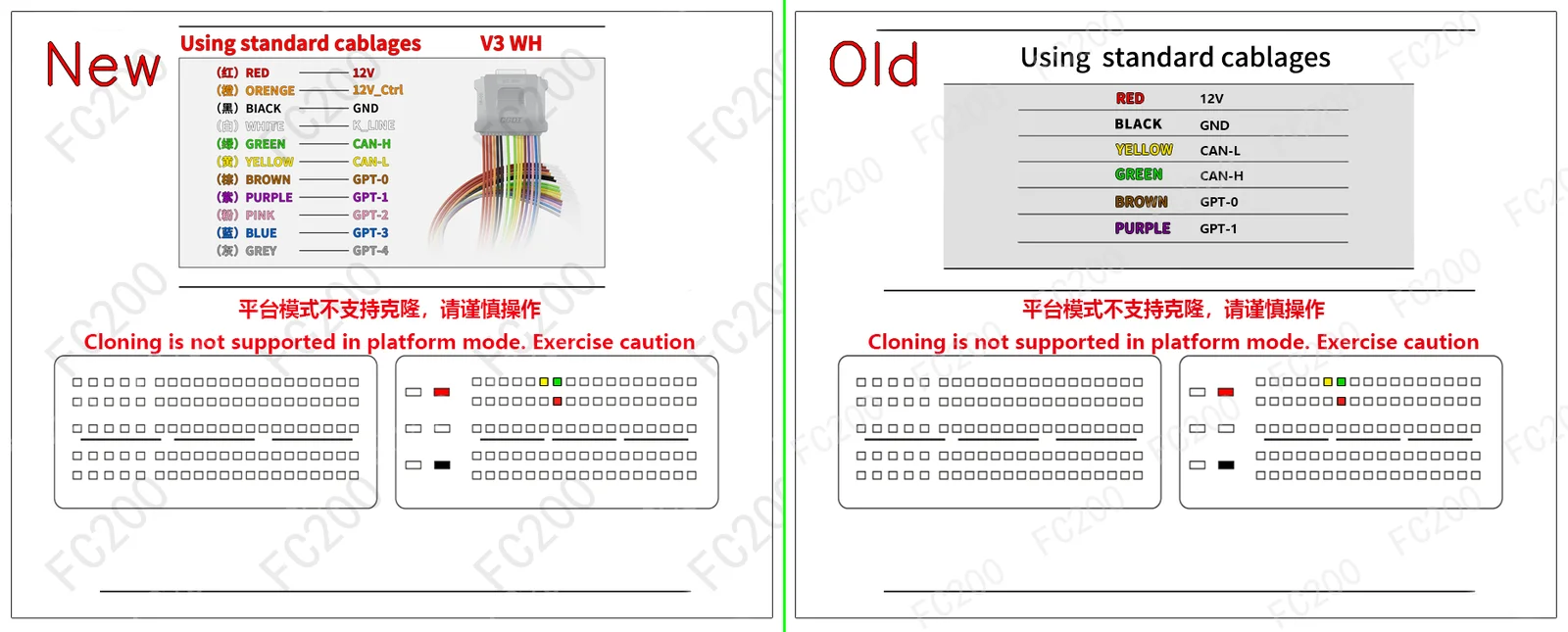

OFFICIAL PINOUT DIAGRAM: DELPHI _DCM7.24_test.png (Platform / Bench)528,889 bytes
DELPHI _DCM7.24_test.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU DCM7.24 (13)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
JCB Diesel (Diesel) DELPHI _DCM7.24_test (TC277T) Open Vehicle →
Mahindra Diesel (Diesel) DELPHI _DCM7.24_test (TC277T) Open Vehicle →
Tata Diesel (Diesel) DELPHI _DCM7.24_test (TC277T) Open Vehicle →
JCB All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH, CheckSum) DELPHI _DCM7.24_test (TC277T) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) DELPHI _DCM7.24_test (TC277T) Open Vehicle →
BAIC All Models with Delphi System (Universal Protocol) (Diesel) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
Dongfeng All Models with Delphi System (Universal Protocol) (Diesel) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
Great Wall / Haval / Tank All Models with Delphi System (Universal Protocol) (Diesel) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
JAC All Models with Delphi System (Universal Protocol) (Diesel) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
Dongfeng All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH, CheckSum) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
Great Wall / Haval / Tank All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH, CheckSum) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
JAC All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH, CheckSum) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) DELPHI _DCM7.24_CHINA (TC277T) Open Vehicle →
