ECU Pinout DCU17PC42 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU DCU17PC42 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

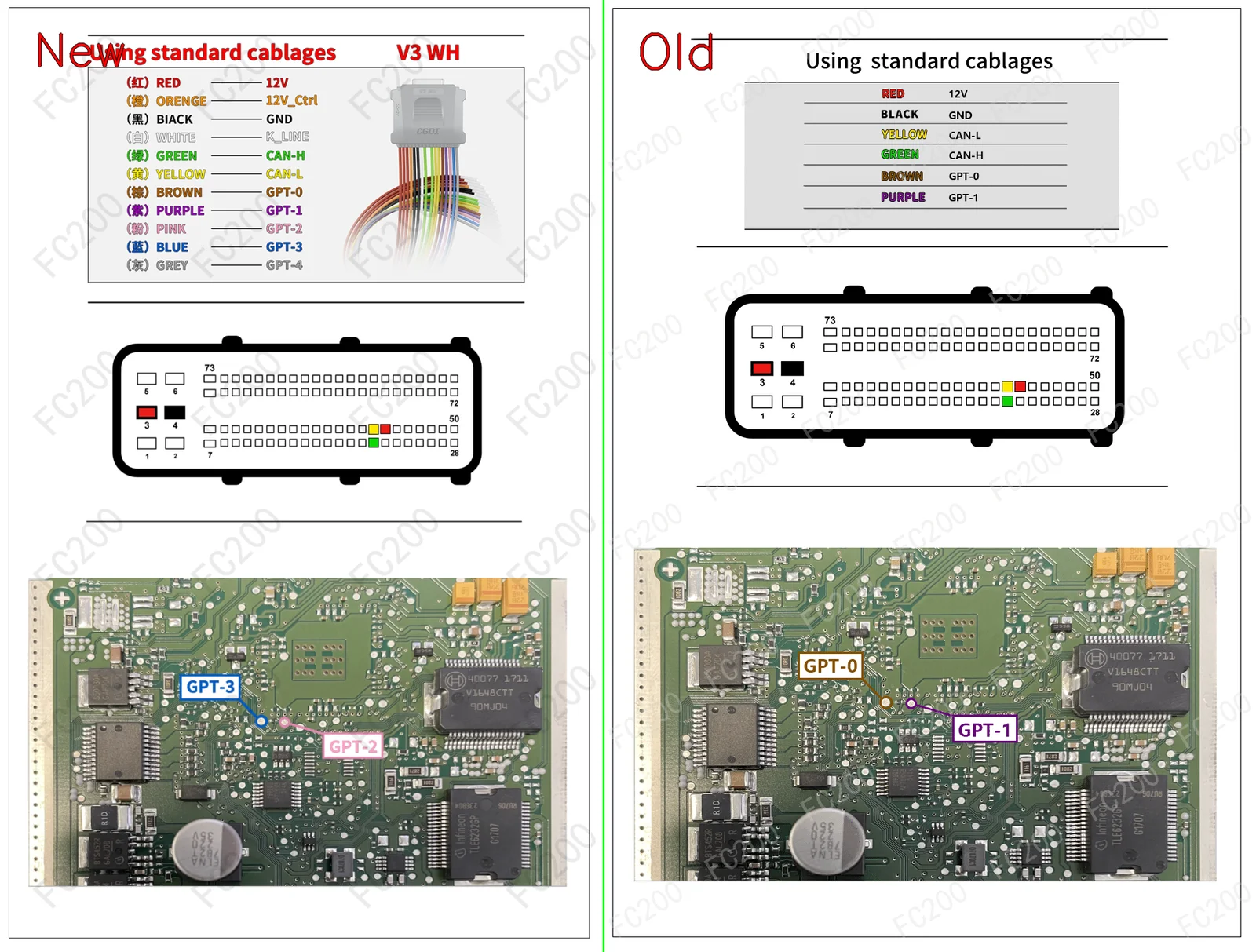

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH DCU17PC42.png (Boot)2,374,619 bytes
BOOT_BOSCH DCU17PC42.png

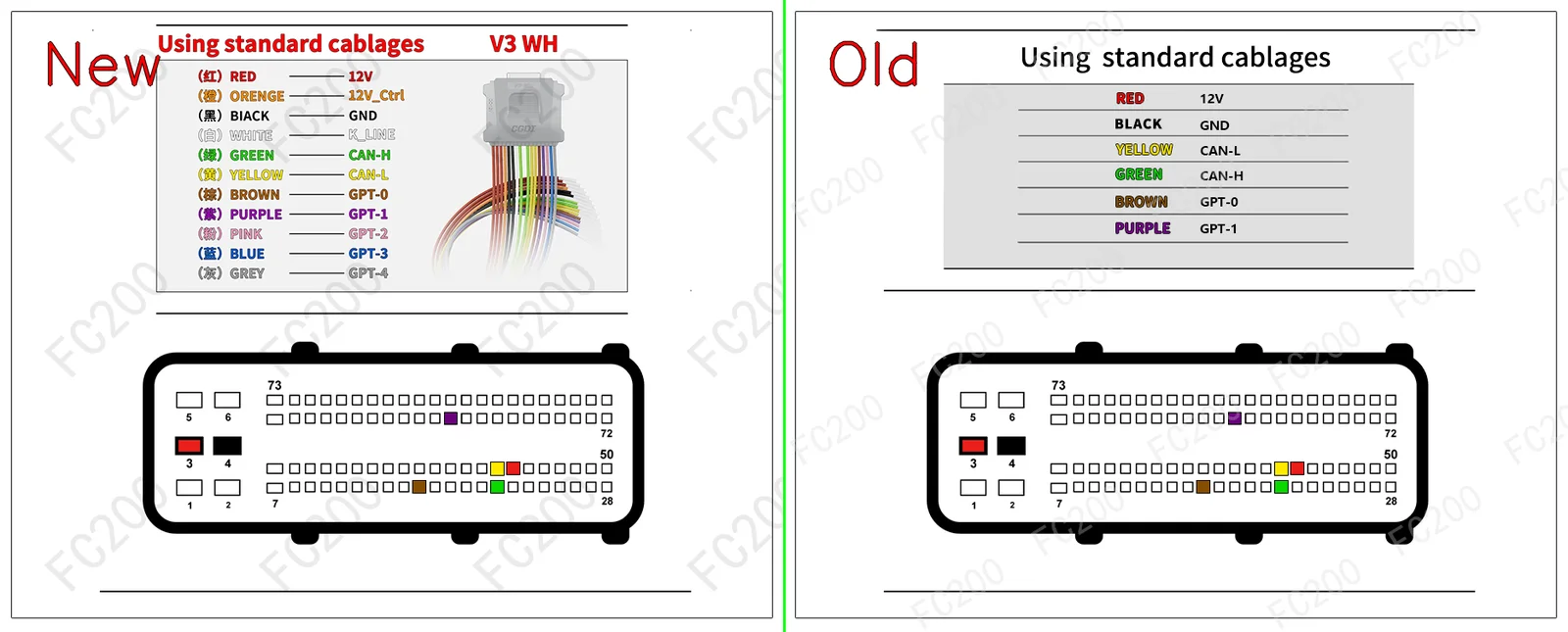

OFFICIAL PINOUT DIAGRAM: BOSCH DCU17PC42.png (Platform / Bench)443,807 bytes
BOSCH DCU17PC42.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU DCU17PC42 (20)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Fiat Talento(296) (1598 R9MH4 121) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Hyundai H350 (2497 D4CB 150) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mazda CX-5(KE) (2500 Skyactiv-G 4X4 PY-VPS 192) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mazda CX-5(KE) (2500 Skyactiv-G 4X4 PY-VPS 186) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mazda CX-5(KE) (2500 Skyactiv-G PY-VPS 192) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mazda CX-5(KE) (2500 Skyactiv-G PY-VPS 186) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mazda CX-5(KF) (2500 Skyactiv-G 4X4 PY-VPS 194) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mercedes-Benz Sprinter(W907) (2143 OM651.958 145) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mercedes-Benz Vito(W447) (1749 R9N 103) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mercedes-Benz Vito(W447) (2143 651950 136) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Opel Vivaro(B) (1.6 BiTurbo CDTi R9M 90) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Renault Trafic(III) (1600 dCi R9M 452 146) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Vauxhall Vivaro(B) (1600 dCi R9M 125) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Fiat All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Hyundai All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mazda All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Opel All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Renault All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17PC42 (TC1724) Open Vehicle →
Vauxhall All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17PC42 (TC1724) Open Vehicle →
