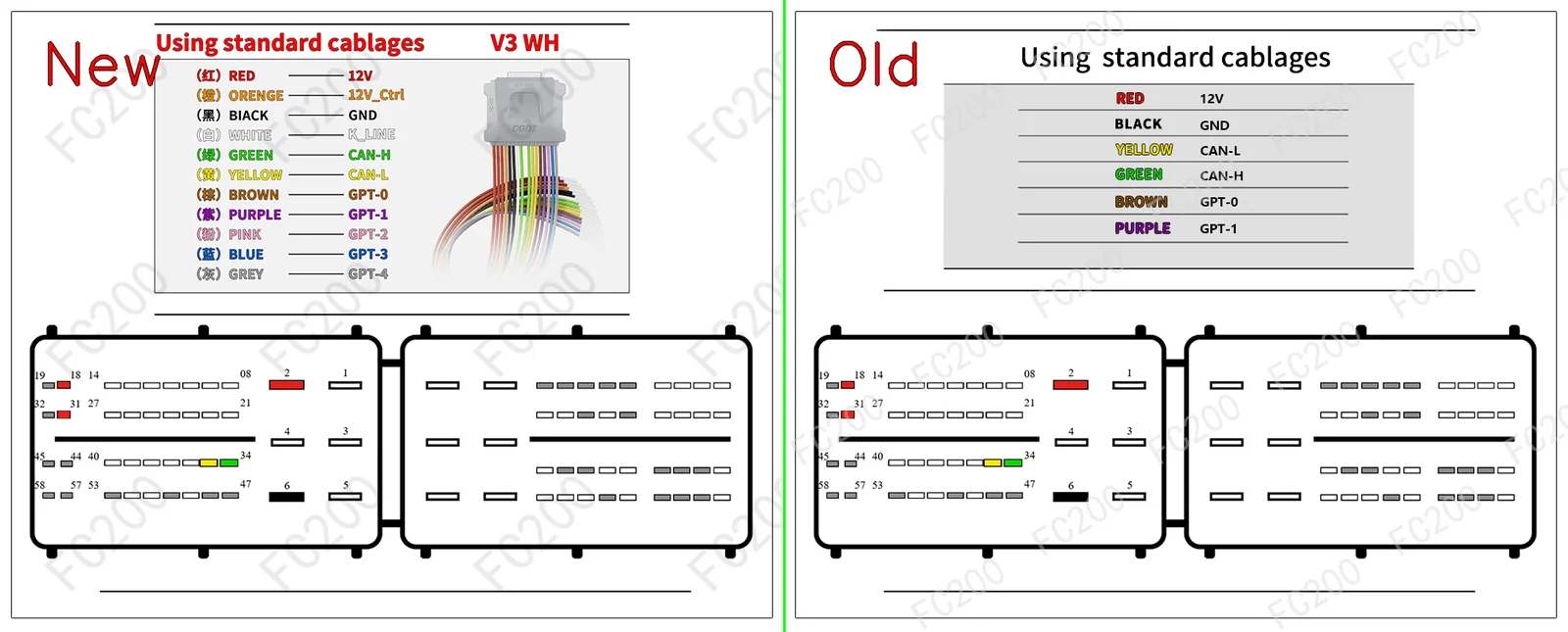

OEM PINOUT DIAGRAM: DPS6.png (Platform / Bench)446,899 bytes
STEP-BY-STEP BENCH CONNECTION PROTOCOL (HOWTO)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 power): Apply stabilized
13.5V — 13.8Vto the permanent power (T30) and ignition (T15) pins, plus ground (GND), following the cable color coding above. - Step 2 (CAN bus & GPT0 / GPT1 generator lines): Connect the
CAN-HandCAN-L, plus the signal wiresGPT0 (S1)andGPT1 (S2)to enter service mode without opening the ECU case. - Step 3 (Full PFLASH + DFLASH backup read): Before any write operation, read and save a full backup of the internal flash (
PFLASH) and the EEPROM area (DFLASH).
VEHICLES FITTED WITH THE DPS6 ECU (10)FITMENT
| Brand | Model & Engine | ECU & MCU | Open |
|---|---|---|---|
| Ford | Aspire (Powershift 6 Speed 6DCT250) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | B-Max(II) (1600 6DCT250 100) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | C-Max(DXA) (1500 TDCi 6DCT250 120) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | Ecosport(JK8) (1500 Ti-VCT UEJE 110) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | Ecosport(JK8) (1500 Ti-VCT UEJB 110) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | Fiesta(Jx8) (1000 EcoBoost 6DCT250 100) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | Figo(B517) (Powershift 6 Speed 6DCT250) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | Focus(DY) (1500 TDCi 6DCT250 120) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | Tourneo (1500 TDCi 6DCT250 120) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
| Ford | All Models (Direct ECU Connection) (Read/Write DFLASH/PFLASH/ExtEEPROM/Maps, CheckSum) | CONTINENTAL DPS6 (TC1766) |
Open vehicle → |
