ECU Pinout EDC16C39 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC16C39 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

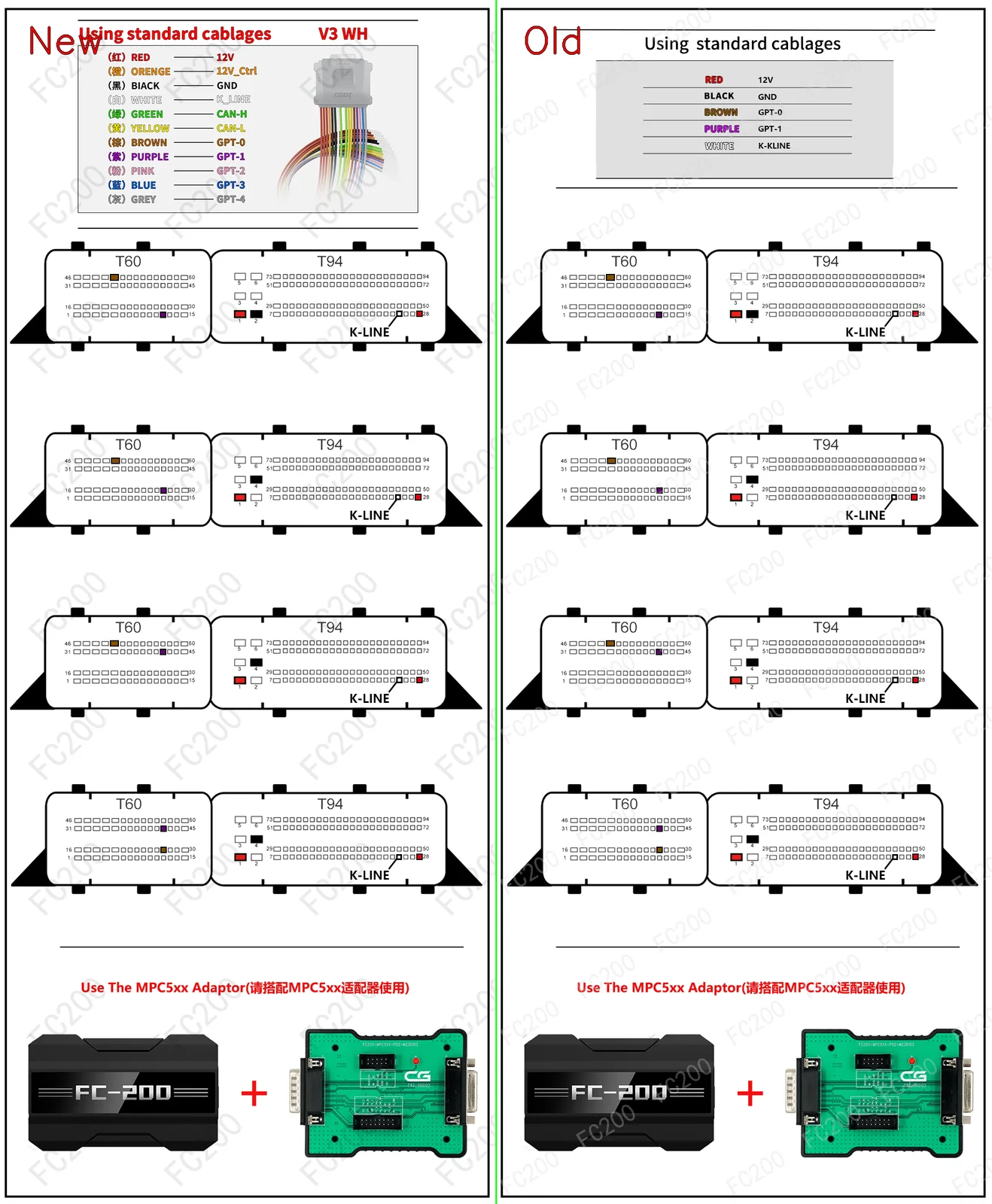

OFFICIAL PINOUT DIAGRAM: BOSCH EDC16C39 MPC561_2.png (Platform / Bench)1,689,913 bytes
BOSCH EDC16C39 MPC561_2.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC16C39 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Aebi Swingo (3.0L I4 R 754 75) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2.0 AHR<DW10FD>) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1.9 JTD 937.A2.000 110) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2.0 JDTM 939.B3.000 170) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1900 JTDM 937.A5.000 150) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1900 JTDM 937.A3.000 120) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1900 JTDM 939.A7.000 116) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1900 JTDM 192.B1.000 136) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1900 JTDM 937.A6.000 170) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1.9 JTD 937.A5.000 150) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1.9 JTD 939.A7.000 116) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1900 JTDM 939.A1.000 120) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1900 JTDM 939.A2.000 150) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2400 JTDM 939.A3.000 200) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (1.9 JTD 939A1000 120) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2.4 JTD 939.A3000 200) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2.8 JTD 939A9000 210) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2.4 JTD 939.B3.000 136) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2400 JTD Q4 939.A9.000 209) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2000 JTDM 937.A8.000 136) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2400 JTD 939.A9.000 209) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Modifikatsiya ECU EDC16C39 (2000 JTDM 939.B3.000 170) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Brera(939) (2400 JTDM 939.A3.000 200) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
Alfa Romeo Brera(939) (2.8 JTD 939A9000 210) BOSCH EDC16C39 MPC561/2 (test) Open Vehicle →
