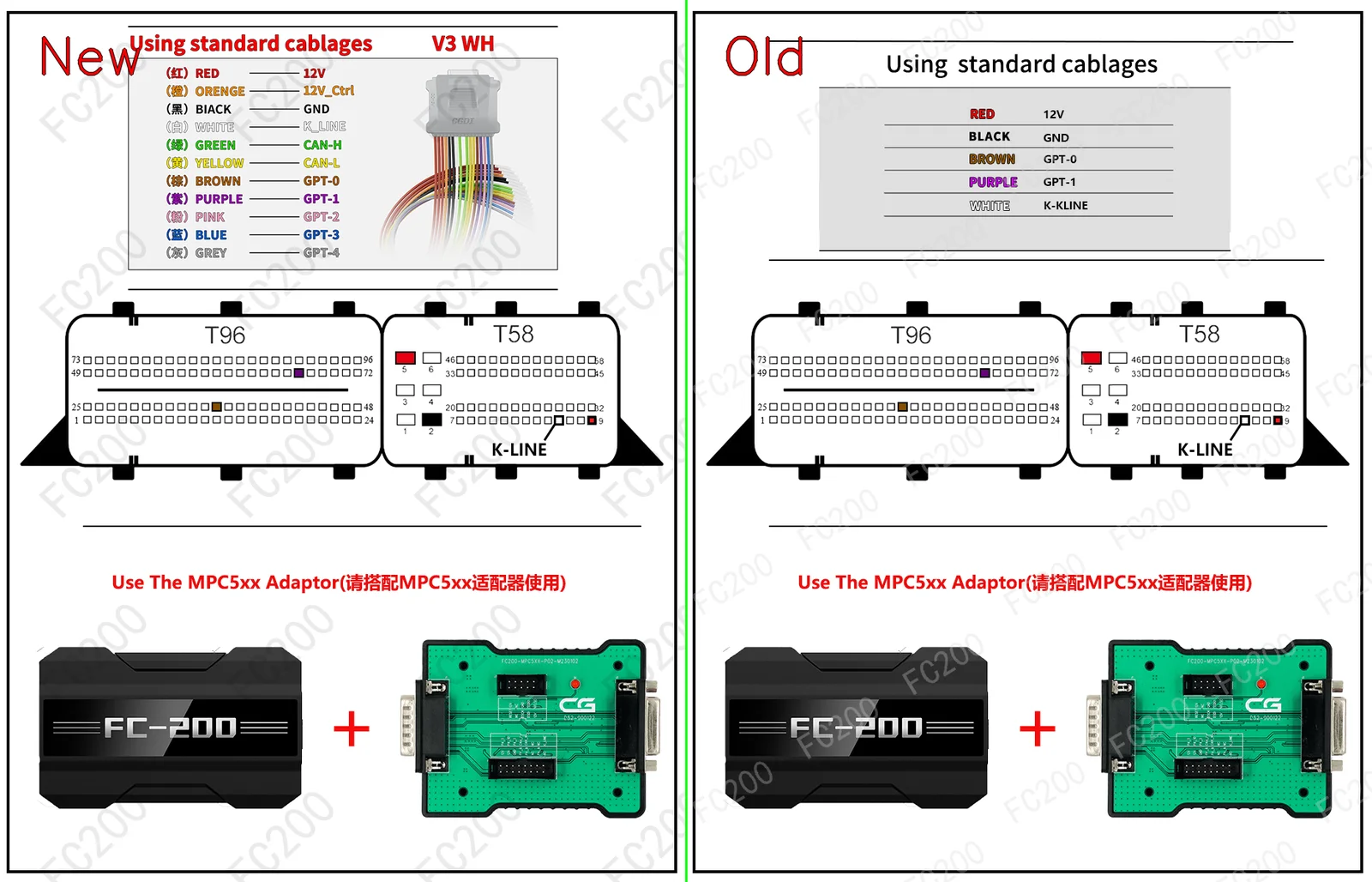

OFFICIAL PINOUT DIAGRAM: BOSCH EDC16C41 MPC561_2.png (Platform / Bench)1,042,733 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC16C41 (4)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Nissan | Atleon35.13 (953 ZD30kai 150) | BOSCH EDC16C41 MPC561/2 (test) |
Open Vehicle → |
| Nissan | All Brand Models (Direct ECU Label Lookup) (Read/Write ExtEEPROM/ExtFLASH, CheckSum) | BOSCH EDC16C41 (MPC561/2) |
Open Vehicle → |
| Renault | All Brand Models (Direct ECU Label Lookup) (Read/Write ExtEEPROM/ExtFLASH, CheckSum) | BOSCH EDC16C41 (MPC561/2) |
Open Vehicle → |
| Universal ECU Protocol | Universalnyy protokol Bosch MPC5xx / Delphi MTxx / Continental Easy-U (Direct Bench / Boot ECU Connector Pinout) | BOSCH EDC16C41 MPC561/2 (test) |
Open Vehicle → |
