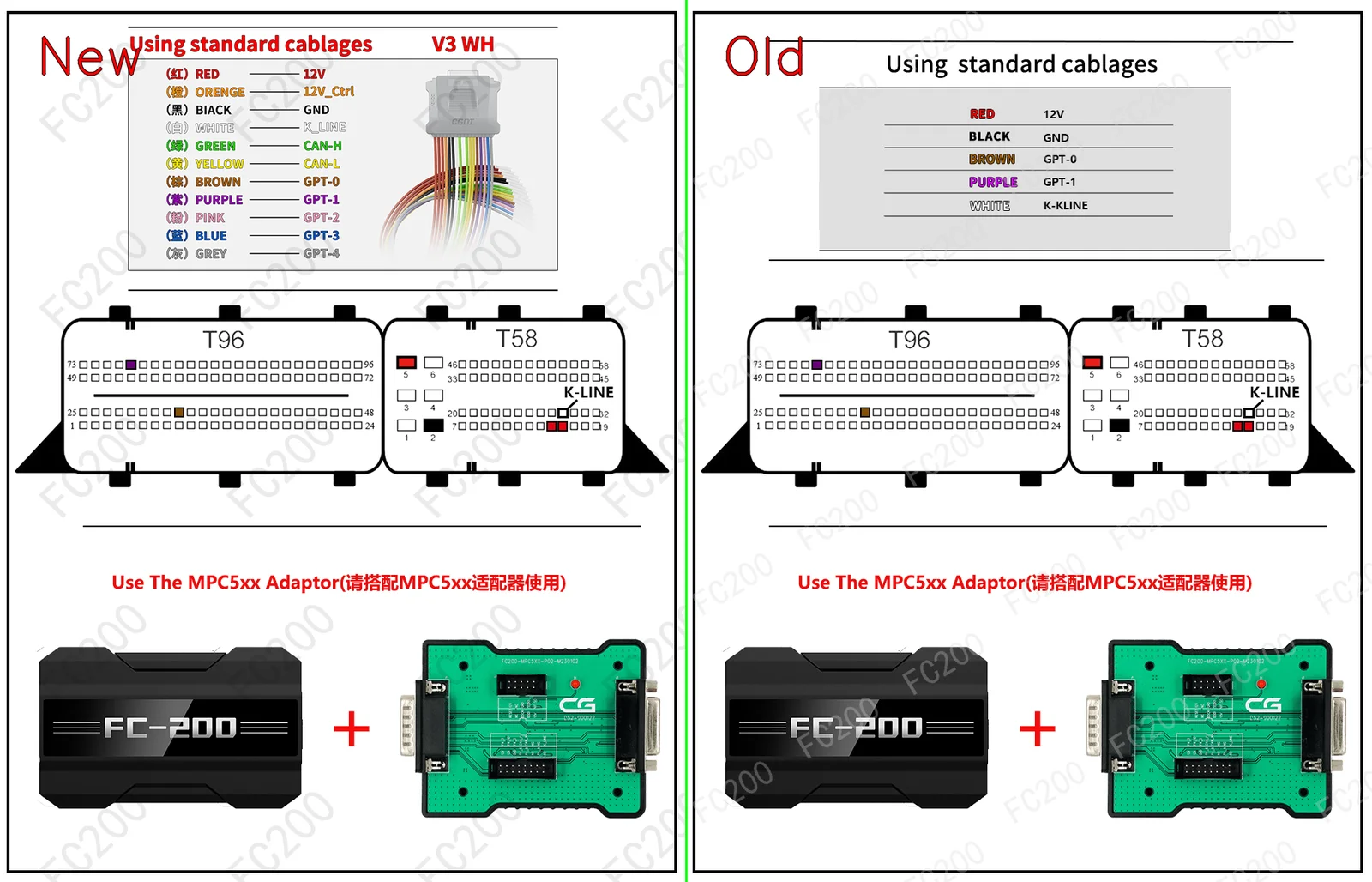

OEM PINOUT DIAGRAM: BOSCH EDC16CP36 MPC563_4.png (Platform / Bench)1,047,825 bytes
STEP-BY-STEP BENCH CONNECTION PROTOCOL (HOWTO)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 power): Apply stabilized
13.5V — 13.8Vto the permanent power (T30) and ignition (T15) pins, plus ground (GND), following the cable color coding above. - Step 2 (CAN bus & GPT0 / GPT1 generator lines): Connect the
CAN-HandCAN-L, plus the signal wiresGPT0 (S1)andGPT1 (S2)to enter service mode without opening the ECU case. - Step 3 (Full PFLASH + DFLASH backup read): Before any write operation, read and save a full backup of the internal flash (
PFLASH) and the EEPROM area (DFLASH).
VEHICLES FITTED WITH THE EDC16CP36 ECU (7)FITMENT
| Brand | Model & Engine | ECU & MCU | Open |
|---|---|---|---|
| Mercedes-Benz | E-Class(W211) (420 CDI OM629DE40LA 314) | BOSCH EDC16CP36 MPC563/4 (test) |
Open vehicle → |
| Mercedes-Benz | GL-Class(X164) (420 CDI OM629DE40LA 306) | BOSCH EDC16CP36 MPC563/4 (test) |
Open vehicle → |
| Mercedes-Benz | ML-Class(W164) (420 CDI OM629DE40LA 306) | BOSCH EDC16CP36 MPC563/4 (test) |
Open vehicle → |
| Mercedes-Benz | S-Class(W221) (320 3000 CDI OM642DE30LA 224) | BOSCH EDC16CP36 MPC563/4 (test) |
Open vehicle → |
| Mercedes-Benz | S-Class(W221) (420 CDI OM629DE40LA 320) | BOSCH EDC16CP36 MPC563/4 (test) |
Open vehicle → |
| Universal ECU Protocol | Universal Bosch MPC5xx / Delphi MTxx / Continental Easy-U Protocol (Direct bench connector access (Bench / Boot)) | BOSCH EDC16CP36 MPC563/4 (test) |
Open vehicle → |
| Mercedes-Benz | All Models (Direct ECU Connection) (Read/Write PFLASH/ExtEEPROM/ExtFLASH, CheckSum) | BOSCH EDC16CP36 (MPC563/4) |
Open vehicle → |
