ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout EDC17C42 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C42 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

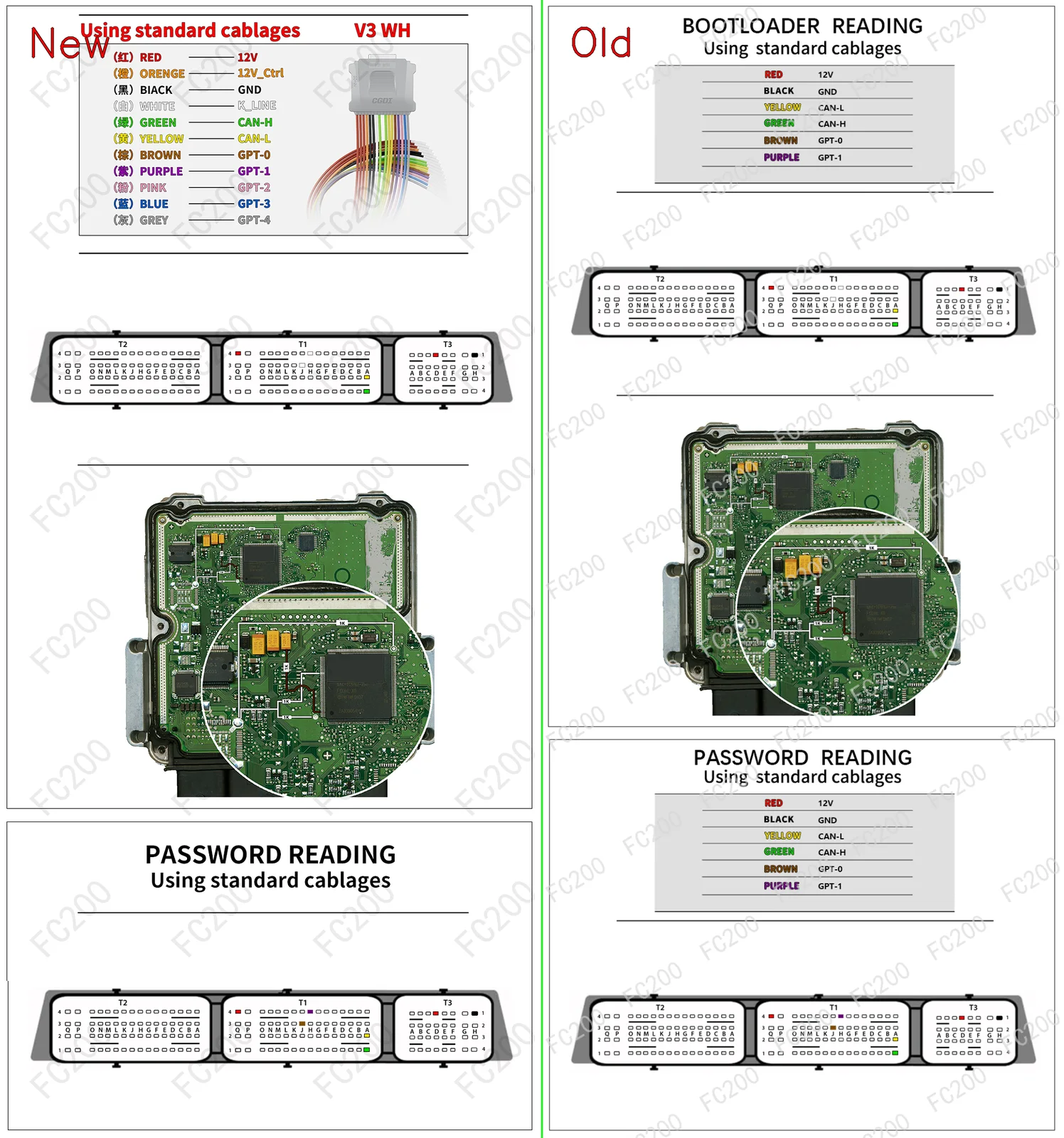

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C42.png (Boot)2,541,527 bytes
BOOT_BOSCH EDC17C42.png

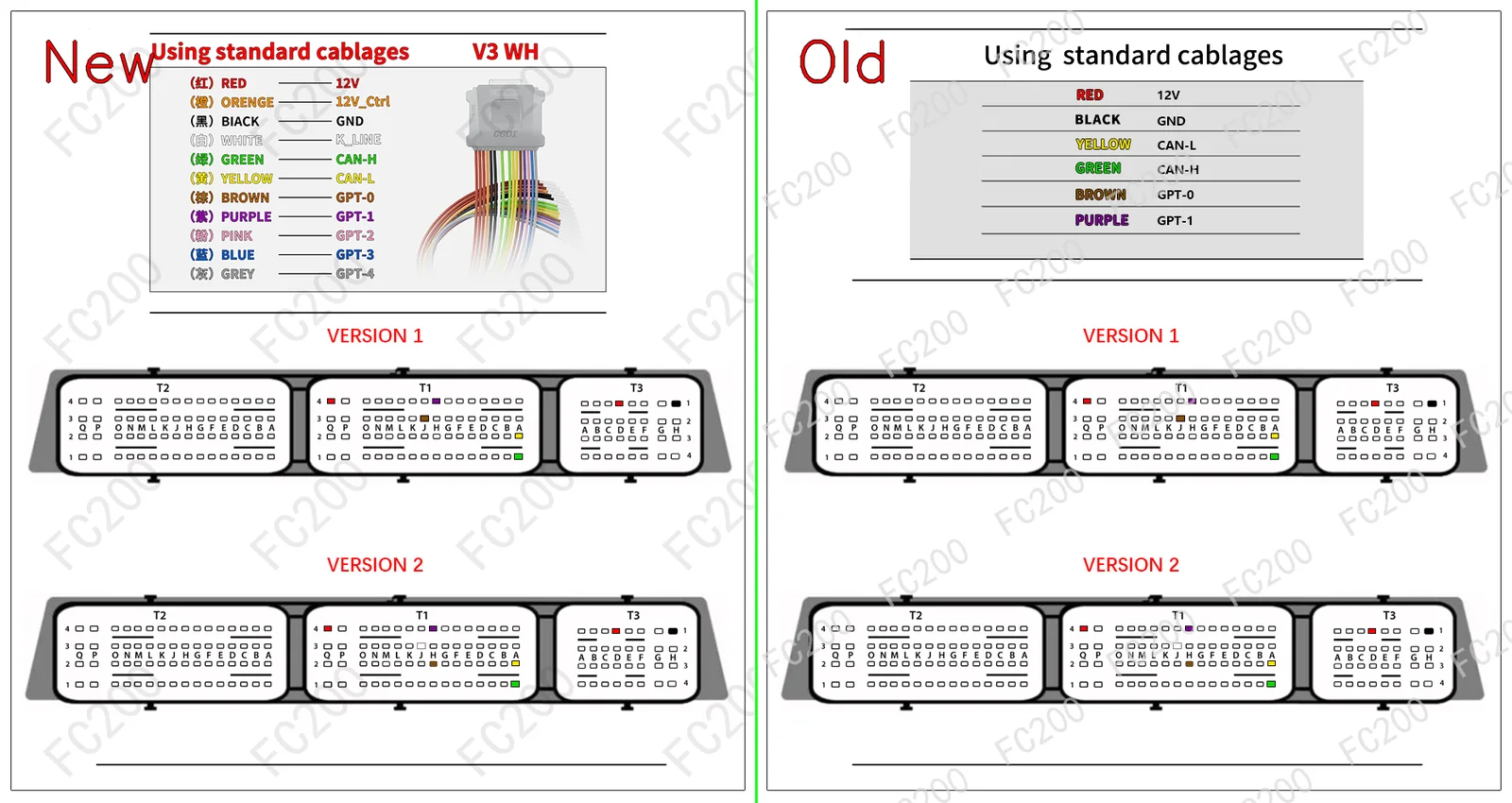

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C42.png (Platform / Bench)803,179 bytes
BOSCH EDC17C42.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C42 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Dacia Dokker(FE / KE) (1500 dCi • 75) BOSCH EDC17C42 (TC1767) Open Vehicle →
Dacia Dokker(FE / KE) (1500 dCi • 90) BOSCH EDC17C42 (TC1767) Open Vehicle →
Dacia Sandero Stepway(B8) (1500 dCi • 90) BOSCH EDC17C42 (TC1767) Open Vehicle →
Fiat Talento(296) (1600 Ecojet TwinTurbo R9MMA 140) BOSCH EDC17C42 (TC1767) Open Vehicle →
Fiat Talento(296) (1600 Ecojet TwinTurbo R9MMB 120) BOSCH EDC17C42 (TC1767) Open Vehicle →
Fiat Talento(296) (1600 Ecojet TwinTurbo R9MMC 120) BOSCH EDC17C42 (TC1767) Open Vehicle →
Fiat Talento(296) (1600 Ecojet TwinTurbo R9MMG 145) BOSCH EDC17C42 (TC1767) Open Vehicle →
Fiat Talento(296) (1600 Ecojet TwinTurbo R9MMH 125) BOSCH EDC17C42 (TC1767) Open Vehicle →
Mercedes-Benz Citan(W415) (108 1500 dCi OM607.951 75) BOSCH EDC17C42 (TC1767) Open Vehicle →
Mercedes-Benz Citan(W415) (109 1500 dCi OM607.951 90) BOSCH EDC17C42 (TC1767) Open Vehicle →
Mercedes-Benz Citan(W415) (110 1500 dCi OM607.951 110) BOSCH EDC17C42 (TC1767) Open Vehicle →
Nissan Note(E12) (1500 dCi Turbo • 90) BOSCH EDC17C42 (TC1767) Open Vehicle →
Nissan Qashqai(J10) (1598 R9MD4 163) BOSCH EDC17C42 (TC1767) Open Vehicle →
Nissan Qashqai(J10) (1600 dCi • 128) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(A) (2000 CDTI M9R630 115) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(B) (1600 R9M 90) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(B) (1600 R9M 116) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(B) (1600 R9M 120) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(B) (1600 R9M 125) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(B) (1600 R9M 140) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(B) (1600 R9M 146) BOSCH EDC17C42 (TC1767) Open Vehicle →
Opel Vivaro(B) (1600 R9M 95) BOSCH EDC17C42 (TC1767) Open Vehicle →
Renault Captur(J5) (1500 dCi • 89) BOSCH EDC17C42 (TC1767) Open Vehicle →
Renault Clio(IV) (1500 dCi • 90) BOSCH EDC17C42 (TC1767) Open Vehicle →
