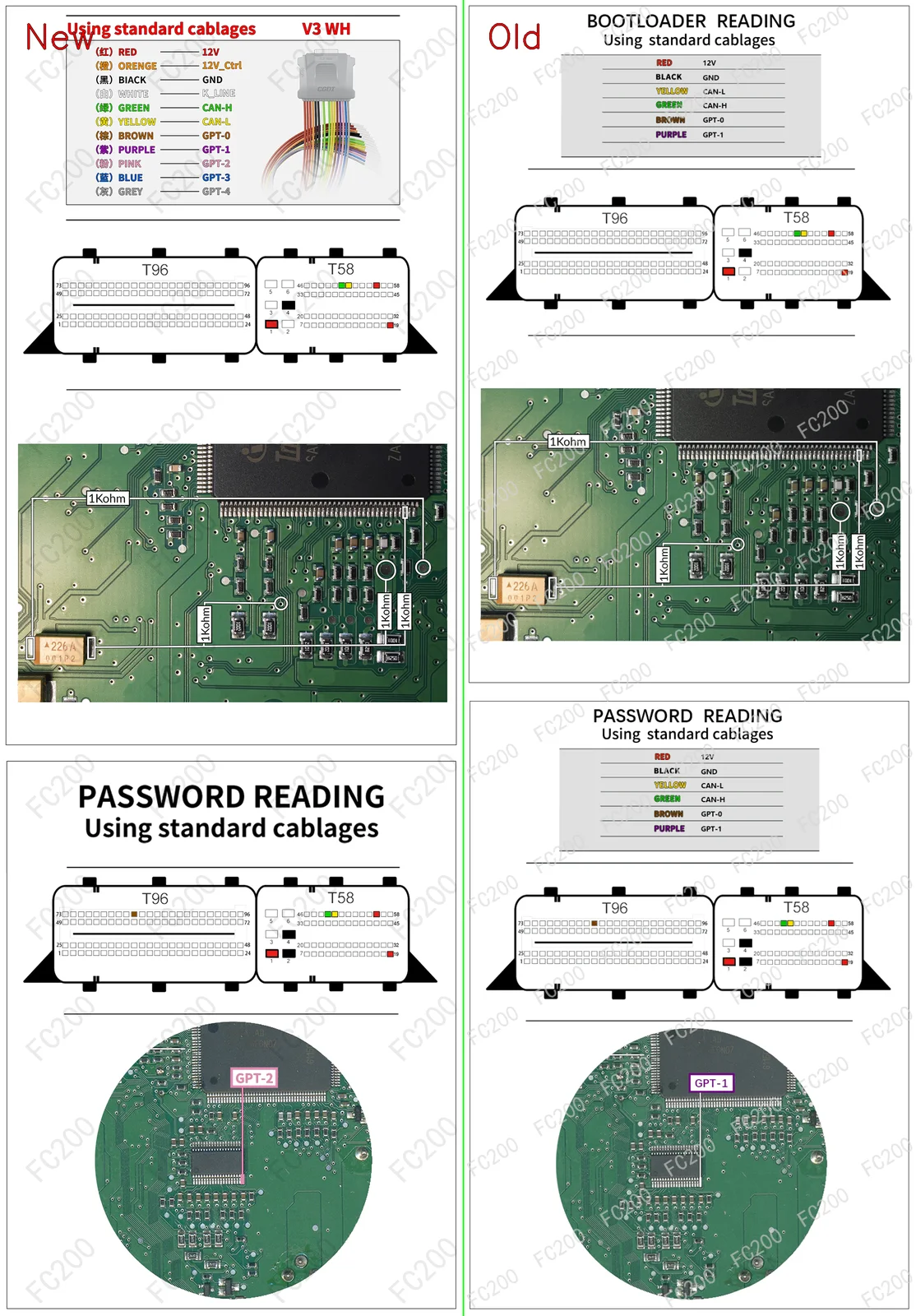

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C45.png (Boot)4,502,574 bytes

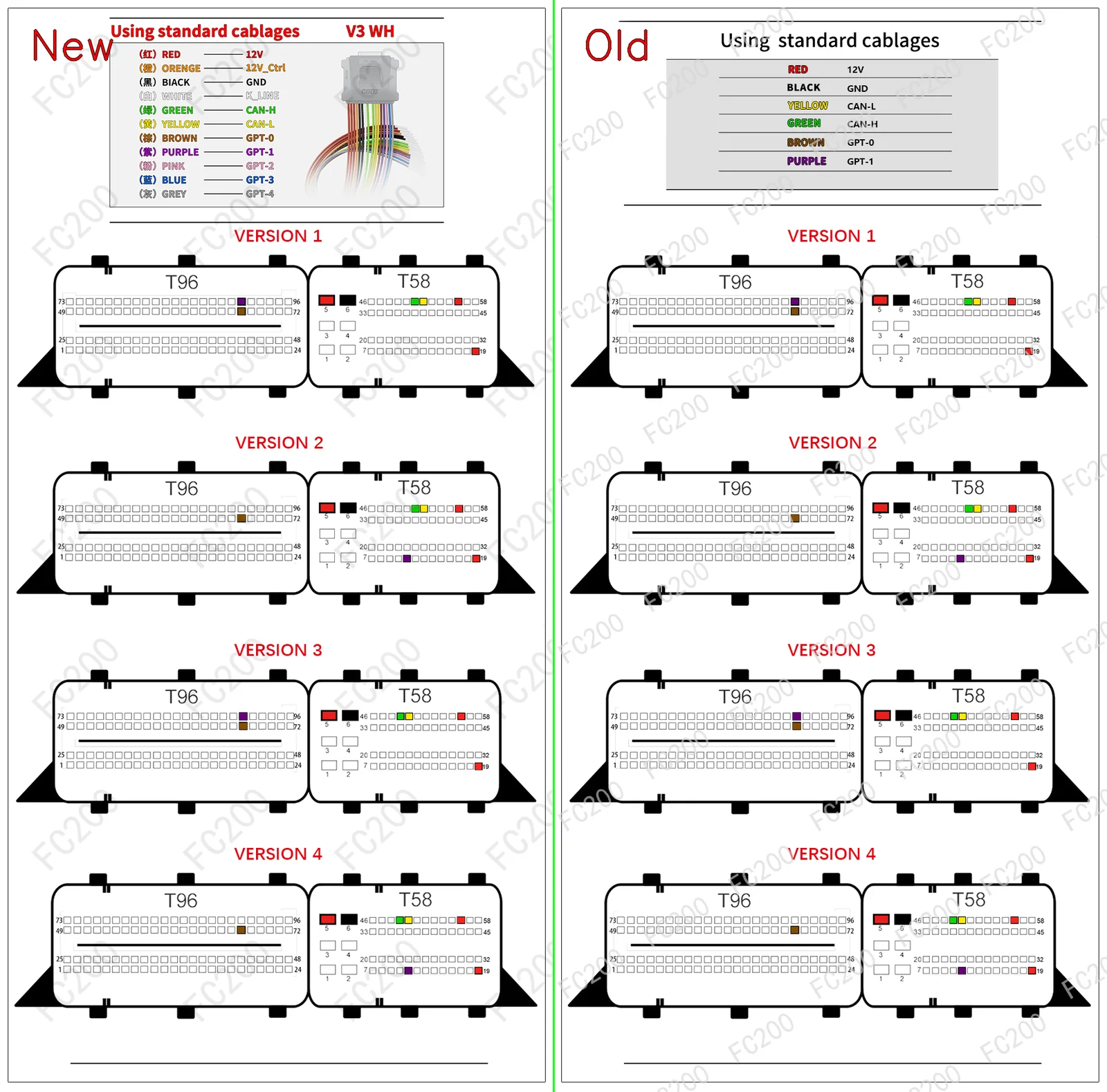

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C45.png (Platform / Bench)1,309,996 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C45 (7)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Nissan | Atleon(II) (3000 ZD30Kai 150) | BOSCH EDC17C45 (TC1767) |
Open Vehicle → |
| Nissan | NT500 (2953 ZD30 150) | BOSCH EDC17C45 (TC1767) |
Open Vehicle → |
| Renault | Master(III) (3000 dCi • 150) | BOSCH EDC17C45 (TC1767) |
Open Vehicle → |
| Renault | D(I) (150 3000 DTI 3 150) | BOSCH EDC17C45 (TC1767) |
Open Vehicle → |
| Renault | D(I) (180 3000 DTI 3 179) | BOSCH EDC17C45 (TC1767) |
Open Vehicle → |
| Nissan | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) | BOSCH EDC17C45 (TC1767) |
Open Vehicle → |
| Renault | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) | BOSCH EDC17C45 (TC1767) |
Open Vehicle → |
