ECU Pinout EDC17C57 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C57 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

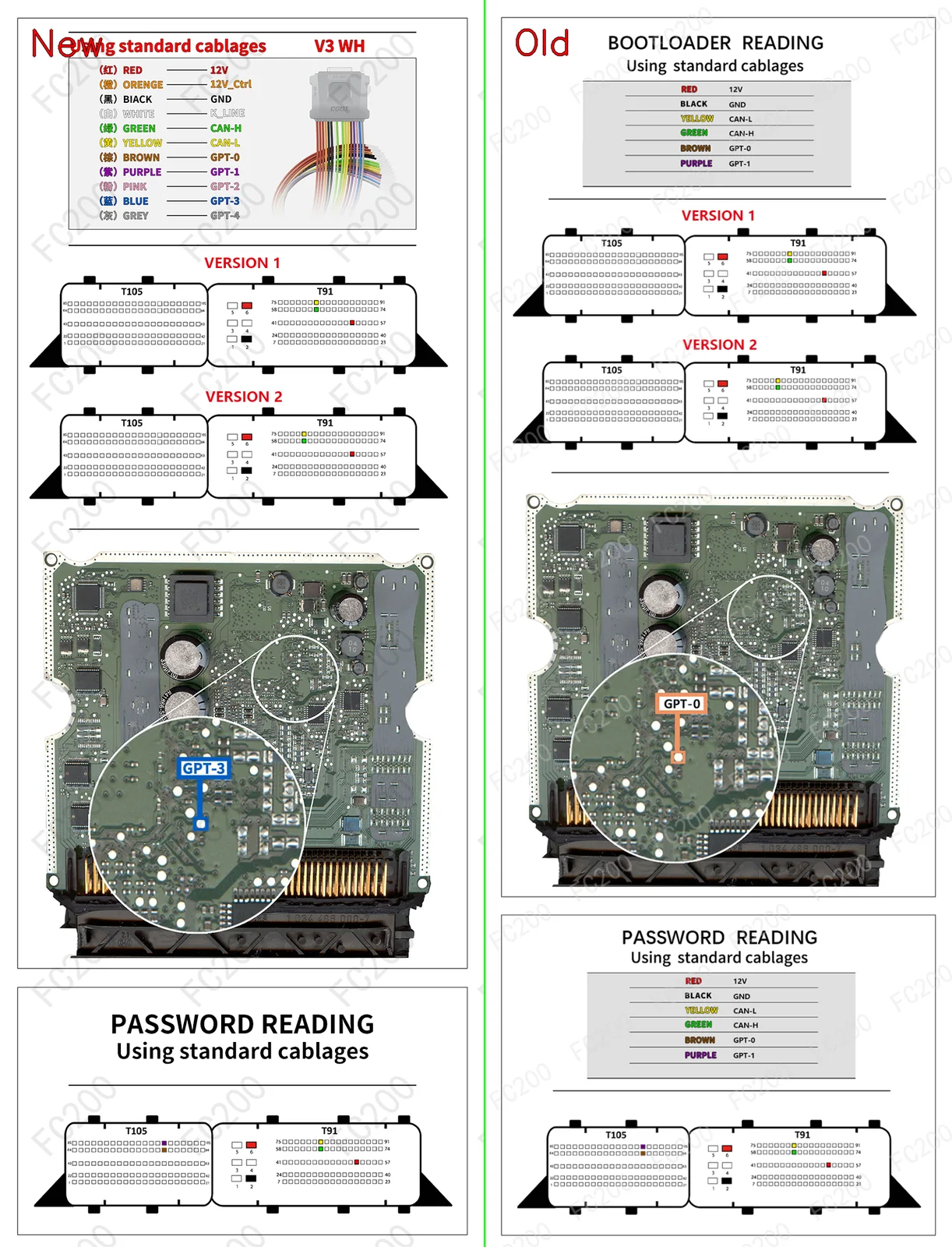

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C57.png (Boot)3,145,093 bytes
BOOT_BOSCH EDC17C57.png

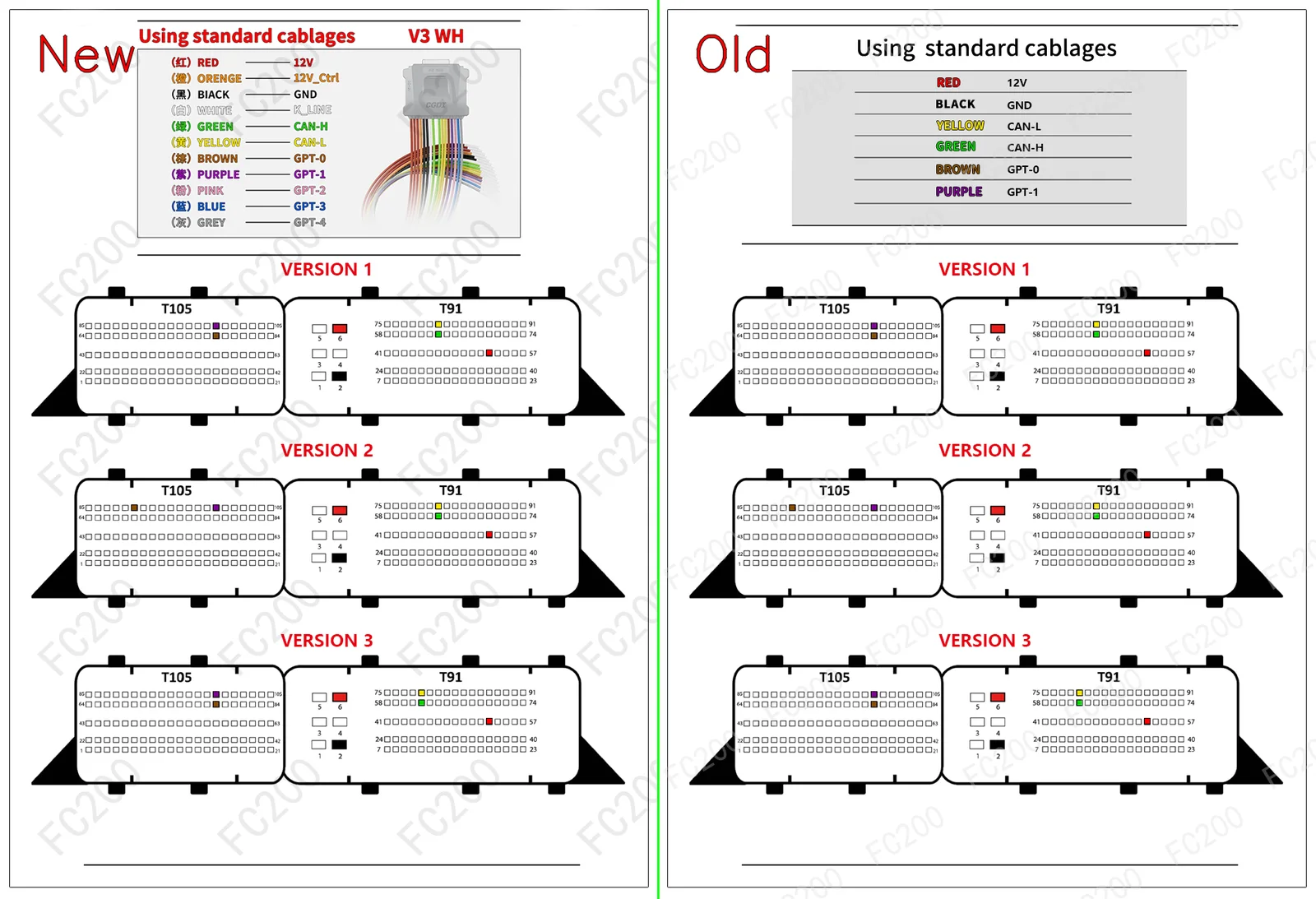

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C57.png (Platform / Bench)947,225 bytes
BOSCH EDC17C57.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C57 (17)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Genesis EQ900 (5000 GDI G8BE 413) BOSCH EDC17C57 (TC1793) Open Vehicle →
Genesis EQ900 (5000 GDI HTRAC G8BE 413) BOSCH EDC17C57 (TC1793) Open Vehicle →
Genesis G90 (5000 GDI G8BE 413) BOSCH EDC17C57 (TC1793) Open Vehicle →
Genesis G90 (5000 GDI HTRAC G8BE 413) BOSCH EDC17C57 (TC1793) Open Vehicle →
Hyundai Tucson(iX) (1700 CRDi D4FD 116) BOSCH EDC17C57 (TC1793) Open Vehicle →
Hyundai i30III (1600 • 109) BOSCH EDC17C57 (TC1793) Open Vehicle →
Hyundai i40(I) (1700 CRDi • 141) BOSCH EDC17C57 (TC1793) Open Vehicle →
Hyundai Santa FeTM 4 (2199 D4HB-4 200) BOSCH EDC17C57 (TC1793) Open Vehicle →
Hyundai Grandeur(HG) (2200 E-VGT EU6 • 202) BOSCH EDC17C57 (TC1793) Open Vehicle →
Kia Carnival(II) (2200 E-VGT EURO6 202) BOSCH EDC17C57 (TC1793) Open Vehicle →
Kia Rio(III) (1400 CRDi D4FC 90) BOSCH EDC17C57 (TC1793) Open Vehicle →
Kia Sorento(BL) (2000 E-VGT EURO6 186) BOSCH EDC17C57 (TC1793) Open Vehicle →
Kia Sorento(BL) (2000 E-VGT EURO6 202) BOSCH EDC17C57 (TC1793) Open Vehicle →
Kia Sorento(UM) (2000 CRDi D4HA 185) BOSCH EDC17C57 (TC1793) Open Vehicle →
Genesis All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17C57 (TC1793) Open Vehicle →
Hyundai All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17C57 (TC1793) Open Vehicle →
Kia All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17C57 (TC1793) Open Vehicle →
