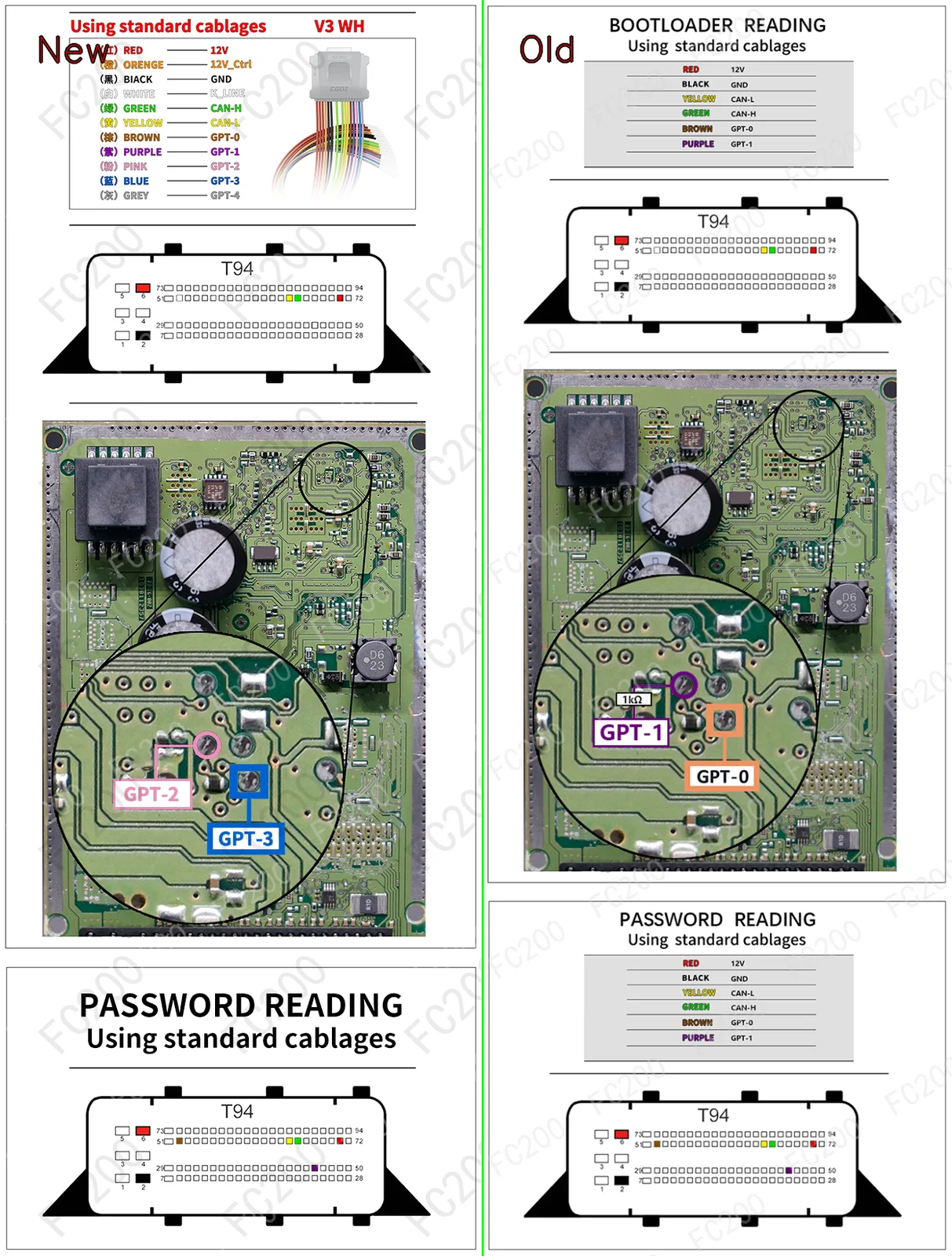

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C62.png (Boot)2,407,028 bytes

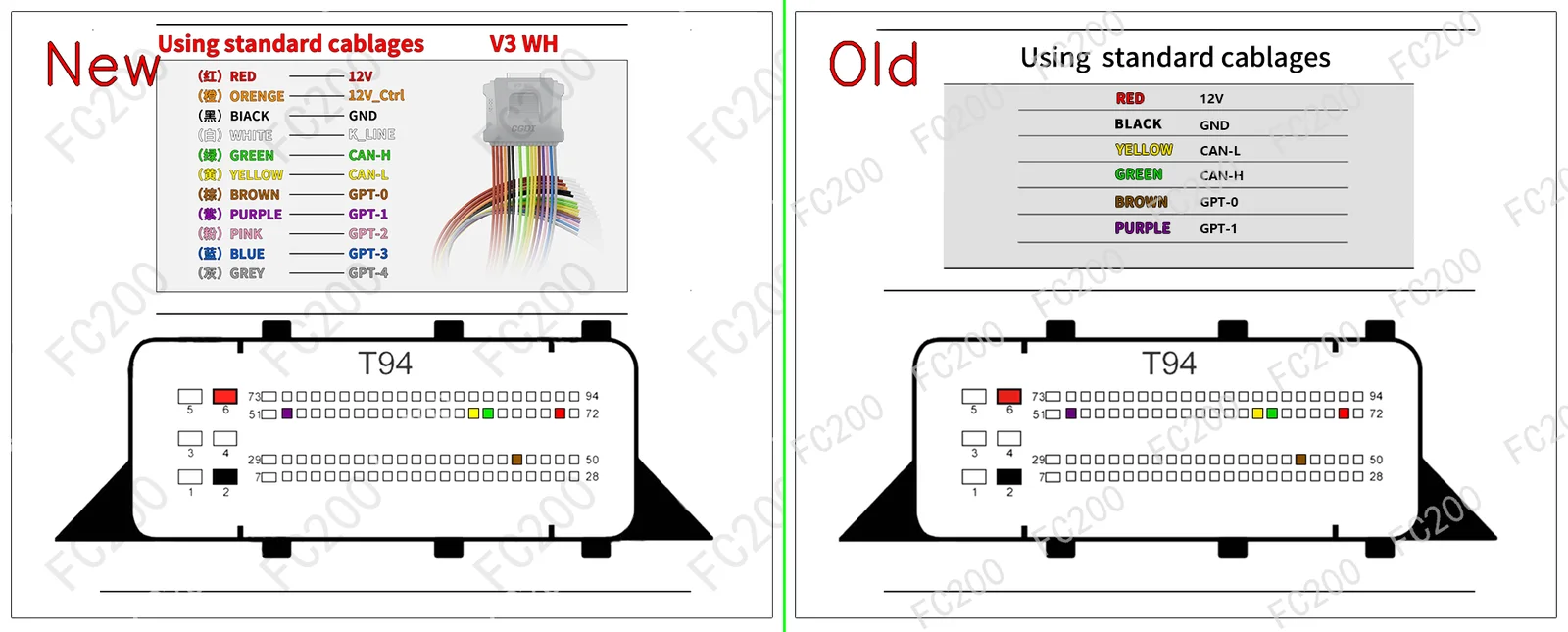

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C62.png (Platform / Bench)497,194 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C62 (8)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Changan | All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
| Dongfeng | All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
| Great Wall / Haval / Tank | All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
| JAC | All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
| JMC | All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
| Lovol | All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
| Massey Ferguson | MF6700I (4.4L I4 44DTA 112) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
| Massey Ferguson | MF4200Series (3299 I3 58) | BOSCH EDC17C62 (TC1724) |
Open Vehicle → |
