ECU Pinout EDC17C84 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C84 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

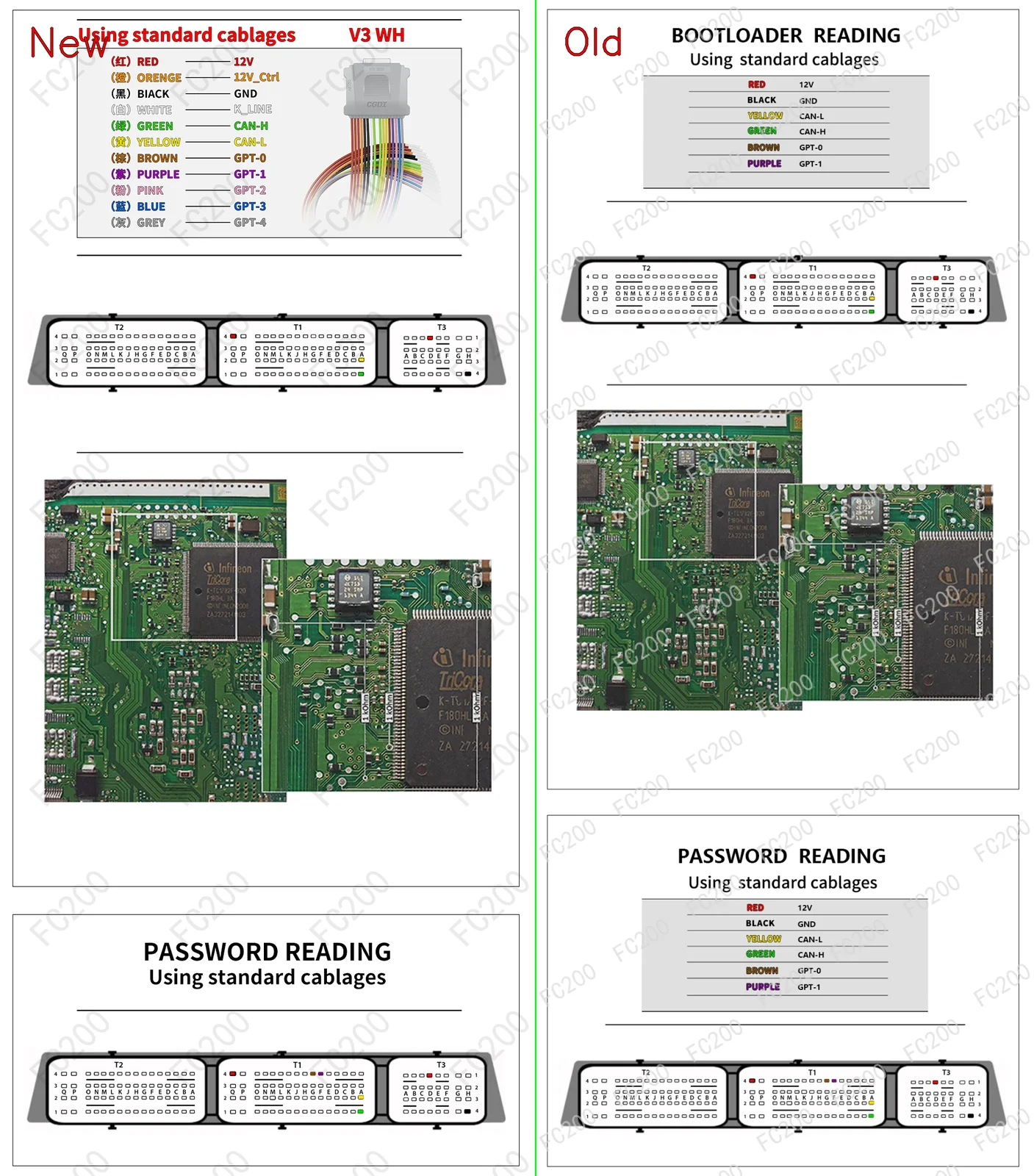

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C84.png (Boot)3,083,208 bytes
BOOT_BOSCH EDC17C84.png

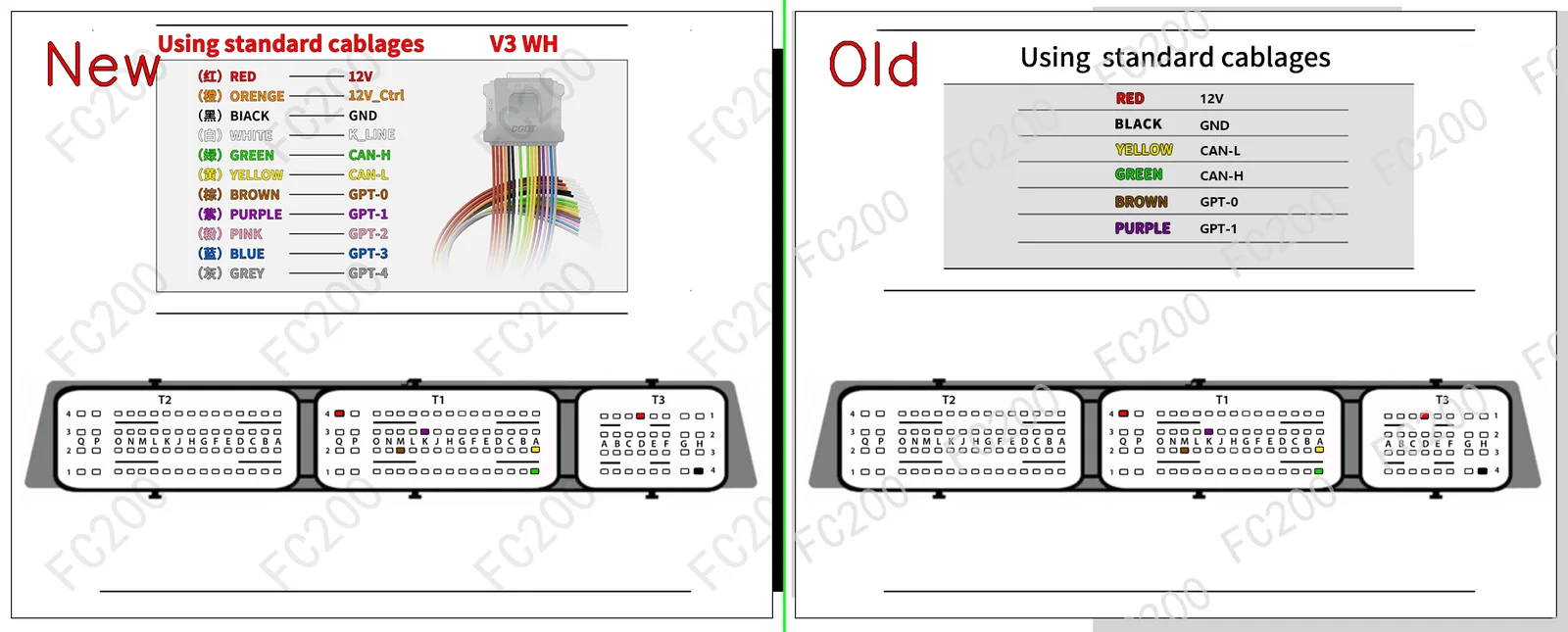

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C84.png (Platform / Bench)536,454 bytes
BOSCH EDC17C84.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C84 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Dacia Dokker (1500 dCi K9K 90) BOSCH EDC17C84 (TC1782) Open Vehicle →
Dacia Sandero(B8) (1500 dCi K9K 90) BOSCH EDC17C84 (TC1782) Open Vehicle →
Fiat Talento(296) (1598 R9MH4 121) BOSCH EDC17C84 (TC1724) Open Vehicle →
Nissan NV200(i) (1500 K9K896 110) BOSCH EDC17C84 (TC1782) Open Vehicle →
Nissan Qashqai(J11R) (1600 dCi R9M 130) BOSCH EDC17C84 (TC1782) Open Vehicle →
Nissan X-Trail(T32) (1600 dCi R9M 130) BOSCH EDC17C84 (TC1782) Open Vehicle →
Nissan X-Trail(T32) (1600 dCi 4WD R9M 130) BOSCH EDC17C84 (TC1782) Open Vehicle →
Nissan X-Trail(T32) (1600 dCi 4x4 R9M 130) BOSCH EDC17C84 (TC1782) Open Vehicle →
Opel Vivaro(B) (1600 dCi R9M 95) BOSCH EDC17C84 (TC1782) Open Vehicle →
Opel Vivaro(B) (1600 dCi R9M 125) BOSCH EDC17C84 (TC1782) Open Vehicle →
Opel Vivaro(B) (1600 dCi R9M 146) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Clio(IV) (1500 dCi K9K 75) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Kadjar(HL) (1600 dCi R9M 410 130) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Kadjar(HL) (1600 dCi R9M 414 130) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Kadjar(HL) (1600 dCi 4x4 R9M 414 130) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Kangoo(II) (1500 dCi K9K 75) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Kangoo(II) (1500 dCi K9K 90) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Scenic(III) (2000 dCi M9R615 150) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Trafic(III) (1600 dCi R9M 413 95) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Trafic(III) (1600 dCi R9M 452 125) BOSCH EDC17C84 (TC1782) Open Vehicle →
Renault Trafic(III) (1600 dCi R9M 452 146) BOSCH EDC17C84 (TC1782) Open Vehicle →
Vauxhall Vivaro(B) (1600 dCi R9M 95) BOSCH EDC17C84 (TC1782) Open Vehicle →
Vauxhall Vivaro(B) (1600 dCi R9M 125) BOSCH EDC17C84 (TC1782) Open Vehicle →
Vauxhall Vivaro(B) (1600 dCi R9M 146) BOSCH EDC17C84 (TC1782) Open Vehicle →
