ECU Pinout EDC17CP07 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17CP07 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

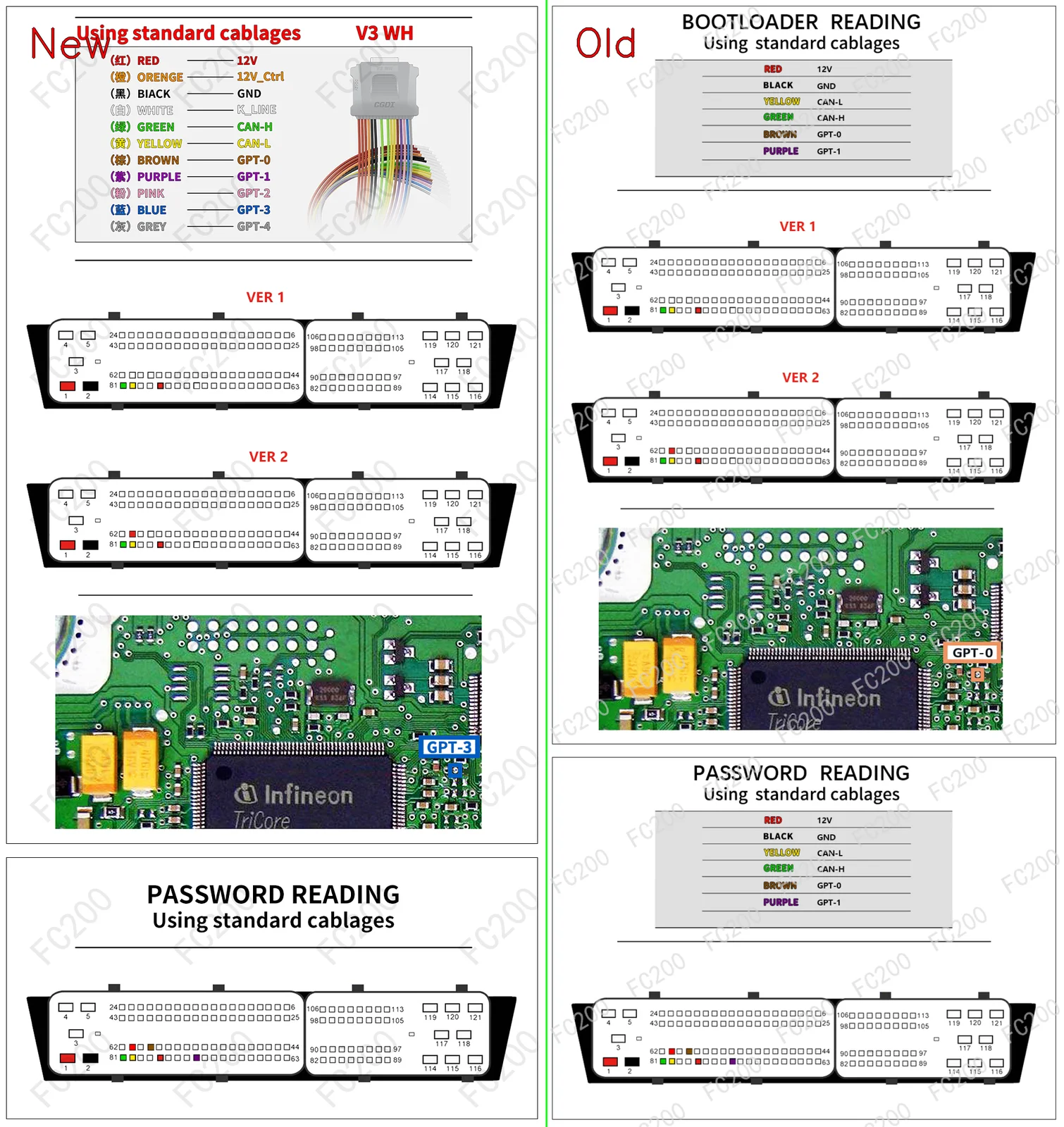

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CP07.png (Boot)2,767,691 bytes
BOOT_BOSCH EDC17CP07.png

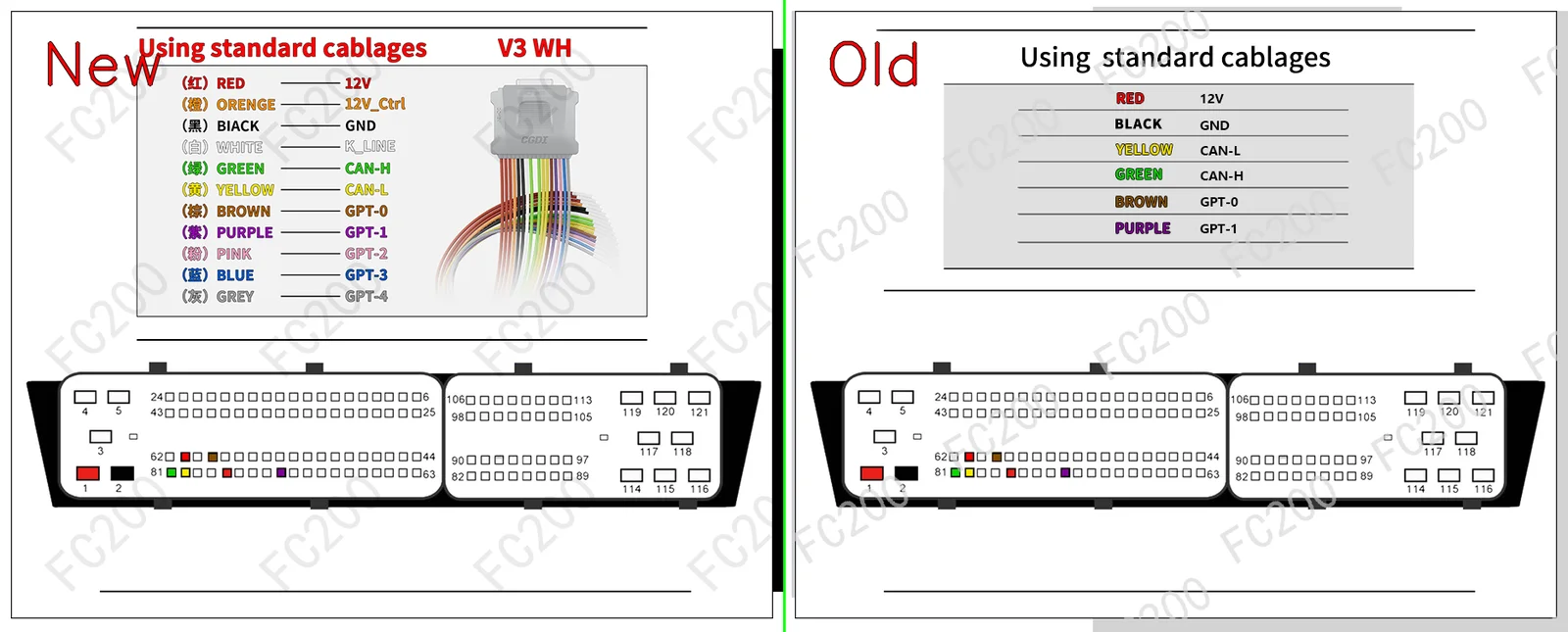

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP07.png (Platform / Bench)564,789 bytes
BOSCH EDC17CP07.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CP07 (12)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Subaru Trezia(NCP120) (1400 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Auris(E150) (1400 D-4D 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota IQ(NUJ10) (1400 D-4D 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Ractis (1400 D-4D 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Urban Cruiser(NLP110) (1400 D-4D 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Urban Cruiser(NLP115) (1400 D-4D 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Urban CruiserNLP115H (1364 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Verso S(NLP121) (1400 D-4D 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Yaris(XP130) (1400 D-4D 1NDTV 90) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota Yaris Verso(III) (1400 D-4D 1NDTV 75) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Subaru All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CP07 (TC1766) Open Vehicle →
Toyota All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CP07 (TC1766) Open Vehicle →
