ECU Pinout EDC17CP11 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17CP11 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

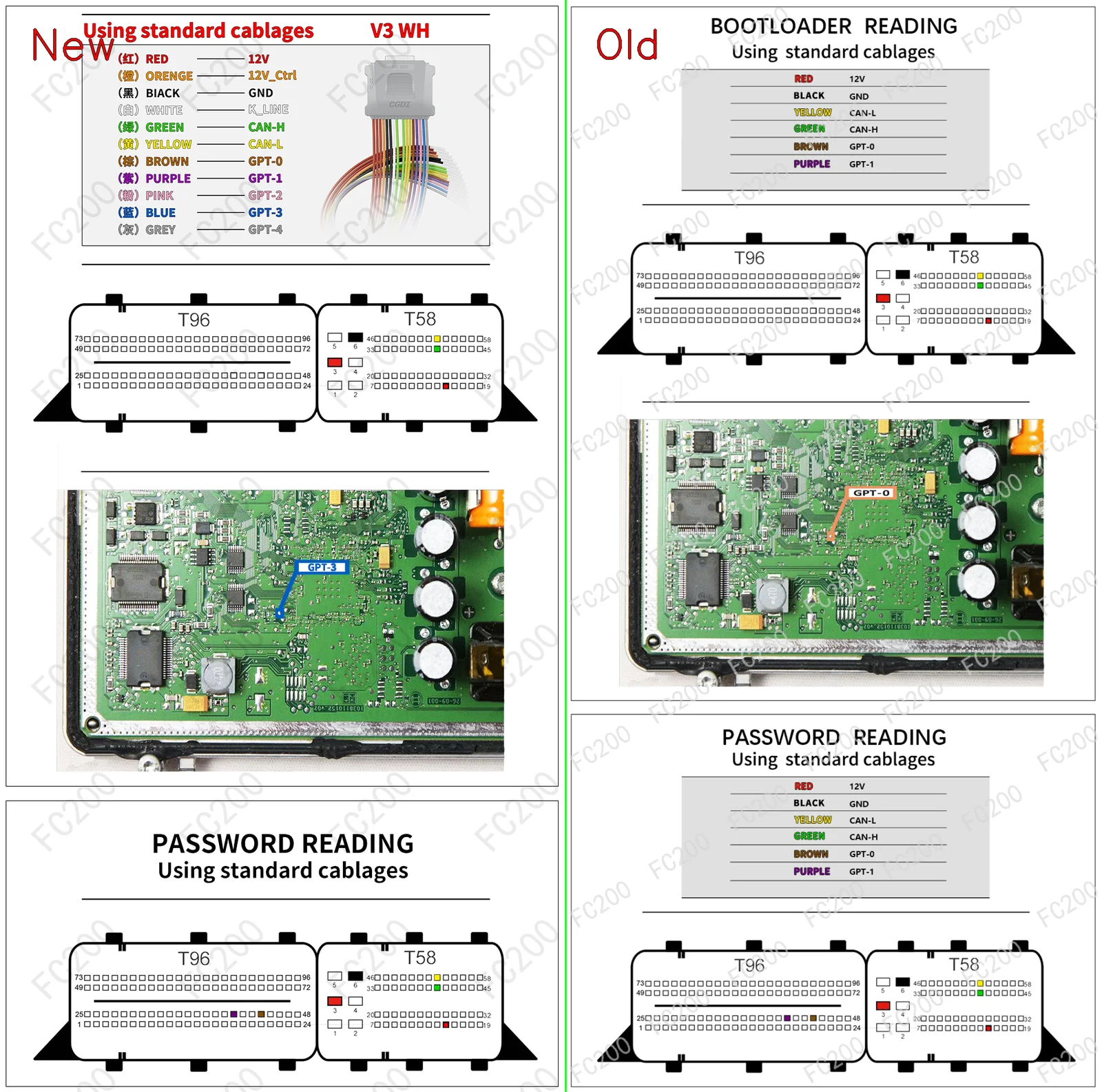

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CP11.png (Boot)2,884,876 bytes
BOOT_BOSCH EDC17CP11.png

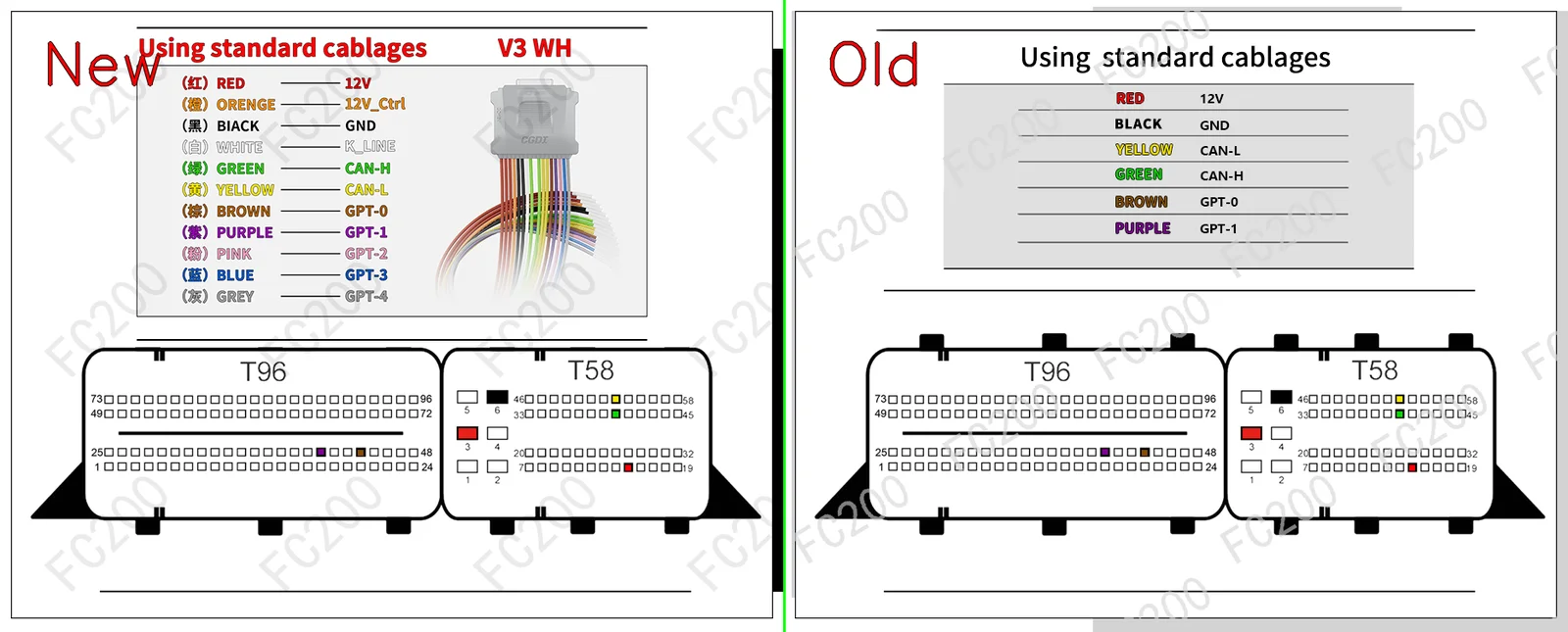

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP11.png (Platform / Bench)532,785 bytes
BOSCH EDC17CP11.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CP11 (13)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Citroen C5(X7) (3000 TDV6 DT20C 241) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Jaguar XF(X250) (3000 24v HDI • 237) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Jaguar XF(X250) (3000 24v HDI • 270) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Land Rover Discovery(IV) (3000 SDV6 • 245) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Land Rover Discovery(IV) (3000 TDV6 • 211) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Land Rover Range Rover(Sport) (3000 SDV6 • 292) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Land Rover Range Rover(Sport) (3000 TDV6 • 245) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Land Rover Range Rover(Sport) (4400 TDV8 • 335) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Peugeot 407(D2) (3000 24v HDI • 245) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Citroen All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Jaguar All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Land Rover All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP11 (TC1796) Open Vehicle →
Peugeot All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CP11 (TC1796) Open Vehicle →
