ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout EDC17CP14 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17CP14 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

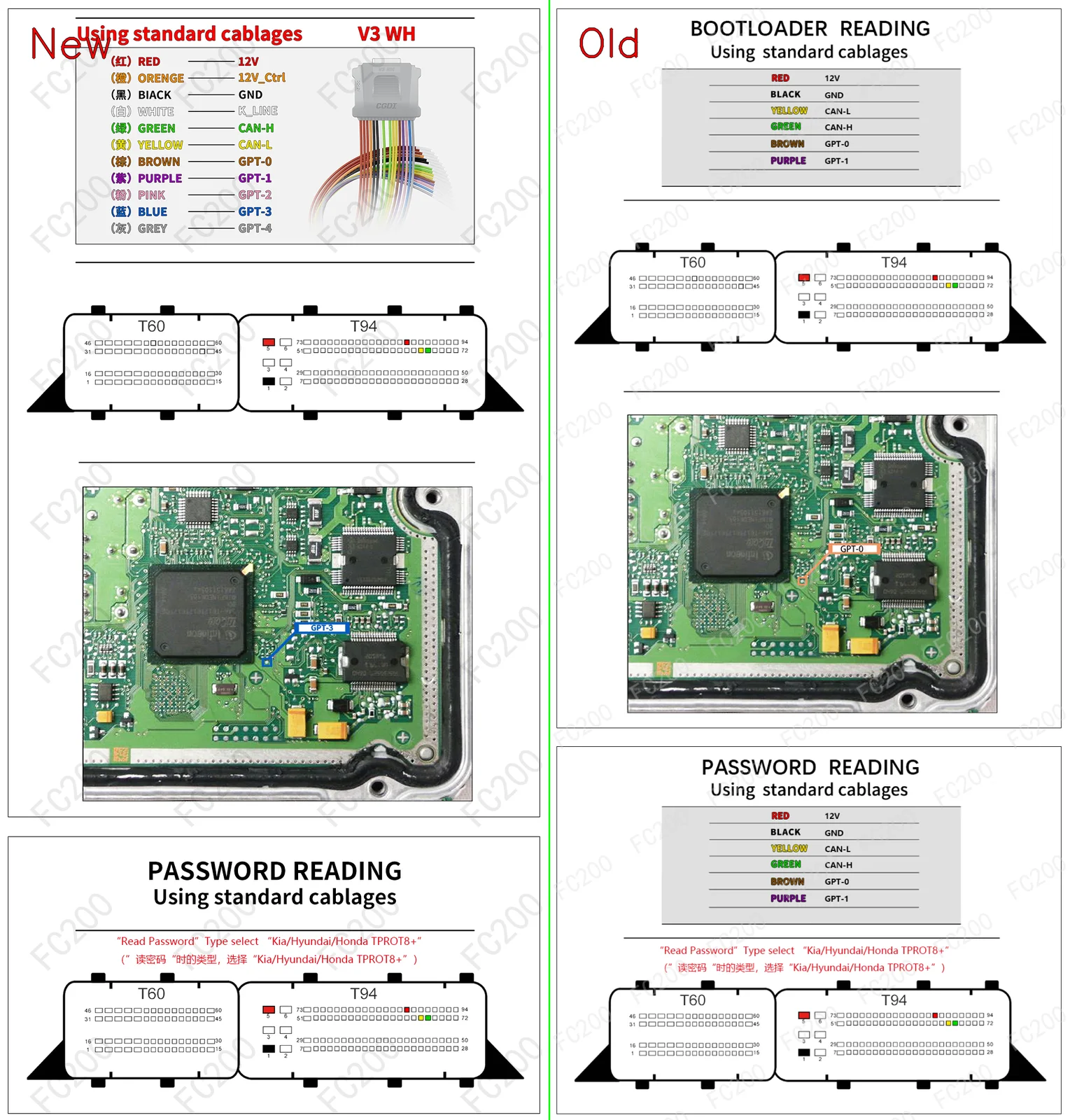

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CP14.png (Boot)2,792,400 bytes
BOOT_BOSCH EDC17CP14.png

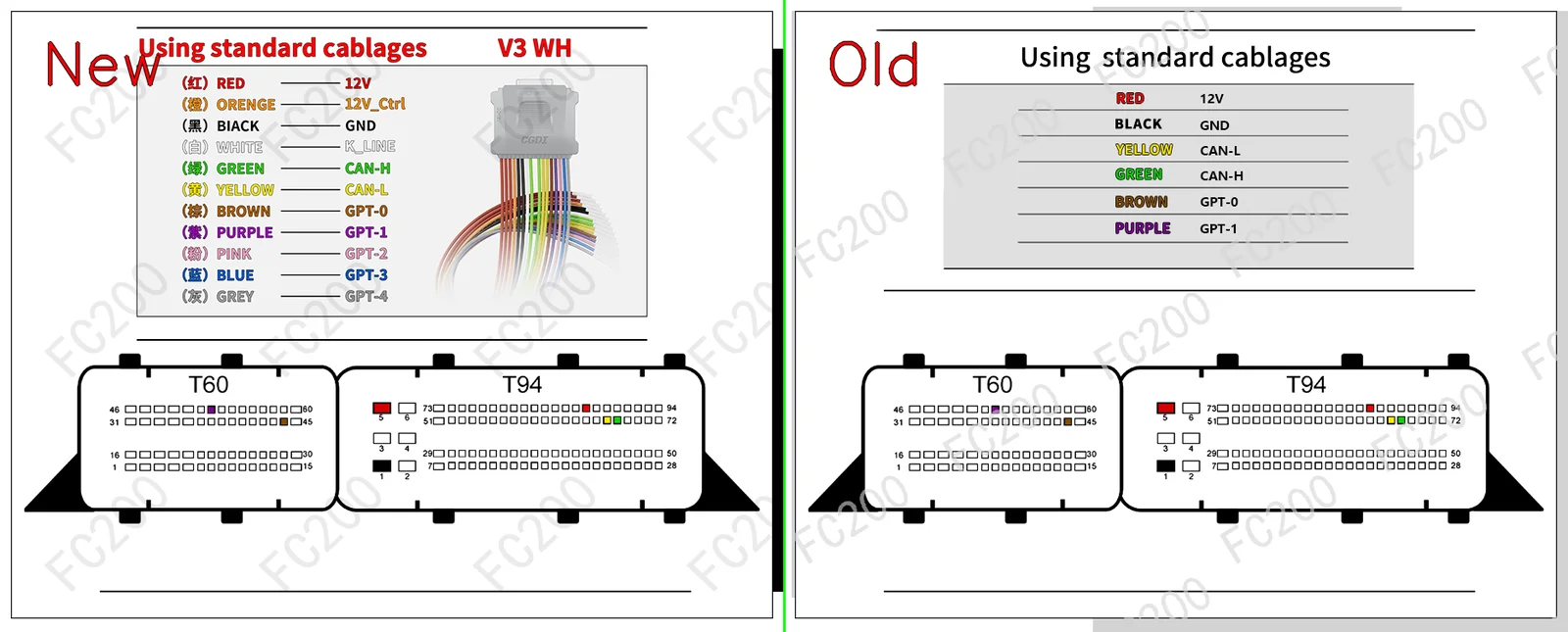

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP14 NOXROM.png (Platform / Bench)480,523 bytes
BOSCH EDC17CP14 NOXROM.png

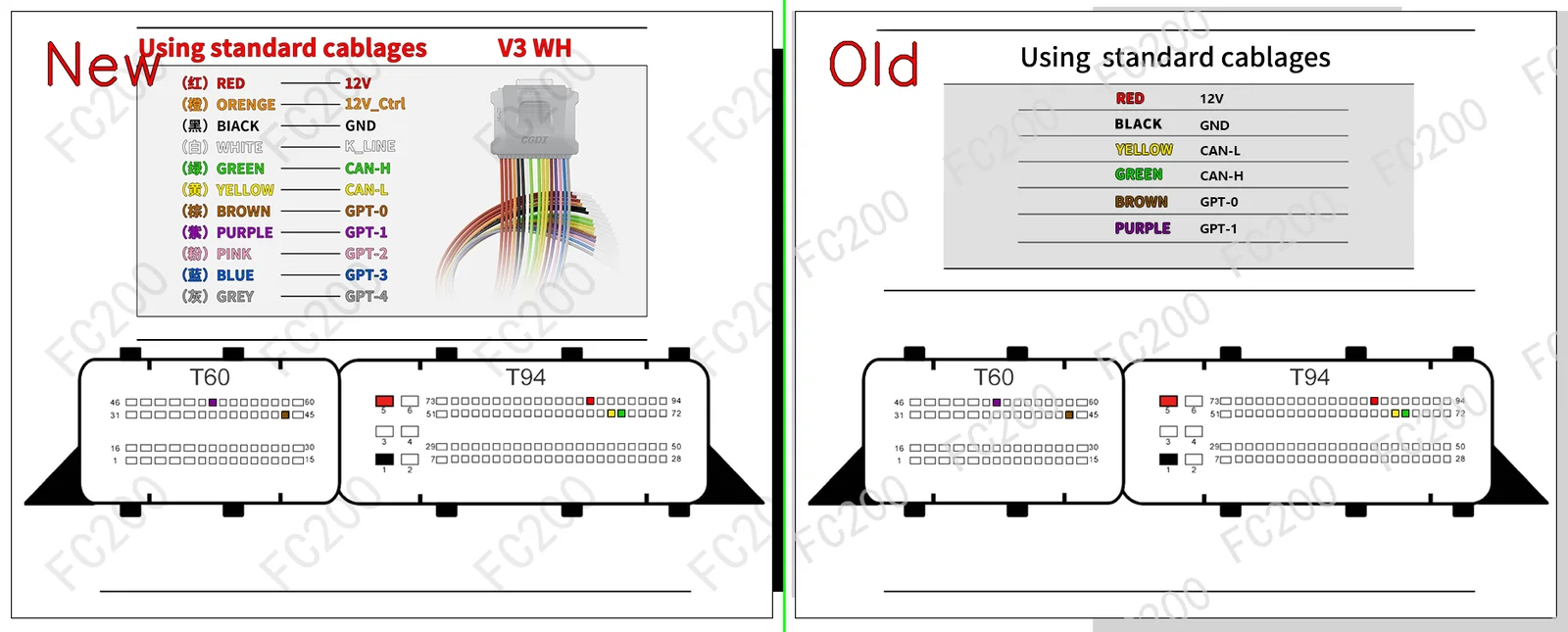

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP14 XROM.png (Platform / Bench)505,721 bytes
BOSCH EDC17CP14 XROM.png

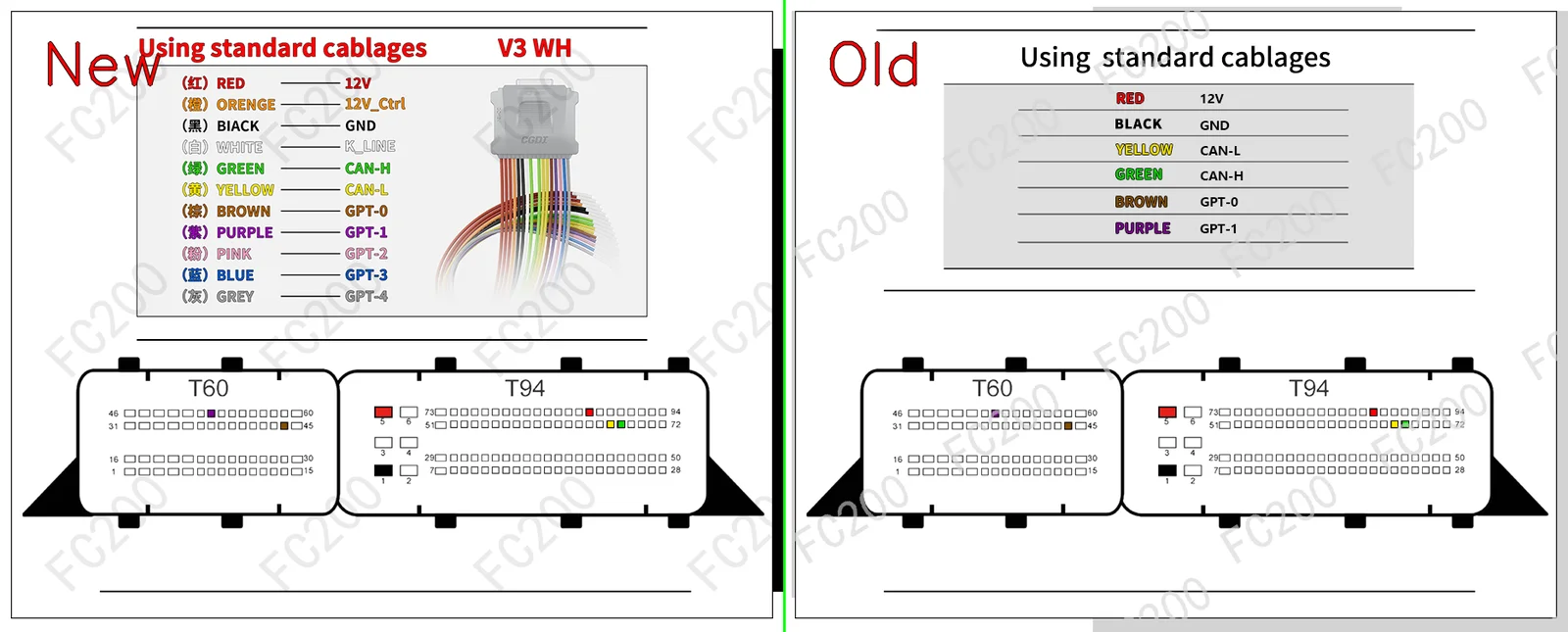

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP14.png (Platform / Bench)493,891 bytes
BOSCH EDC17CP14.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CP14 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A4(B8) (2000 TDI CAHA 170) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A4(B8) (2000 TDI quattro CAHA 170) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A4(B8) (2000 TDI CAHB 163) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A4(B8) (3000 V6 TDI <CR> CAPA 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A4(B8) (3000 V6 TDI <CR> CCLA 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A4(B8) (3000 V6 TDI <CR> CCWA 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A4(B8) (3000 V6 TDI quattro CCWB 211) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A4(B8) (1968 CAGA 143) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (3000 TDI quattro CAPA 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (2000 TDI CAHA 170) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (2000 TDI quattro CAHA 170) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (2700 TDI CAMA 190) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (3000 TDI quattro CCWA 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (3000 V6 TDI quattro CCWB 211) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (2700 TDI CGKA 190) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A5(8F / 8T) (2000 TDI CMEA 143) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6(C6) (2000 16v TDI <CR> CAGB 136) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6(C6) (2000 16v TDI <CR> CAHA 170) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6(C6) (2700 V6 TDI <CR> CANA 190) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6(C6) (2700 V6 TDI <CR> CANC 190) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6(C6) (3000 V6 TDI <CR> CDYA 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6(C6) (3000 V6 TDI <CR> CDYC 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6 Allroad(C6) (2700 V6 TDI <CR> CANA 190) BOSCH EDC17CP14 (TC1796) Open Vehicle →
Audi A6 Allroad(C6) (3000 V6 TDI <CR> CDYA 240) BOSCH EDC17CP14 (TC1796) Open Vehicle →
