ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout EDC17CP42 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17CP42 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

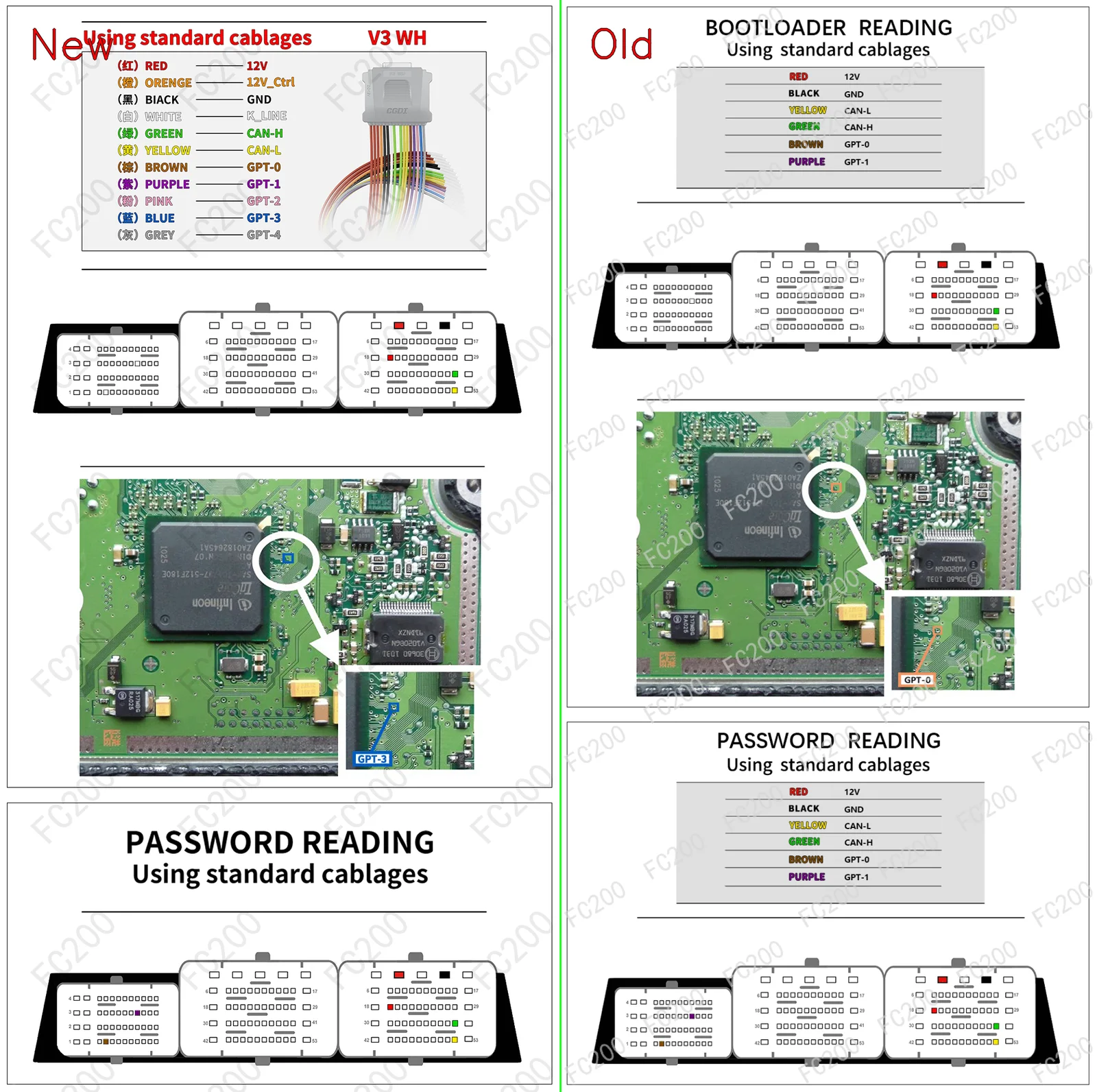

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CP42.png (Boot)2,717,001 bytes
BOOT_BOSCH EDC17CP42.png

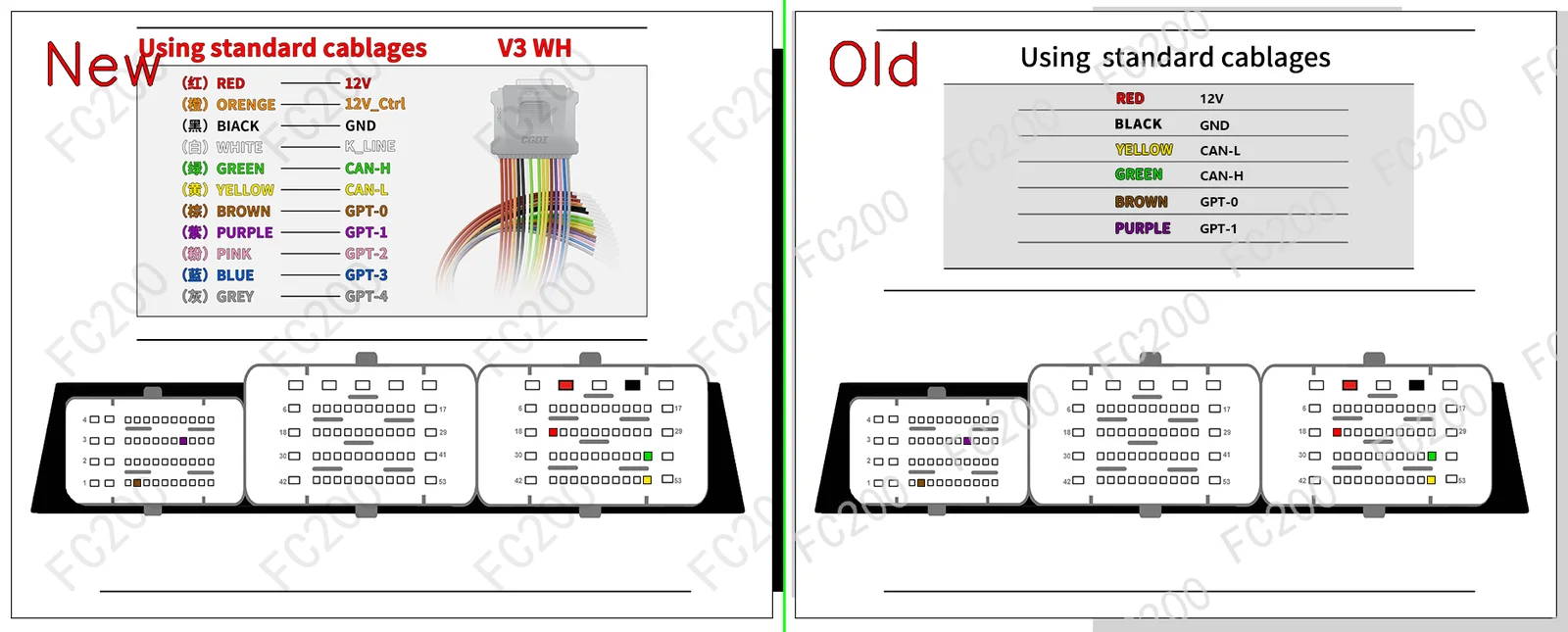

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP42.png (Platform / Bench)517,785 bytes
BOSCH EDC17CP42.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CP42 (21)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Citroen C5(X7) (2200 HDI 4HL <DW12C> 204) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Ford Galaxy(WA6) (2200 TDCI • 200) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Ford Galaxy(WA6) (2200 TDCI • 172) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Ford Mondeo(Bx7) (2200 TDCI • 172) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Ford Mondeo(Bx7) (2200 TDCI • 200) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Ford S-Max +(WA6) (2200 TDCI • 200) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Ford S-Max +(WA6) (2200 TDCI • 172) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Jaguar XF(X250) (2200 16v TD • 163) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Jaguar XF(X250) (2200 16v TD • 200) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Jaguar XF(X250) (2200 16v TD • 190) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Land Rover Discovery(Sport) (2200 TD4 • 150) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Land Rover Evoque(LV) (2200 SD4 • 190) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Land Rover Evoque(LV) (2200 TD4 • 150) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Land Rover Freelander(II) (2200 TD4 • 157) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Land Rover Freelander(II) (2200 TD4 • 190) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Peugeot 508(W2) (2200 HDI 4HL <DW12C> 204) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Citroen All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Ford All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Jaguar All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Land Rover All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP42 (TC1797) Open Vehicle →
Peugeot All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP42 (TC1797) Open Vehicle →
