ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout EDC17CP54 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17CP54 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

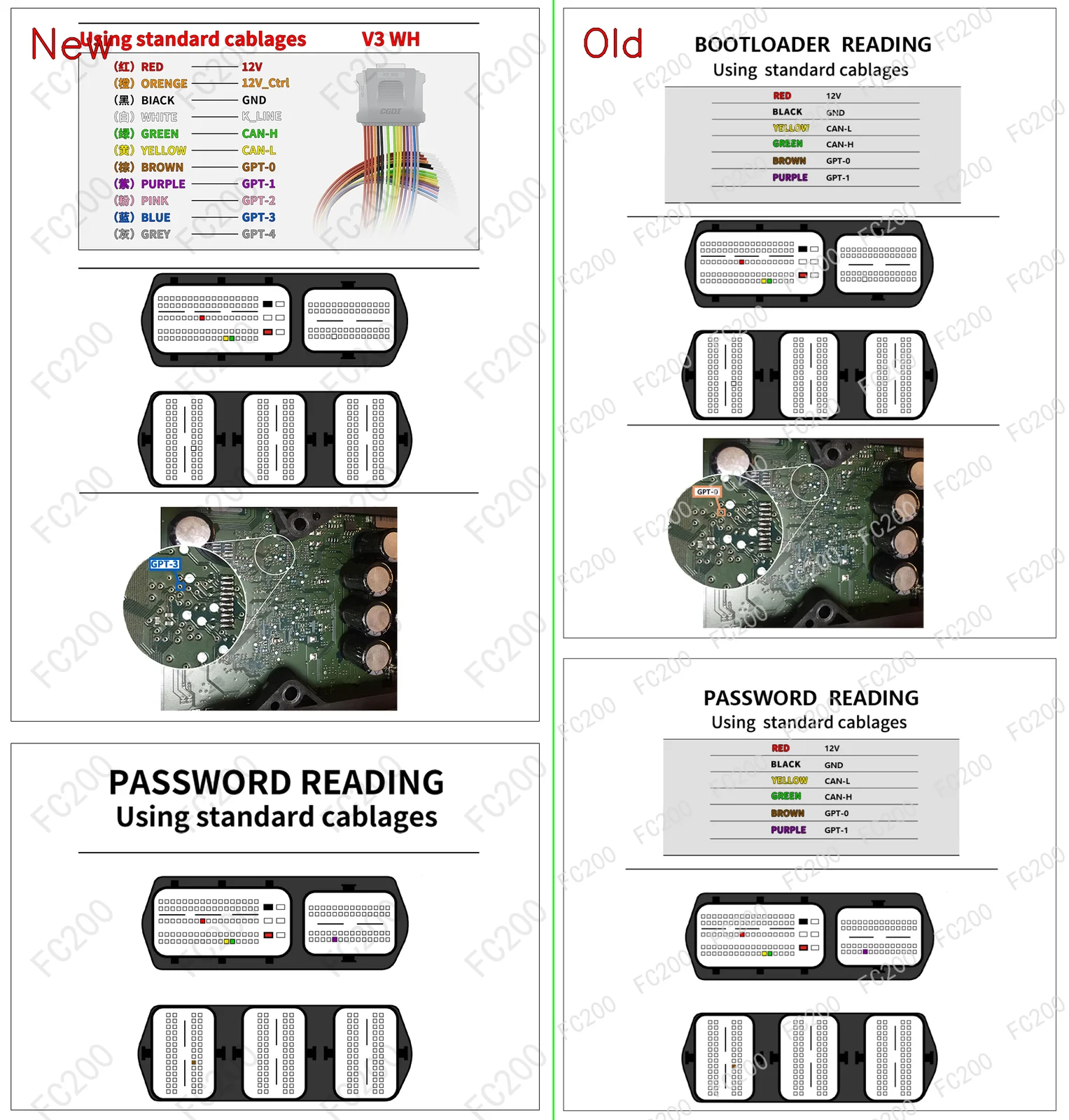

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CP54.png (Boot)2,127,704 bytes
BOOT_BOSCH EDC17CP54.png

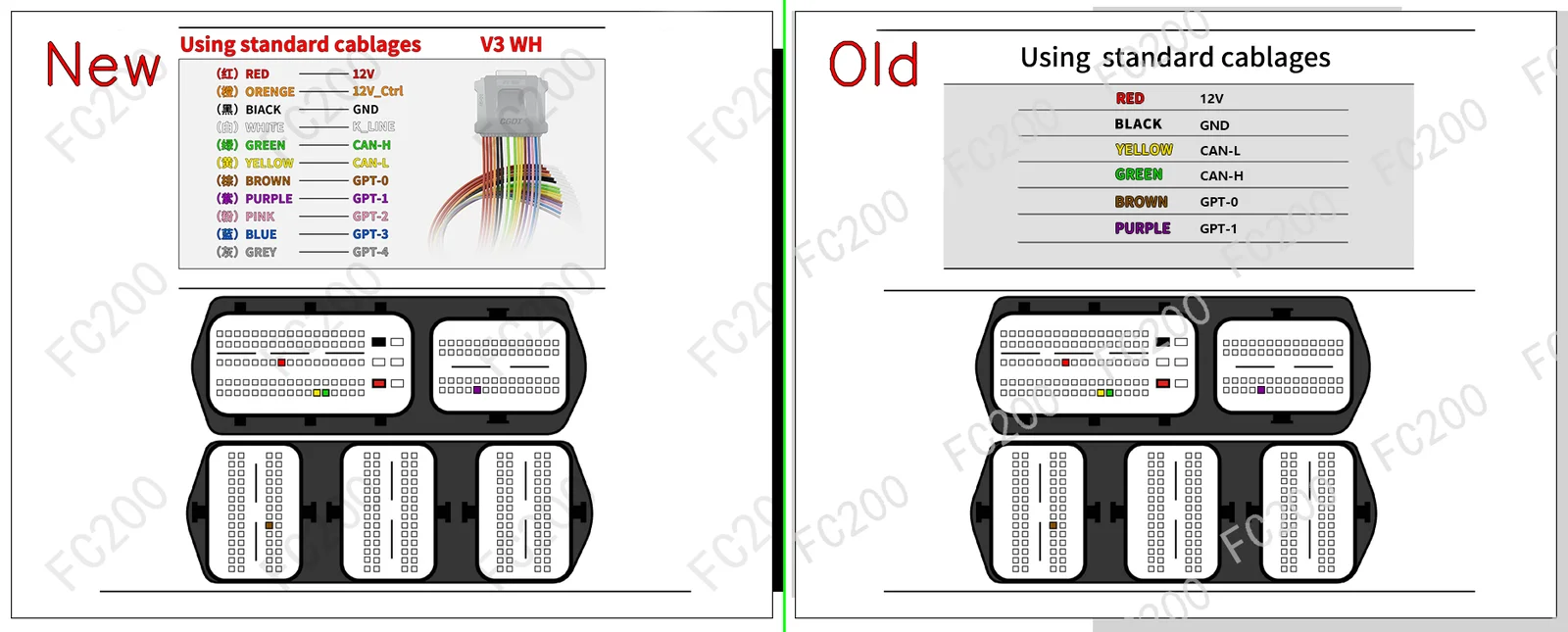

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP54.png (Platform / Bench)578,992 bytes
BOSCH EDC17CP54.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CP54 (16)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A7(4G) (3000 TDI 313) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Audi A7(4G) (3000 TDI Ultra) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Porsche Panamera(970) (3000 V6 TDI MCR.CB 211) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S6) (3000 TDI DDXA 163) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S6) (3000 TDI 4Motion DDXA 163) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S6) (3000 TDI 4Motion DDXB 204) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S6) (3000 TDI 4Motion DDXC 224) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S6) (3000 TDI 4Motion DDXD 224) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S7) (3000 TDI DDXA 163) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S7) (3000 TDI 4Motion DDXA 163) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S7) (3000 TDI 4Motion DDXB 204) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S7) (3000 TDI 4Motion DDXC 224) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) Amarok(S7) (3000 TDI 4Motion DDXD 224) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Audi All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Porsche All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CP54 (TC1793) Open Vehicle →
Volkswagen (VW) All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP54 (TC1793) Open Vehicle →
