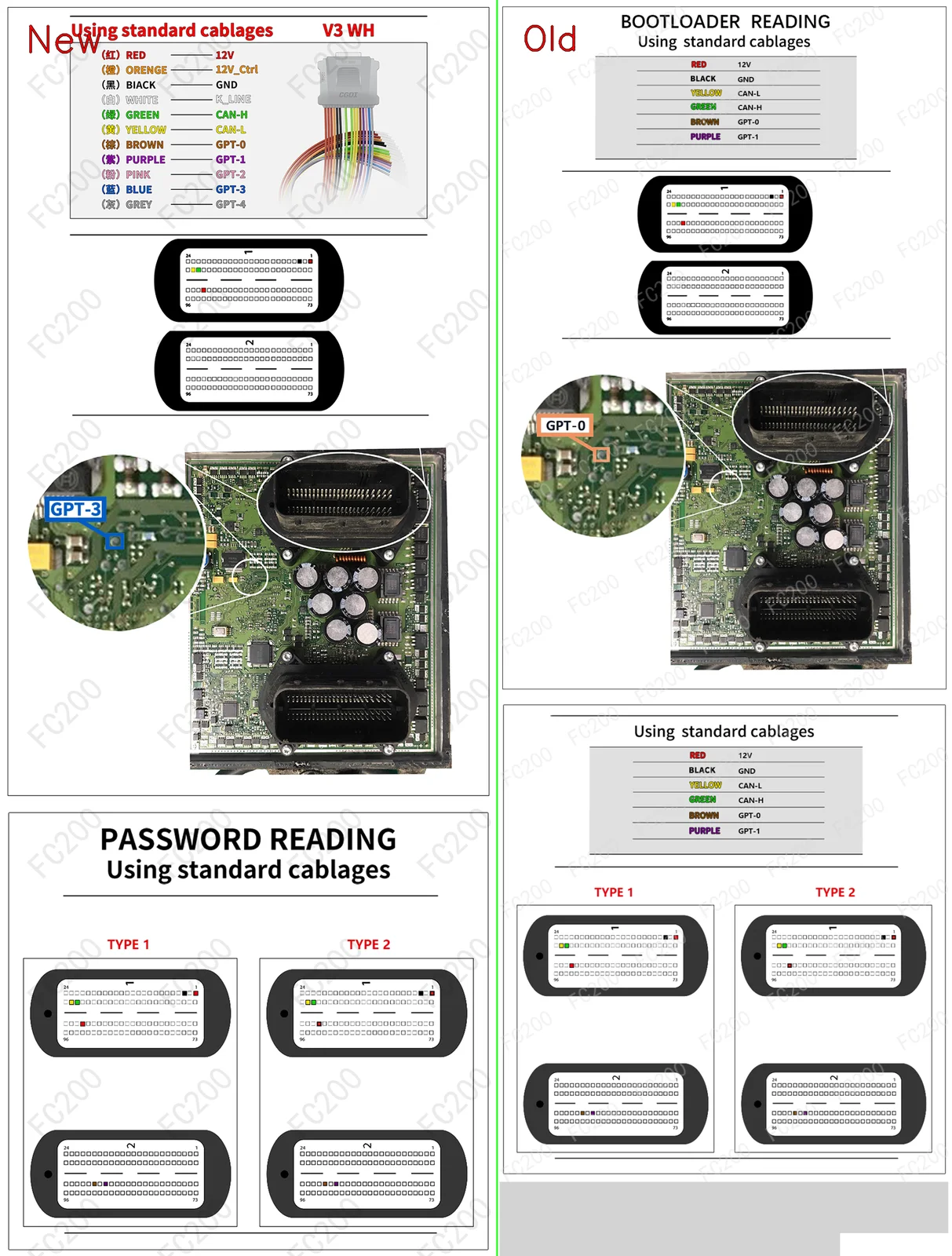

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CV41.png (Boot)3,132,733 bytes

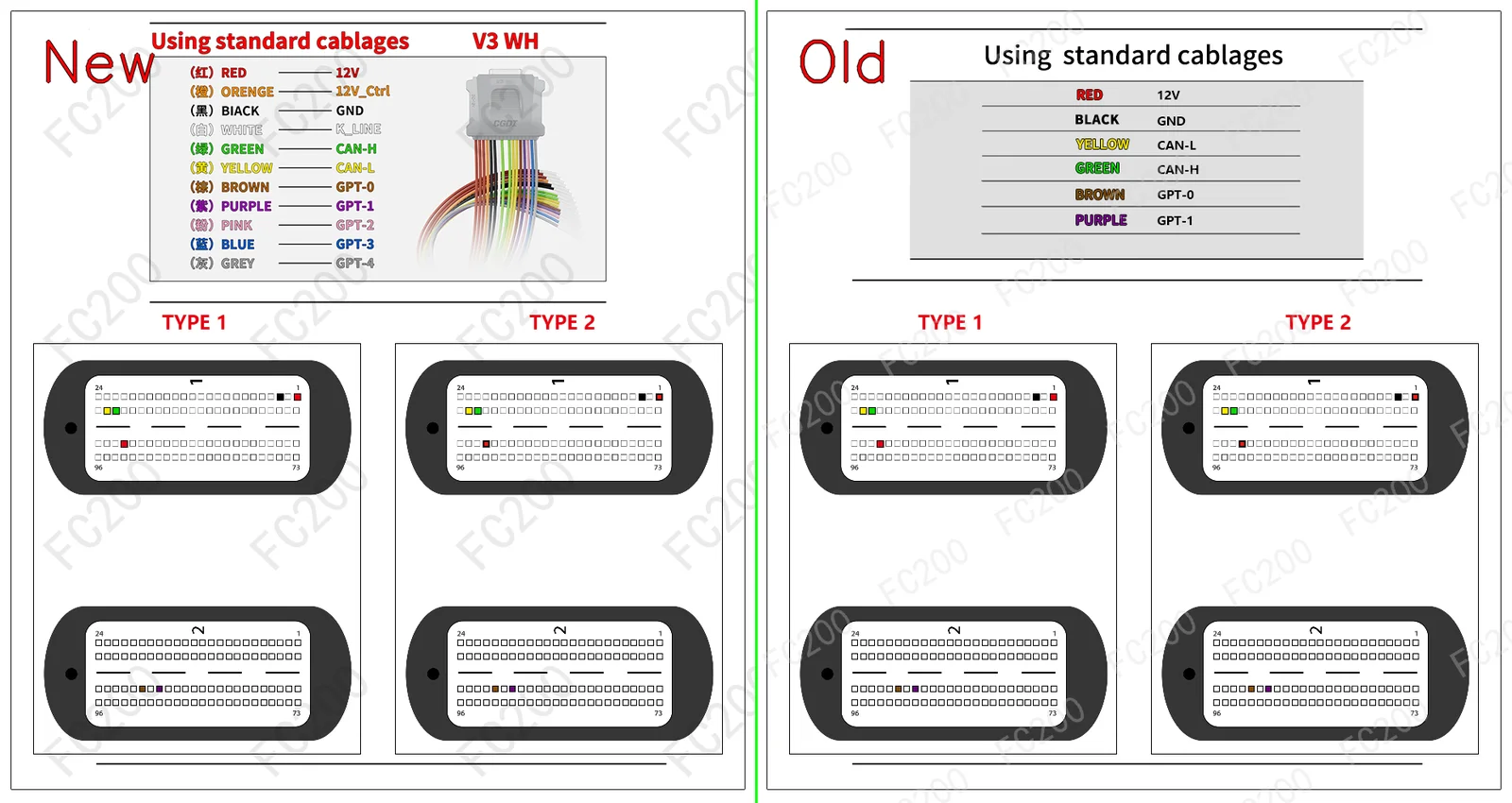

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CV41.png (Platform / Bench)562,293 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CV41 (24)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| CASE Tractors | AFX(7240) (11100 • 496) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(8240) (12900 • 571) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(9240) (15900 • 653) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(4130) (6700 • 253) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(5130) (6700 • 272) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(5140) (6700 • 279) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(6130) (8700 • 325) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(6140) (8700 • 360) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(7130) (8700 • 355) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | AFX(7140) (8700 • 387) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVT(200) (6700 • 205) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVT(220) (6700 • 224) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVT(240) (6700 • 239) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVT(280) (8700 • 286) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVT(310) (8700 • 315) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVT(340) (8700 • 347) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVT(380) (8700 • 375) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVX(200) (6700 • 205) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVX(220) (6700 • 224) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVX(240) (6700 • 239) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVX(280) (8700 • 286) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVX(310) (8700 • 315) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVX(340) (8700 • 347) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
| CASE Tractors | Magnum CVX(380) (8700 • 375) | BOSCH EDC17CV41 (TC1797) |
Open Vehicle → |
VERIFIED FIRMWARE (.BIN) & DAMOS MAPS (.A2L / .KP) FOR EDC17CV41FILE CATALOG
| Format | Engineering File Name | Price / Action |
|---|---|---|
.OLS? .OLS — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics. |
Claas Axion 850 (Original) EDC17CV41 511206.ols | $165 • Open File → |
