ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout GEN2 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU GEN2 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

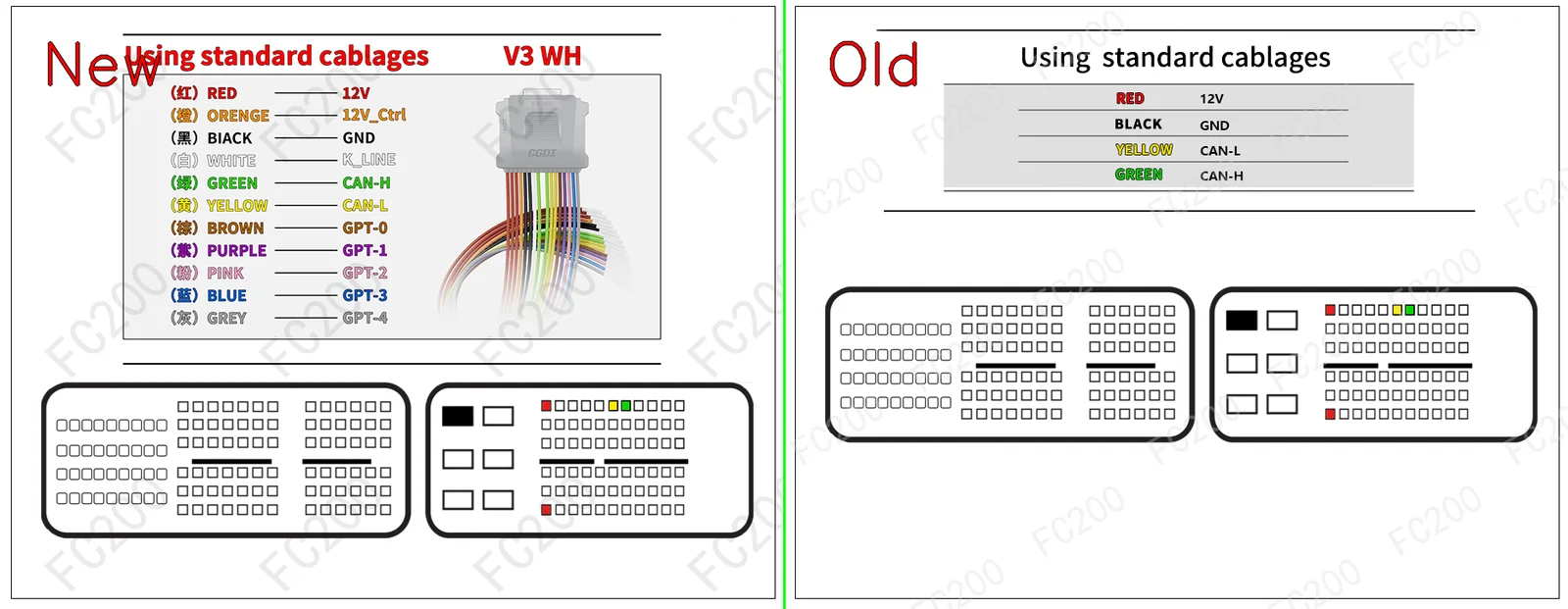

OFFICIAL PINOUT DIAGRAM: DENSO 23740-5Sxxx_Gen2.png (Platform / Bench)551,373 bytes
DENSO 23740-5Sxxx_Gen2.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU GEN2 (11)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Nissan Leaf(ZE1) (EM61 EM61 150) DENSO 23740_5Sxxx_Gen2 SH72530 (test) Open Vehicle →
Nissan e-NV200II (1 - 109) DENSO 23740_5Sxxx_Gen2 SH72530 (test) Open Vehicle →
Nissan e-NV200Evalia (1 - 109) DENSO 23740_5Sxxx_Gen2 SH72530 (test) Open Vehicle →
Nissan Leaf(ZE1) (EM61 EM61 150) DENSO 23740-5Sxxx_Gen2 SH72531 (test) Open Vehicle →
Nissan e-NV200II (1 - 109) DENSO 23740-5Sxxx_Gen2 SH72531 (test) Open Vehicle →
Nissan e-NV200Evalia (1 - 109) DENSO 23740-5Sxxx_Gen2 SH72531 (test) Open Vehicle →
Nissan All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/MAPS/PFLASH, CheckSum) DENSO 23740_5Sxxx_Gen2 SH72530 (test) Open Vehicle →
Nissan All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/MAPS/PFLASH, CheckSum) DENSO 23740-5Sxxx_Gen2 SH72531 (test) Open Vehicle →
Universal ECU Protocol Aziatskie ECU Denso / Mitsubishi Melco / Delphi DCM (Platform / Bench) (Direct Bench / Boot ECU Connector Pinout) DENSO 23740_5Sxxx_Gen2 SH72530 (test) Open Vehicle →
Universal ECU Protocol Aziatskie ECU Denso / Mitsubishi Melco / Delphi DCM (Platform / Bench) (Direct Bench / Boot ECU Connector Pinout) DENSO 23740-5Sxxx_Gen2 SH72531 (test) Open Vehicle →
Universal ECU Protocol Bloki upravleniya AKPP / Robotov DSG / Variatorov (TCU Bench) (Direct Bench / Boot ECU Connector Pinout) VAG_TEMIC_DL501Gen2 VAG_TEMIC_DL501Gen2 TC1784 (TriCore) Open Vehicle →
