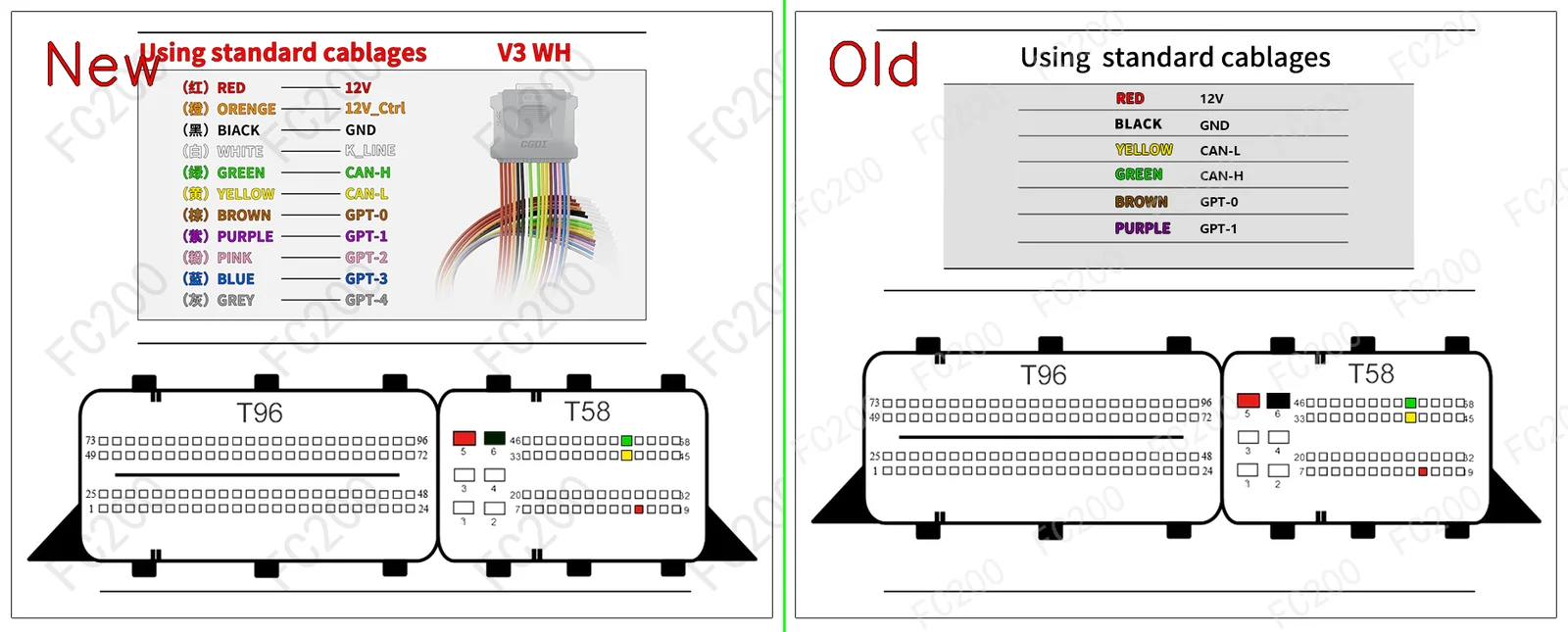

OFFICIAL PINOUT DIAGRAM: DENSO MB279700-9500.png (Platform / Bench)557,691 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU MB279700-9500 (11)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Volvo	S60(II) (3000 B6304T4 306)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	S60(II) (2000 B6304T4 329)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	S60(II) (2000 B4204T6 203)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	S80(II) (3000 B6304T4 306)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	V40(II) (2000 B5204T9 248)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	V40(II) (2000 B4204T19 190)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	V60(I) (2500 B5254T12 254)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	XC60(I) (3000 B6304T4 305)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	XC703.0 T6 (2953 null 305)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Volvo	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/MAPS/PFLASH, CheckSum)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →
Universal ECU Protocol	Aziatskie ECU Denso / Mitsubishi Melco / Delphi DCM (Platform / Bench) (Direct Bench / Boot ECU Connector Pinout)	`DENSO MB279700-9500` (SH72543)	Open Vehicle →

ECU Pinout MB279700-9500 Bench / Boot / GPT Pinout — Wiring Diagram
