ECU Pinout MD1CP006 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CP006 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

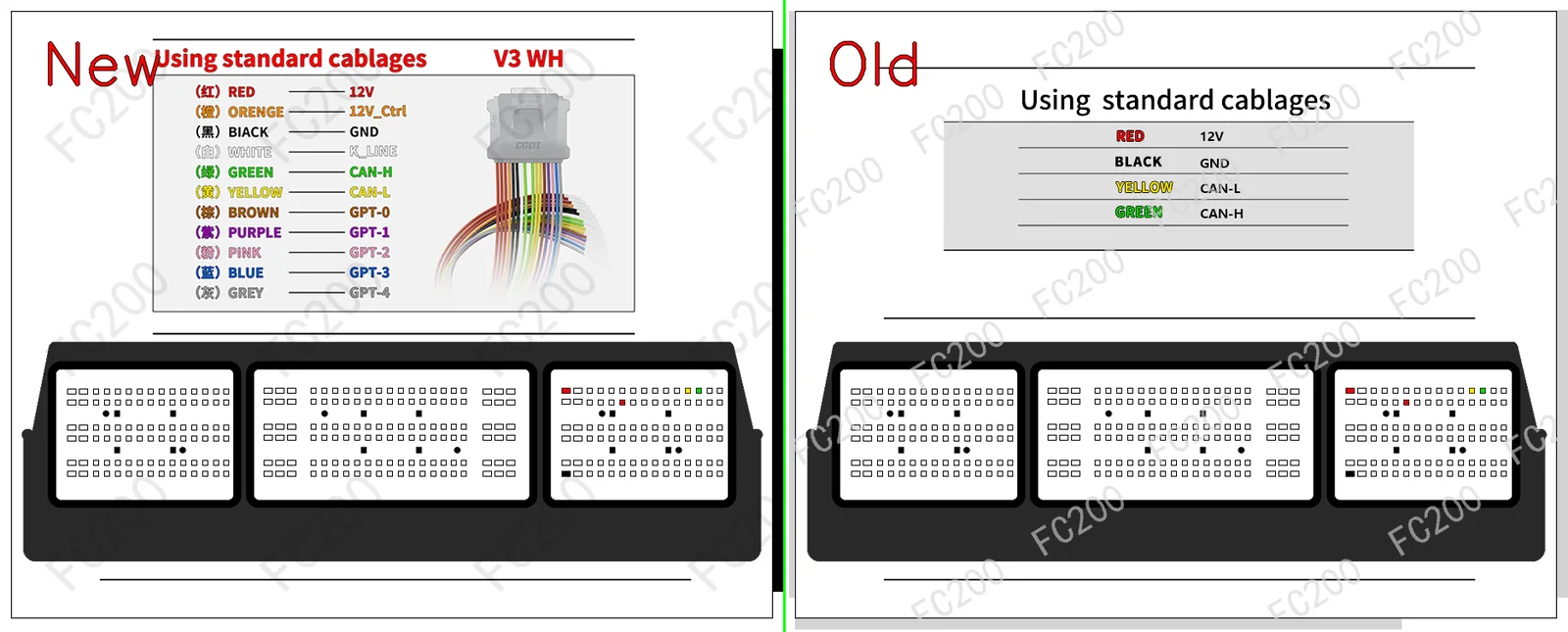

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CP006.png (Platform / Bench)446,957 bytes
BOSCH MD1CP006.png

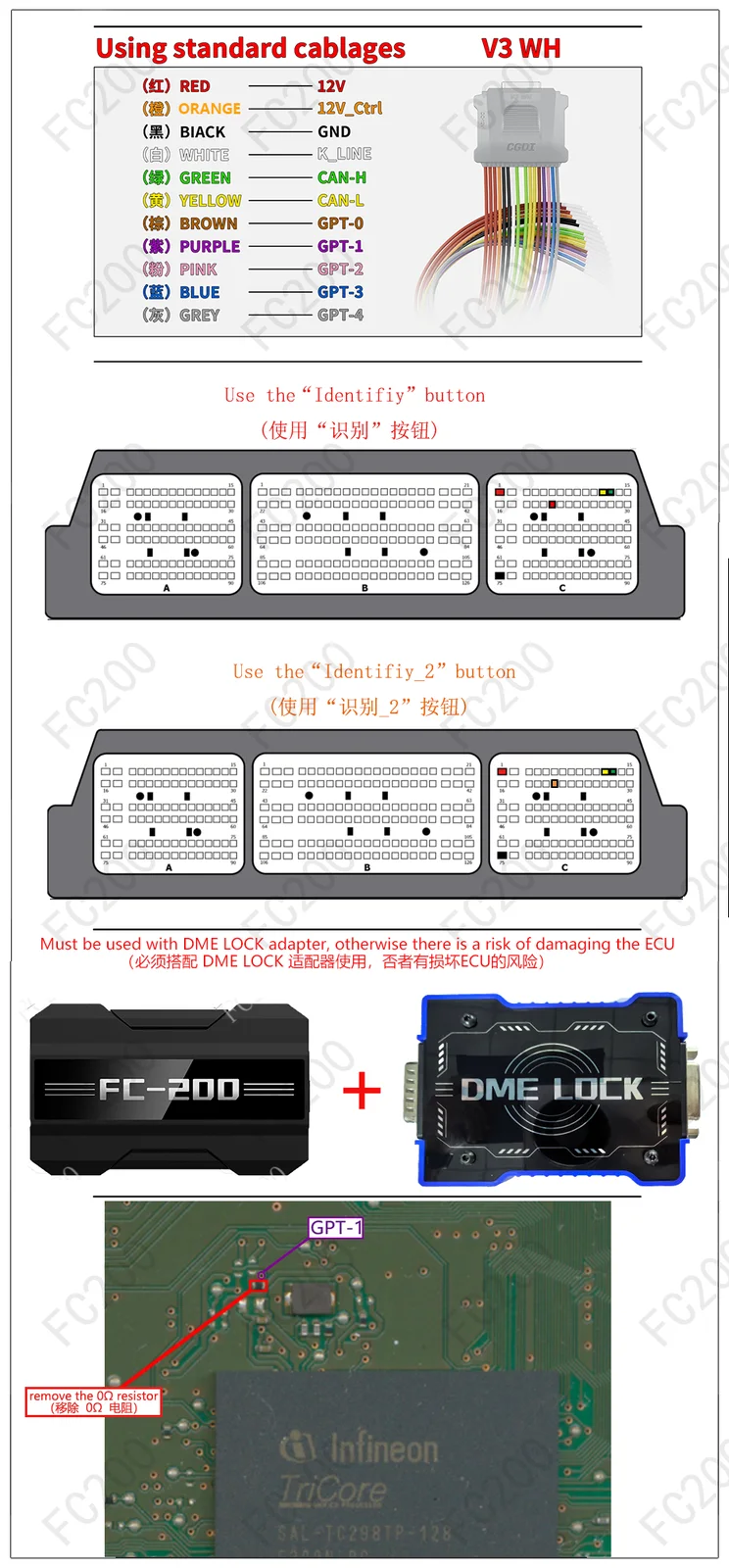

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CP006.png (Locked Boot/Bench)1,040,896 bytes
Locked_BOSCH MD1CP006.png

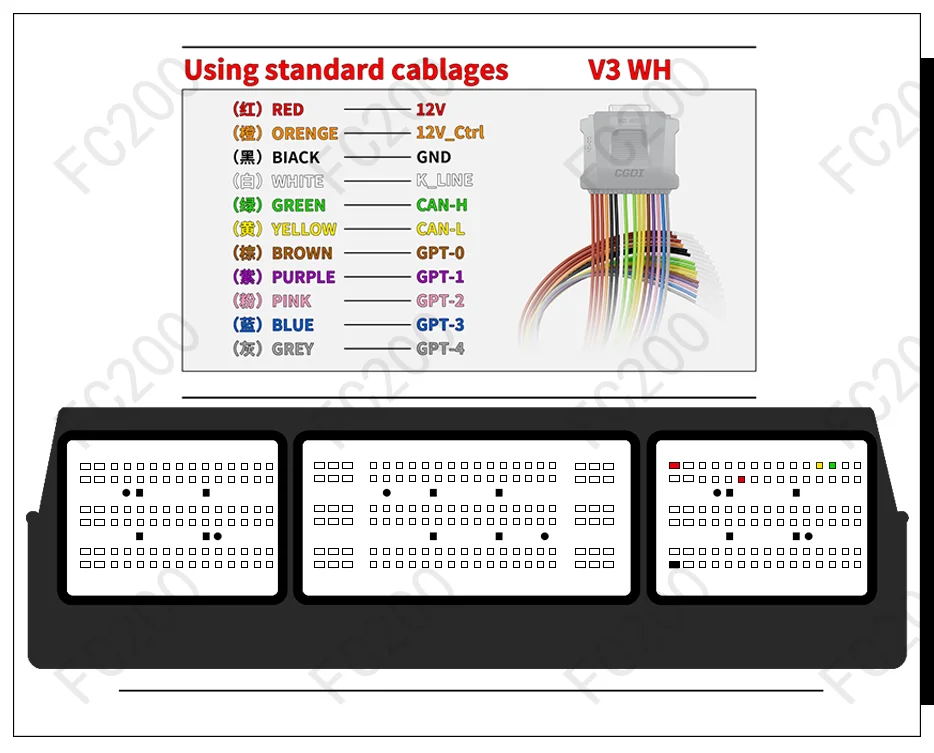

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CP006.png (Locked Boot/Bench)190,512 bytes
Locked_Bench BOSCH MD1CP006.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CP006 (11)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Ford F-550 Super Duty6.7 L F-550 (6699 000 481) BOSCH MD1CP006 (TC298TP) Open Vehicle →
Ford F-250 Super Duty(V) (6700 B20 481) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Ford F-250 Super Duty(V) (6700 B20 507) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Ford F-350 Super Duty(V) (6700 B20 481) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Ford F-350 Super Duty(V) (6700 B20 507) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Ford F-450 Super Duty(V) (6700 B20 481) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Ford F-450 Super Duty(V) (6700 B20 507) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Ford All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Ford All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CP006 (TC298TP) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CP006 TC298 (test) Open Vehicle →
