ECU Pinout MD1CP007 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CP007 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

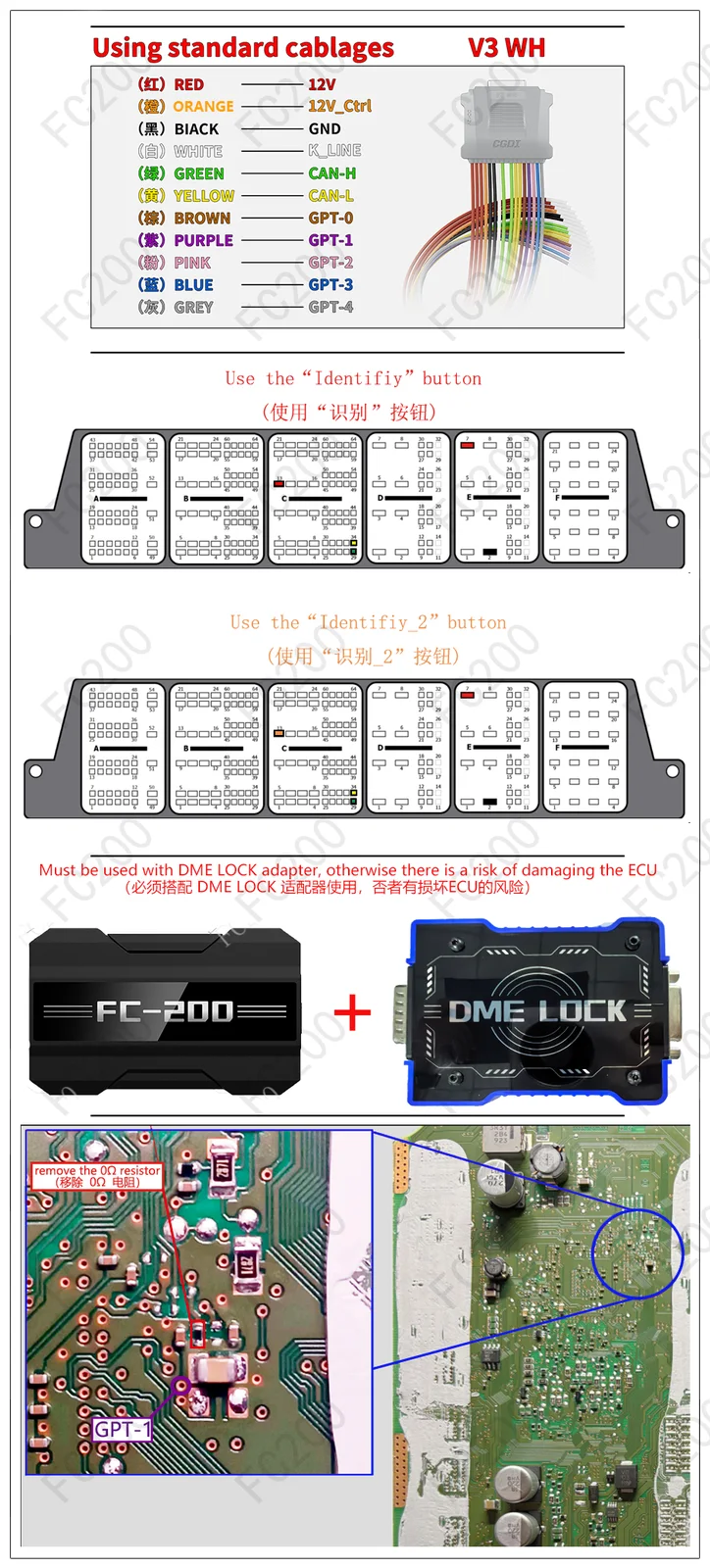

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CP007.png (Locked Boot/Bench)1,525,396 bytes
Locked_BOSCH MD1CP007.png

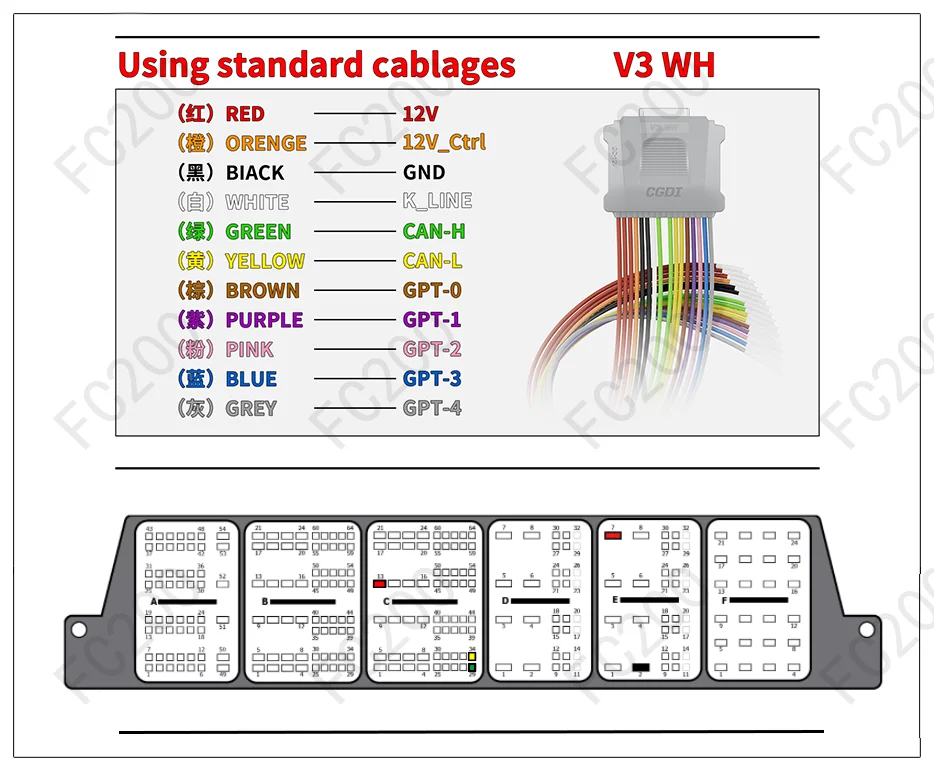

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CP007.png (Locked Boot/Bench)257,480 bytes
Locked_Bench BOSCH MD1CP007.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CP007 (15)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Land Rover Defender(I) L663 (2997 AJ300D 200) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Defender(I) L663 (2997 AJ300D 248) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Discovery(V) L462 (2997 AJ300D 351) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Discovery(V) L462 (2997 AJ300D 248) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Discovery(V) L462 (2997 AJ300D 300) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Range Rover(V) L460 (2997 AJ300D 351) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Range Rover(V) L460 (2997 AJ300D 248) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Range Rover(V) L460 (2997 AJ300D 300) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Range Rover Sport(III) L461 (2997 AJ300D 351) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Range Rover Sport(III) L461 (2997 AJ300D 248) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Range Rover Sport(III) L461 (2997 AJ300D 300) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover Range Rover Velar(I) L560 (2997 AJ300D 300) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Land Rover All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CP007 TC298 (test) Open Vehicle →
