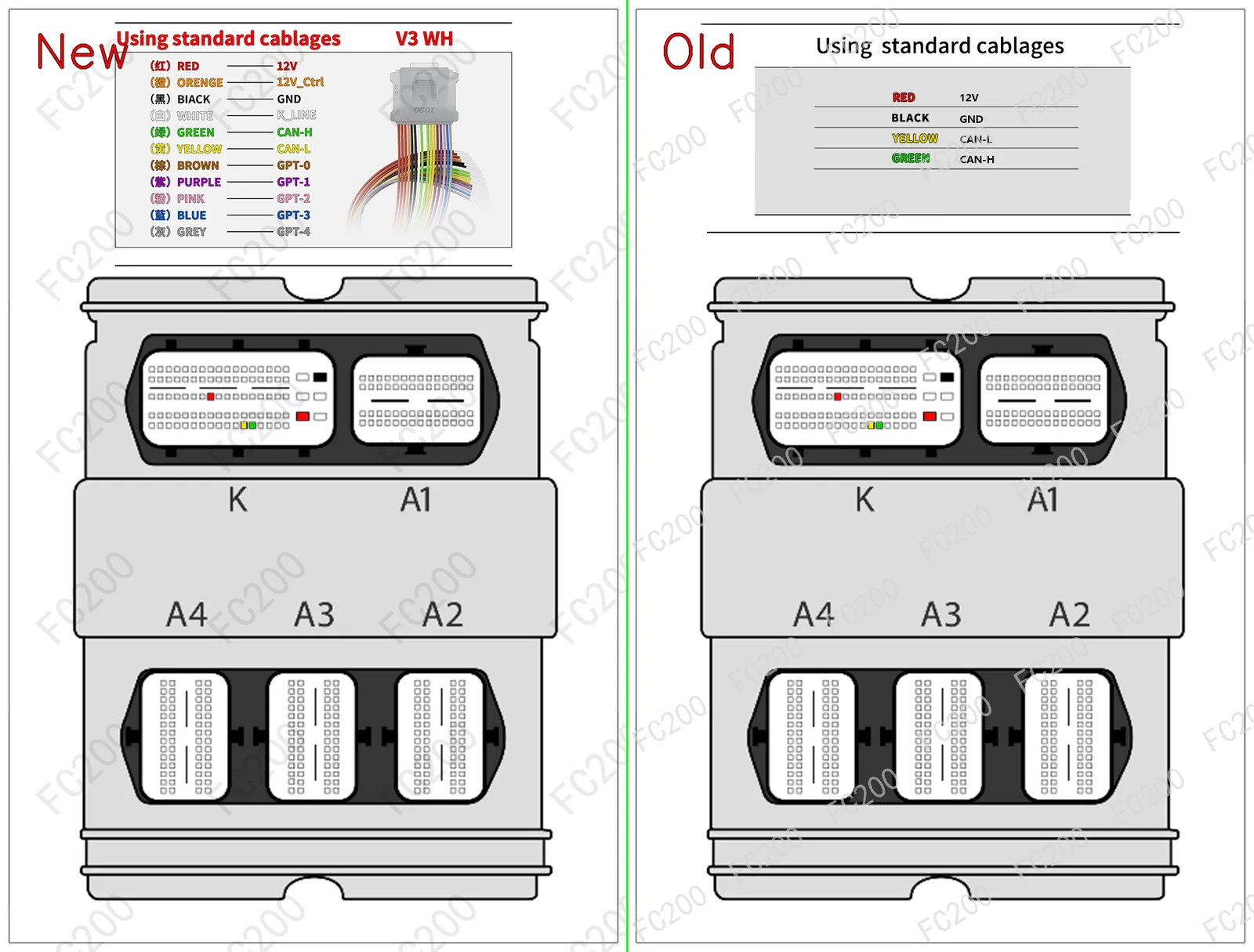

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CP014.png (Platform / Bench)1,056,441 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CP014 (6)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Audi | SQ7(4MB) (4000 TDI CZAC 435) | BOSCH MD1CP014 (TC298TP) |
Open Vehicle → |
| Bentley | Bentayga (3998 • 441) | BOSCH MD1CP014 (TC298TP) |
Open Vehicle → |
| Porsche | Panamera(971) (4000 • 428) | BOSCH MD1CP014 (TC298TP) |
Open Vehicle → |
| Audi | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) | BOSCH MD1CP014 (TC298TP) |
Open Vehicle → |
| Bentley | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) | BOSCH MD1CP014 (TC298TP) |
Open Vehicle → |
| Porsche | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) | BOSCH MD1CP014 (TC298TP) |
Open Vehicle → |
