ECU Pinout MD1CS006 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CS006 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

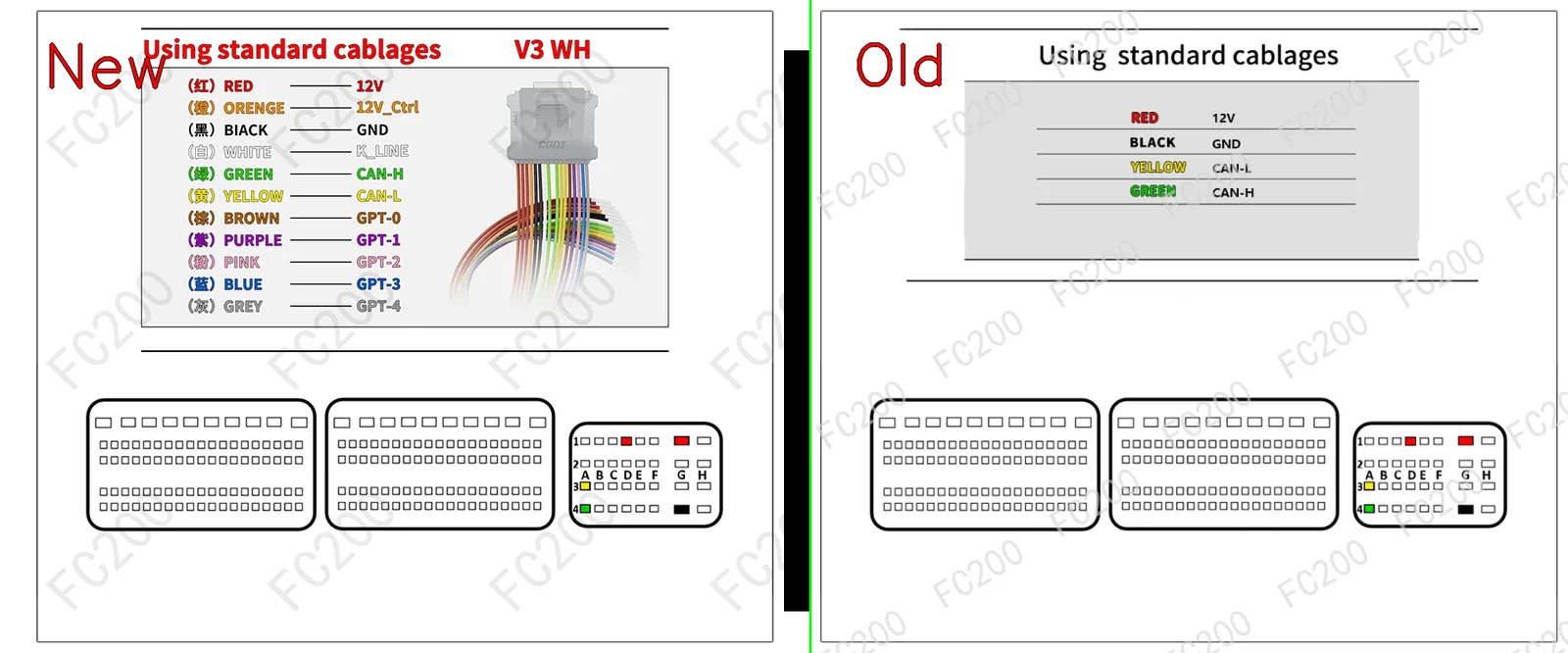

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CS006.png (Platform / Bench)571,389 bytes
BOSCH MD1CS006.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CS006 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Dacia Duster (1500 • 95) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Dacia Duster (1500 • 115) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Fiat Talento(296) (1999 M9R 120) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Mercedes-Benz A(W177) (180d OM 607.951 110) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Mercedes-Benz A(W177) (1461 K9K 118) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Mercedes-Benz VitoW447 (1749 R9N 103) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Nissan Qashqai (1500 • 115) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Clio(V) (1500 • 85) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Clio(V) (1500 • 115) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Espace (2000 • 200) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault KadjarHFE (1500 • 115) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault KadjarHFE (1700 • 120) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault KadjarHFE (1700 • 150) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Koleos (1995 M9R730 190) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Megane(LV) (1700 • 120) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Megane(LV) (1700 • 150) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Talisman (1700 • 120) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Talisman (1700 • 150) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault Talisman (2000 • 200) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Renault TraficRenault (2000 MR9 150) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Dacia All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Fiat All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CS006 (TC298TP) Open Vehicle →
Nissan All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CS006 (TC298TP) Open Vehicle →
