ECU Pinout ME17.1.1 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU ME17.1.1 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

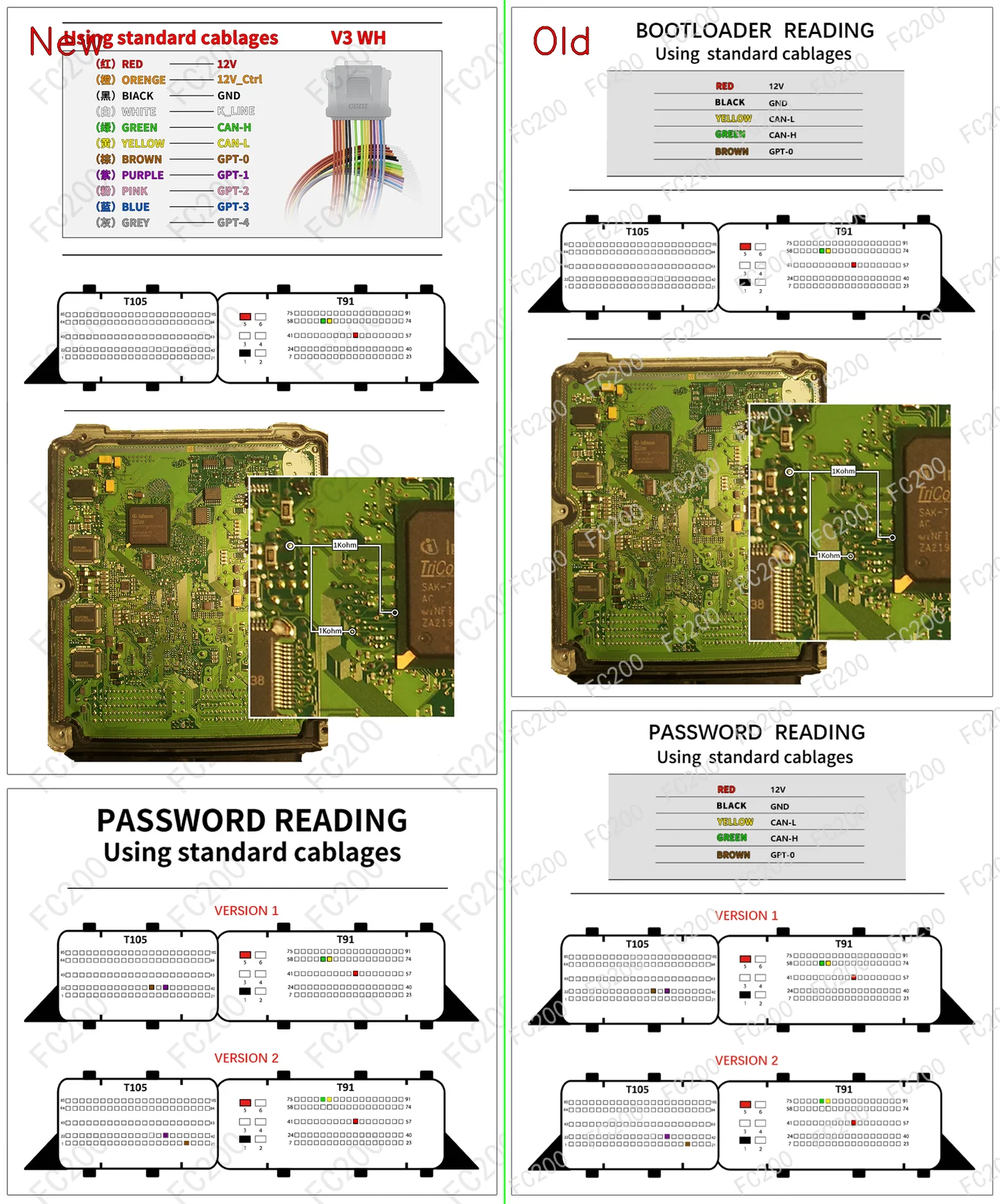

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.1.1 MASTER_SLAVE.png (Boot)3,481,890 bytes
BOOT_BOSCH ME17.1.1 MASTER_SLAVE.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.11.1.png (Boot)3,470,735 bytes
BOOT_BOSCH ME17.9.11.1.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.11.png (Boot)3,466,122 bytes
BOOT_BOSCH ME17.9.11.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.21.1.png (Boot)3,409,178 bytes
BOOT_BOSCH ME17.9.21.1.png

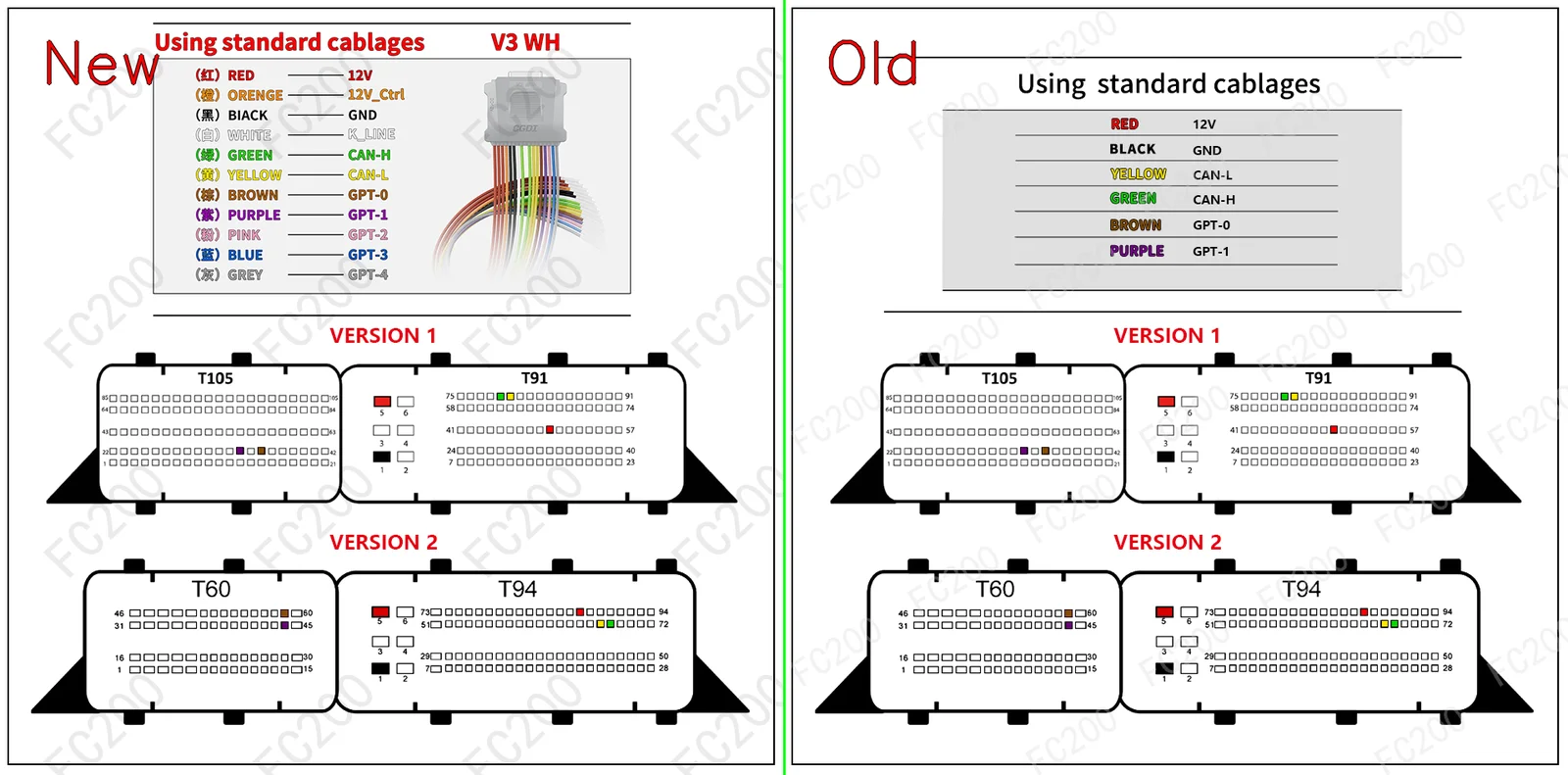

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.1.1 MASTER_SLAVE.png (Platform / Bench)678,495 bytes
BOSCH ME17.1.1 MASTER_SLAVE.png
OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.11.1.png (Platform / Bench)495,581 bytes
BOSCH ME17.9.11.1.png
OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.11.png (Platform / Bench)231,444 bytes
BOSCH ME17.9.11.png
OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.21.1.png (Platform / Bench)523,513 bytes
BOSCH ME17.9.21.1.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME17.1.1 (7)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Bentley Continental (4000 GT V8 CEUA 507) BOSCH ME17.1.1 MASTER_SLAVE (TC1796) Open Vehicle →
Bentley Continental (4000 GT V8 S • 528) BOSCH ME17.1.1 MASTER_SLAVE (TC1796) Open Vehicle →
Bentley Continental (4000 V8 TwinTurbo GT3-R GT • 580) BOSCH ME17.1.1 MASTER_SLAVE (TC1796) Open Vehicle →
Bentley Mulsanne (4000 GT V8 CEUA 507) BOSCH ME17.1.1 MASTER_SLAVE (TC1796) Open Vehicle →
Bentley Mulsanne (6800 V8 Speed CZMA 537) BOSCH ME17.1.1 MASTER_SLAVE (TC1796) Open Vehicle →
Bentley Mulsanne (6800 V8 CZMB 513) BOSCH ME17.1.1 MASTER_SLAVE (TC1796) Open Vehicle →
Bentley All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH ME17.1.1 MASTER_SLAVE (TC1796) Open Vehicle →
