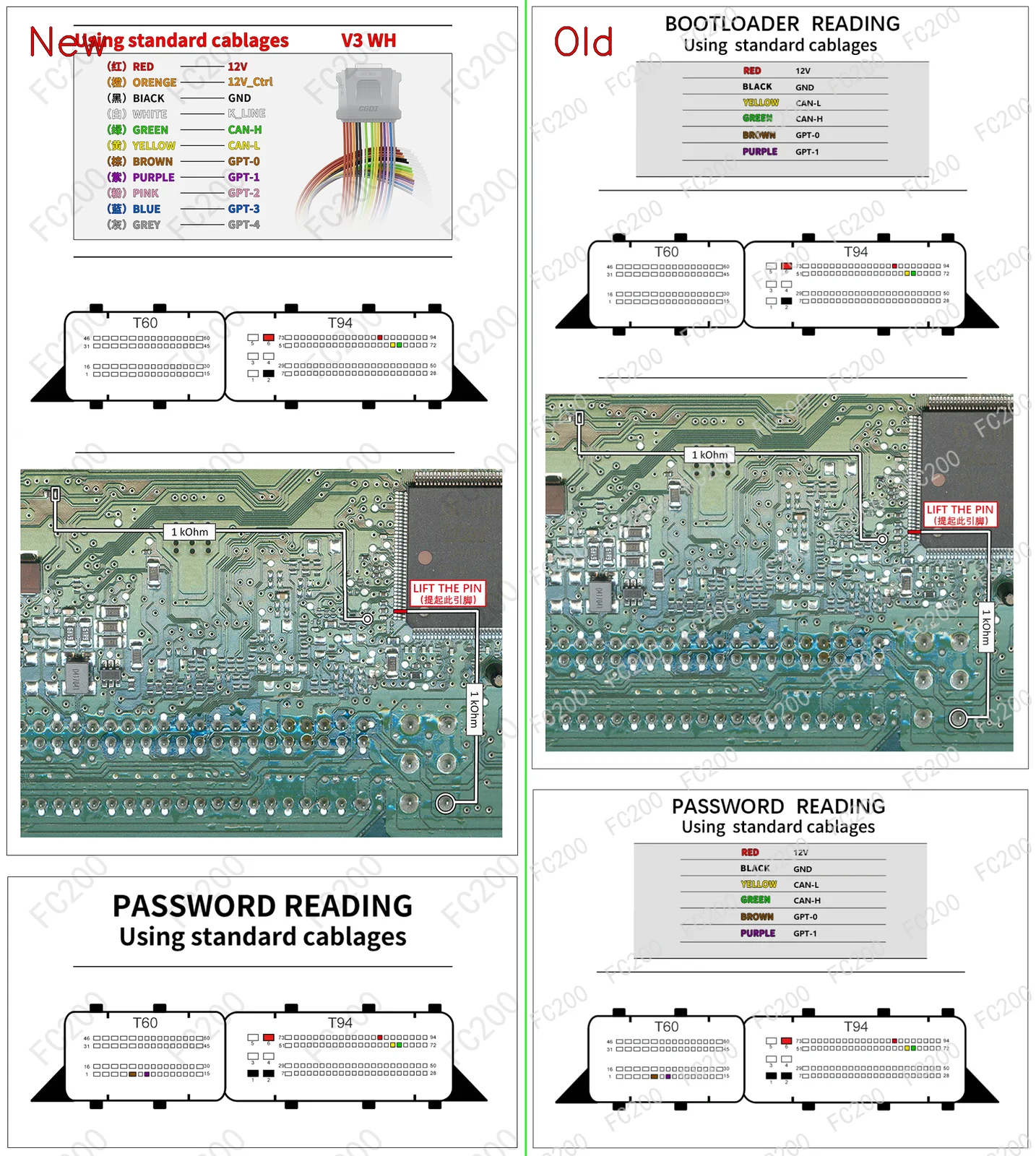

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.5.26.png (Boot)4,132,533 bytes

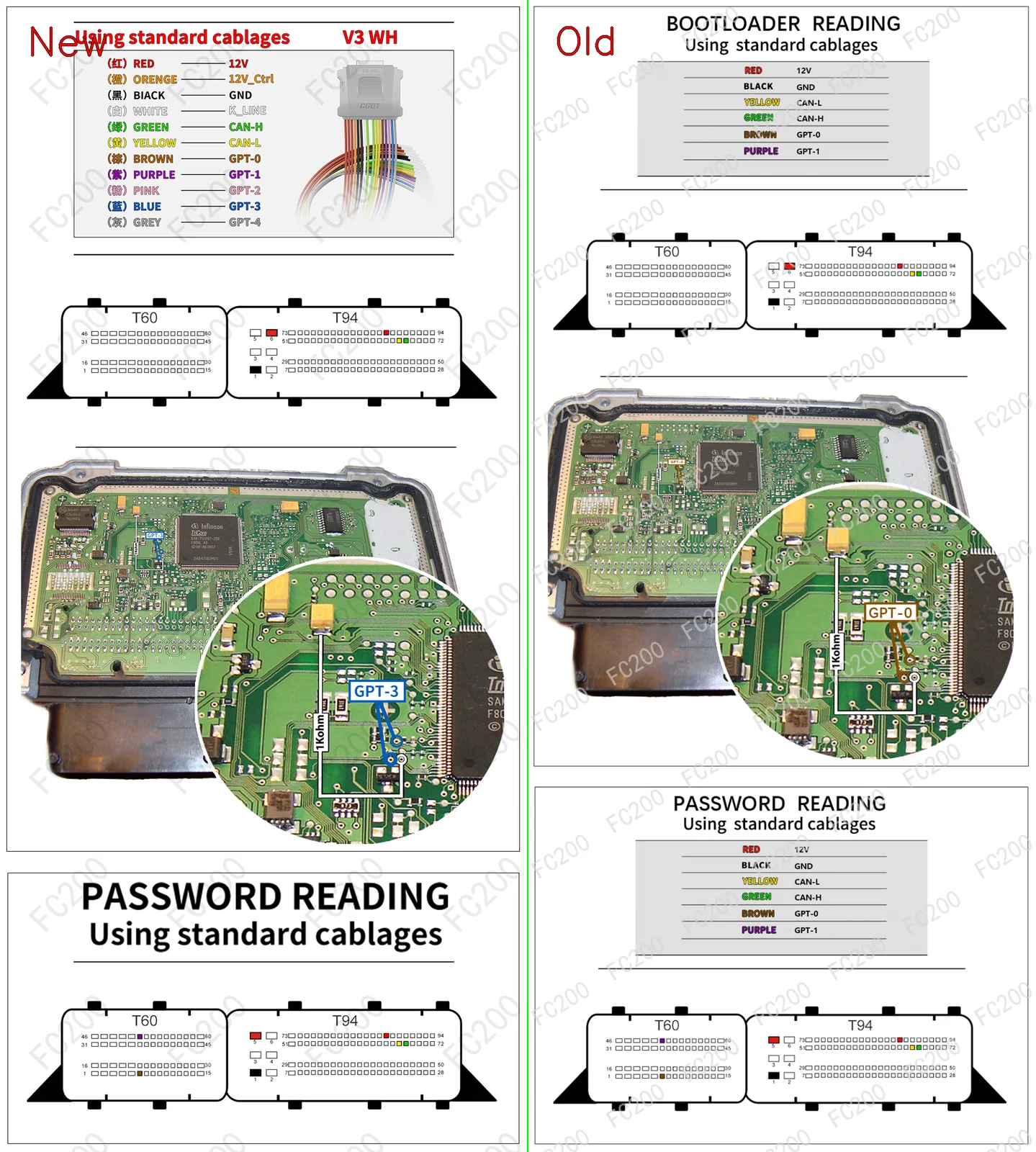

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.5.6.png (Boot)3,698,697 bytes

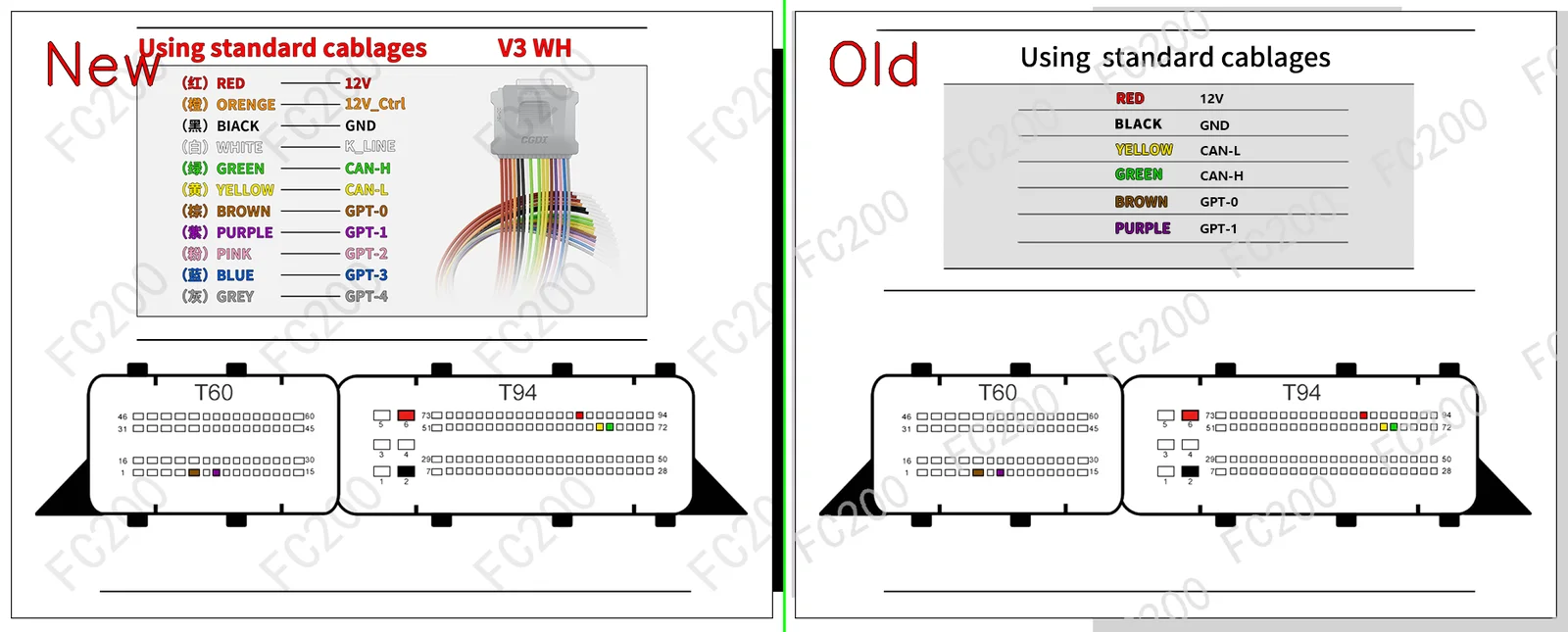

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.5.26.png (Platform / Bench)497,591 bytes

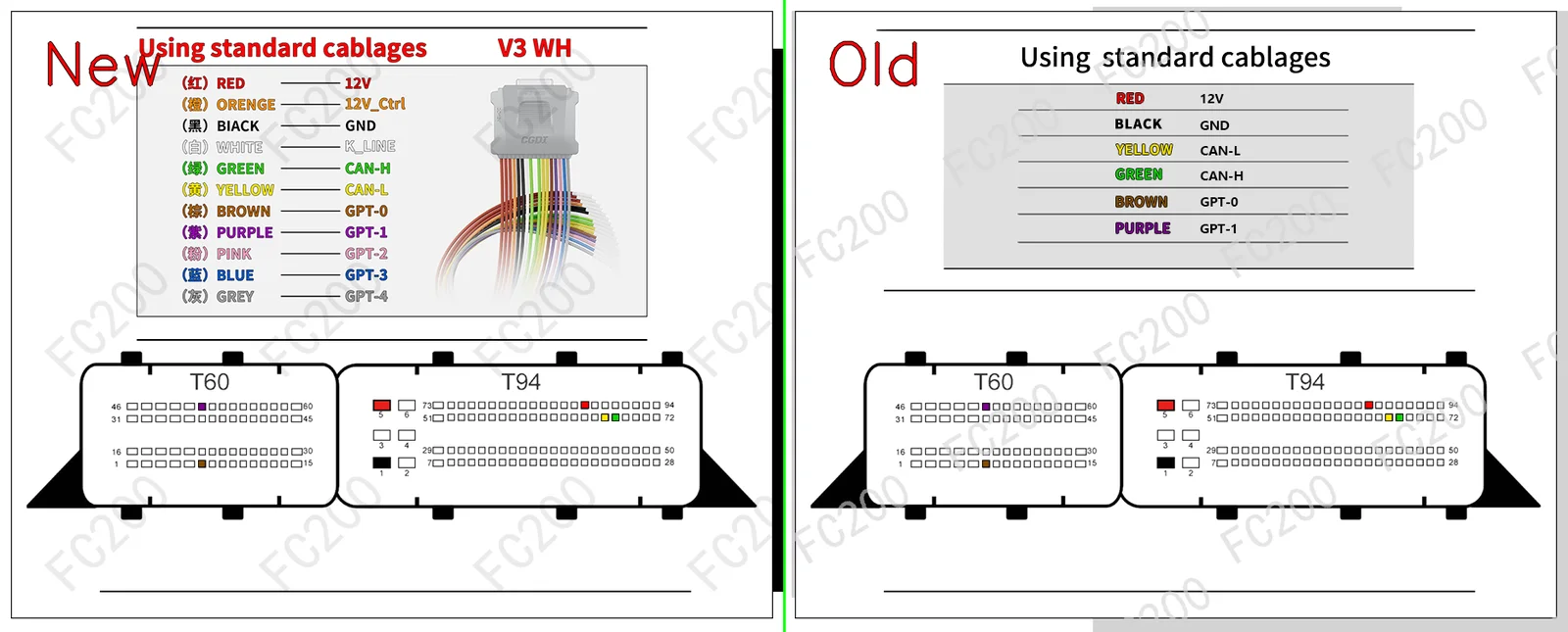

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.5.6.png (Platform / Bench)496,357 bytes

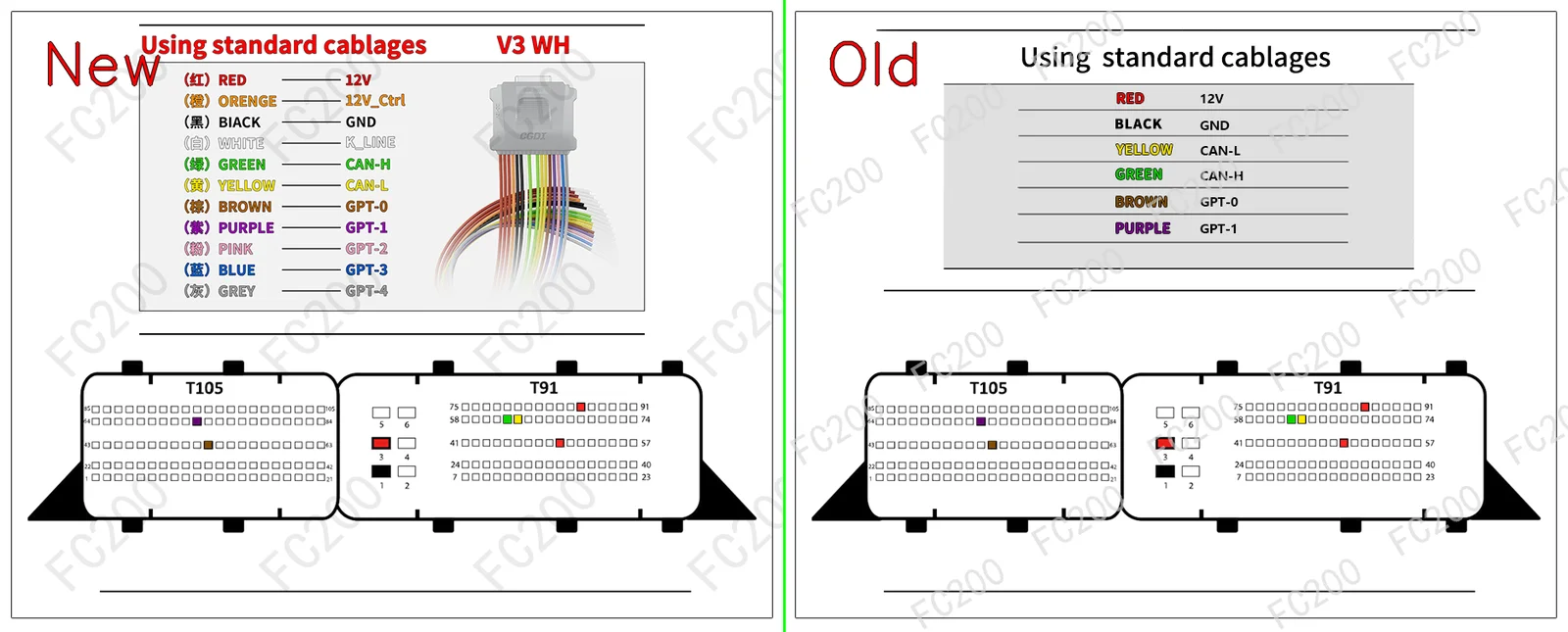

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.56.png (Platform / Bench)533,866 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME17.5.26 (7)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Seat | Mii(KF1) (999 CHZD 116) | BOSCH ME17.5.26 (TC1724) |
Open Vehicle → |
| Skoda | Fabia(NJ) (1000 MPI CHYA 60) | BOSCH ME17.5.26 (TC1724) |
Open Vehicle → |
| Volkswagen (VW) | Polo(VI) (1600 MPI CWVB 90) | BOSCH ME17.5.26 (TC1724) |
Open Vehicle → |
| Volkswagen (VW) | Polo(VI) (1000 MPI CHYA 60) | BOSCH ME17.5.26 (TC1724) |
Open Vehicle → |
| Seat | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) | BOSCH ME17.5.26 (TC1724) |
Open Vehicle → |
| Skoda | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) | BOSCH ME17.5.26 (TC1724) |
Open Vehicle → |
| Volkswagen (VW) | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) | BOSCH ME17.5.26 (TC1724) |
Open Vehicle → |
