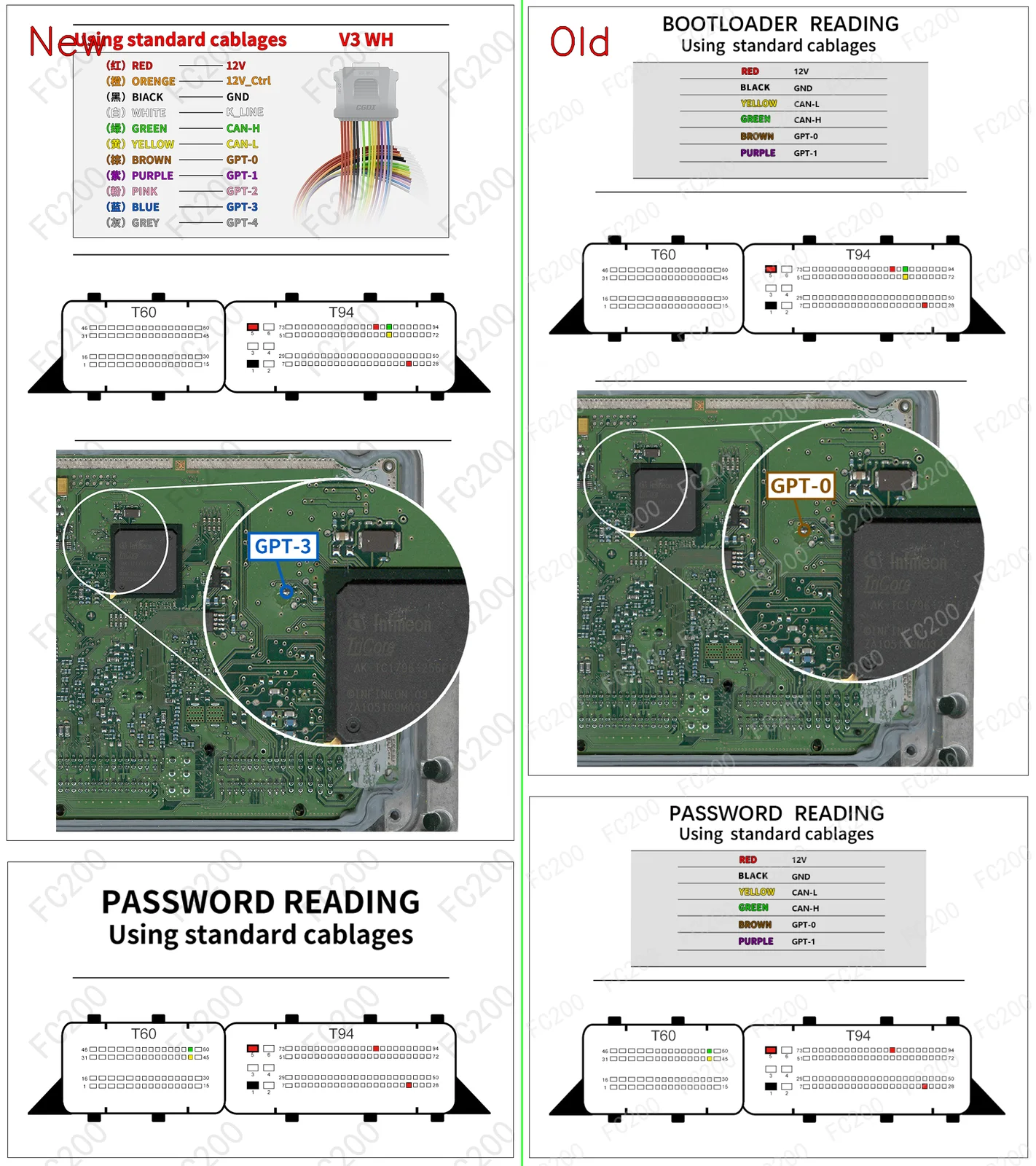

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.1.png (Boot)3,363,433 bytes

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.11.1.png (Boot)3,470,735 bytes

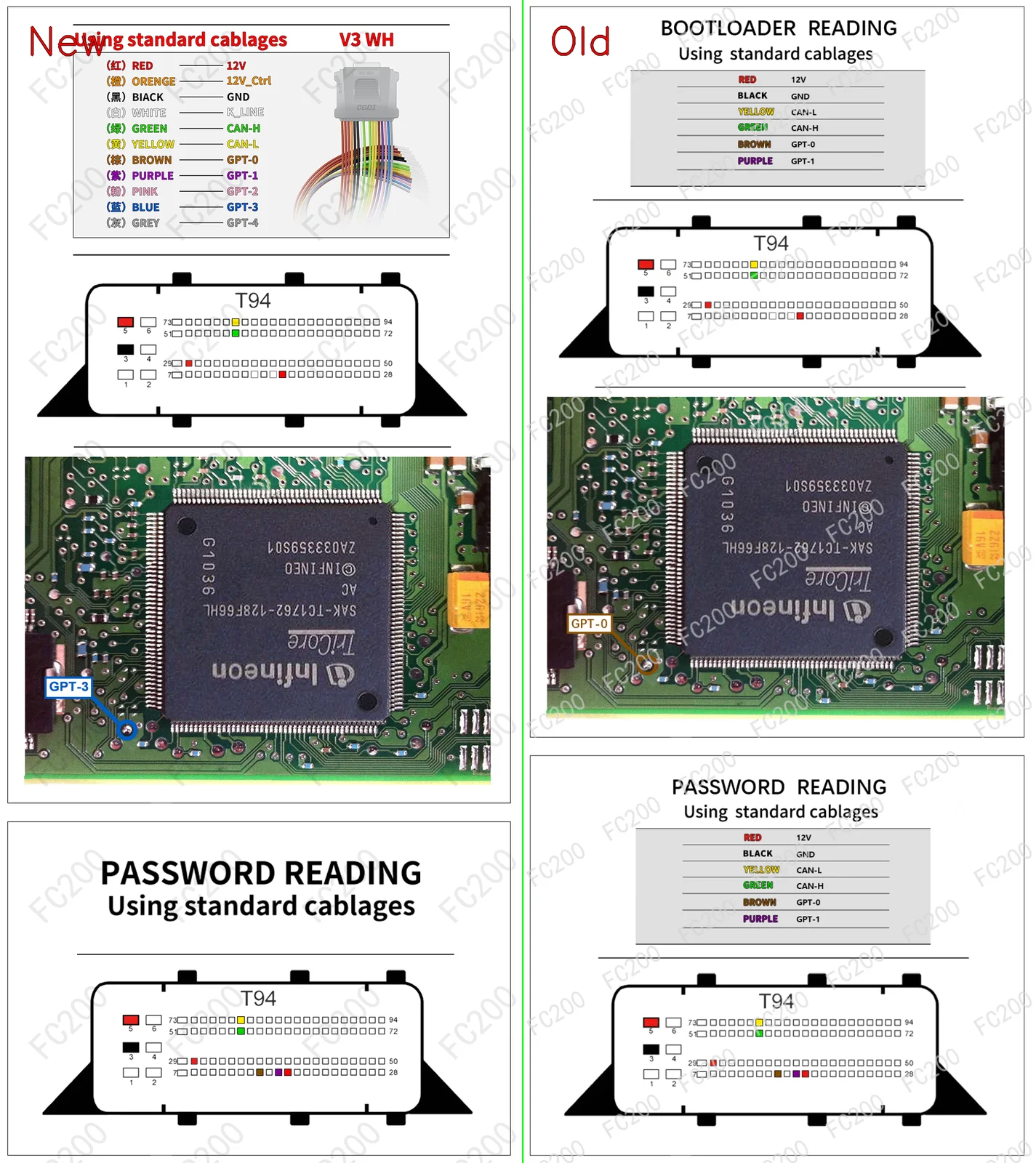

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.11.png (Boot)3,466,122 bytes

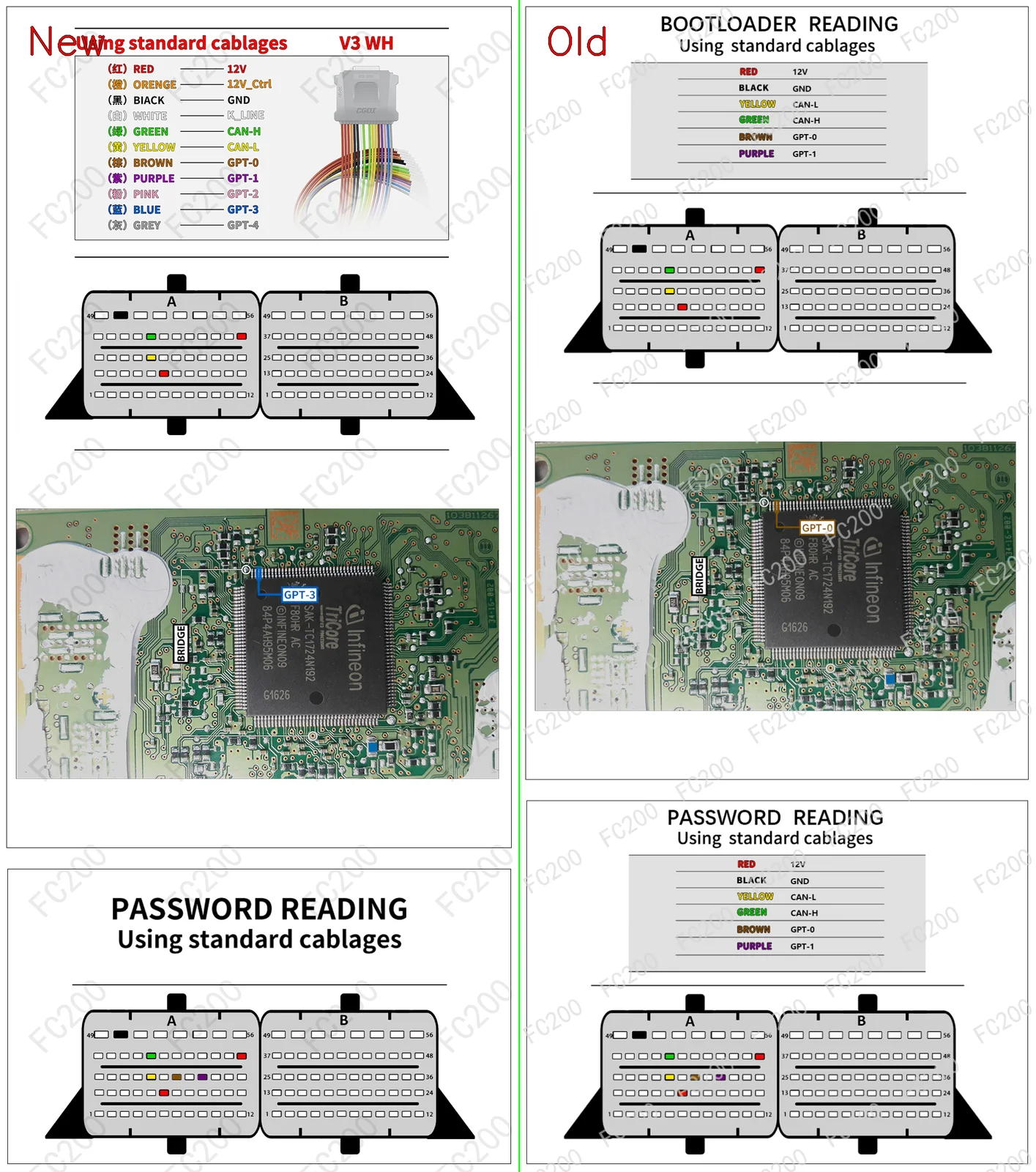

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.21.1.png (Boot)3,409,178 bytes

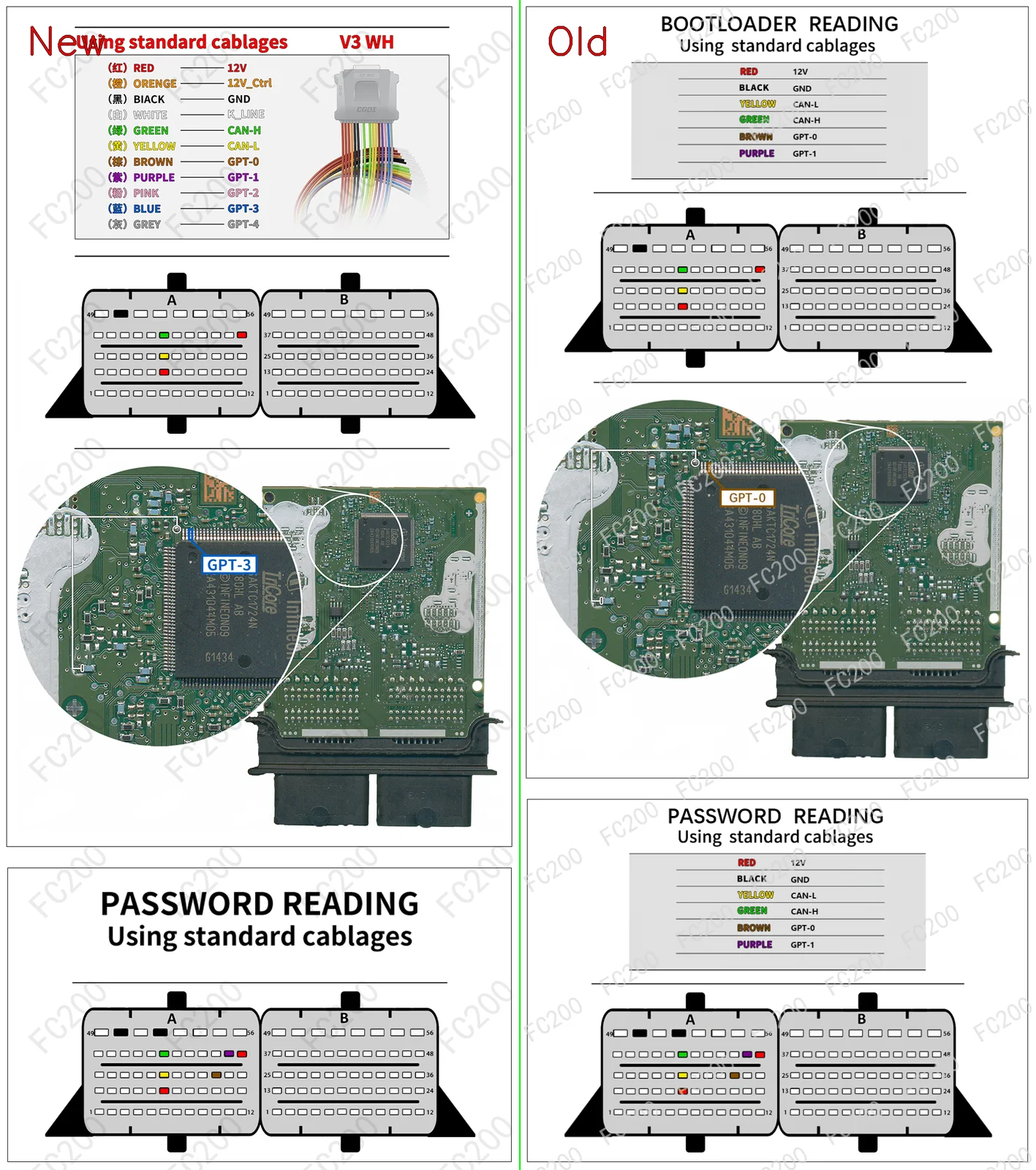

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.21.png (Boot)3,806,816 bytes

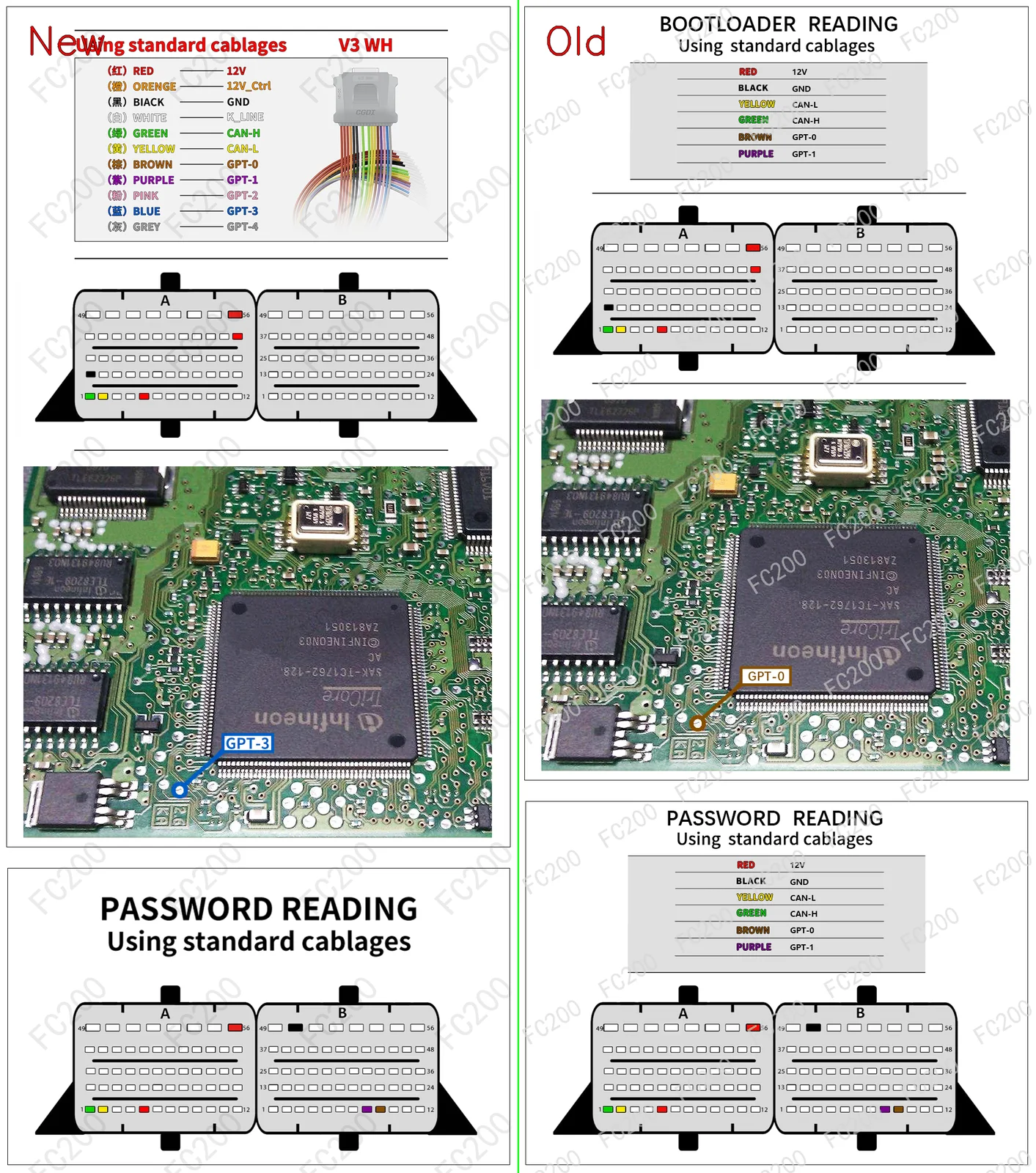

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.51.png (Boot)4,275,359 bytes

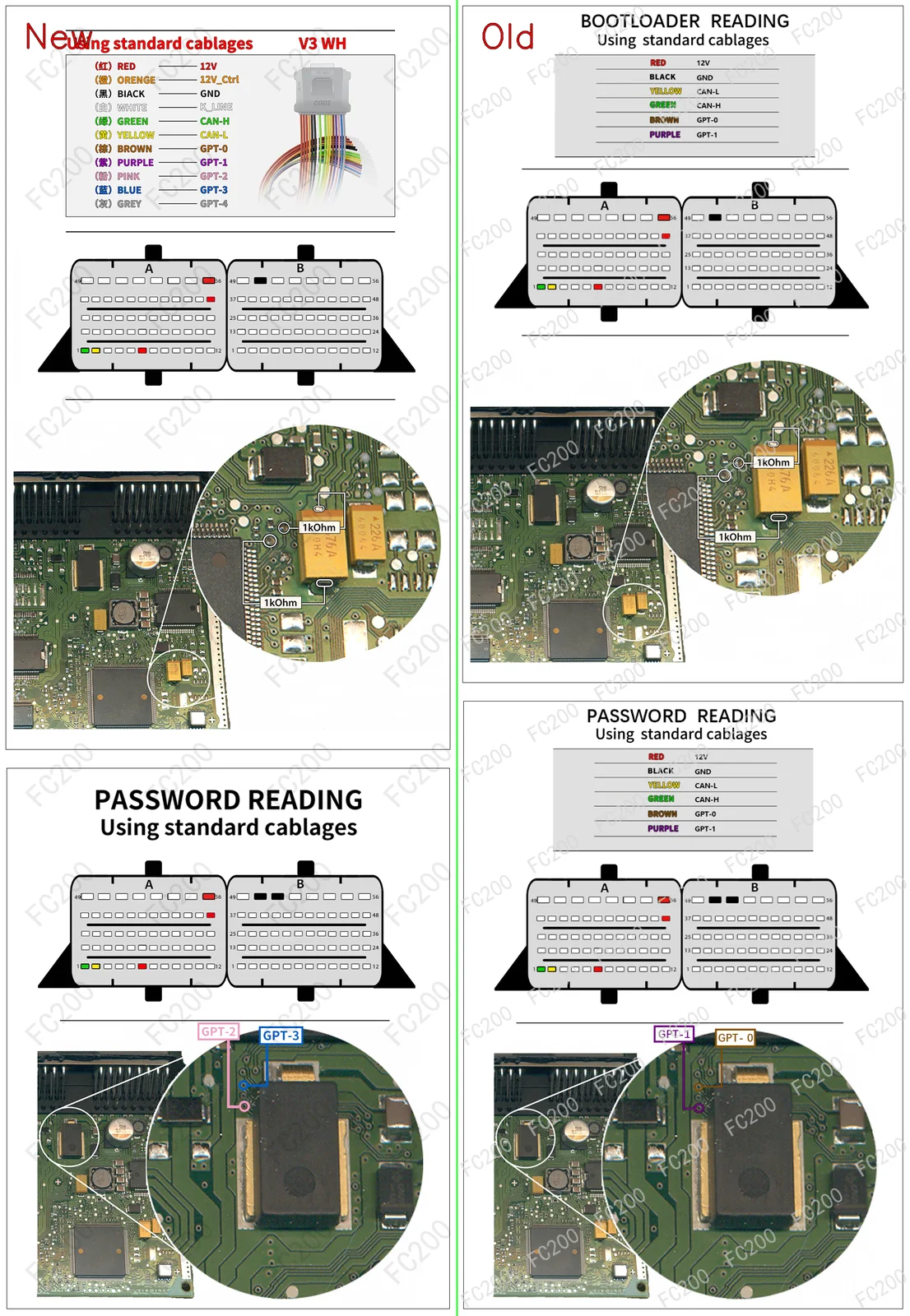

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.61.png (Boot)5,831,860 bytes

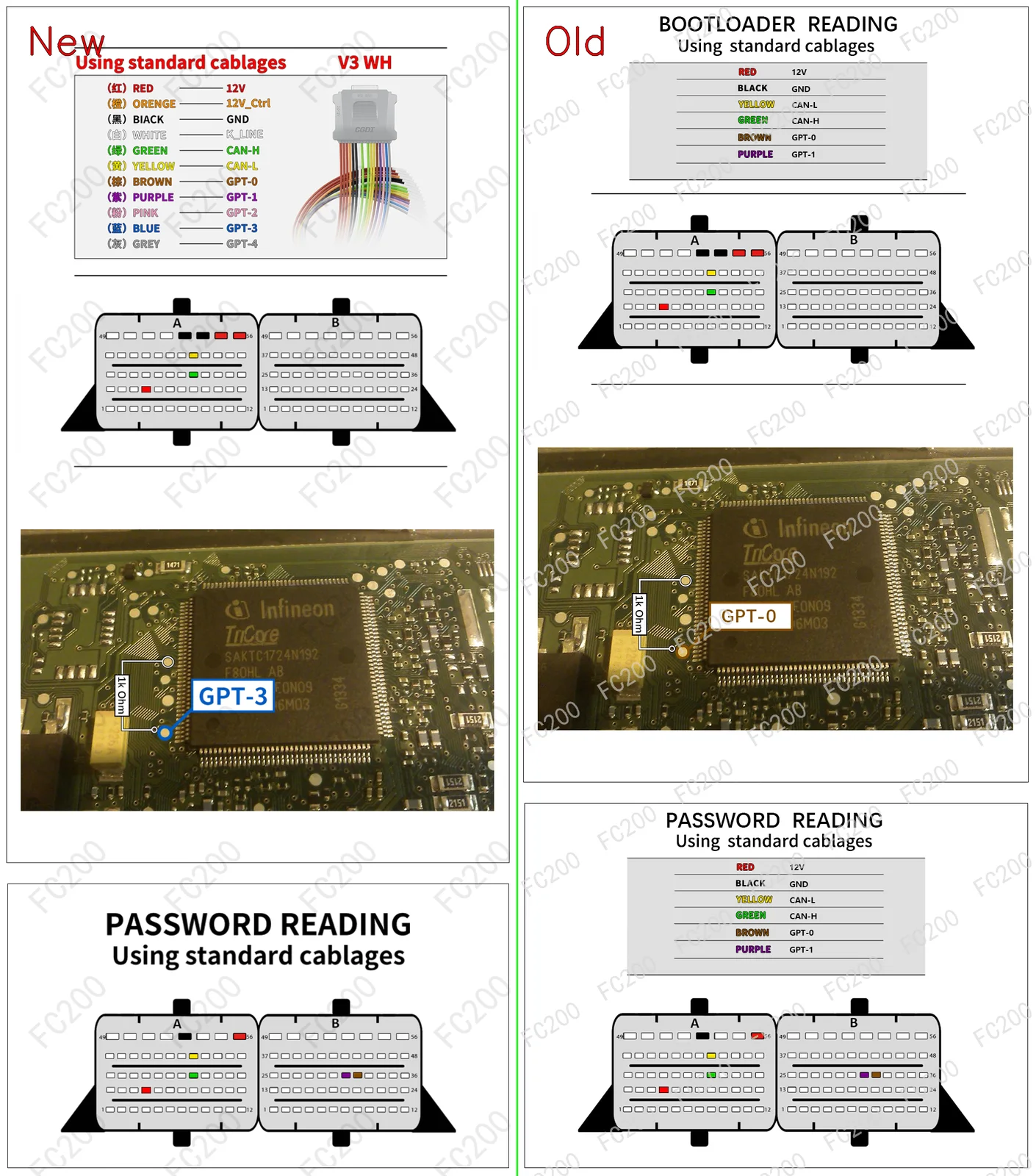

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.71.png (Boot)3,219,813 bytes

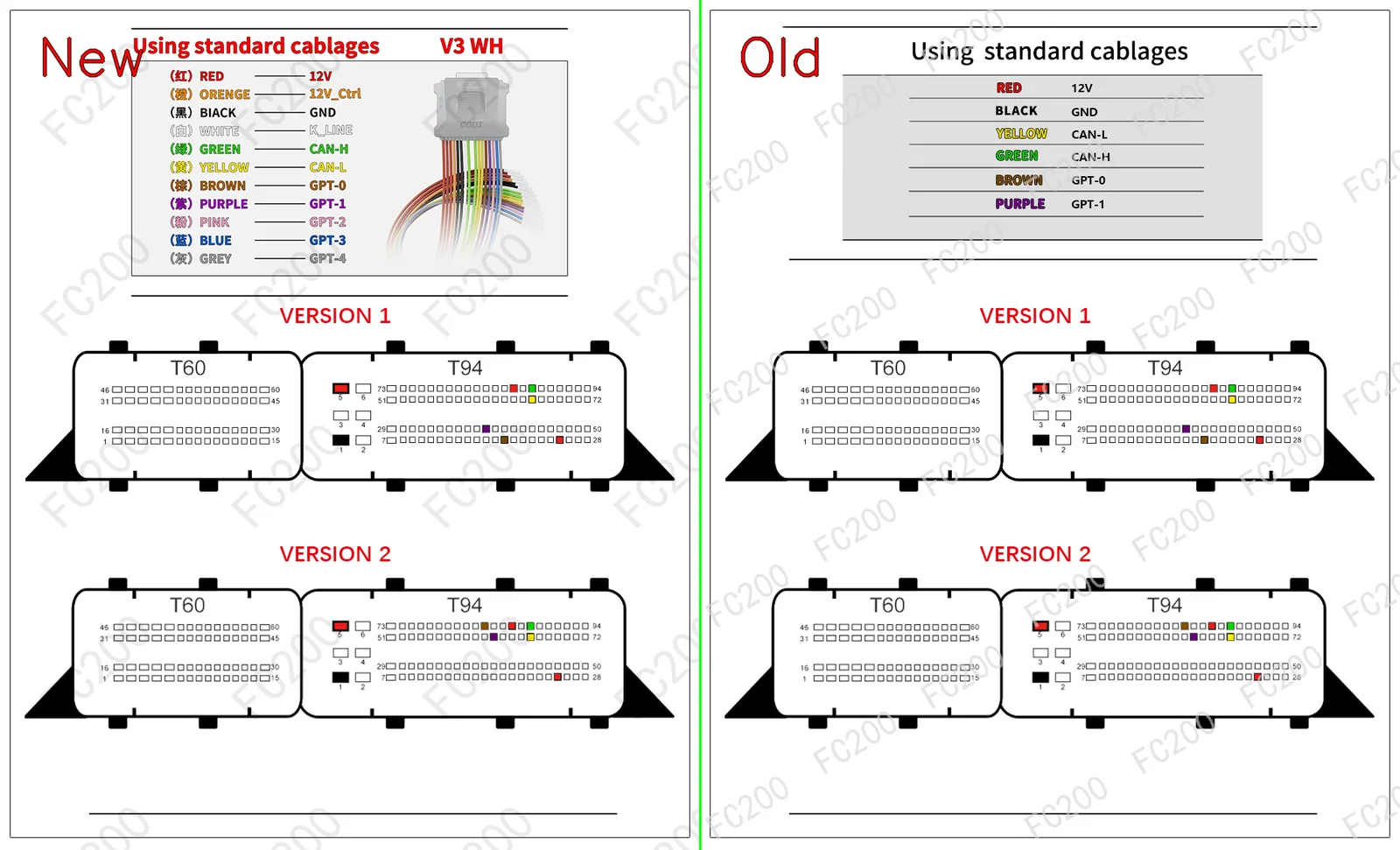

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.1.png (Platform / Bench)717,258 bytes

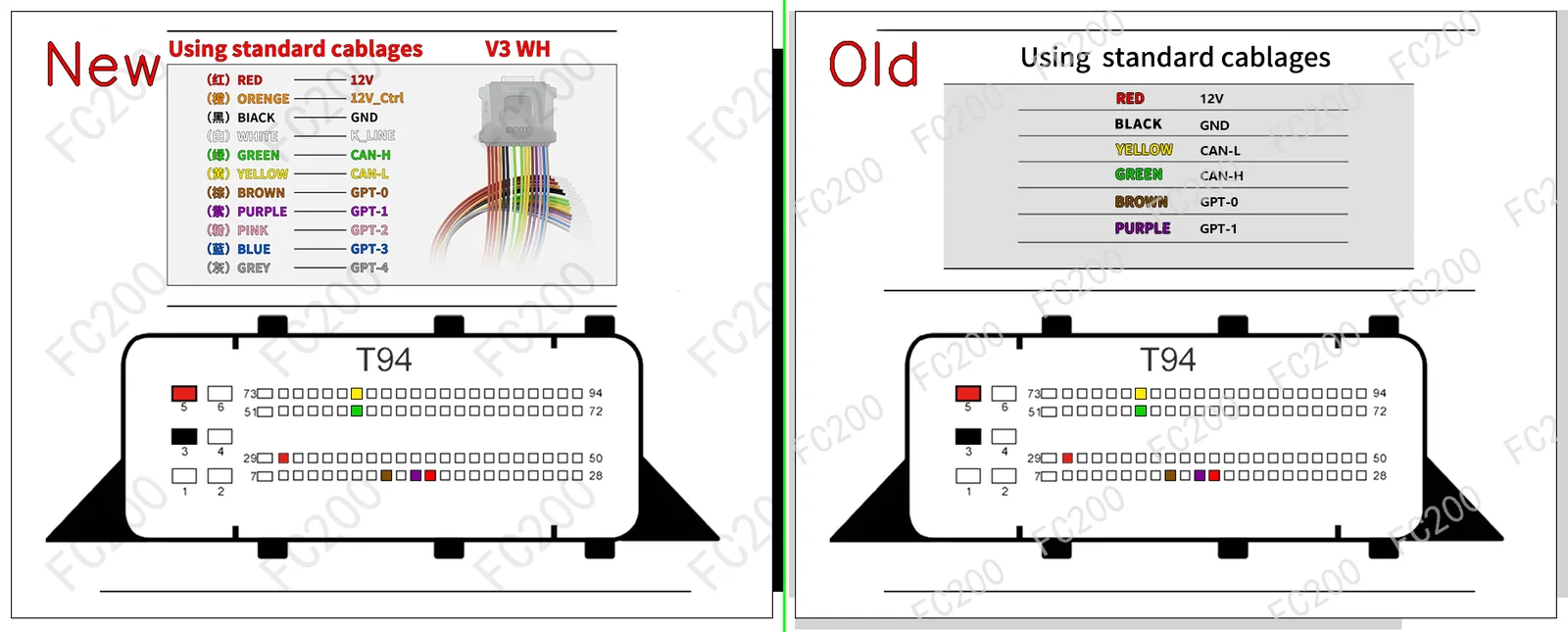

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.11.1.png (Platform / Bench)495,581 bytes

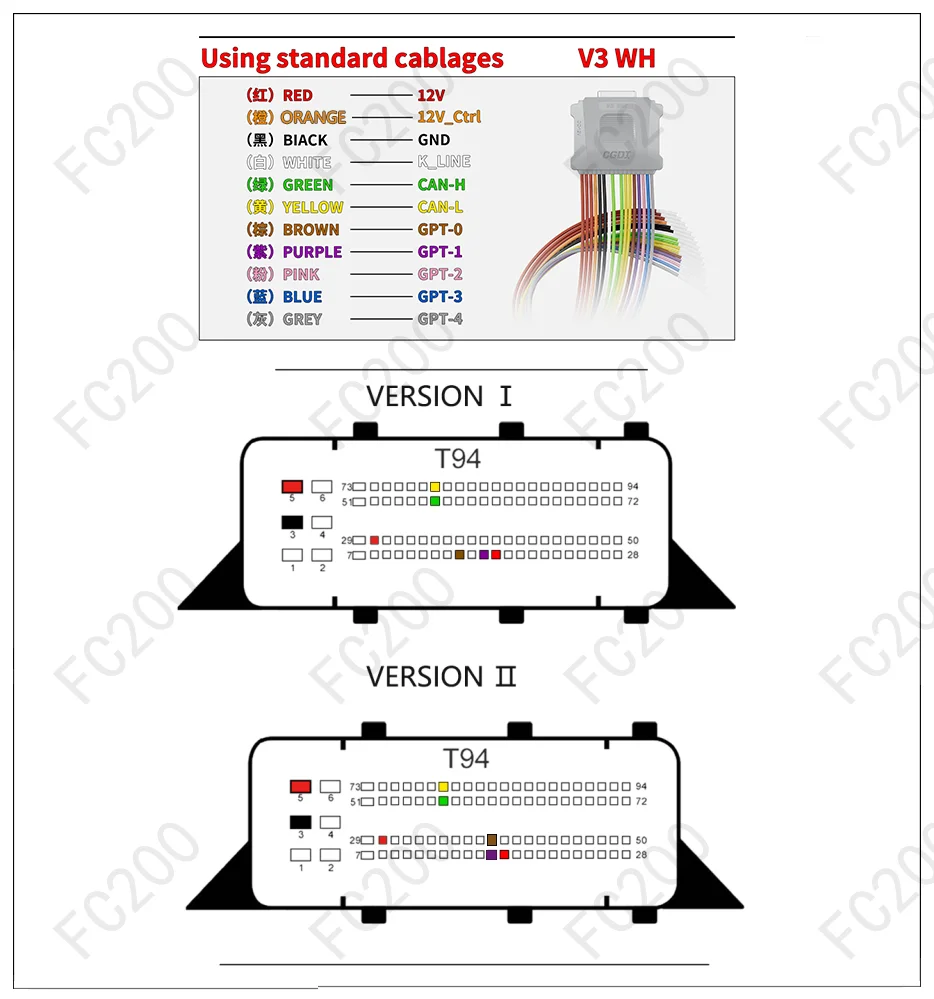

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.11.png (Platform / Bench)231,444 bytes

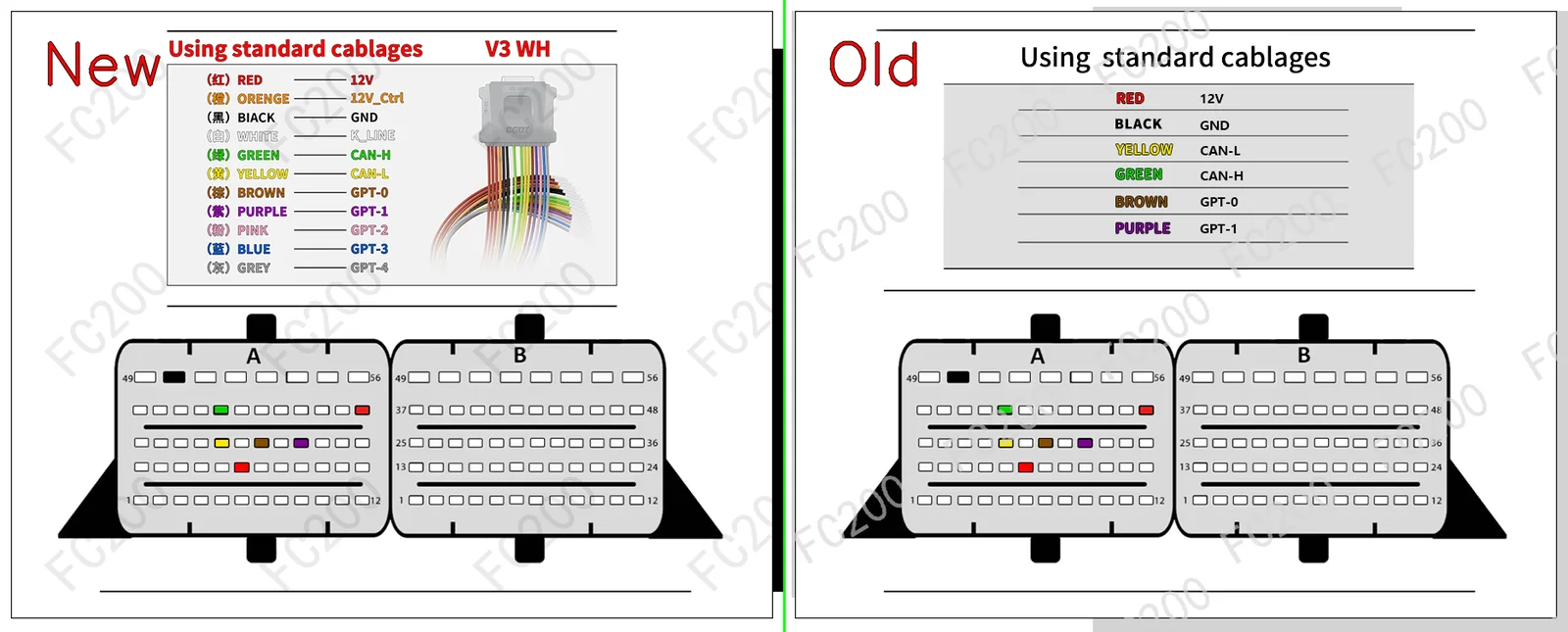

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.21.1.png (Platform / Bench)523,513 bytes

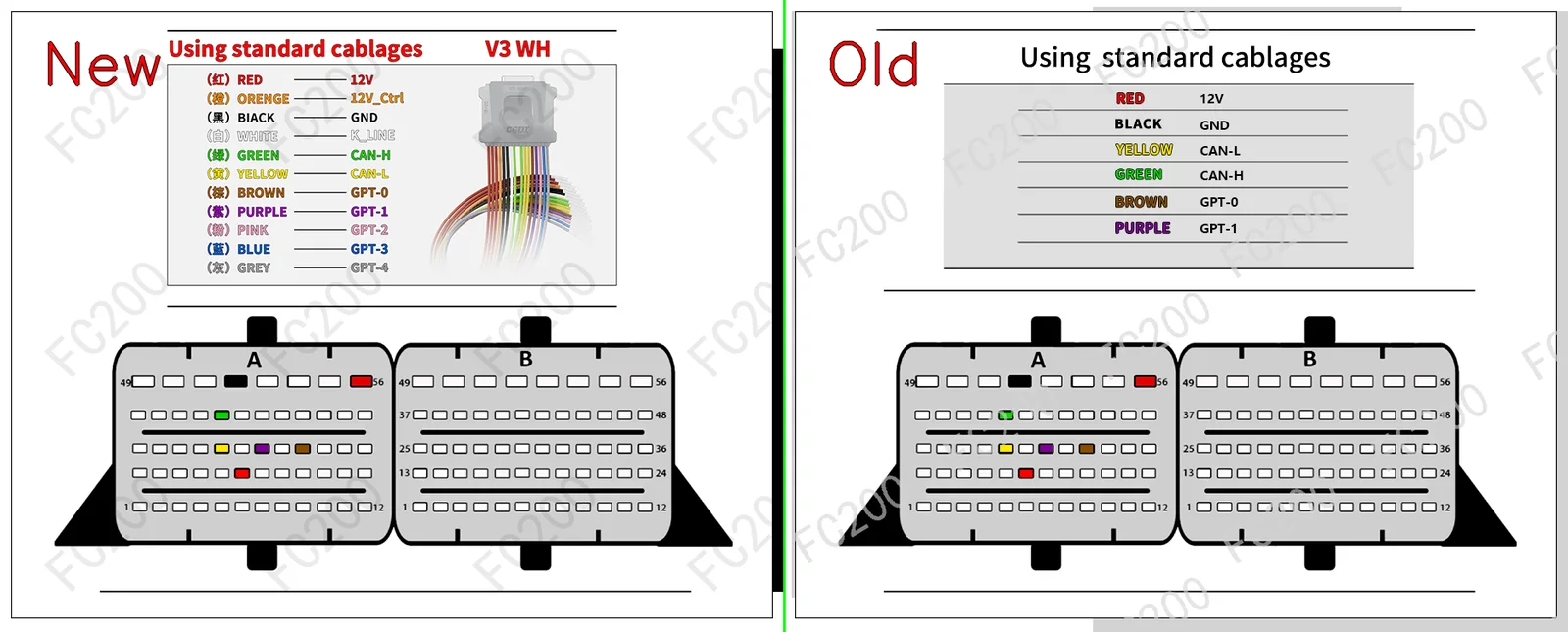

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.21.png (Platform / Bench)514,920 bytes

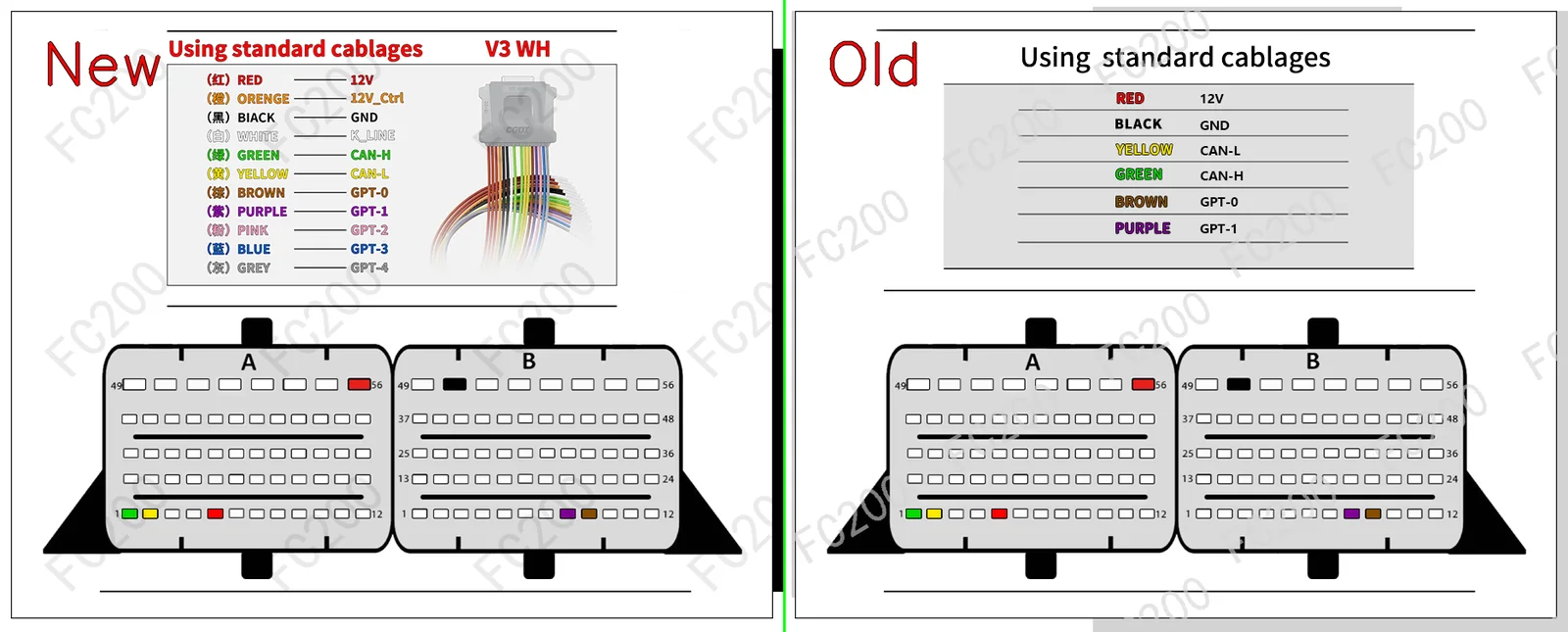

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.51.png (Platform / Bench)516,744 bytes

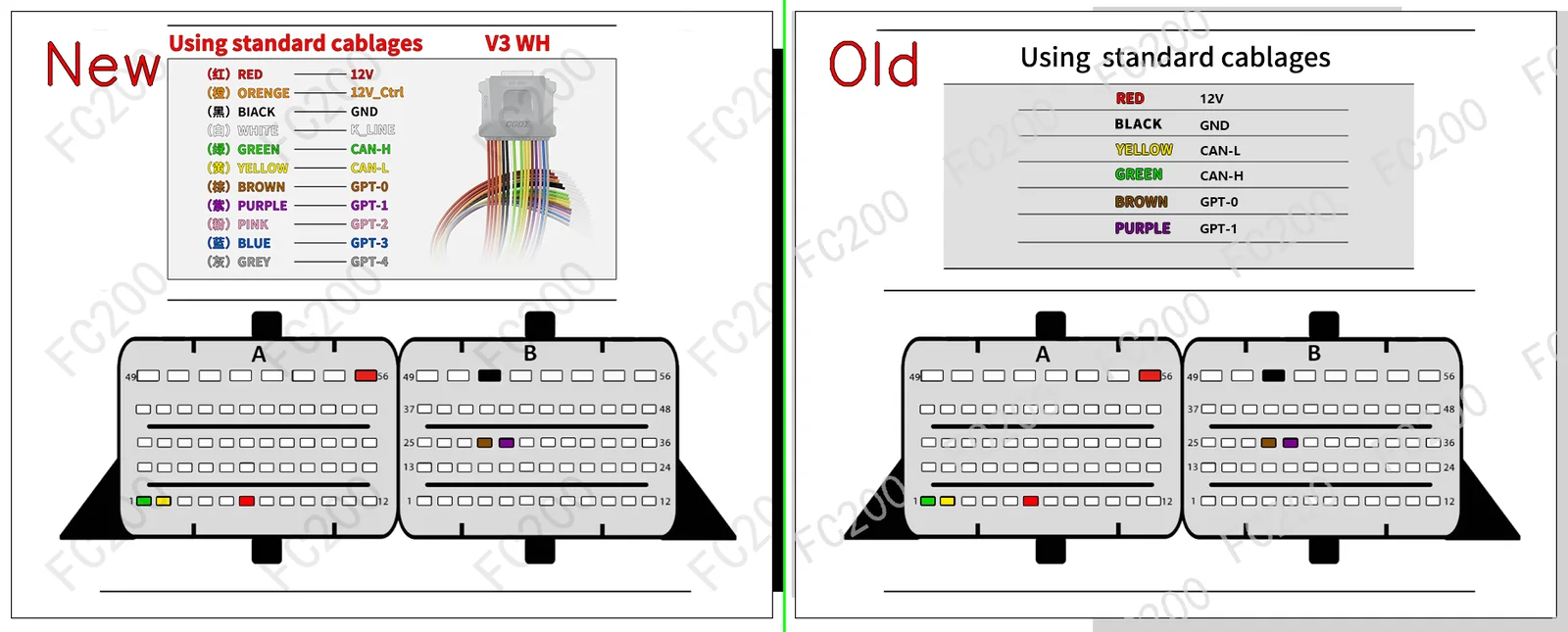

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.61.png (Platform / Bench)507,153 bytes

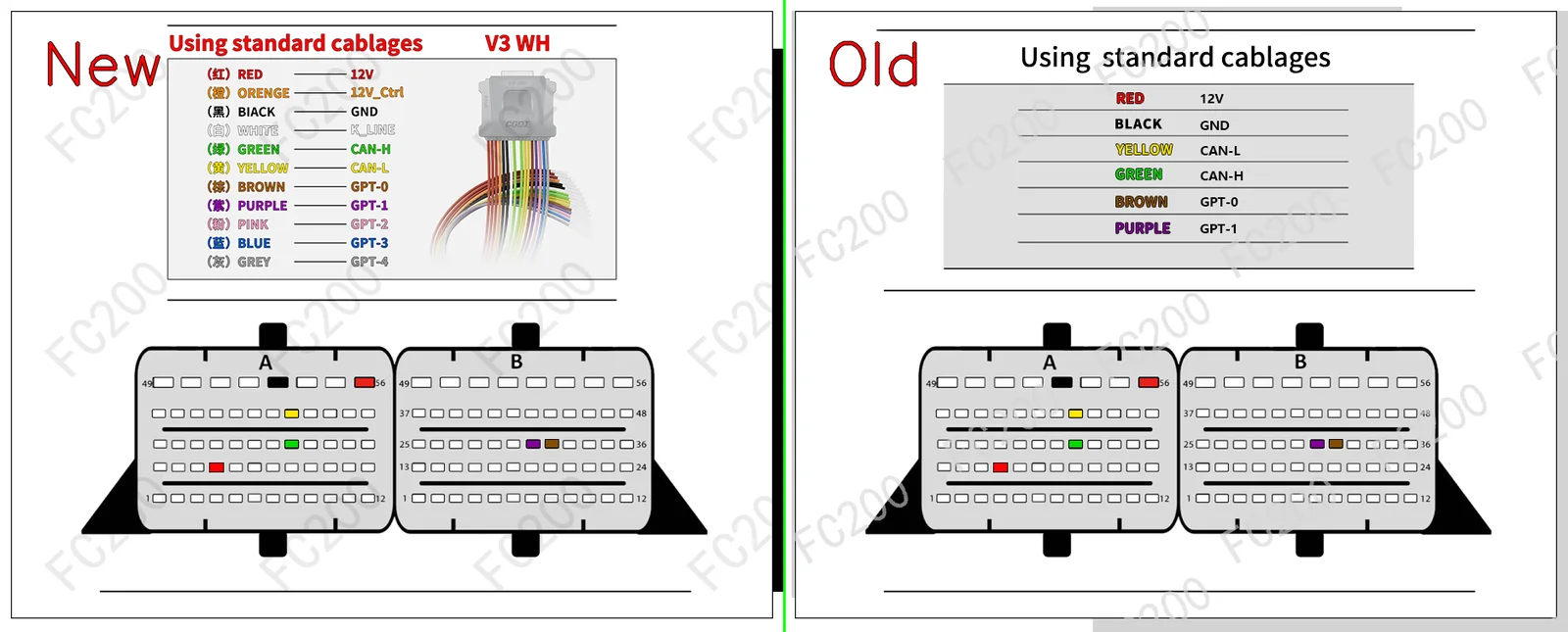

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.71.png (Platform / Bench)490,069 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU ME17.9.1 (24)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Dodge	Attitude(II) (1600 G4FC 126)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Dodge	Attitude(II) (1400 • 109)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Hyundai	Cerato (2000 Flex • 154)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Hyundai	Veloster (1600 MPI G4FC 116)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Hyundai	Veloster (1600 MPI G4FC 130)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Hyundai	i30(I) (1600 MPI G4FC 120)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Hyundai	i30(I) (1400 • 101)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Hyundai	Elantra(AD) (1598 B16SHT 116)	`BOSCH ME17.9.11.1` (TC1766)	Open Vehicle →
Hyundai	Elantra(MD) (1598 B16SHT 116)	`BOSCH ME17.9.11.1` (TC1766)	Open Vehicle →
Hyundai	Elantra(UD) (1598 B16SHT 116)	`BOSCH ME17.9.11.1` (TC1766)	Open Vehicle →
Hyundai	Veloster (1598 B16SHT 116)	`BOSCH ME17.9.11.1` (TC1766)	Open Vehicle →
Hyundai	Equus(VI) (5000 GDI Gamma G4FC 416)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Forte(I) (1600 GDI Gamma-G4FD 136)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Rio(III) (1400 CVVT Gamma-G4FA 109)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Rio(III) (1600 GDI Gamma-G4FD 136)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Soul(I) (1600 GDI Gamma-G4FD 140)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Sportage(SL) (1600 GDI Gamma-G4FD 136)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Venga(I) (1400 CVVT Gamma-G4FA 90)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Cee'd(I) (1400 CVVT • 107)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Kia	Cee'd(I) (1400 CVVT Gamma-G4FA 90)	`BOSCH ME17.9.1` (TC1796)	Open Vehicle →
Kia	Forte (1600 MPI G4FC 123)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Kia	K3 (1600 MPI G4FC 128)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Kia	RioIII (1600 G4FC 127)	`BOSCH ME17.9.11` (TC1766)	Open Vehicle →
Kia	Cee'd(JD) (1598 B16SHT 116)	`BOSCH ME17.9.11.1` (TC1766)	Open Vehicle →

ECU Pinout ME17.9.1 Bench / Boot / GPT Pinout — Wiring Diagram
