OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.61.png (Boot)5,831,860 bytes
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.64.png (Boot)3,266,795 bytes
OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.56.png (Platform / Bench)533,866 bytes

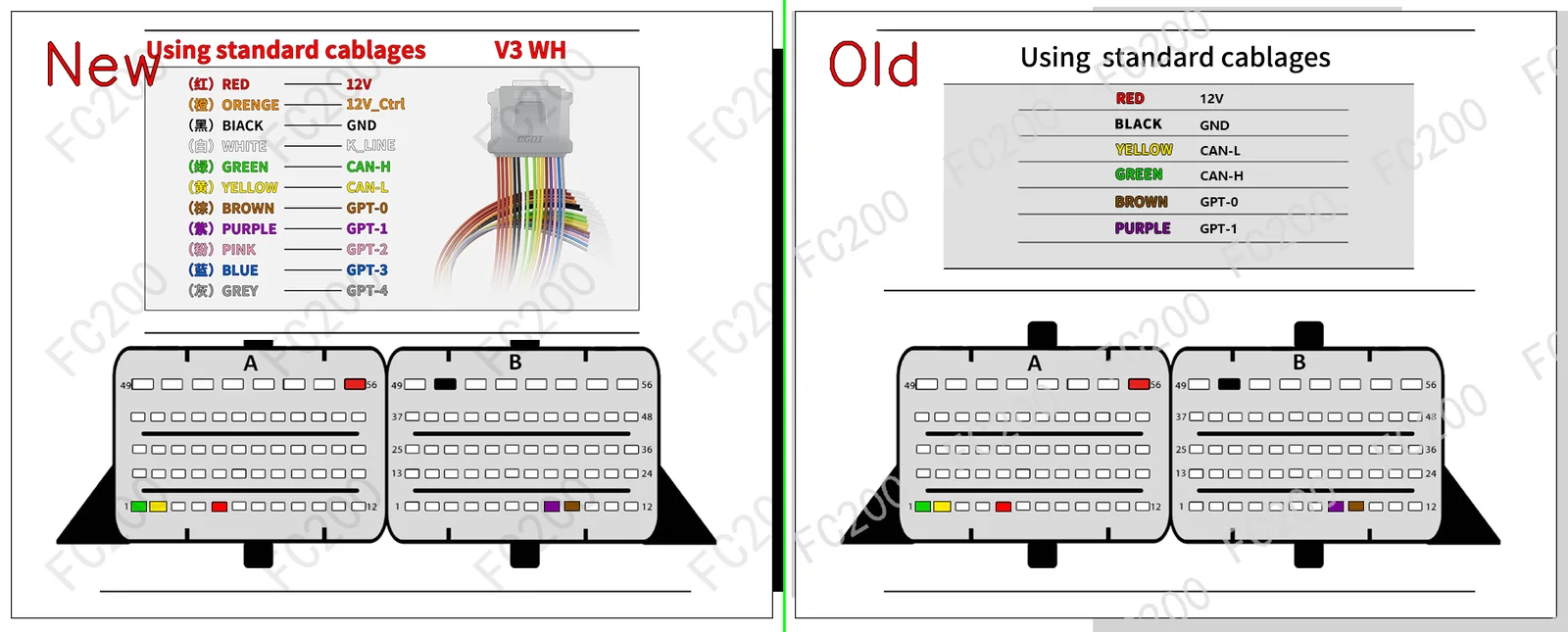

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.6.png (Platform / Bench)530,560 bytes
OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.61.png (Platform / Bench)507,153 bytes
OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.64.png (Platform / Bench)497,049 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME17.9.61 (8)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Suzuki | Grand Vitara(JT) (1600 VVT M16A 120) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
| Suzuki | Grand Vitara(JT) (1600 VVT 4x4 M16A 120) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
| Suzuki | SX4 (1600 S-Cross M16A 120) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
| Suzuki | SX4 (1600 S-Cross 4WD M16A 120) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
| Suzuki | SX4 (1600 VVT 4WD M16A 120) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
| Suzuki | Vitara(LY) (1600 VVT M16A 120) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
| Suzuki | Vitara(LY) (1600 VVT 4x4 M16A 120) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
| Suzuki | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) | BOSCH ME17.9.61 (TC1724) |
Open Vehicle → |
