ECU Pinout ME2.8.1 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU ME2.8.1 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

OFFICIAL PINOUT DIAGRAM: BOSCH ME2.8.1.png (Platform / Bench)1,354,162 bytes
BOSCH ME2.8.1.png

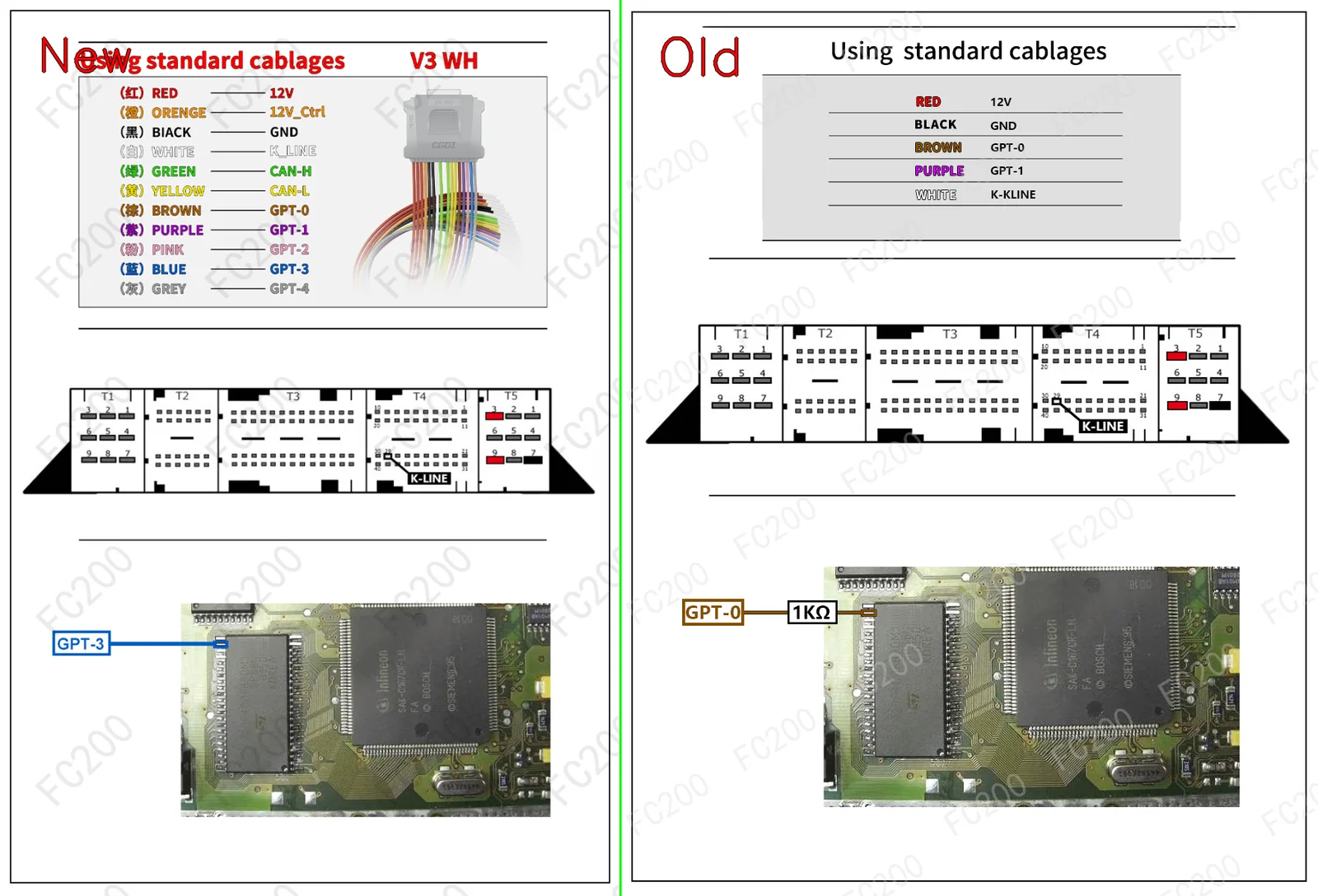

OFFICIAL PINOUT DIAGRAM: BOSCH ME2.8.png (Platform / Bench)1,354,392 bytes
BOSCH ME2.8.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME2.8.1 (17)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Chrysler All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz C-Class(CL203) (3199 112961 354) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz C-Class(S203) (3199 112961 354) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz C-Class(W203) (3199 112961 354) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz CL-Class(C215) (5439 113991 500) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz CLS-Class(C219) (5439 113990 476) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz E55 AMG(S211) (5439 113990 476) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz E55 AMG(W211) (5439 113990 476) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz G-Class(W463) (5439 113993 476) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz S55 AMG(V220) (5439 113991 500) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz S55 AMG(W220) (5439 113991 500) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz SL55 AMG(R230) (5439 113992 500) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz SLK32 AMG(R170) (3199 112960 354) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz SLR McLaren(C199) (5439 155980 626) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Chrysler All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH/ExtFLASH, CheckSum) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH/ExtFLASH, CheckSum) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
Bosch ST10 Boot Mode Klassicheskie ECU na protsessorakh ST10F275 / C167 (Bosch ME7 / M7.9.7 Boot) (Direct Bench / Boot ECU Connector Pinout) BOSCH ME2.8.1 (ST10C167) Open Vehicle →
