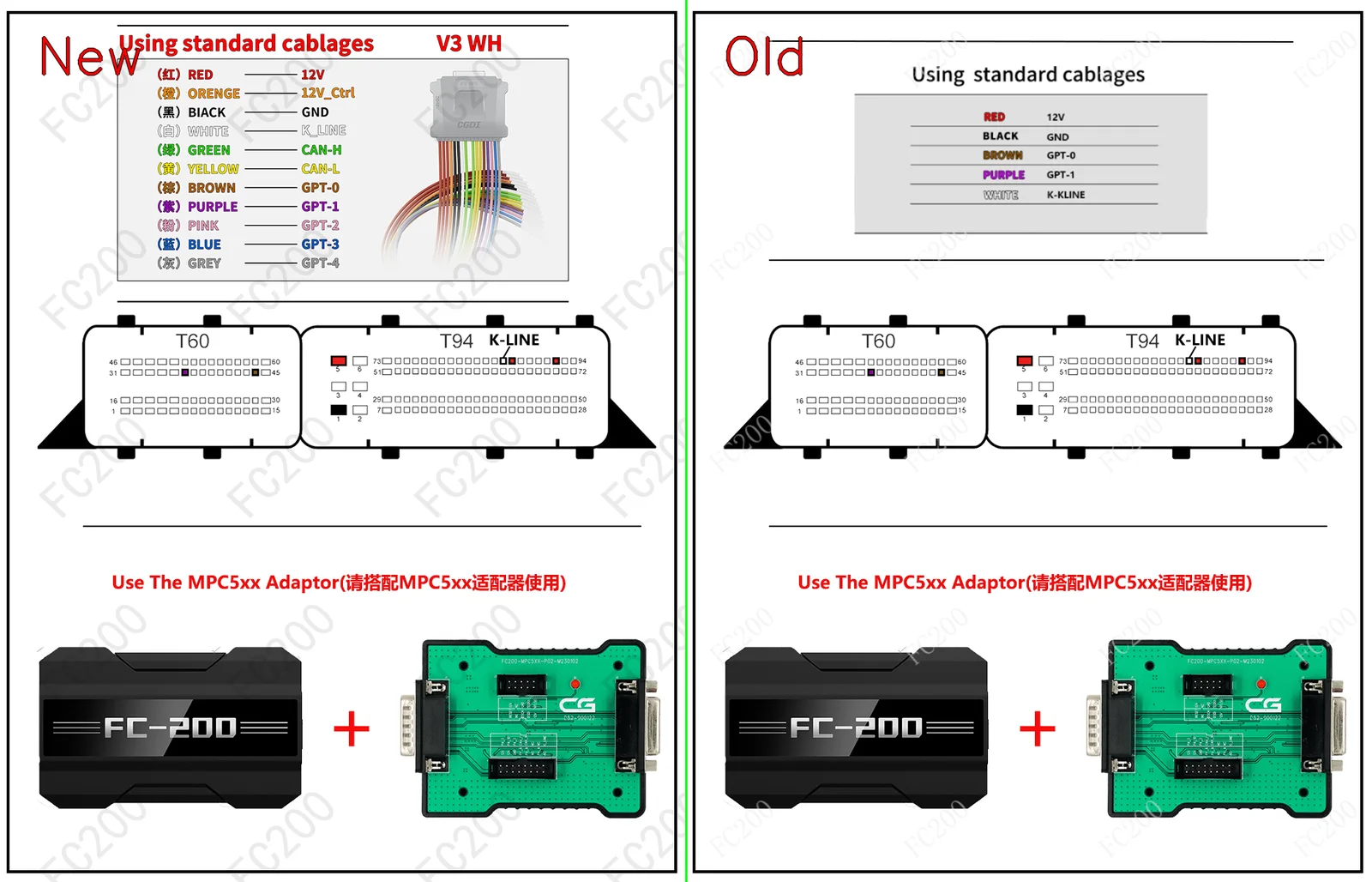

OFFICIAL PINOUT DIAGRAM: BOSCH ME9.1.1 MPC563_4.png (Platform / Bench)1,006,373 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME9.1.1 (6)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Maserati | Quattroporte(M139) (4700 • 360) | BOSCH ME9.1.1 MPC563/4 (test) |
Open Vehicle → |
| Maserati | Quattroporte(M139) (4700 GTS • 439) | BOSCH ME9.1.1 MPC563/4 (test) |
Open Vehicle → |
| Maserati | Quattroporte(M139) (4700 GTS • 450) | BOSCH ME9.1.1 MPC563/4 (test) |
Open Vehicle → |
| Maserati | Quattroporte(M139) (4700 S • 431) | BOSCH ME9.1.1 MPC563/4 (test) |
Open Vehicle → |
| Universal ECU Protocol | Universalnyy protokol Bosch MPC5xx / Delphi MTxx / Continental Easy-U (Direct Bench / Boot ECU Connector Pinout) | BOSCH ME9.1.1 MPC563/4 (test) |
Open Vehicle → |
| Maserati | All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM/ExtFLASH, CheckSum) | BOSCH ME9.1.1 (MPC563/4) |
Open Vehicle → |
