ECU Pinout MED17 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MED17 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

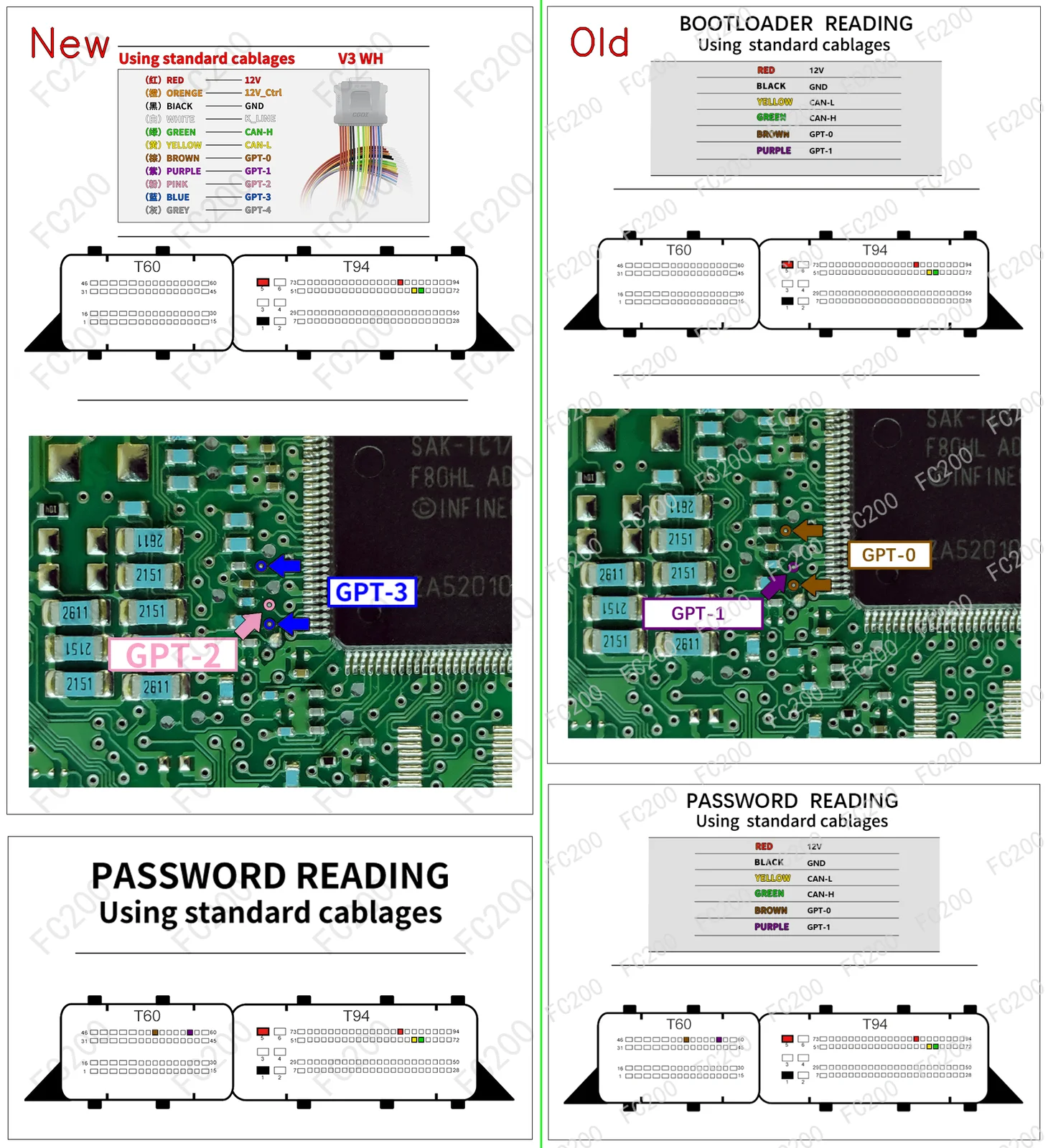

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17-.png (Boot)3,072,247 bytes
BOOT_BOSCH MED17-.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.0.1.png (Boot)3,457,455 bytes
BOOT_BOSCH MED17.0.1.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.0.7.png (Boot)3,537,575 bytes
BOOT_BOSCH MED17.0.7.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.0.png (Boot)4,036,278 bytes
BOOT_BOSCH MED17.0.png

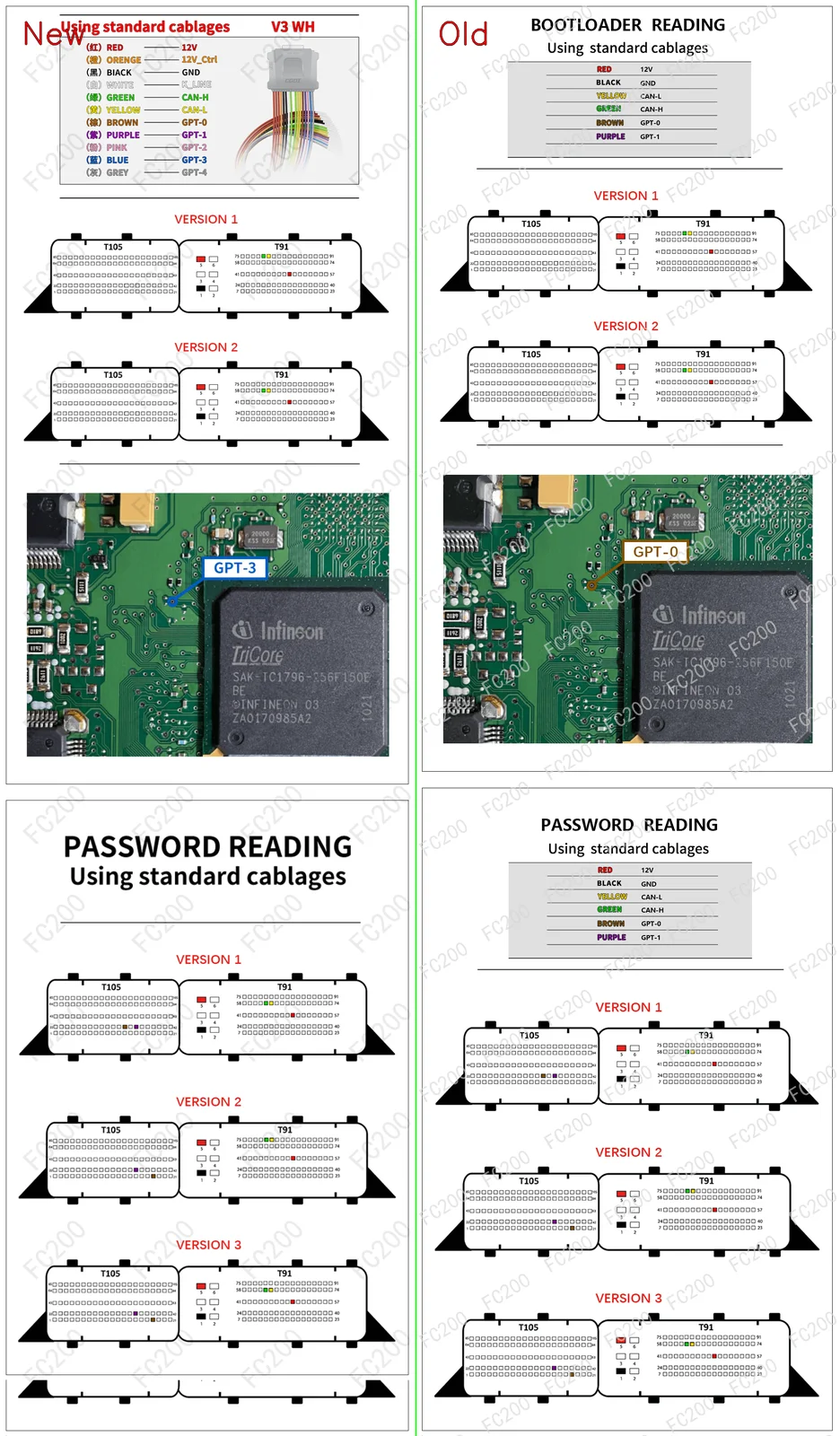

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.1.png (Boot)4,091,063 bytes
BOOT_BOSCH MED17.1.1.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.10.png (Boot)3,492,332 bytes
BOOT_BOSCH MED17.1.10.png

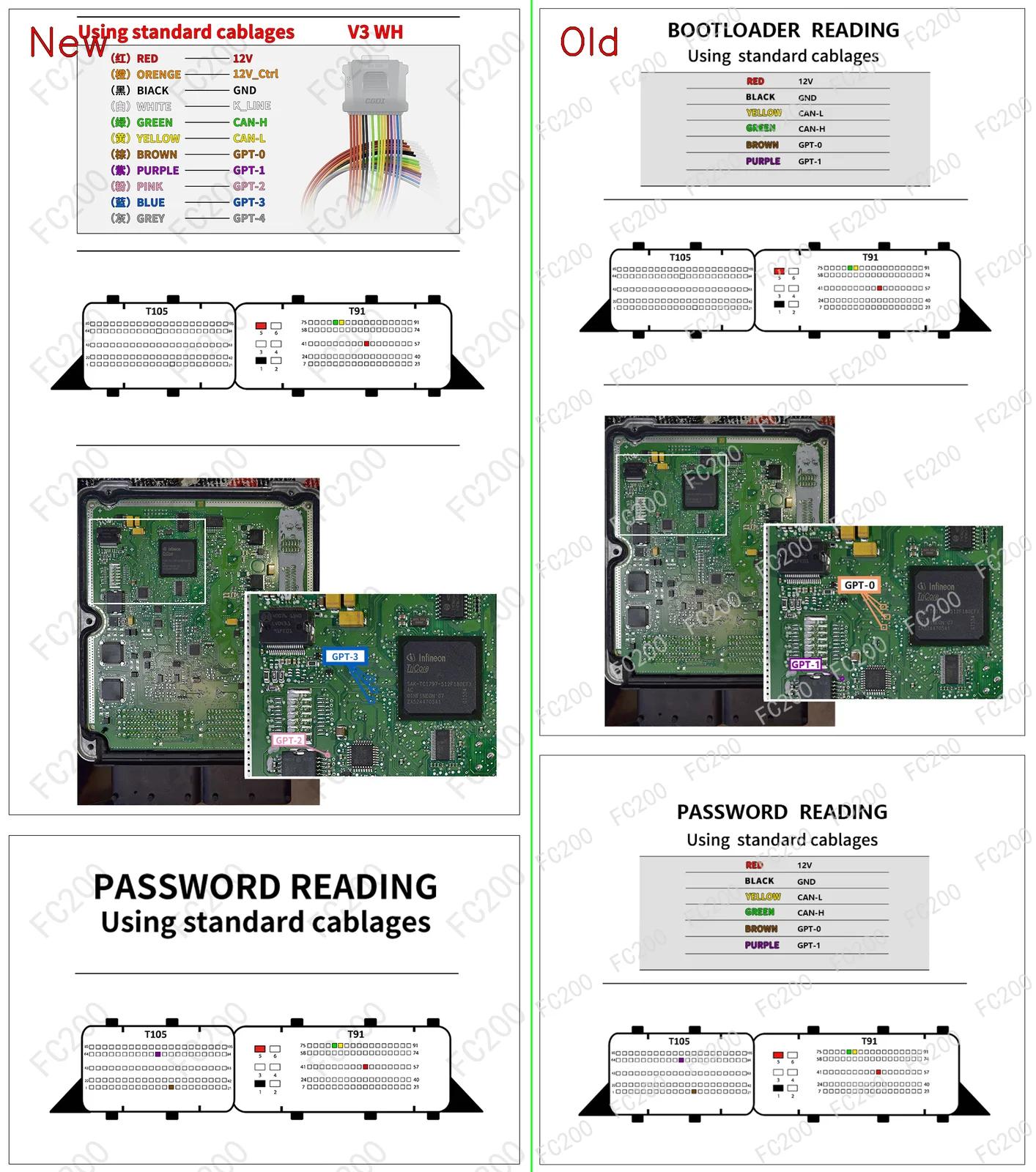

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.11.png (Boot)2,968,260 bytes
BOOT_BOSCH MED17.1.11.png

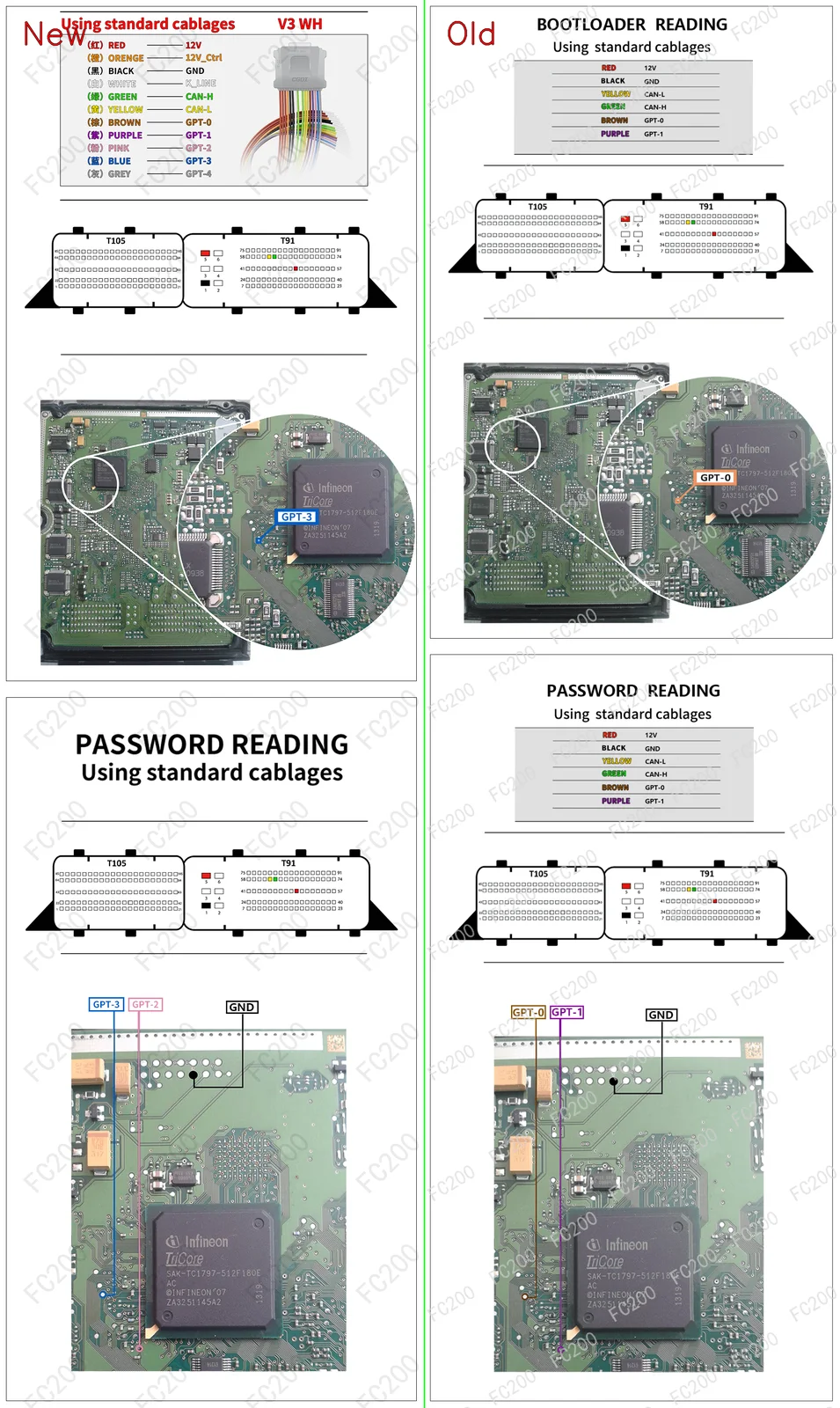

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.1_.png (Boot)5,512,271 bytes
BOOT_BOSCH MED17.1.1_.png

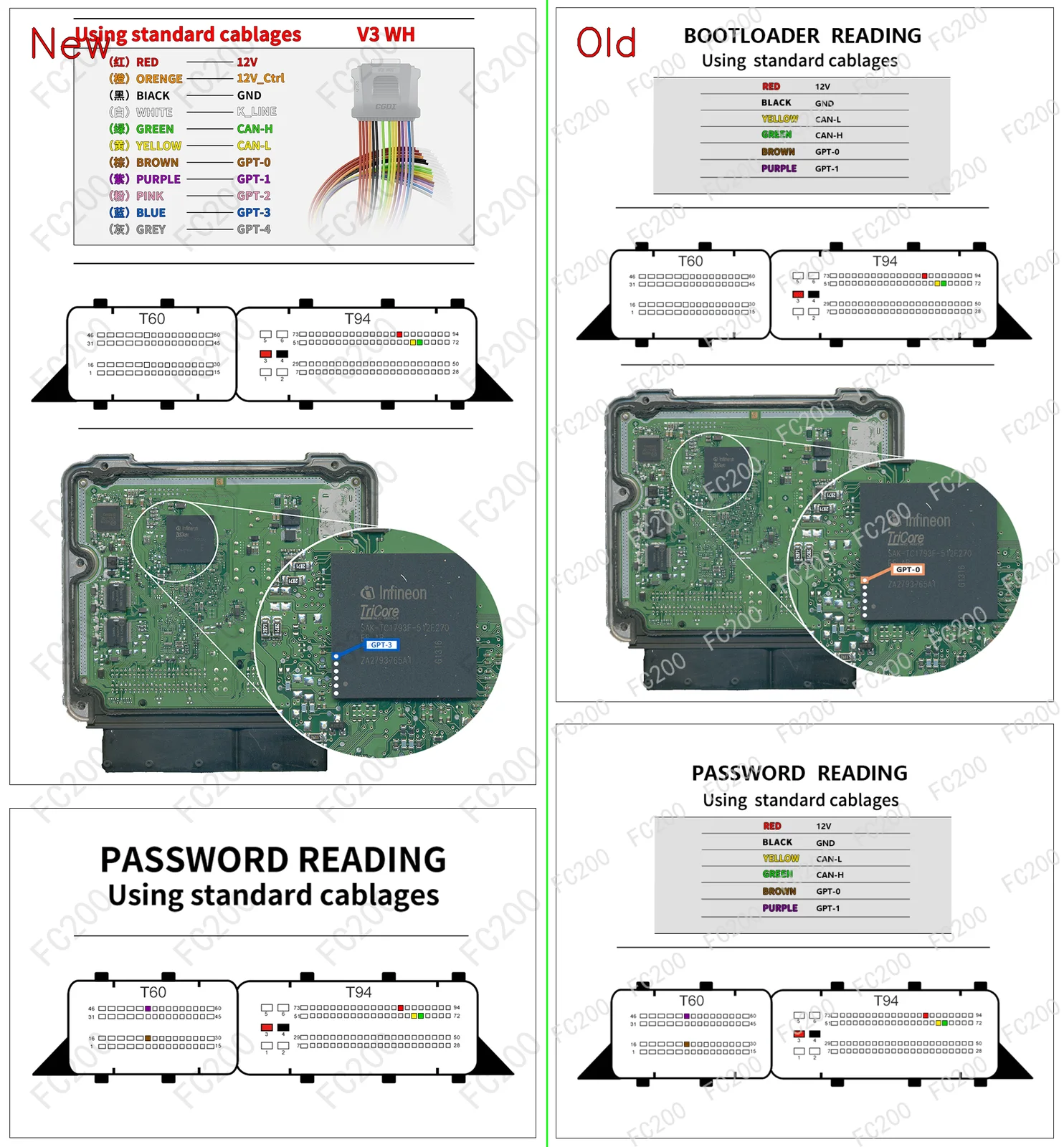

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.21.png (Boot)2,865,748 bytes
BOOT_BOSCH MED17.1.21.png

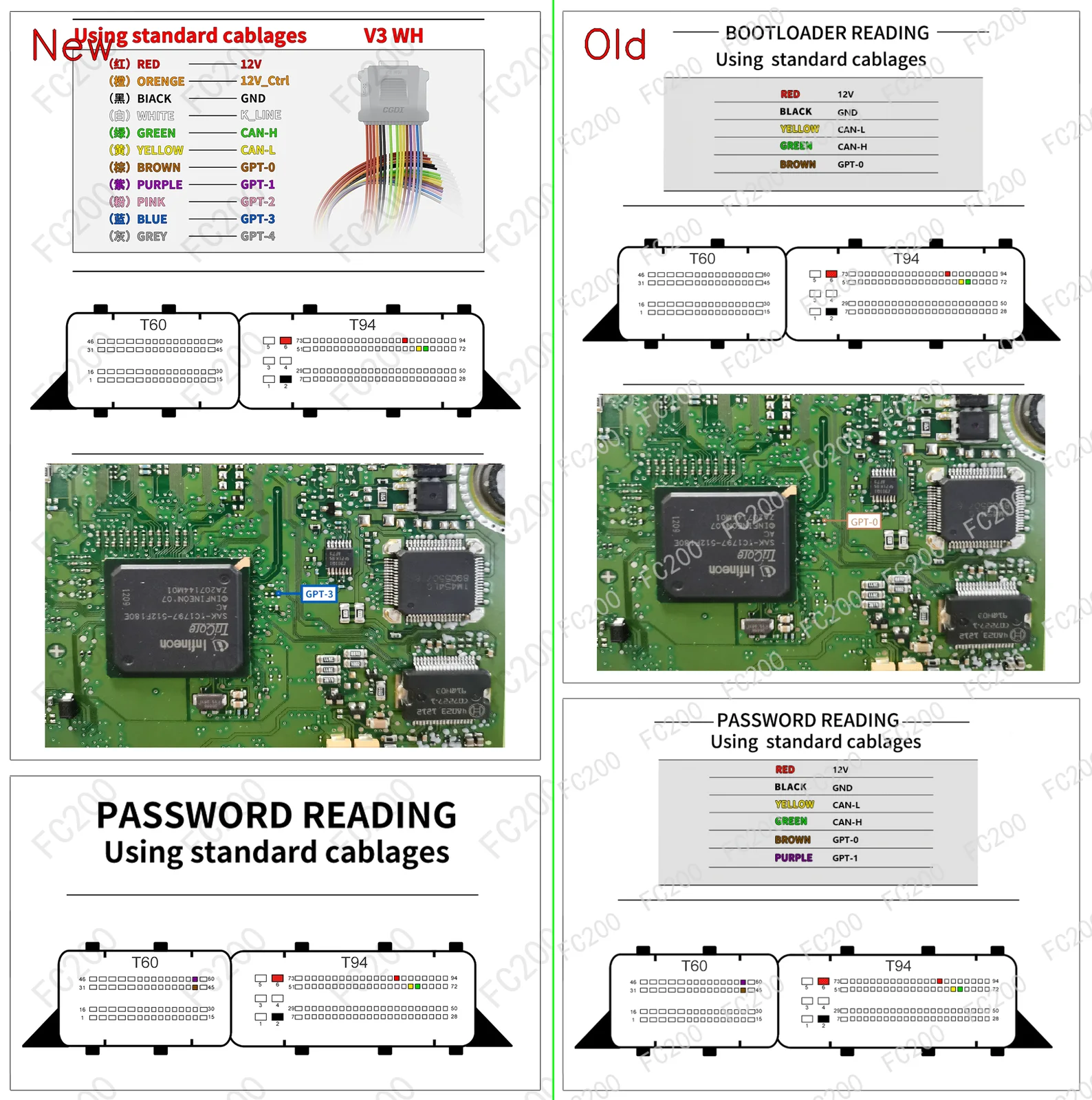

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.6.png (Boot)2,849,186 bytes
BOOT_BOSCH MED17.1.6.png

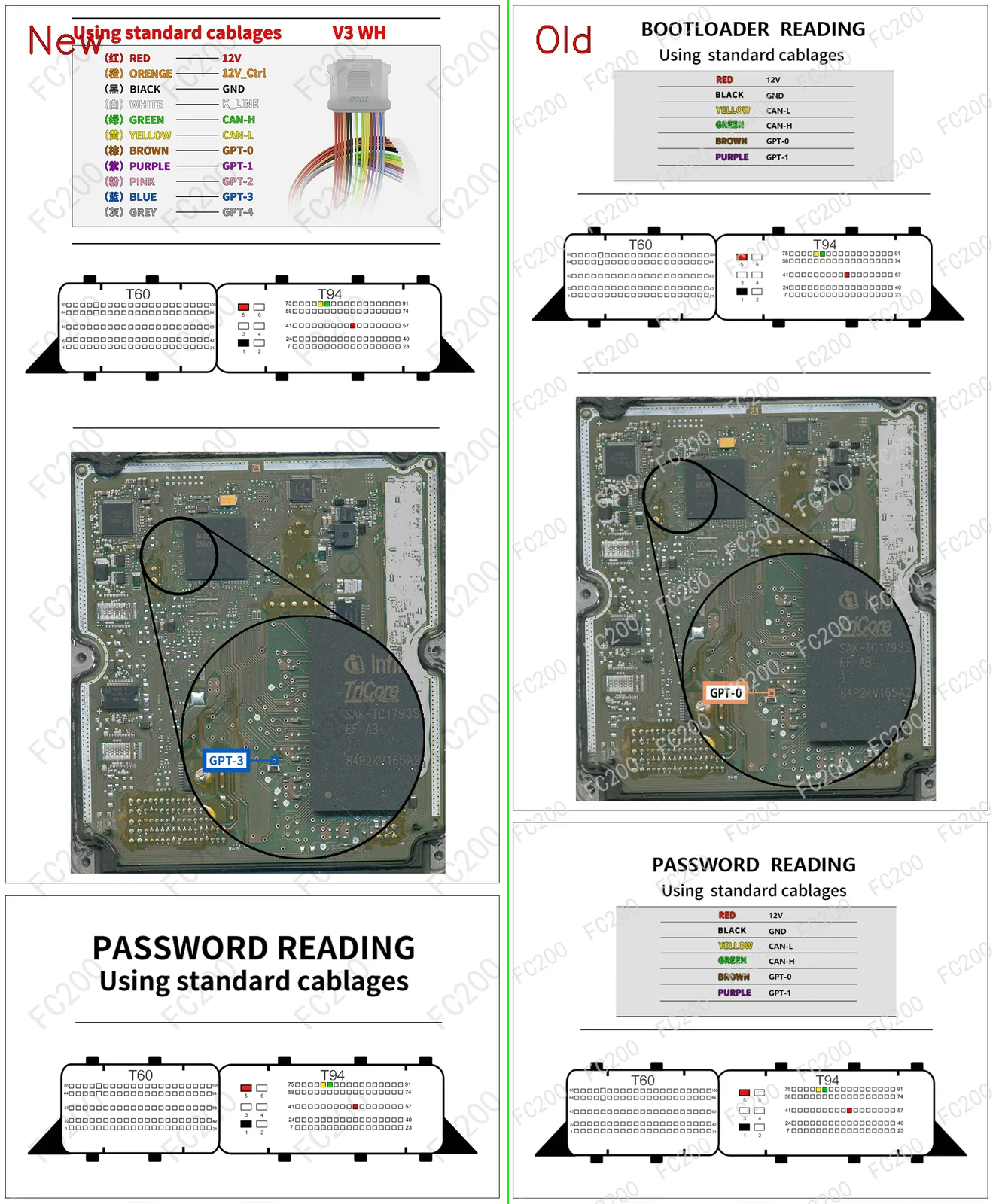

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.61 MASTER_SLAVE.png (Boot)3,699,843 bytes
BOOT_BOSCH MED17.1.61 MASTER_SLAVE.png

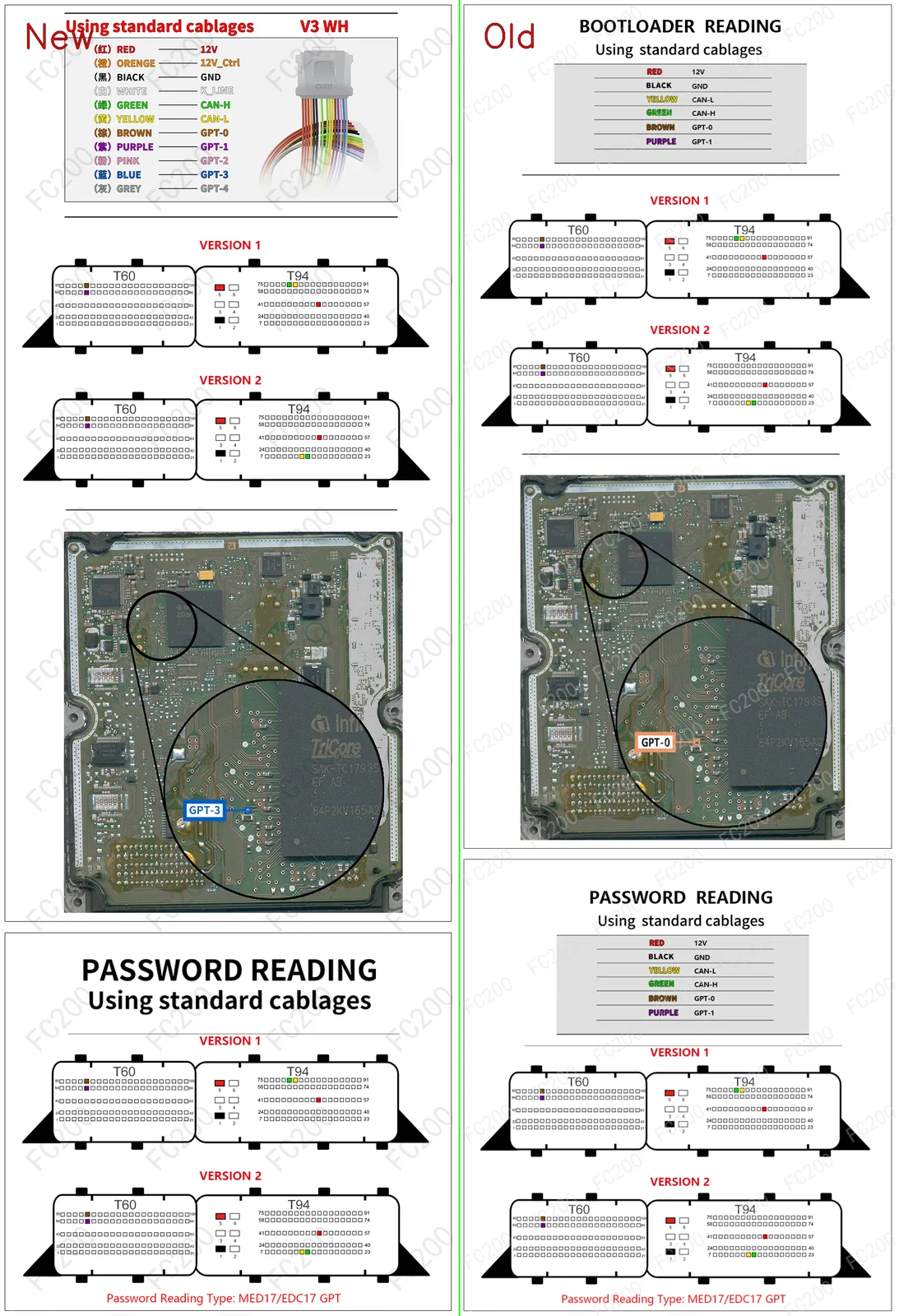

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.61.png (Boot)4,105,455 bytes
BOOT_BOSCH MED17.1.61.png

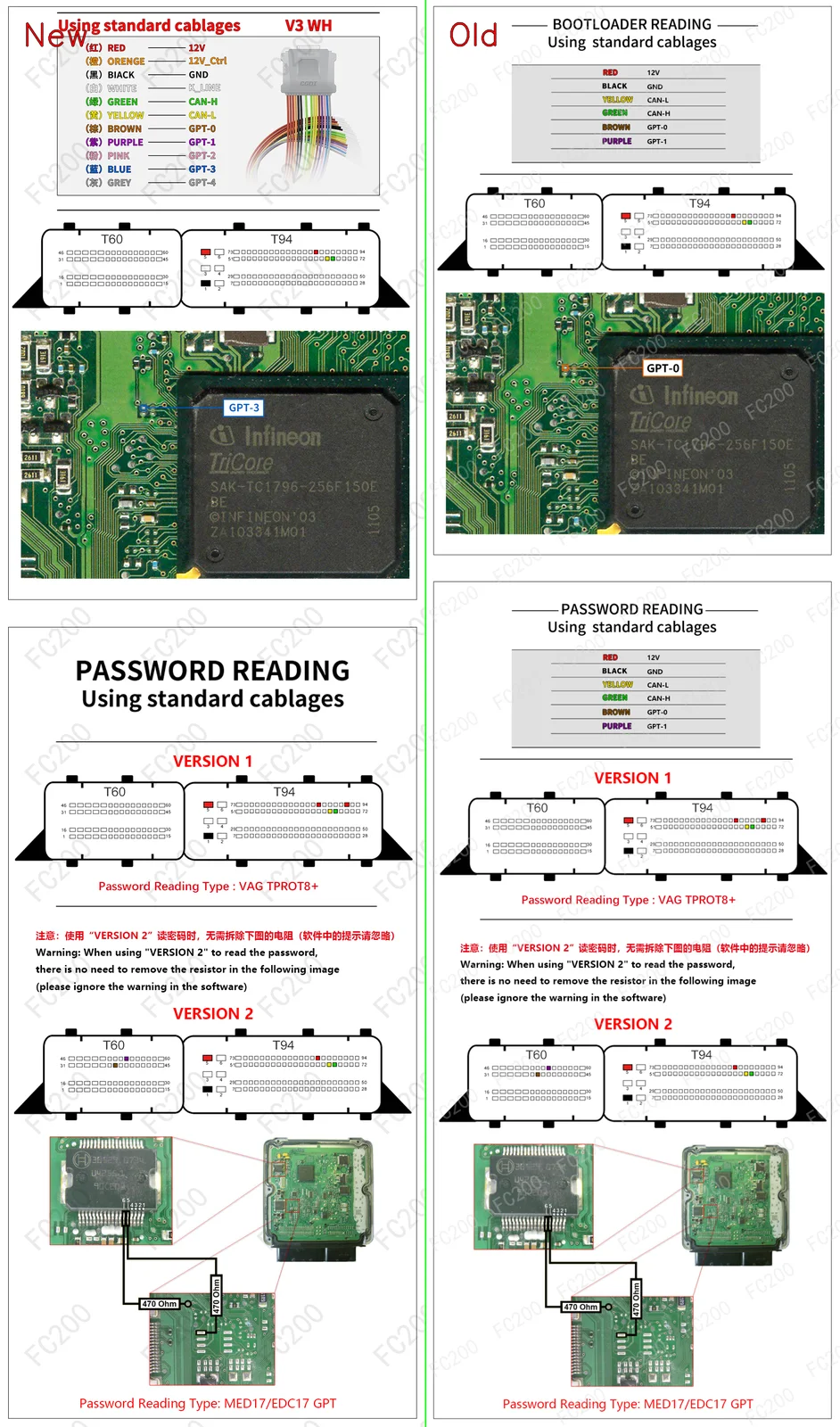

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.1.png (Boot)4,503,353 bytes
BOOT_BOSCH MED17.1.png

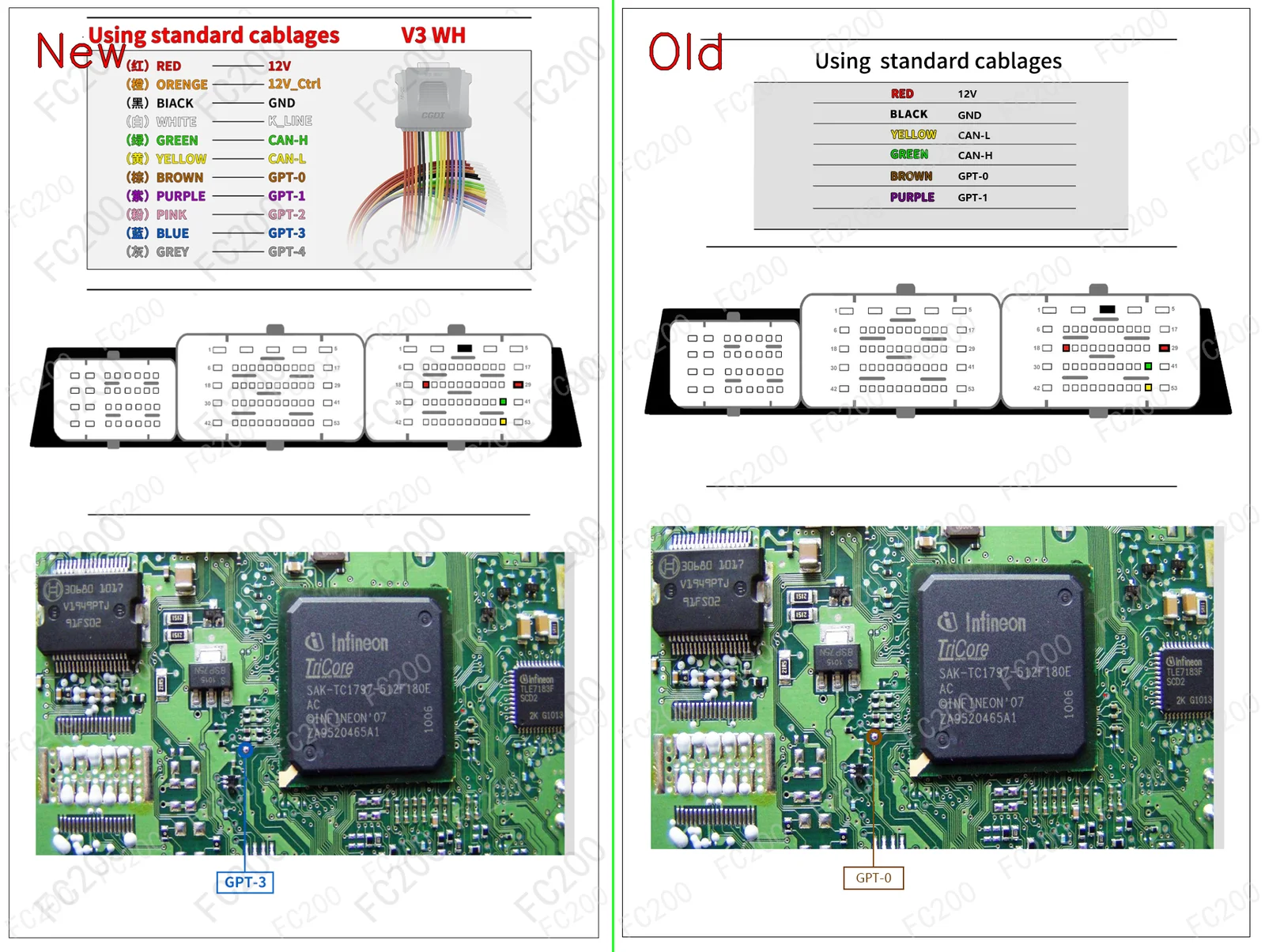

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.2.2.png (Boot)2,565,724 bytes
BOOT_BOSCH MED17.2.2.png

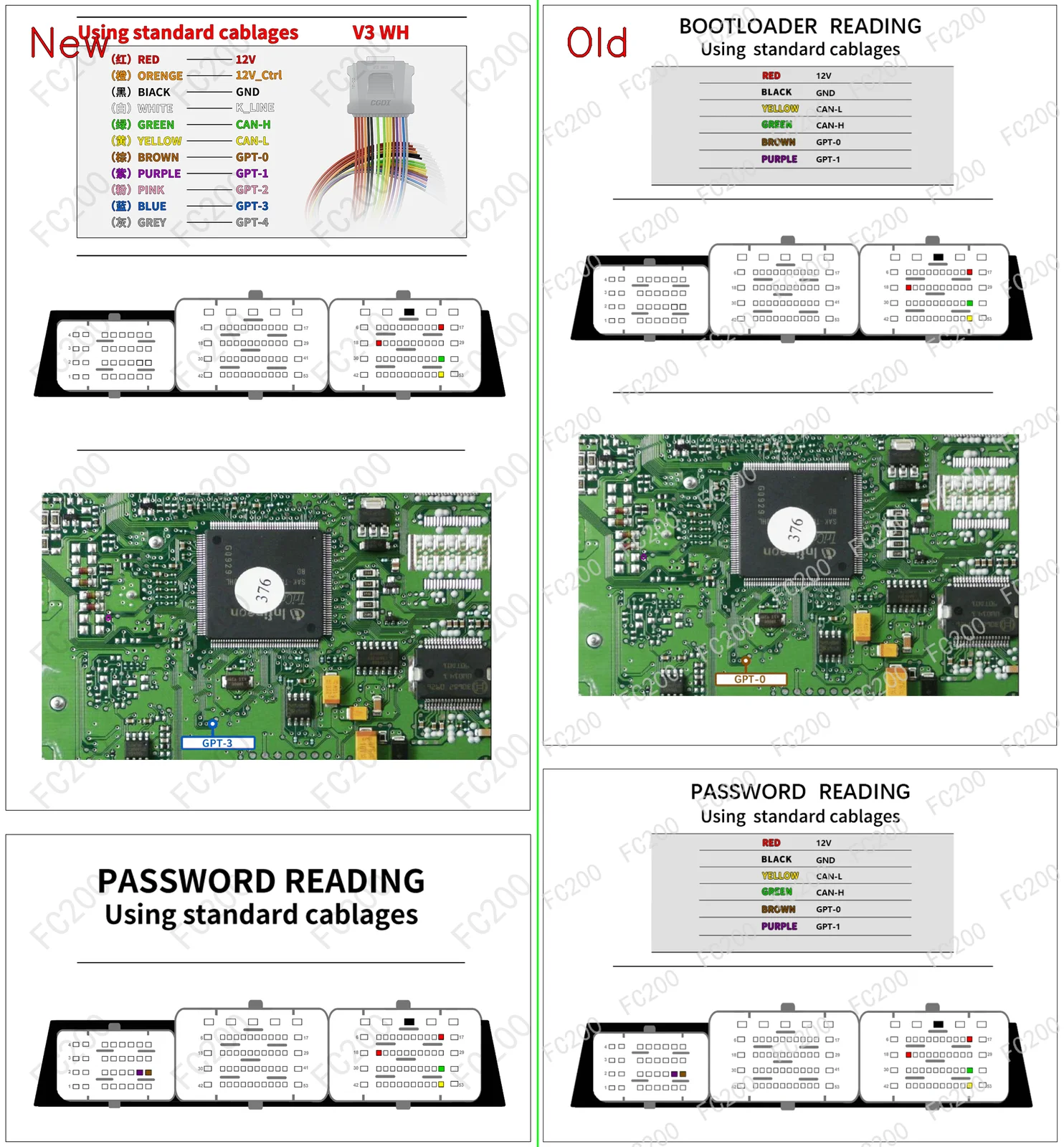

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.2.png (Boot)3,021,683 bytes
BOOT_BOSCH MED17.2.png

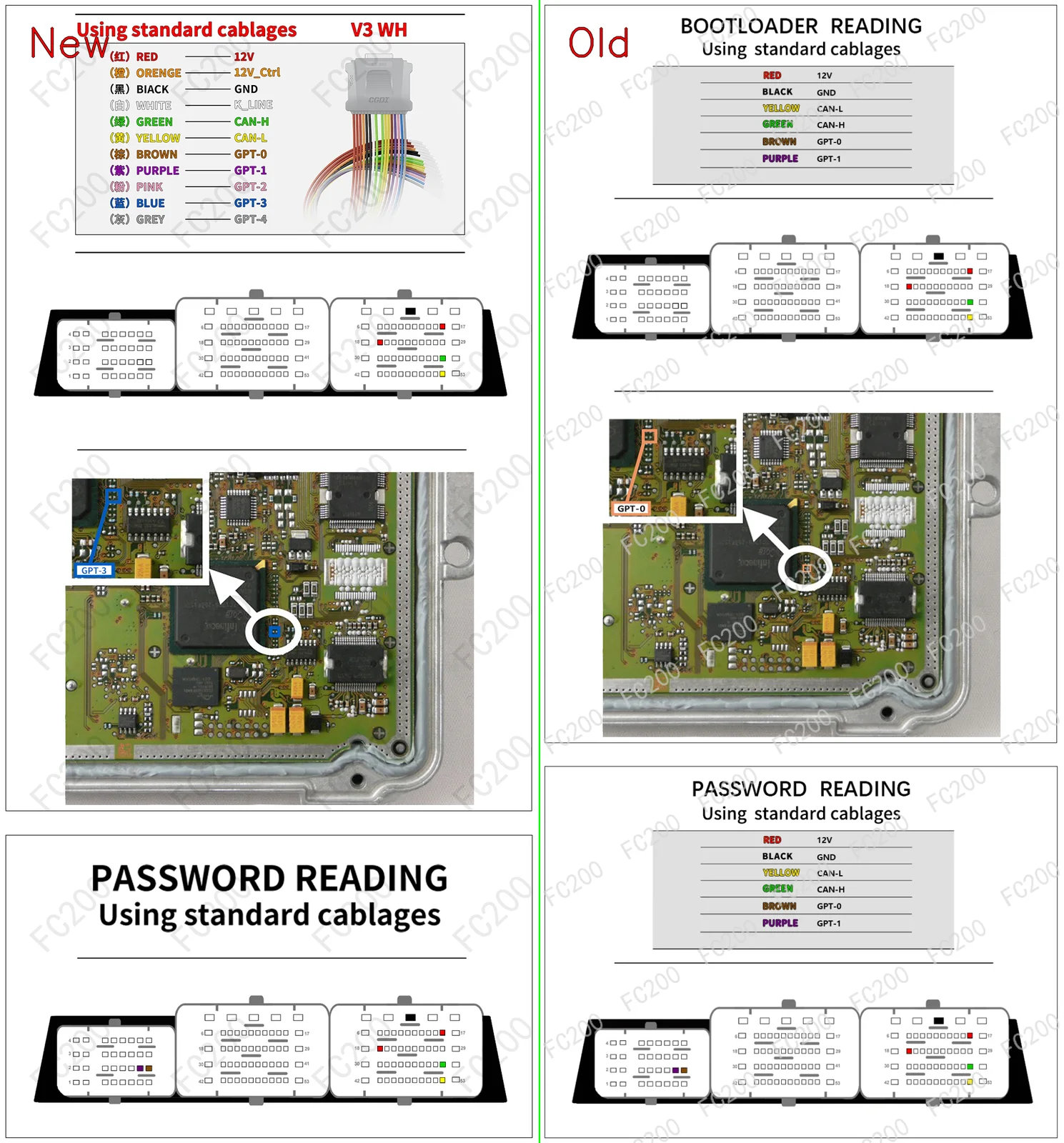

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.2_.png (Boot)3,052,168 bytes
BOOT_BOSCH MED17.2_.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.3.1.png (Boot)2,943,630 bytes
BOOT_BOSCH MED17.3.1.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.3.3.png (Boot)3,542,415 bytes
BOOT_BOSCH MED17.3.3.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.3.4.png (Boot)3,008,834 bytes
BOOT_BOSCH MED17.3.4.png

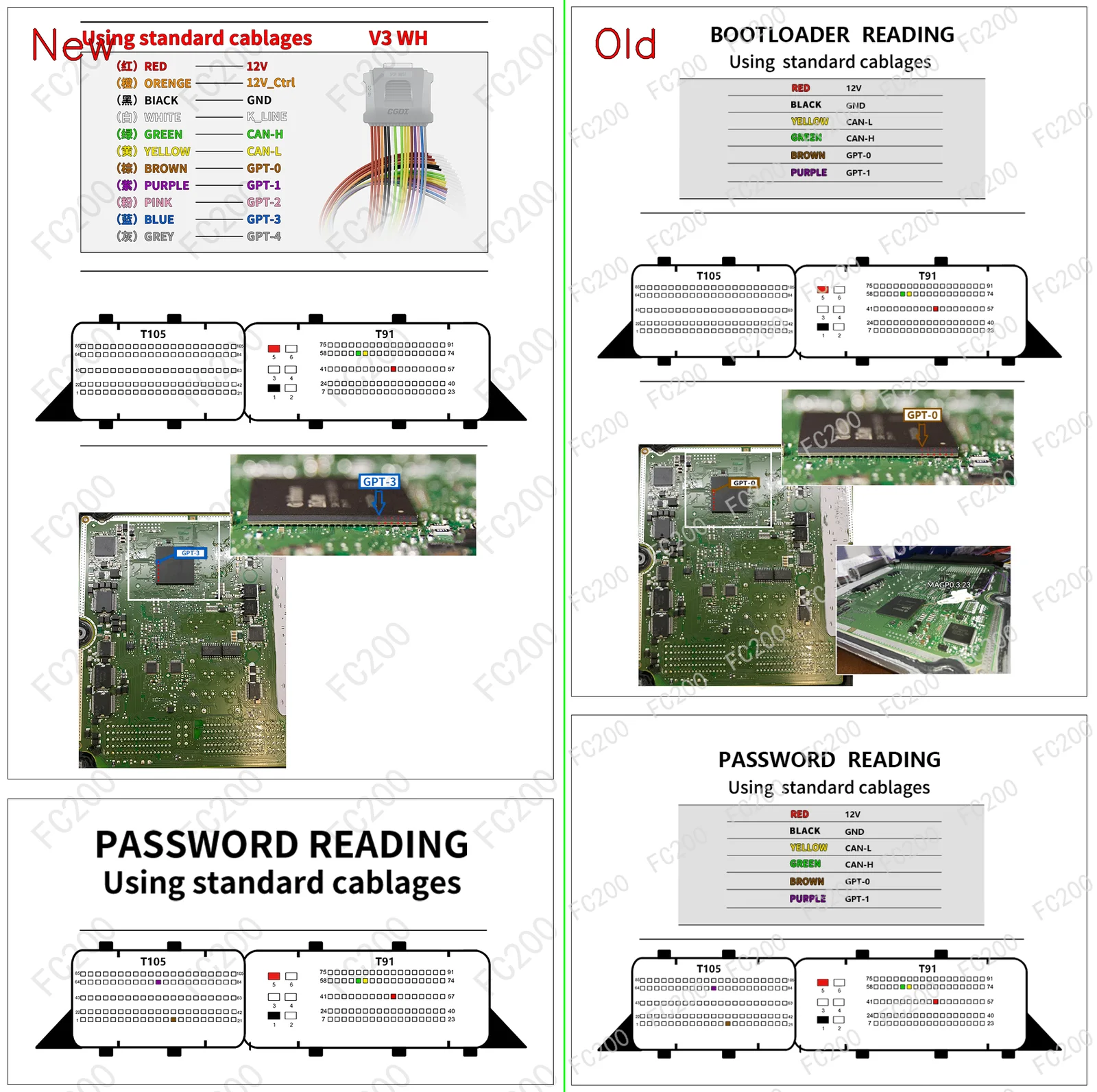

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.3.5.png (Boot)2,371,697 bytes
BOOT_BOSCH MED17.3.5.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
