OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.1.21.png (Boot)2,865,748 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.2.2.png (Boot)2,565,724 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.2.png (Boot)3,021,683 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.2_.png (Boot)3,052,168 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.4.2.png (Boot)1,939,888 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.4.2_.png (Boot)1,960,318 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.5.2.png (Boot)2,817,379 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.5.20.png (Boot)3,266,704 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.5.21.png (Boot)2,740,665 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.5.25.png (Boot)2,963,021 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.7.2.png (Boot)2,615,696 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.8.2.png (Boot)3,261,224 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.8.21.png (Boot)3,051,762 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.8.32.png (Boot)3,218,365 bytes
OEM PINOUT DIAGRAM: BOOT_BOSCH MED17.82.png (Boot)3,261,224 bytes
OEM PINOUT DIAGRAM: BOSCH MED17 TC1728.png (Platform / Bench)509,805 bytes

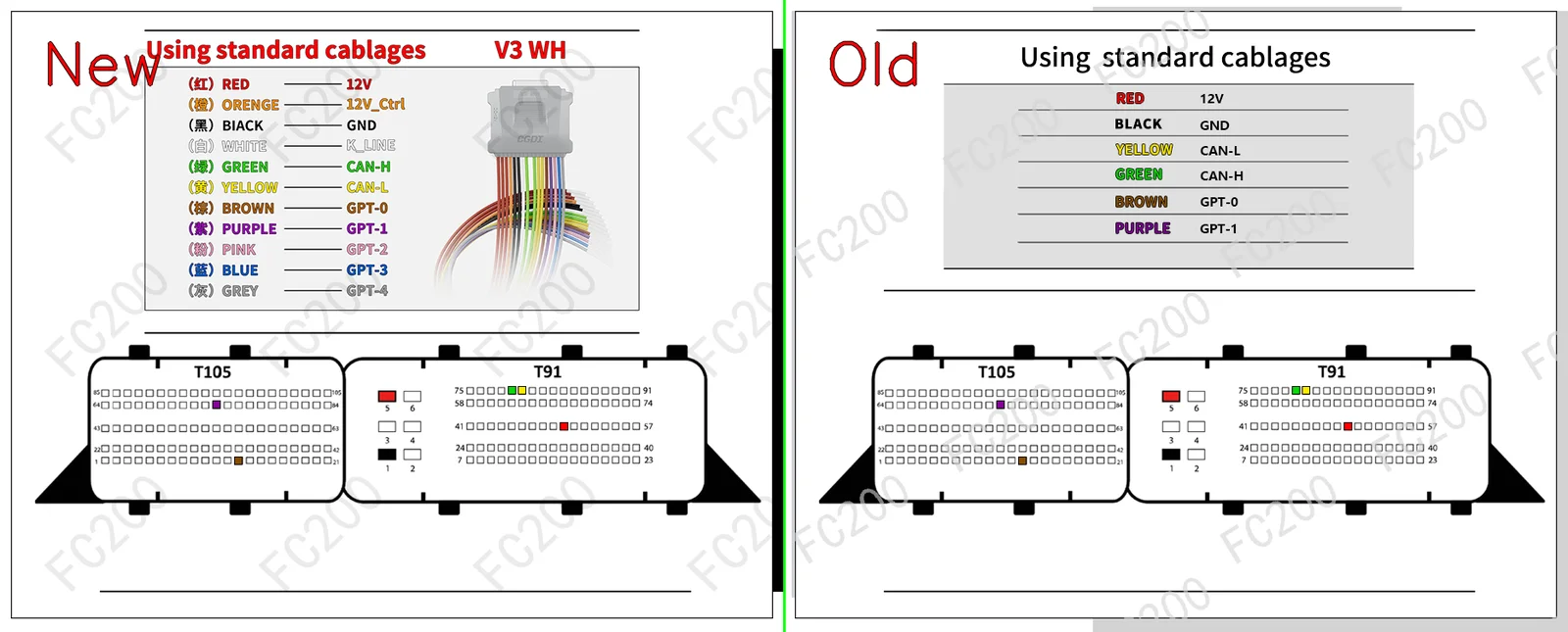

OEM PINOUT DIAGRAM: BOSCH MED17.1.12 MASTER_SLAVE.png (Platform / Bench)519,472 bytes
OEM PINOUT DIAGRAM: BOSCH MED17.1.12.png (Platform / Bench)519,472 bytes

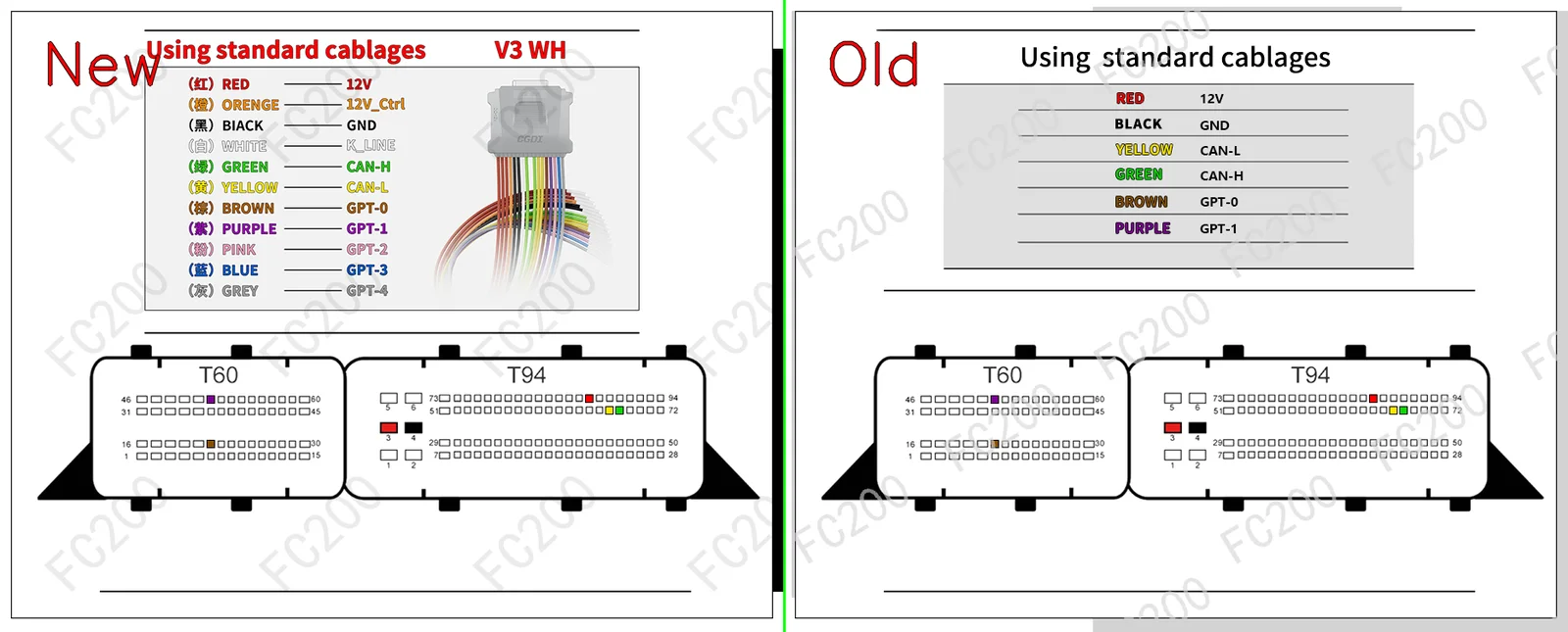

OEM PINOUT DIAGRAM: BOSCH MED17.1.21.png (Platform / Bench)504,101 bytes
OEM PINOUT DIAGRAM: BOSCH MED17.1.27.png (Platform / Bench)505,163 bytes
STEP-BY-STEP BENCH CONNECTION PROTOCOL (HOWTO)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 power): Apply stabilized
13.5V — 13.8V to the permanent power (T30) and ignition (T15) pins, plus ground (GND), following the cable color coding above.
- Step 2 (CAN bus & GPT0 / GPT1 generator lines): Connect the
CAN-H and CAN-L, plus the signal wires GPT0 (S1) and GPT1 (S2) to enter service mode without opening the ECU case.
- Step 3 (Full PFLASH + DFLASH backup read): Before any write operation, read and save a full backup of the internal flash (
PFLASH) and the EEPROM area (DFLASH).
VEHICLES FITTED WITH THE MED17.1 ECU (24)FITMENT
