ECU Pinout MED17.5.1 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MED17.5.1 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

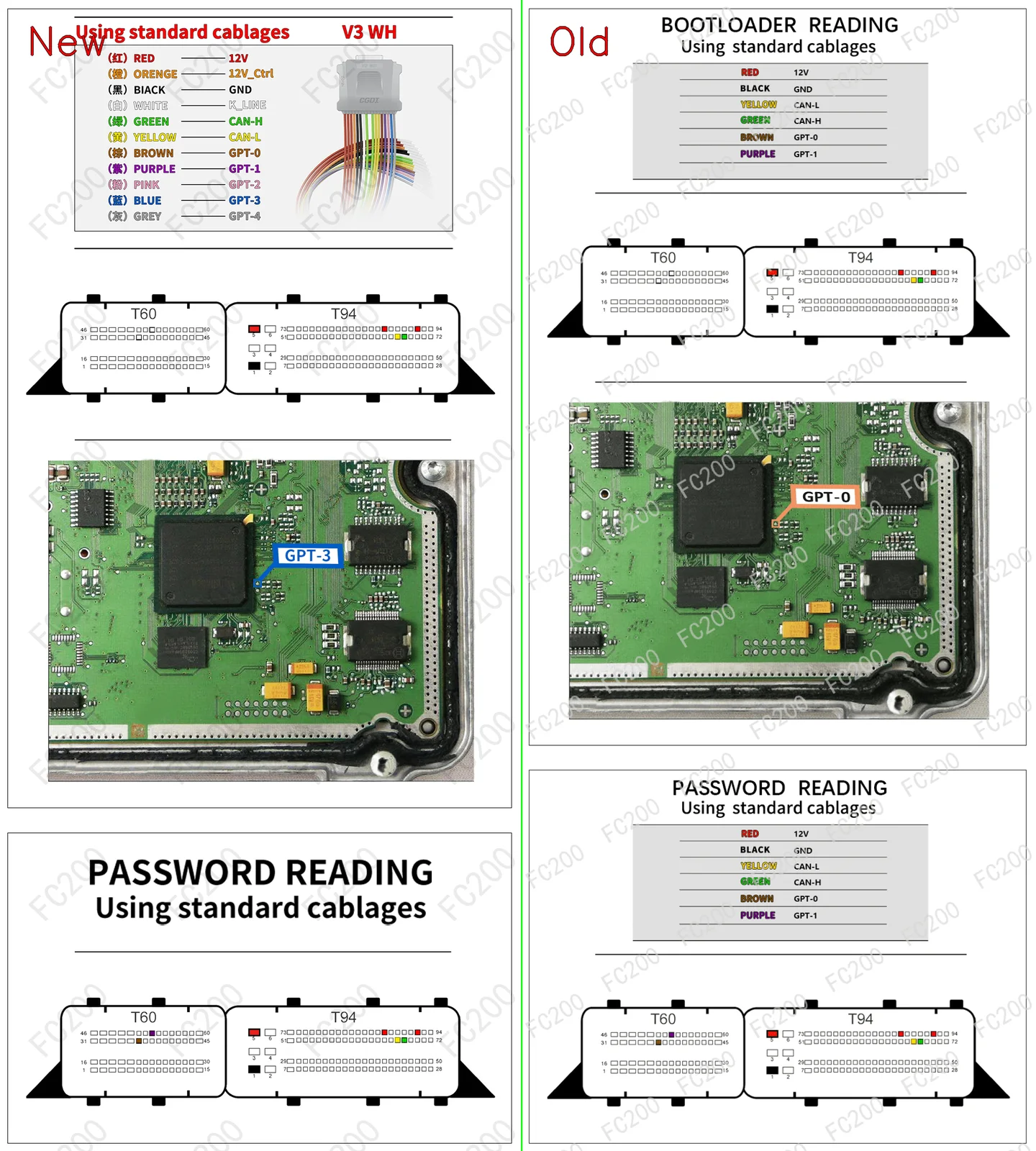

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.5.1.png (Boot)3,283,369 bytes
BOOT_BOSCH MED17.5.1.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.5.21.png (Boot)2,740,665 bytes
BOOT_BOSCH MED17.5.21.png

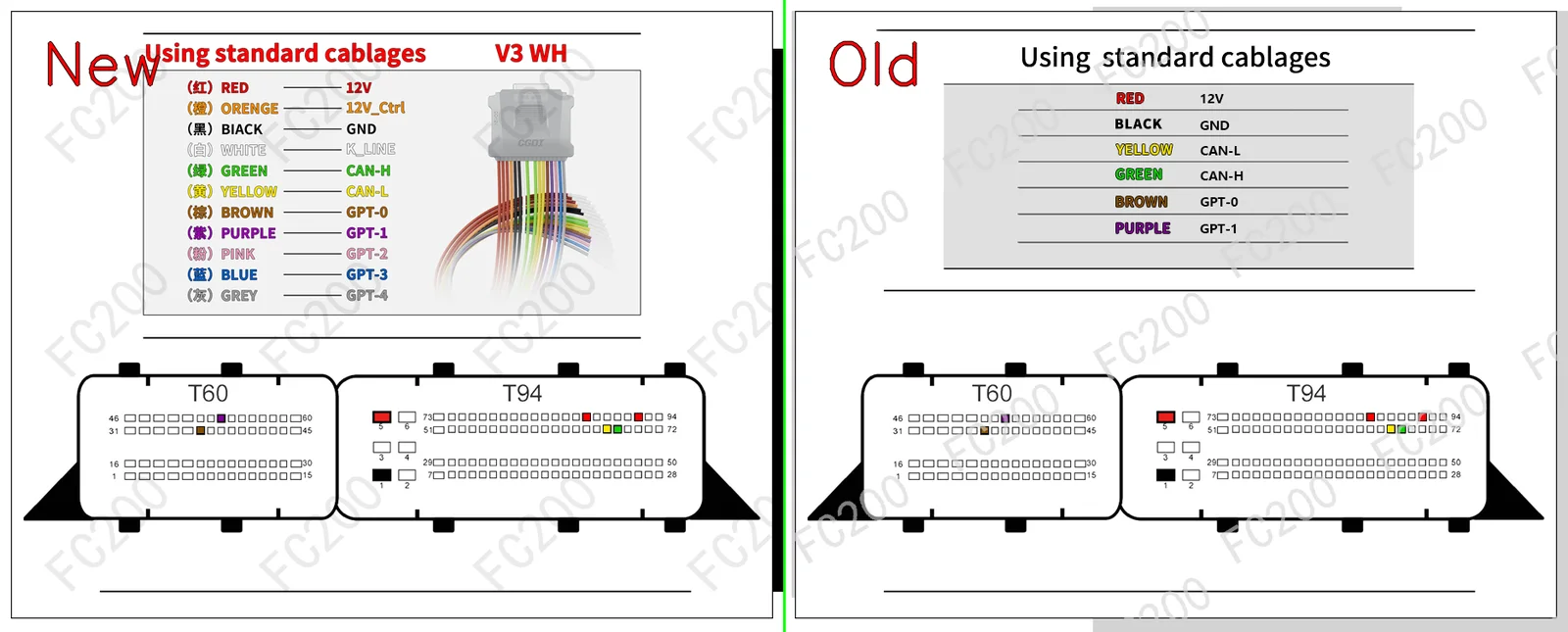

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.5.1.png (Platform / Bench)500,234 bytes
BOSCH MED17.5.1.png
OFFICIAL PINOUT DIAGRAM: BOSCH MED17.5.21.png (Platform / Bench)498,924 bytes
BOSCH MED17.5.21.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MED17.5.1 (14)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A3(8P) (1800 TFSI CDAA 160) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Audi A3(8P) (1800 TFSI BZB 160) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Seat Ibiza(6J) (1400 TSI • 180) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Seat Leon(1P) (1400 TSI • 121) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) Golf(V) (1400 TSI CAVD 168) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) Golf(V) (1400 TSI • 122) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) Golf(VI) (1400 TSI CAVD 160) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) Jetta(V) (1400 TSI BLG 170) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) Passat(B7) (1400 TSI • 122) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) Tiguan(5N2) (1400 TSI • 158) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) Touran(1T3) (1400 TSI • 168) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Audi All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Seat All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH MED17.5.1 (TC1796) Open Vehicle →
Volkswagen (VW) All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH MED17.5.1 (TC1796) Open Vehicle →
