ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout MED17.5.2 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MED17.5.2 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

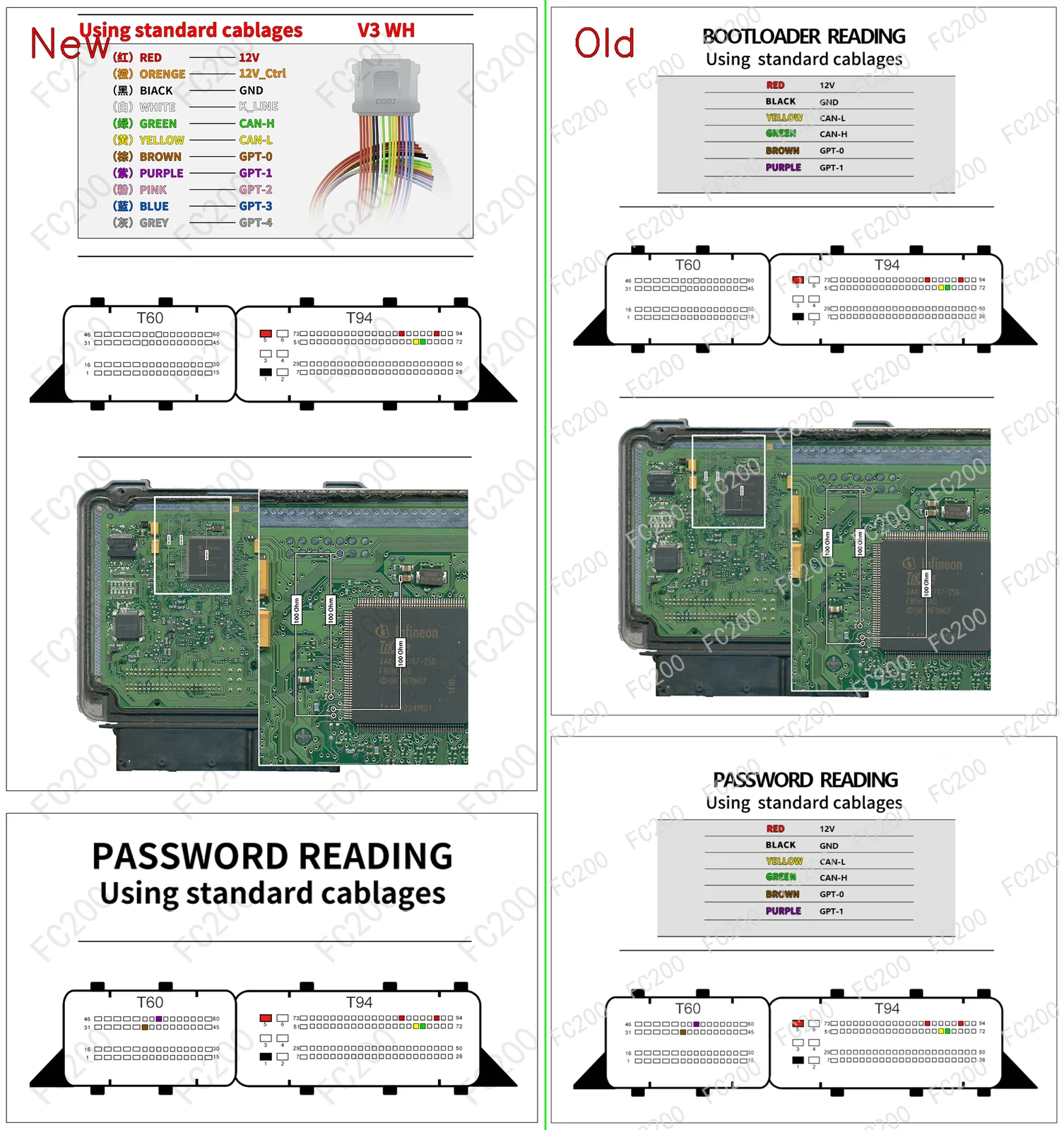

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.5.2.png (Boot)2,817,379 bytes
BOOT_BOSCH MED17.5.2.png

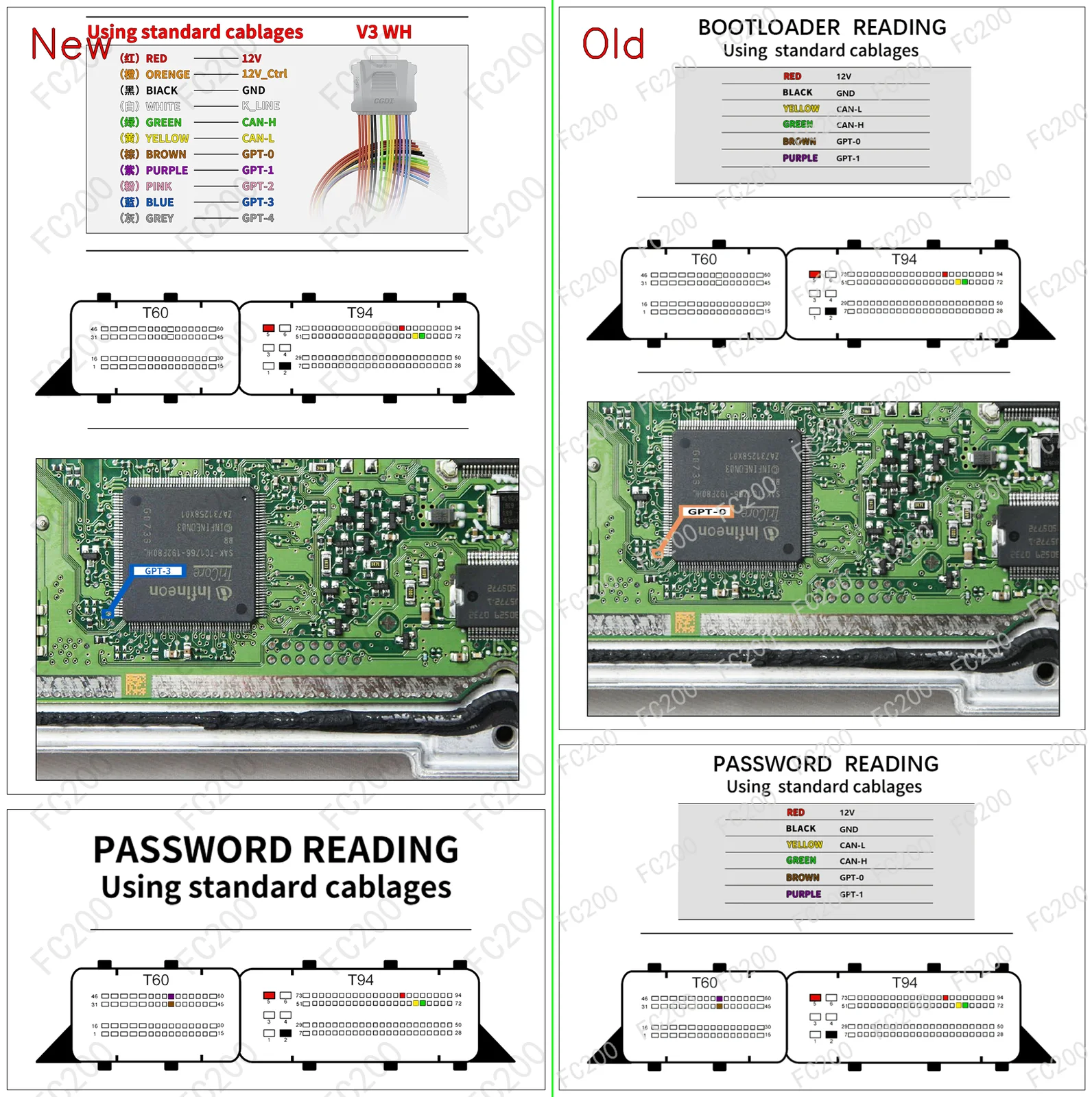

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.5.20.png (Boot)3,266,704 bytes
BOOT_BOSCH MED17.5.20.png

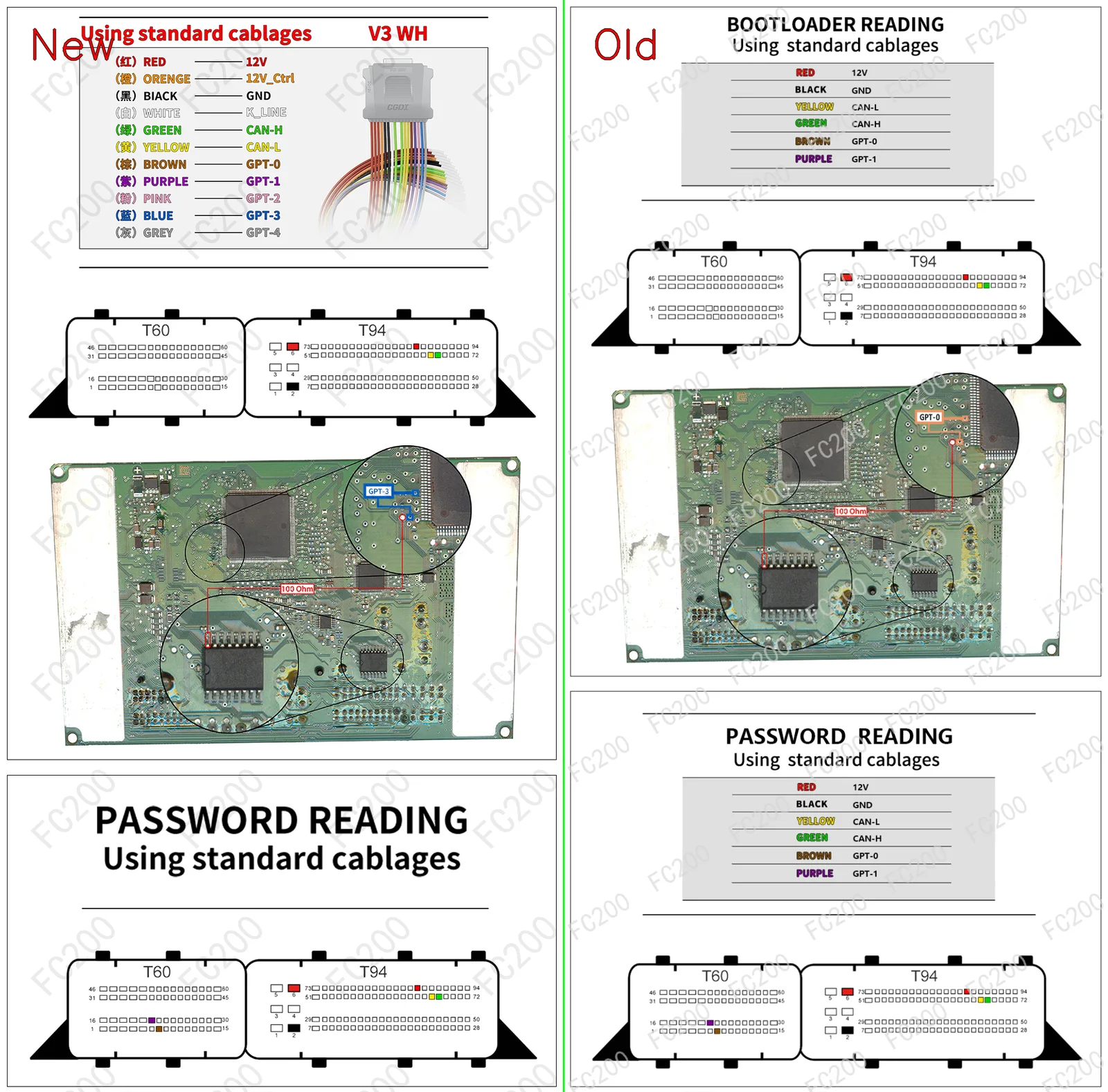

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.5.21.png (Boot)2,740,665 bytes
BOOT_BOSCH MED17.5.21.png

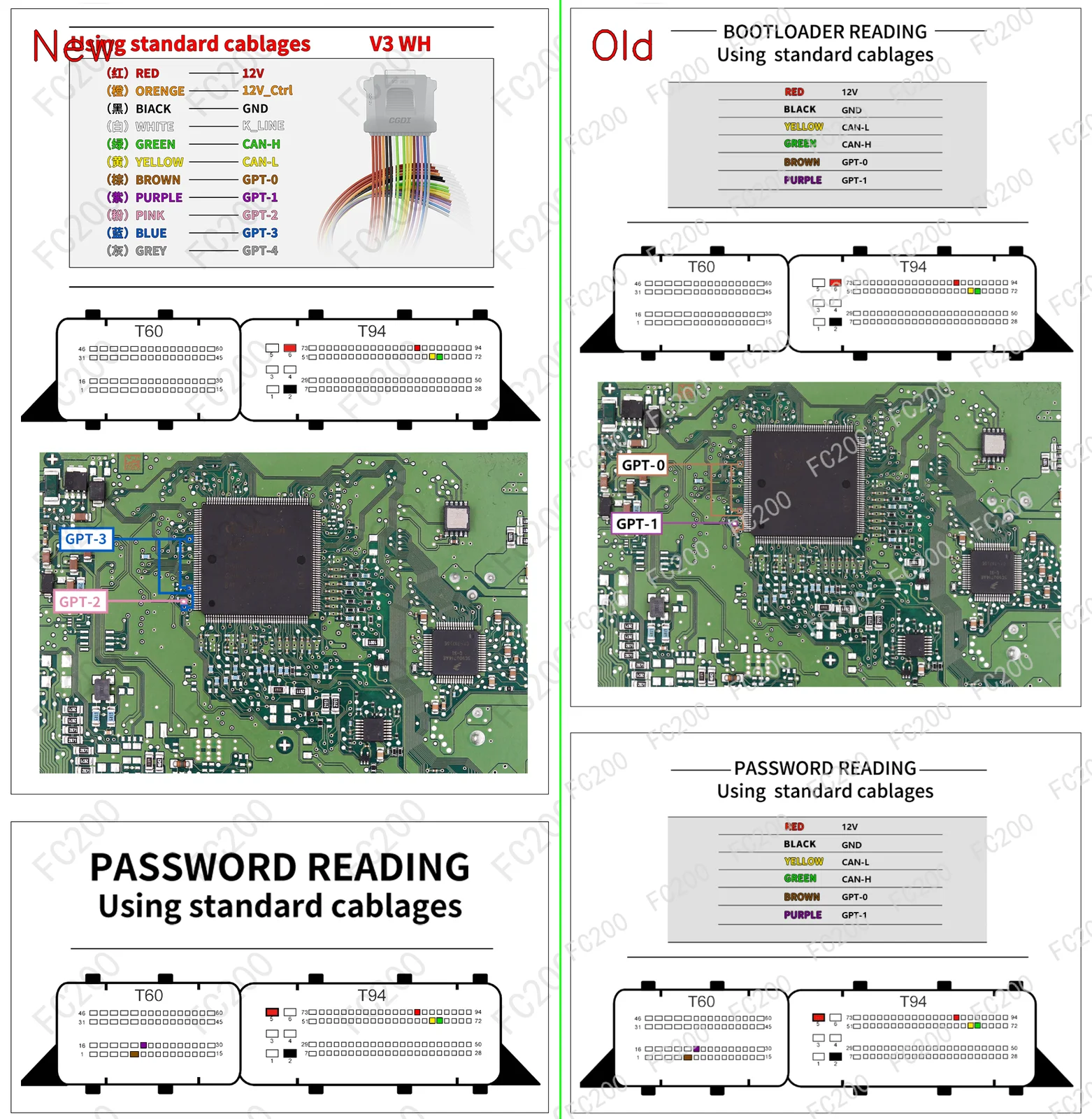

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.5.25.png (Boot)2,963,021 bytes
BOOT_BOSCH MED17.5.25.png

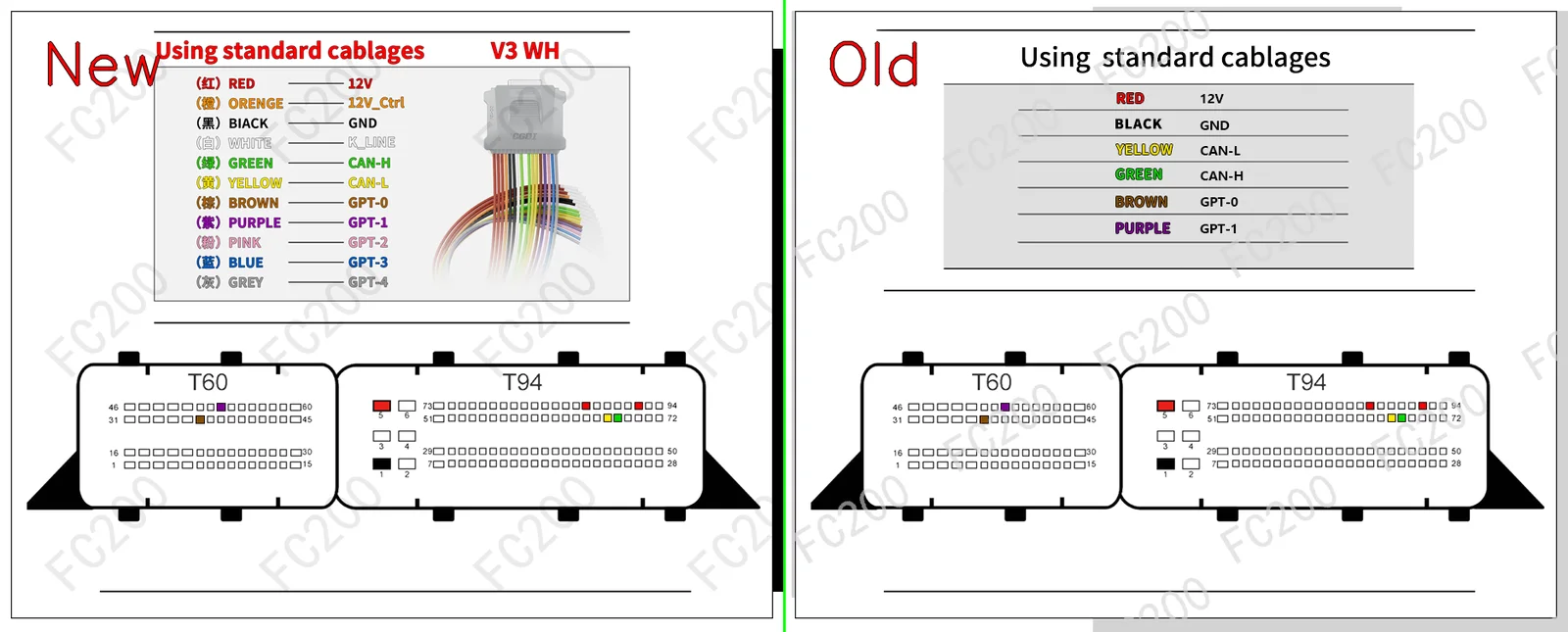

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.5.2.png (Platform / Bench)475,703 bytes
BOSCH MED17.5.2.png

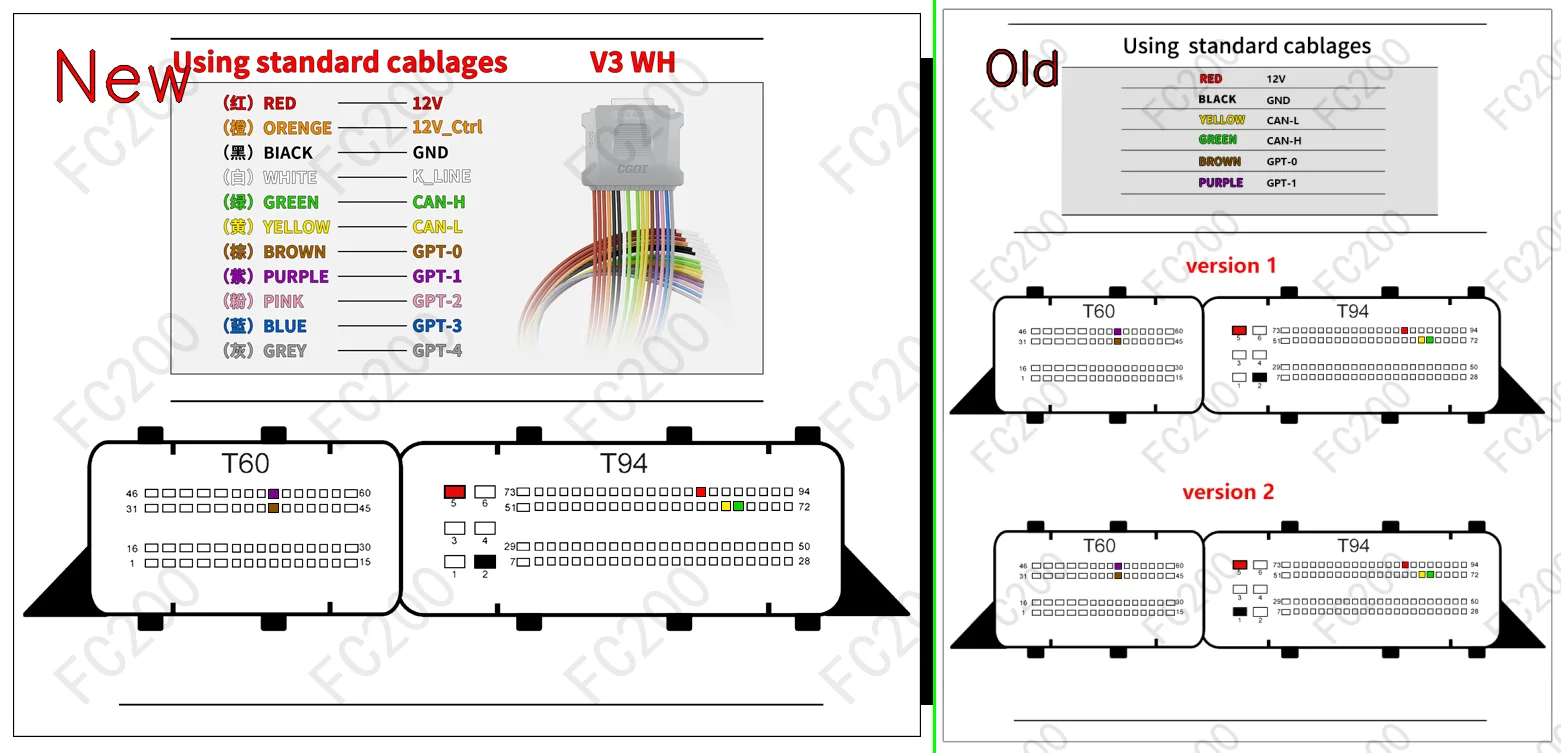

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.5.20.png (Platform / Bench)499,810 bytes
BOSCH MED17.5.20.png

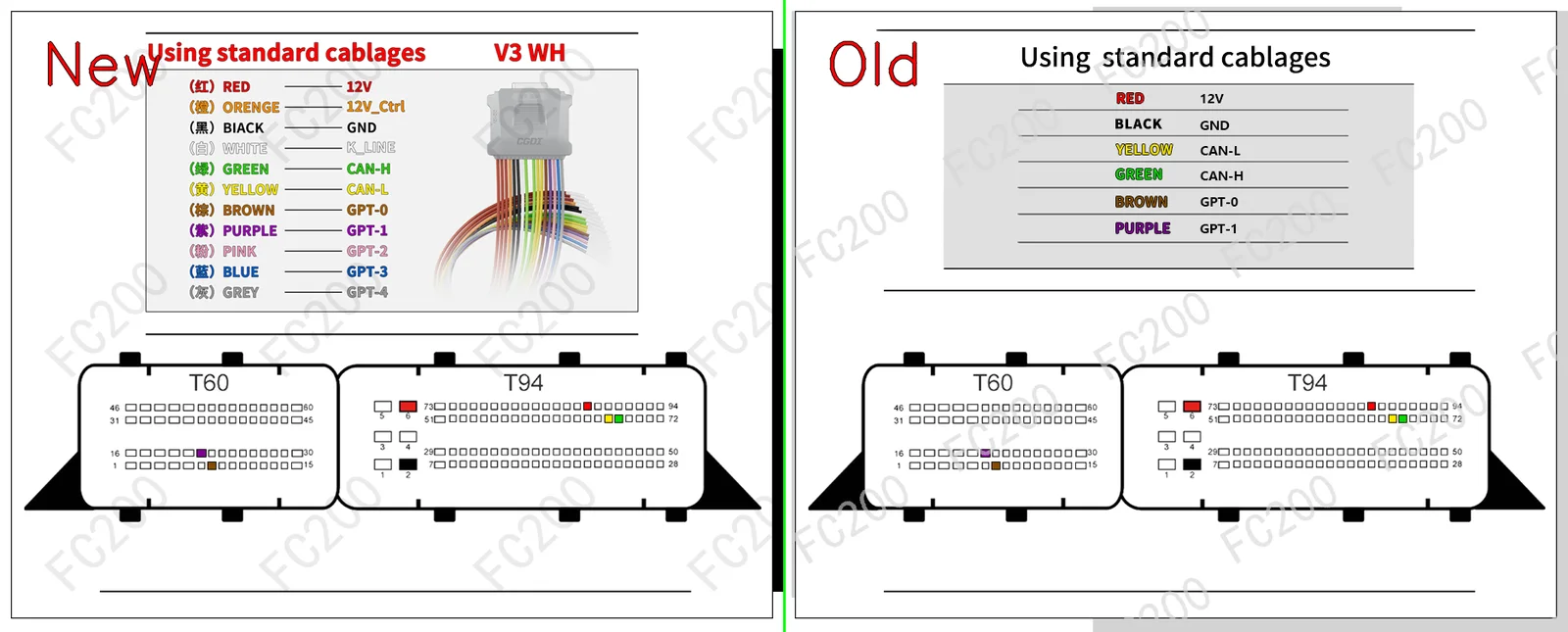

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.5.21.png (Platform / Bench)498,924 bytes
BOSCH MED17.5.21.png

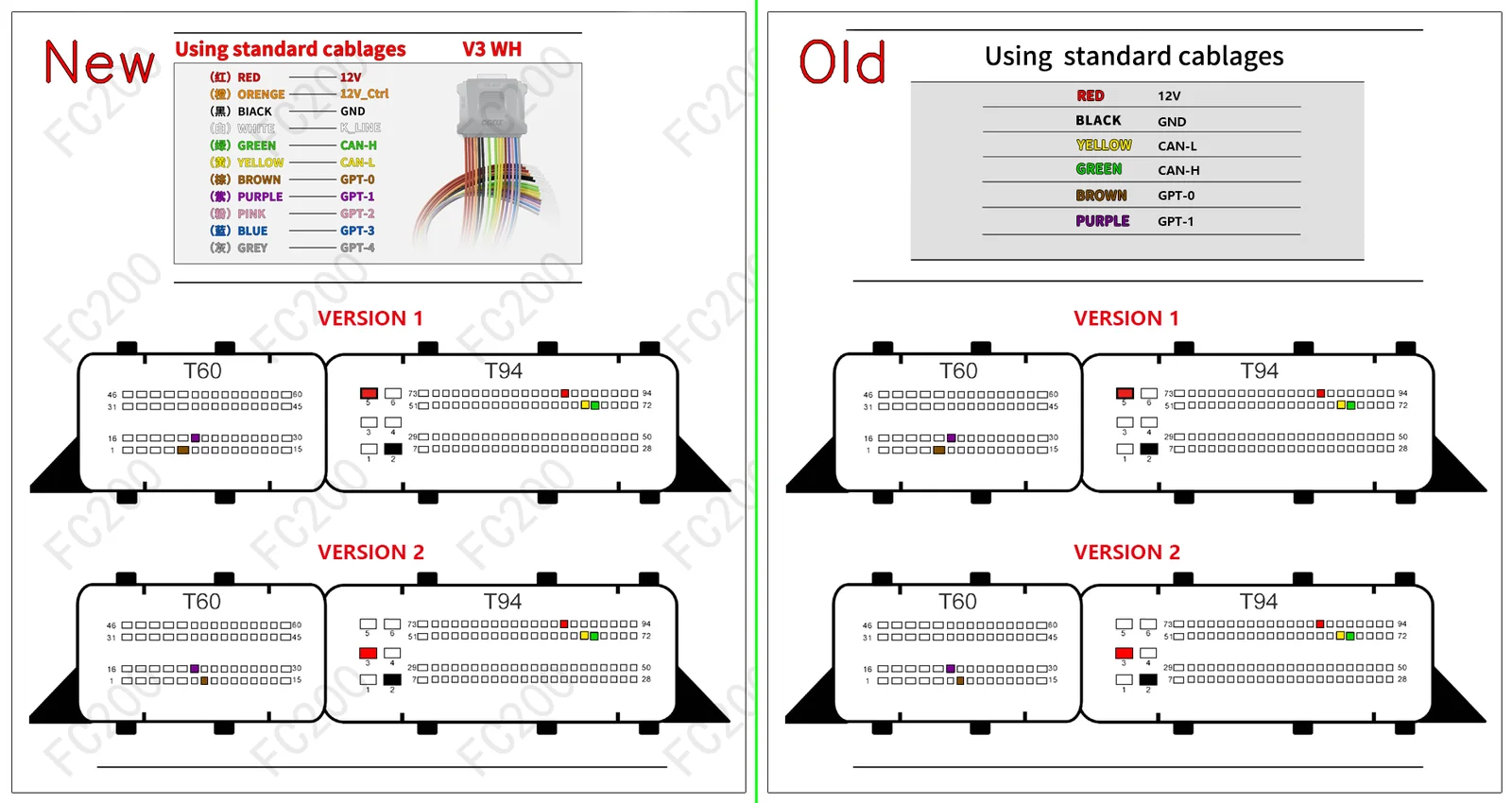

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.5.25.png (Platform / Bench)600,543 bytes
BOSCH MED17.5.25.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MED17.5.2 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A1(8X) (1400 TSI CPTA 140) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A1(8X) (1400 TFSI CZDA 150) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A1(8X) (1400 TFSI CZDA 150) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A1(8X) (1400 TFSI CZEA 150) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A1(8X) (1400 TFSI CZEA 150) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A1(8X) (1000 TFSI CHZE 82) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A1(8X) (1400 TFSI CZCA 125) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A1(8X) (1400 TFSI CZDB 125) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A1(8X) (1400 TFSI CZDD 125) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A1(8X) (1000 TFSI • 95) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A3(8P) (1400 TFSI S-Tronic CAXC 125) BOSCH MED17.5.20 (TC1766) Open Vehicle →
Audi A3(8P) (1400 TFSI CHPA 140) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A3(8P) (1400 TFSI CMBA 122) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A3(8P) (1400 TSI CPTA 140) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A3(8P) (1400 TFSI CPVA 122) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A3(8P) (1400 TFSI ultra CZEA 150) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A3(8V) (1400 TFSI g-tron CPWA 110) BOSCH MED17.5.21 (TC1782) Open Vehicle →
Audi A3(8V) (1400 TFSI CZCA 125) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi A6(C7) (2000 TFSI CPSA 211) BOSCH MED17.5.2 (TC1767) Open Vehicle →
Audi Q2(GAB) (1400 TFSI CZEA 150) BOSCH MED17.5.25 (TC1782) Open Vehicle →
Audi Q3(8U) (2000 TFSI CCTA 200) BOSCH MED17.5.2 (TC1767) Open Vehicle →
Audi Q3(8U) (2000 TFSI quattro CCTA 200) BOSCH MED17.5.2 (TC1767) Open Vehicle →
Audi Q3(8U) (2000 TFSI quattro CCZC 170) BOSCH MED17.5.2 (TC1767) Open Vehicle →
Audi Q3(8U) (2000 TFSI CPSA 211) BOSCH MED17.5.2 (TC1767) Open Vehicle →
