ECU Pinout MED17.7.7 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MED17.7.7 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

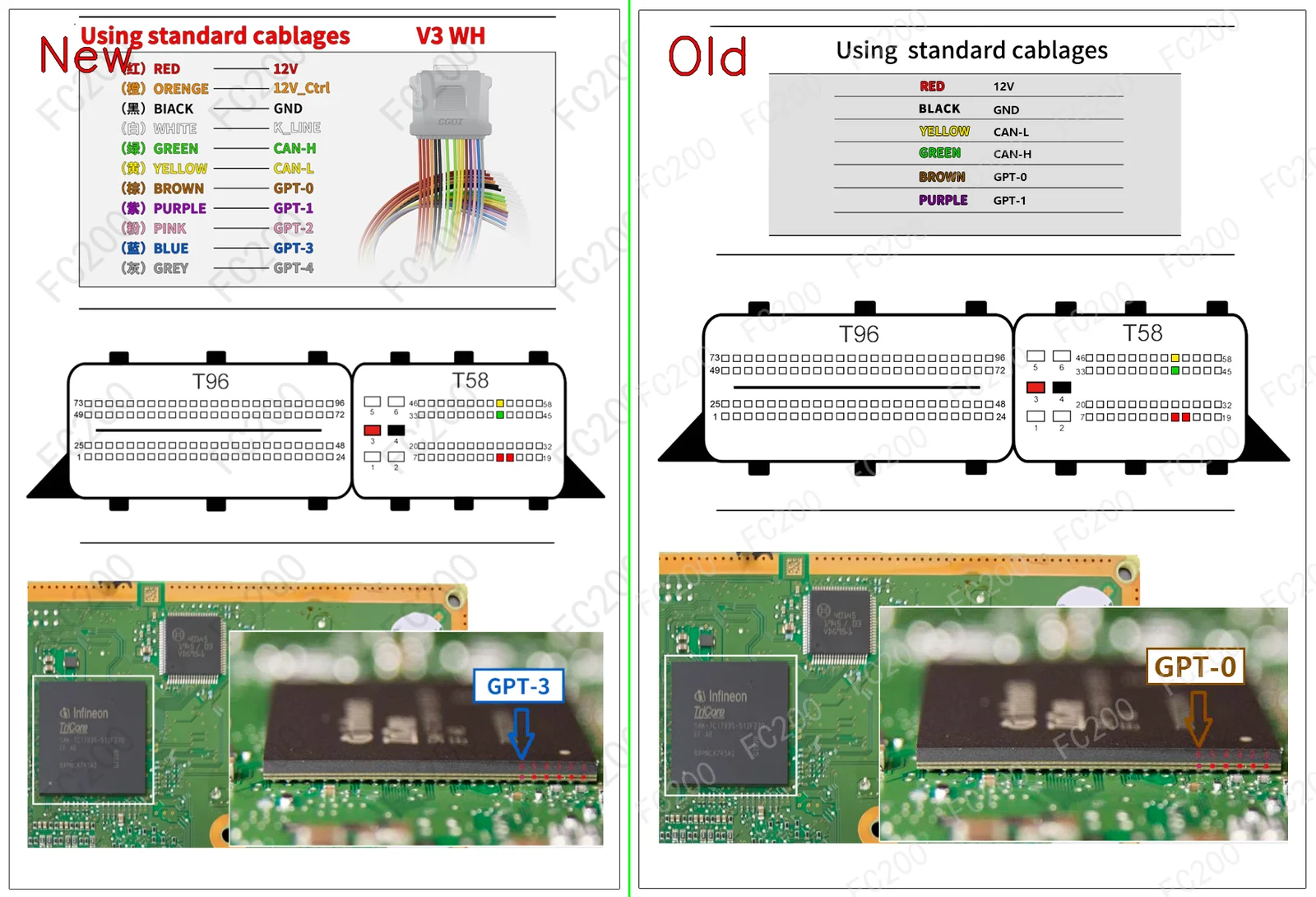

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.7.7.png (Boot)1,629,634 bytes
BOOT_BOSCH MED17.7.7.png

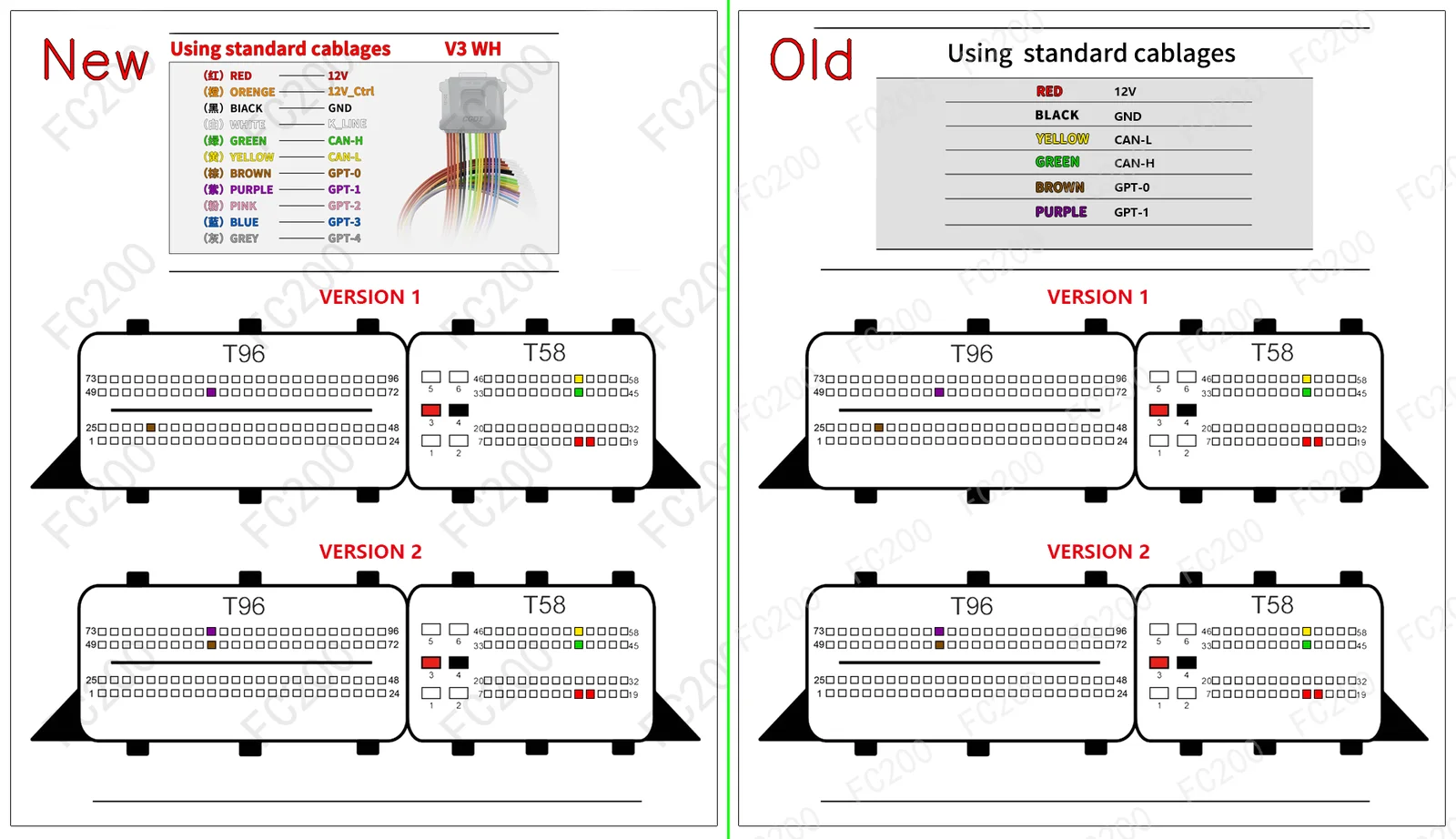

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.7.7.png (Platform / Bench)707,736 bytes
BOSCH MED17.7.7.png

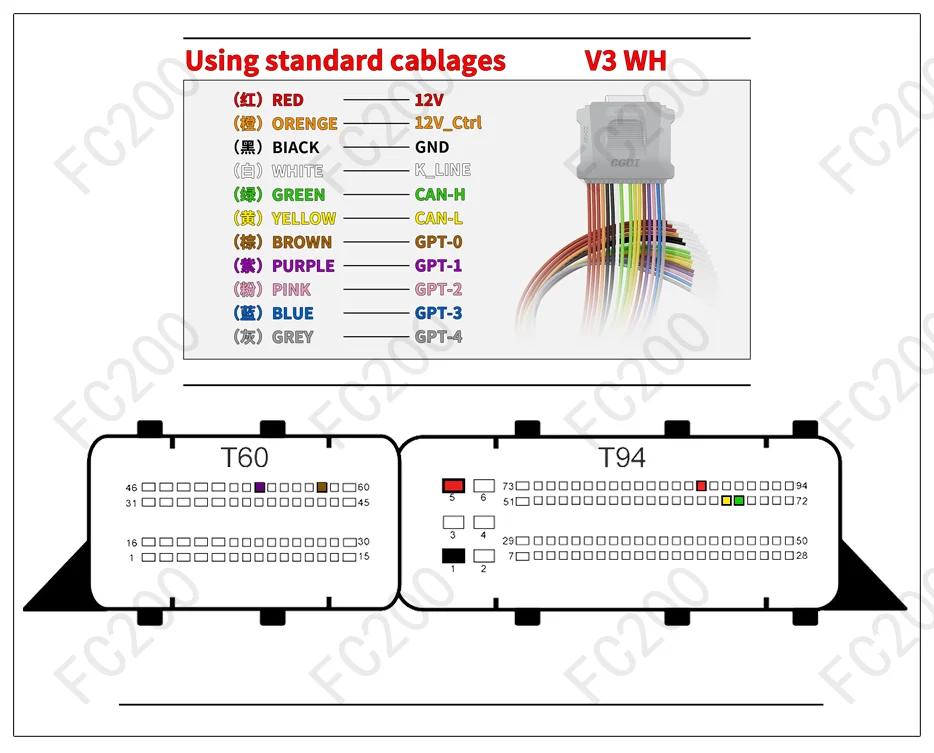

OFFICIAL PINOUT DIAGRAM: BOSCH MED17821 TC1767.png (Platform / Bench)182,095 bytes
BOSCH MED17821 TC1767.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MED17.7.7 (17)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Mercedes-Benz A(W177) (2000 M260DE20AL 190) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz A(W177) (2000 M260 224) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz A(W177) (2000 M260 306) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz B(W247) (2000 M260DE20AL 190) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz B(W247) (2000 M260 224) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz B(W247) (2000 M260 306) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz C(W205) (1497 M274.920 184) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz C(W205) (1991 M274.920 258) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz C(W205) (1991 651.921 187) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz C(C205) (1500 M264 197) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz C(C205) (2000 M264DE20L 258) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz CLA(C118) (2000 M260DE20AL 190) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz CLA(C118) (2000 M260 224) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz CLS(C257) (1991 M274.920 299) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz E(W213) (1991 M274.920 299) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, Recover VIN, CheckSum) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
Universal ECU Protocol Pryamoy protokol chteniya ECU na stole (Platform Bench Mode 2) (Direct Bench / Boot ECU Connector Pinout) BOSCH MED17.7.7 (TC1793S) Open Vehicle →
