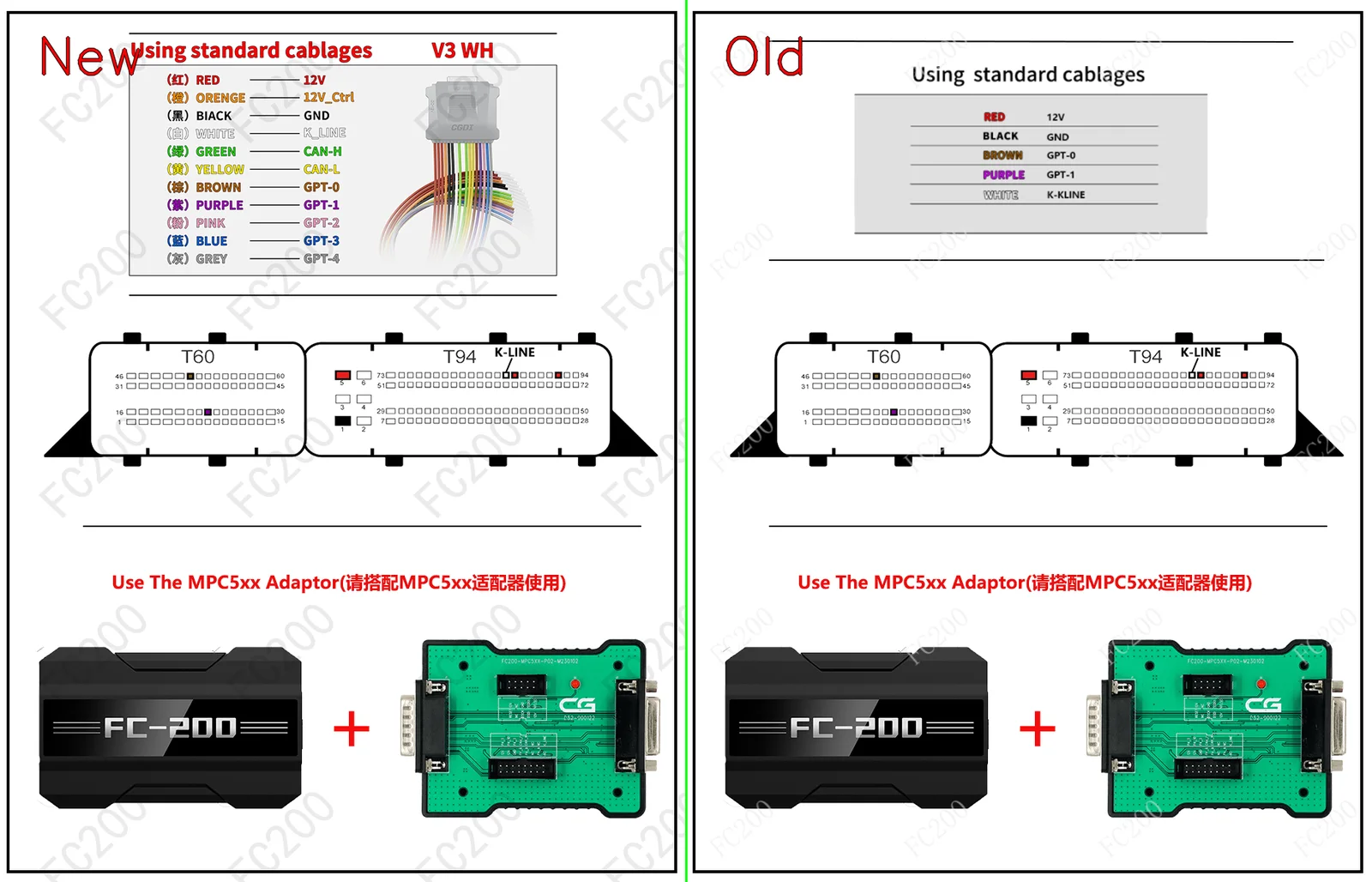

OFFICIAL PINOUT DIAGRAM: BOSCH MED9.5.10 MPC561_2.png (Platform / Bench)983,723 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MED9.5.10 (24)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Audi | A3(8P) (1598 BLP 116) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Audi | A3(8P) (1984 BVZ 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Audi | A3(8P) (1598 BLF 115) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Seat | Altea(5P) (1984 BVZ 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Seat | Leon(1P) (1984 BVZ 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Seat | Toledo(5P) (1984 BVZ 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1598 BLF 115) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1984 BLX 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1984 BLY 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1984 BLR 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1984 BVY 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1984 BVZ 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1984 BVX 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Eos(1F7) (1984 BVY 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Eos1F7 (1598 BLF 116) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Eos1F7 (1984 BVZ 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1598 BLF 116) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1390 BKG 90) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1595 BAG 116) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1984 BVZ 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1984 BLY 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1984 BLX 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf5M1 (1398 BMY 140) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1984 AXW 150) | BOSCH MED9.5.10 (MPC561/2) |
Open Vehicle → |
