ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout MEDG17.0 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MEDG17.0 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

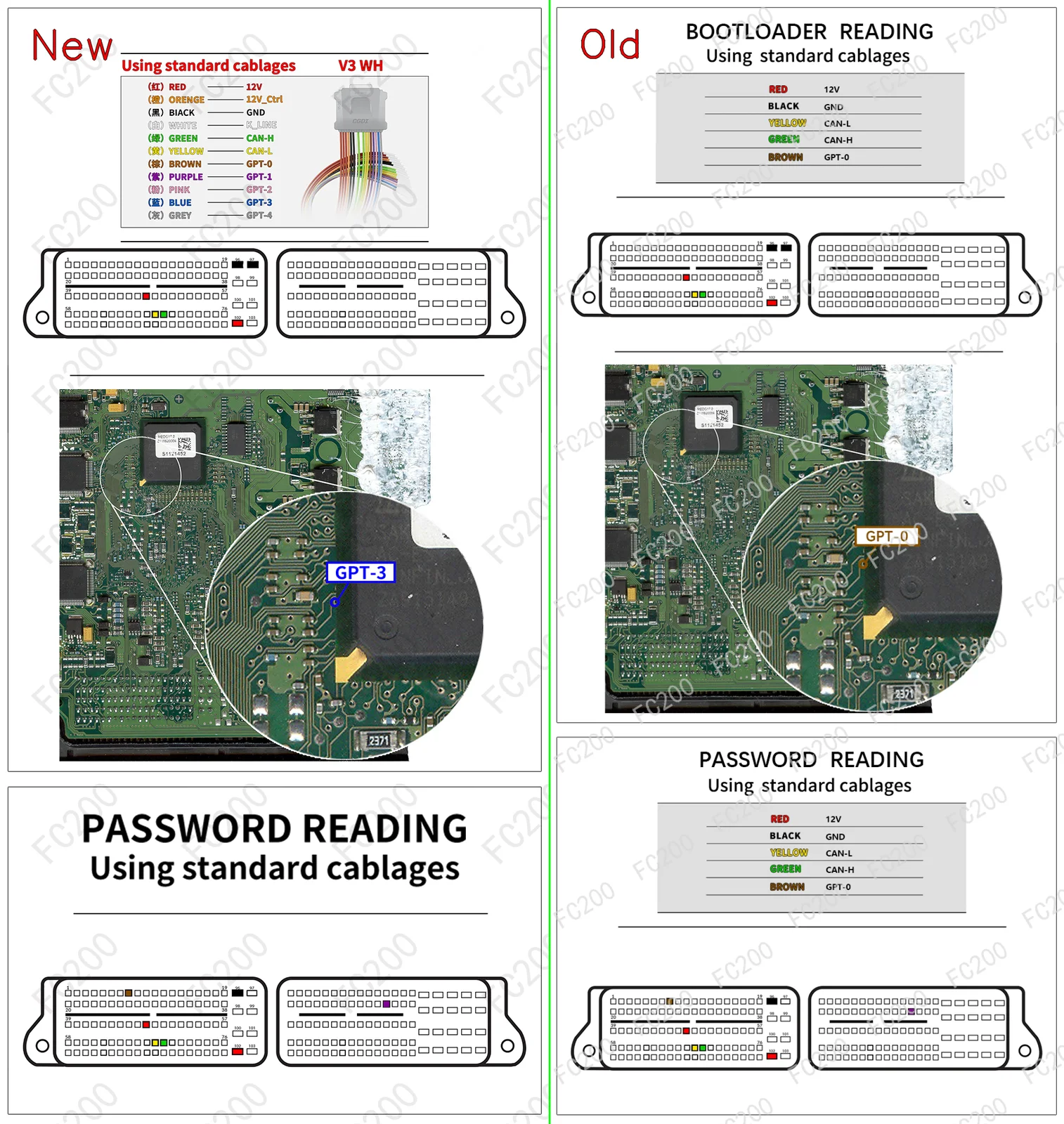

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MEDG17.0.png (Boot)3,092,609 bytes
BOOT_BOSCH MEDG17.0.png

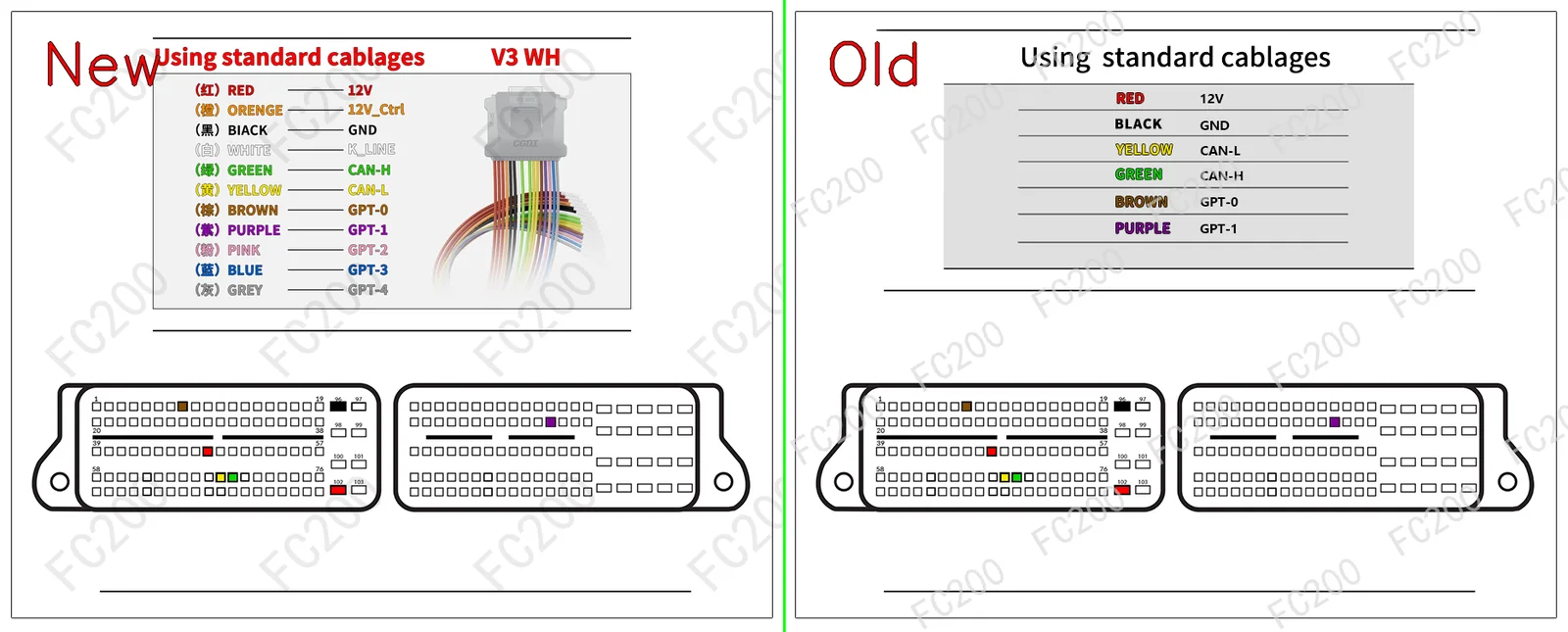

OFFICIAL PINOUT DIAGRAM: BOSCH MEDG17.0.png (Platform / Bench)532,176 bytes
BOSCH MEDG17.0.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MEDG17.0 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Ford Fiesta(Jx8) (1000 EcoBoost • 125) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Galaxy(WA6) (2000 EcoBoost R9CD 243) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Galaxy(WA6) (2000 EcoBoost R9CI 243) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford EcoSport(JK8) (1000 EcoBoost • 125) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Focus(DY) (1000 EcoBoost M1DD 125) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Focus(DY) (2000 EcoBoost ST R9DB 255) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Focus(DY) (2000 EcoBoost ST R9DC 255) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Focus(DY) (2000 EcoBoost ST R9DD 255) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Focus(DY) (2300 EcoBoost RS AWD YVDA 351) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Focus(DY) (2300 EcoBoost RS AWD YVDB 351) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Kuga(DM2) (1600 EcoBoost • 150) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Mondeo(V) (1500 EcoBoost UNCF 160) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Mondeo(V) (1500 EcoBoost UNCA 160) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Mondeo(V) (1500 EcoBoost UNCB 160) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Mondeo(V) (1500 EcoBoost UNCE 160) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford S-Max (1500 EcoBoost UNCK 160) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford S-Max (2000 EcoBoost R9CI 243) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Edge(II) (2000 EcoBoost • 245) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Edge(II) (2700 24v • 329) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford F-150 (3500 Bi-Turbo Ecoboost 380) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Ford Fiesta Vignale (999 SFJP1JX 100) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Fusion(FFB) (1600 EcoBoost • 150) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Mustang(V) (2300 16v EcoBoost • 314) BOSCH MEDG17.0 (TC1797) Open Vehicle →
Ford Mustang(VI) (2300 16v EcoBoost • 314) BOSCH MEDG17.0 (TC1797) Open Vehicle →
