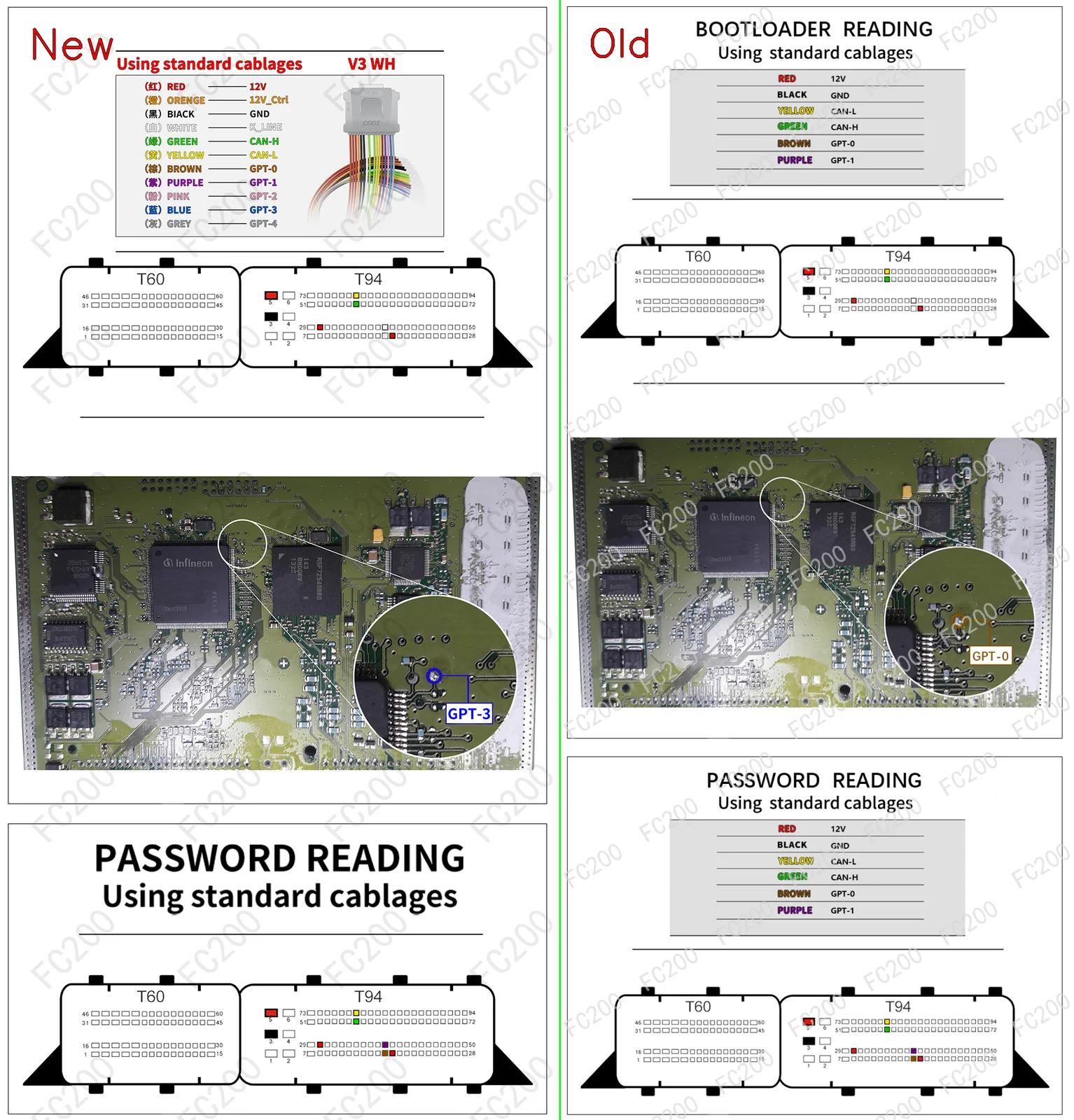

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MEG17.9.13.png (Boot)2,921,512 bytes

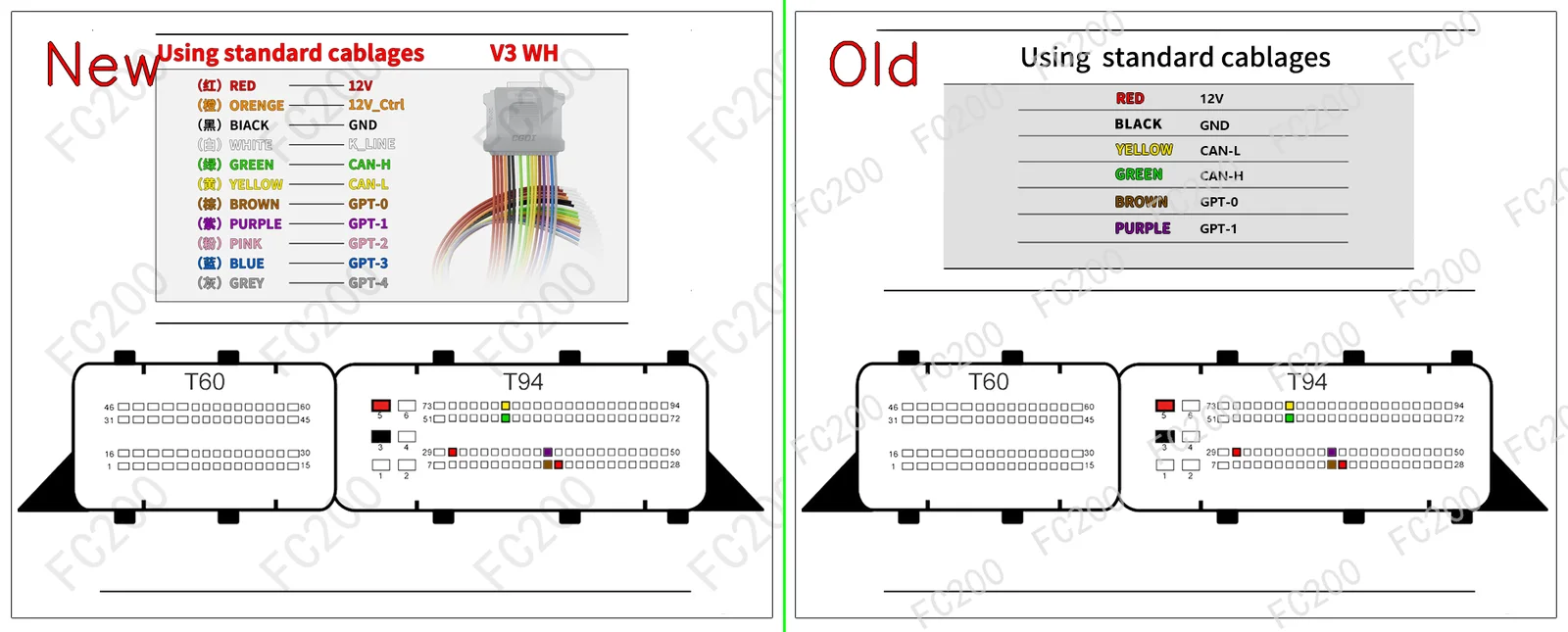

OFFICIAL PINOUT DIAGRAM: BOSCH MEG17.9.13.png (Platform / Bench)494,129 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MEG17.9.13 (4)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Hyundai | I10(PA) (1.1 12v G4HG 69) | BOSCH MEG17.9.13 (TC1766) |
Open Vehicle → |
| Kia | Soul (1.6 16v GDI G4FD 140) | BOSCH MEG17.9.13 (TC1766) |
Open Vehicle → |
| Hyundai | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password) | BOSCH MEG17.9.13 (TC1766) |
Open Vehicle → |
| Kia | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password) | BOSCH MEG17.9.13 (TC1766) |
Open Vehicle → |
