MEV17.2.2 ECU Bench Pinout (Bench / Boot / GPT Mode) — Connection Diagram

Step-by-step bench connection diagram for the MEV17.2.2 ECU (Platform Bench, no case opening, and Boot Mode): T30/T15 power pinout, CAN-H/CAN-L twisted pair and GPT0/GPT1 signals.

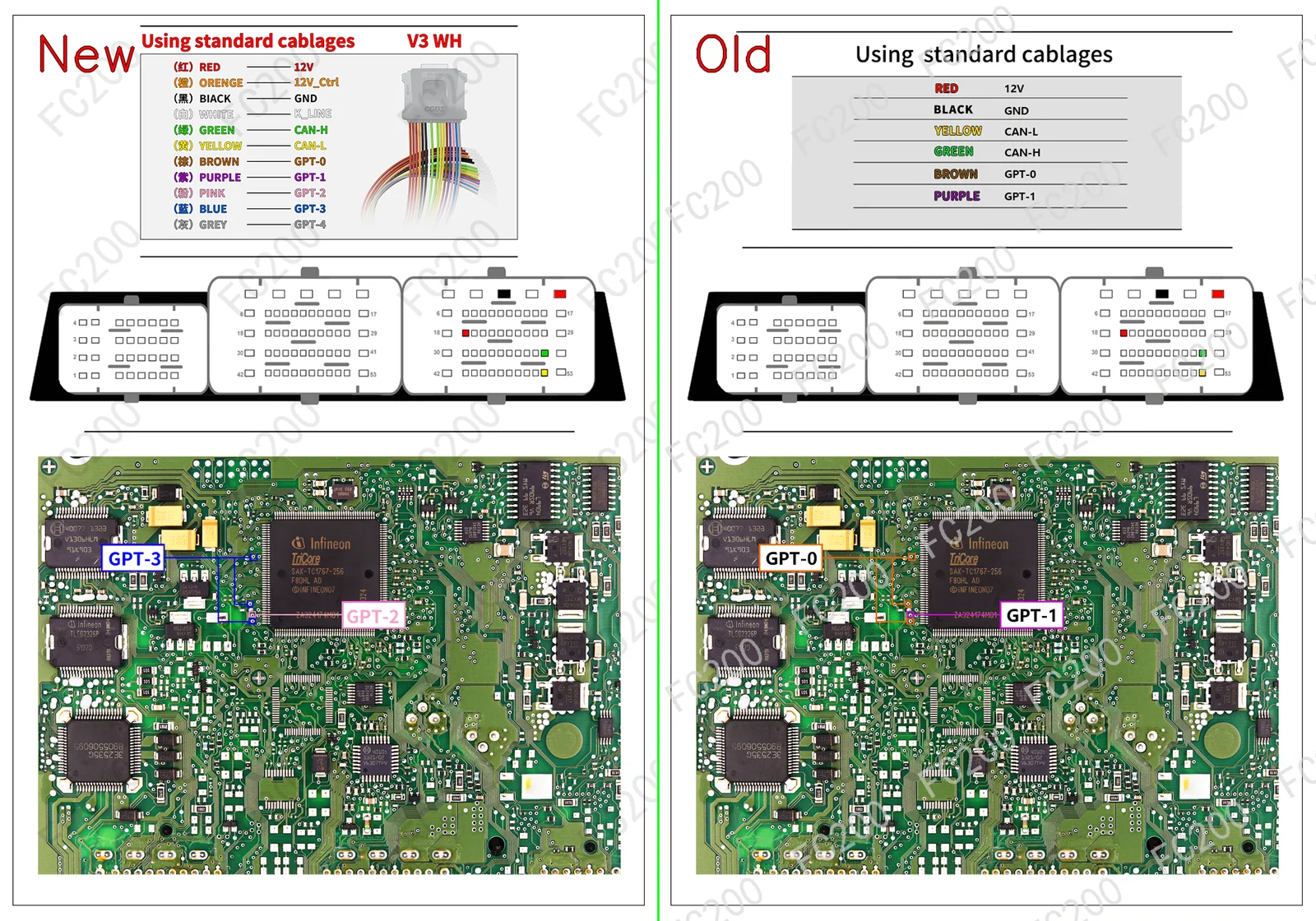

OEM PINOUT DIAGRAM: BOOT_BOSCH MEV17.2.2.png (Boot)2,985,299 bytes
BOOT_BOSCH MEV17.2.2.png

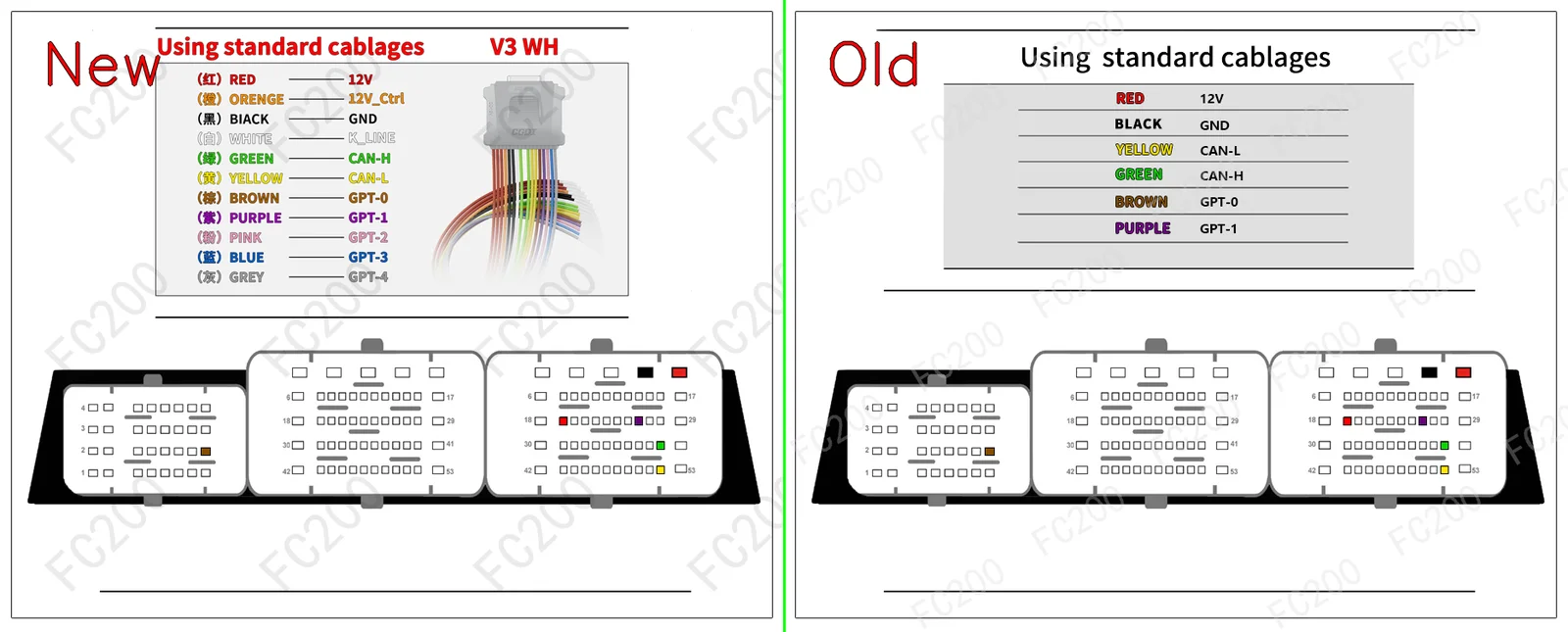

OEM PINOUT DIAGRAM: BOSCH MEV17.2.2.png (Platform / Bench)494,174 bytes
BOSCH MEV17.2.2.png
STEP-BY-STEP BENCH CONNECTION PROTOCOL (HOWTO)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 power): Apply stabilized 13.5V — 13.8V to the permanent power (T30) and ignition (T15) pins, plus ground (GND), following the cable color coding above.
  2. Step 2 (CAN bus & GPT0 / GPT1 generator lines): Connect the CAN-H and CAN-L, plus the signal wires GPT0 (S1) and GPT1 (S2) to enter service mode without opening the ECU case.
  3. Step 3 (Full PFLASH + DFLASH backup read): Before any write operation, read and save a full backup of the internal flash (PFLASH) and the EEPROM area (DFLASH).
VEHICLES FITTED WITH THE MEV17.2.2 ECU (22)FITMENT
BrandModel & EngineECU & MCUOpen
Mini Cooper(R56) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper(R56) (1598 N16B16 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper(R57) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper(R57) (1598 N16B16 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper(R58) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper(R58) (1598 N16B16 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper(R59) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper(R59) (1598 N16B16 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper Clubman(R57) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper Clubman(R57) (1598 N16B16 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper Countryman(R60) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper Countryman ALL4(R60) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper Paceman(R61) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper Paceman ALL4(R61) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper S Clubman(R57) (1598 N16B16M0 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini Cooper S Clubman(R57) (1598 N16B16 123) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini First(R56) (1397 EP3 75) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini One(R56) (1598 N16B16U0 98) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini One(R57) (1598 N16B16U0 98) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini One Clubman(R57) (1598 N16B16U0 98) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini One Countryman(R60) (1598 N16B16U0 98) BOSCH MEV17.2.2 (TC1767) Open vehicle →
Mini All Models (Direct ECU Connection) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Read/Write ISN, Recover VIN, CheckSum) BOSCH MEV17.2.2 (TC1767) Open vehicle →
