ECU Pinout MEV17.4.2 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MEV17.4.2 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

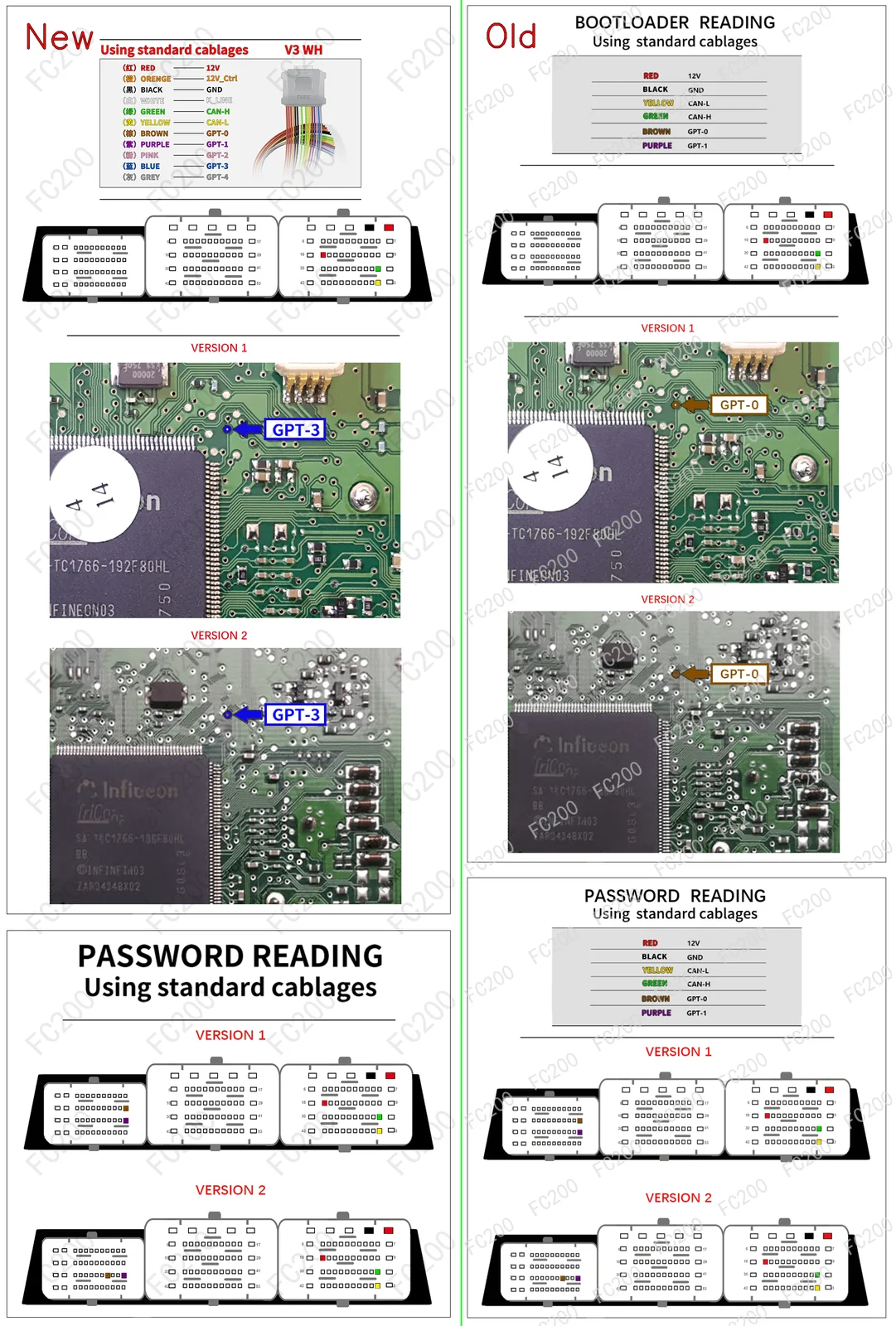

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MEV17.4.2.png (Boot)4,438,547 bytes
BOOT_BOSCH MEV17.4.2.png

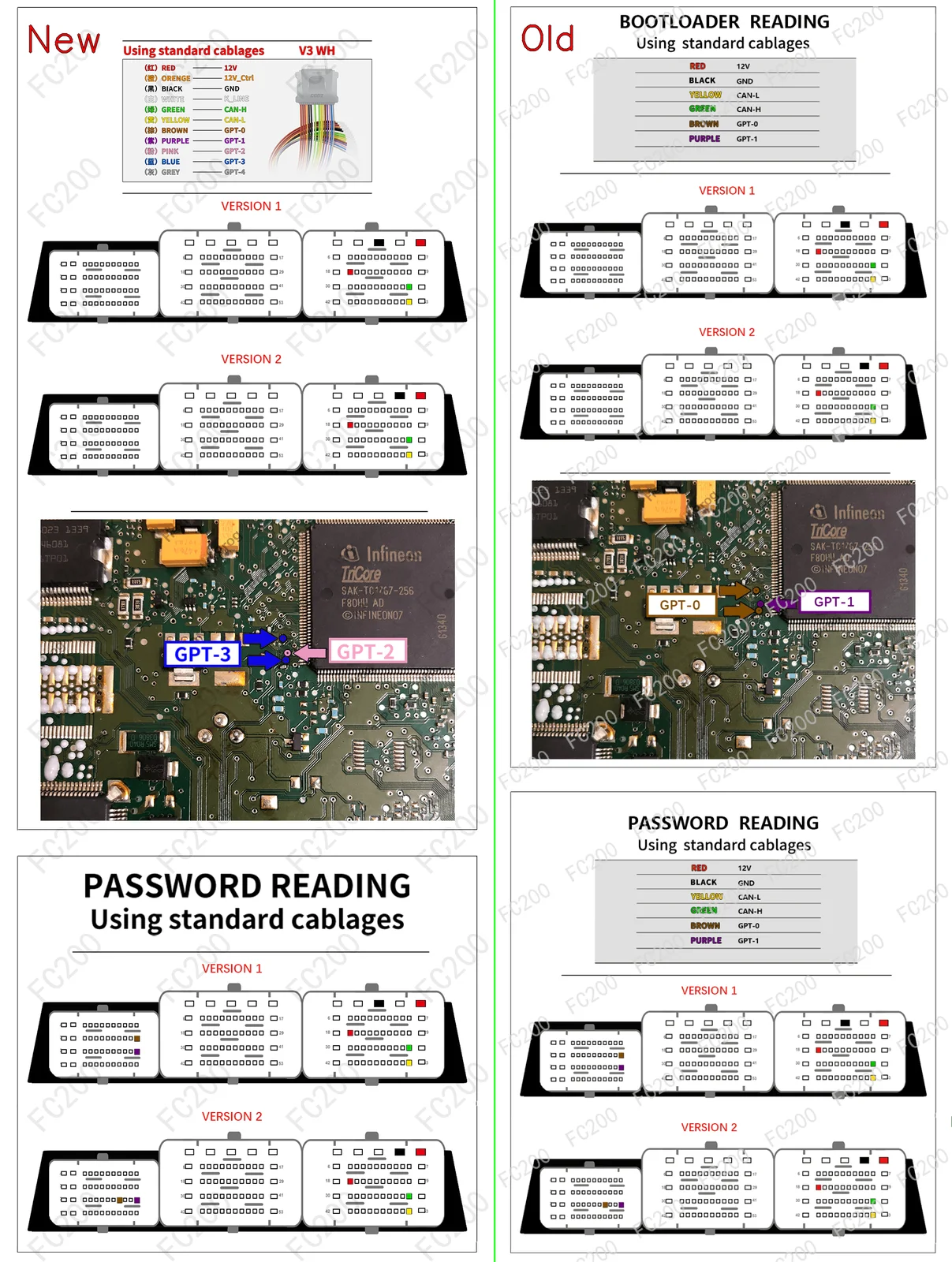

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MEV17.4.2_.png (Boot)3,541,159 bytes
BOOT_BOSCH MEV17.4.2_.png

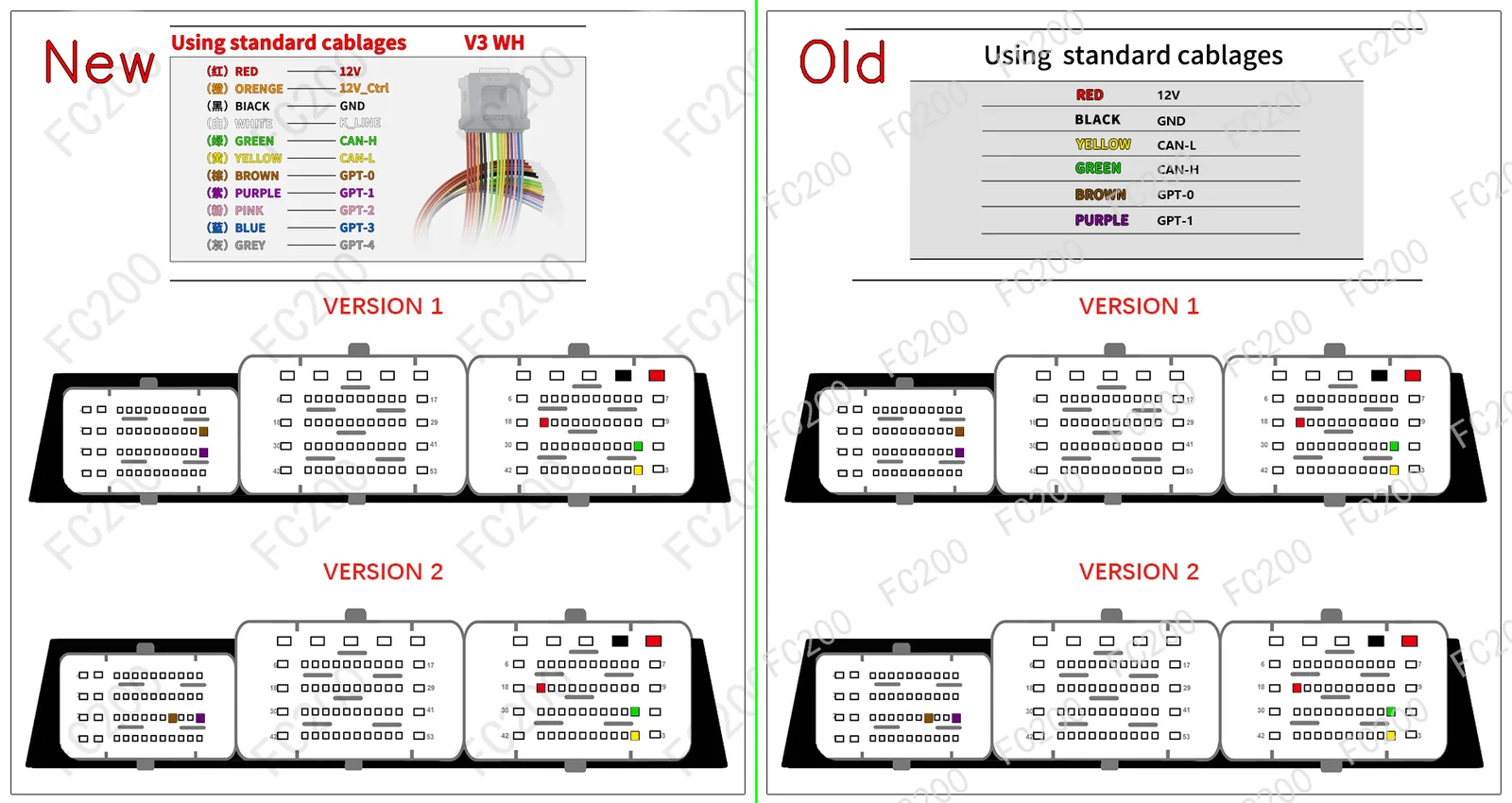

OFFICIAL PINOUT DIAGRAM: BOSCH MEV17.4.2.png (Platform / Bench)720,369 bytes
BOSCH MEV17.4.2.png

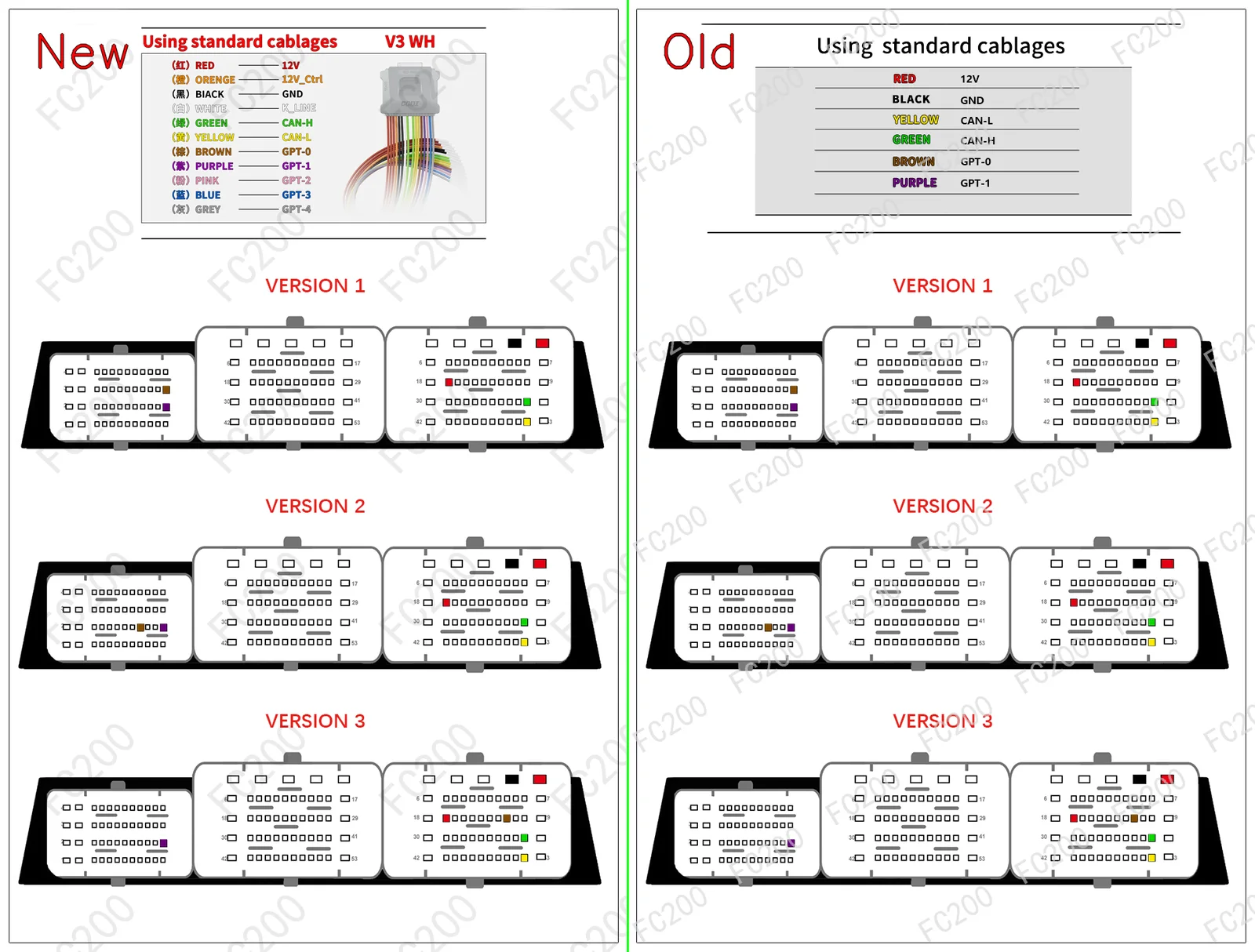

OFFICIAL PINOUT DIAGRAM: BOSCH MEV17.4.2_.png (Platform / Bench)978,878 bytes
BOSCH MEV17.4.2_.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MEV17.4.2 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Citroen Berlingo(B9) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen Berlingo(B9) (1600 VTI 5FK <EP6CB> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen Berlingo(B9) (1600 VTI 5FK <EP6CB> 95) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C3(A51) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C3 Picasso(A58) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C4II (1397 EP3C8FP 96) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C4(B5) (1600 VTI 5FW <EP6> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C4(B5) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C4(B71) (1600 VTI LPG 5FW <EP6> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C4 Coupe(B5) (1600 VTI 5FW <EP6> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C4 Grand Picasso(B58) (1600 VTI 5FW <EP6> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C4 Picasso(B58) (1600 VTI 5FW <EP6> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen C5(X7) (1600 VTI 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen DS3(A55 (1600 VTI 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen DS4(B75) (1600 VTI 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Peugeot 207(A7) (1600 VTI 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Peugeot 208(A9) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Peugeot 3008(T8) (1600 VTI 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Peugeot 408(I) (1600 THP • 156) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Peugeot 5008(T8) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Peugeot 508(W2) (1600 VTI 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Peugeot Partner(B9) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2 (TC1766) Open Vehicle →
Citroen Berlingo(B9) (1600 5FS <EP6C> 120) BOSCH MEV17.4.2_ (TC1767) Open Vehicle →
Citroen Berlingo(B9) (1600 VTI 5FK <EP6CB> 120) BOSCH MEV17.4.2_ (TC1767) Open Vehicle →
