ECU Pinout MEVD17.2.K Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MEVD17.2.K (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MEVD17.2.K.png (Boot)2,687,773 bytes
BOOT_BOSCH MEVD17.2.K.png

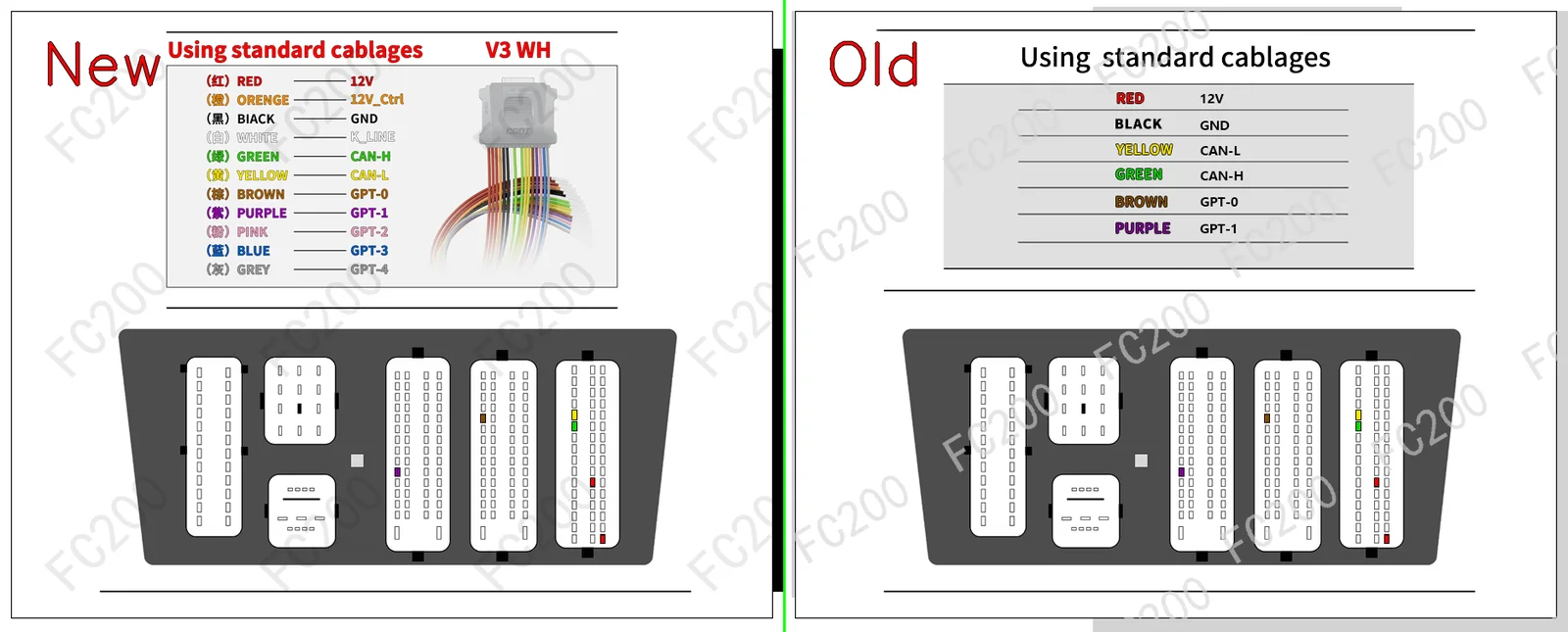

OFFICIAL PINOUT DIAGRAM: BOSCH MEVD17.2.K.png (Platform / Bench)530,558 bytes
BOSCH MEVD17.2.K.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MEVD17.2.K (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
BMW 1 Series(F20) (116i B38B15A 109) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 1 Series(F20) (118i B38B15A 170) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 1 Series(F21) (116i B38B15A 109) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 1 Series(F21) (118i B38B15A 170) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F22) (218i B38B15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F22) (220i B48A20A 192) BOSCH MEVD17.2.K (TC1793) Open Vehicle →
BMW 2 Series(F23) (218i B38B15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F23) (220i B48A20A 192) BOSCH MEVD17.2.K (TC1793) Open Vehicle →
BMW 2 Series(F45) (216i B38A15A 102) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F45) (218i B38A15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F45) (225xe B38A15A 224) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F45) (220i B48A20A 192) BOSCH MEVD17.2.K (TC1793) Open Vehicle →
BMW 2 Series(F46) (216i B38A15A 102) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F46) (218i B38A15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 2 Series(F46) (220i B48A20A 192) BOSCH MEVD17.2.K (TC1793) Open Vehicle →
BMW 3 Series(F30) (318i B38B15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 3 Series(F31) (318i B38B15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 4 Series(F32) (418i B38B15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW 4 Series(F36) (418i B38B15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW X1 Series(F48) (16i sDrive B38A15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
BMW X1 Series(F48) (25i xDrive B48A20B 231) BOSCH MEVD17.2.K (TC1793) Open Vehicle →
BMW i Series(I12) (i8 B38K15A 362) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
Mini Clubman(F54) (Cooper 1500 B38A15A 136) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
Mini Clubman(F54) (One 1500 B38A15A 102) BOSCH MEVD17.2.K (TC1793_B38) Open Vehicle →
