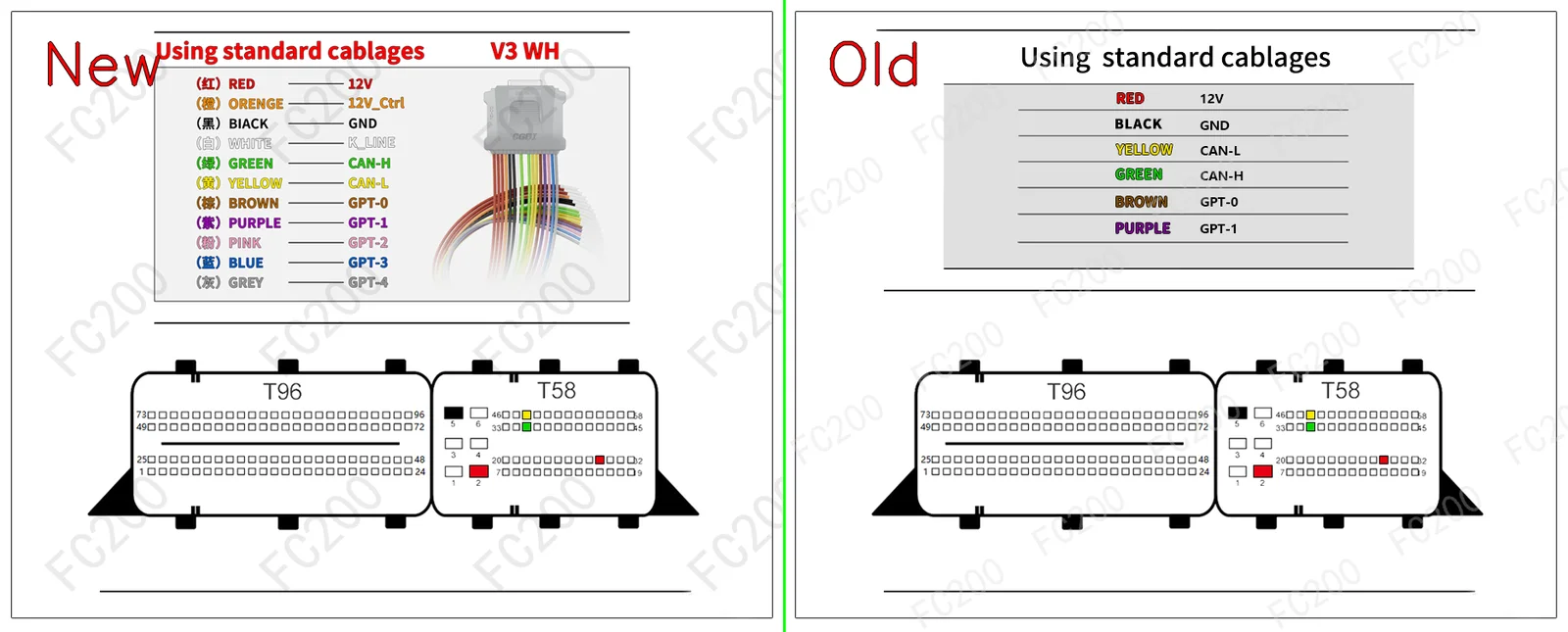

OFFICIAL PINOUT DIAGRAM: BOSCH MG1CS080.png (Platform / Bench)508,325 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MG1CS080 (5)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Geely / Lynk&Co | Monjaro (KX11 / L) / Tugella (2021–2024) (2000T Drive-E JLH-4G20TDB 238HP) | BOSCH MG1CS080 / MG1US708 (TC275TP / TC387Q) |
Open Vehicle → |
| Geely / Lynk&Co | 01 PHEV(I) (1477 JLH-3G15TD 179) | BOSCH MG1CS080 (TC275TP) |
Open Vehicle → |
| Volvo | XC40T3 (1500 T3 B4154T4 152) | BOSCH MG1CS080 (TC275TP) |
Open Vehicle → |
| Geely / Lynk&Co | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/PFLASH, Recover VIN) | BOSCH MG1CS080 (TC275TP) |
Open Vehicle → |
| Volvo | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/PFLASH, Recover VIN) | BOSCH MG1CS080 (TC275TP) |
