ECU Pinout MG1UA-UP8 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MG1UA-UP8 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

OFFICIAL PINOUT DIAGRAM: BOSCH MG1UA-UP8.png (Platform / Bench)631,280 bytes
BOSCH MG1UA-UP8.png

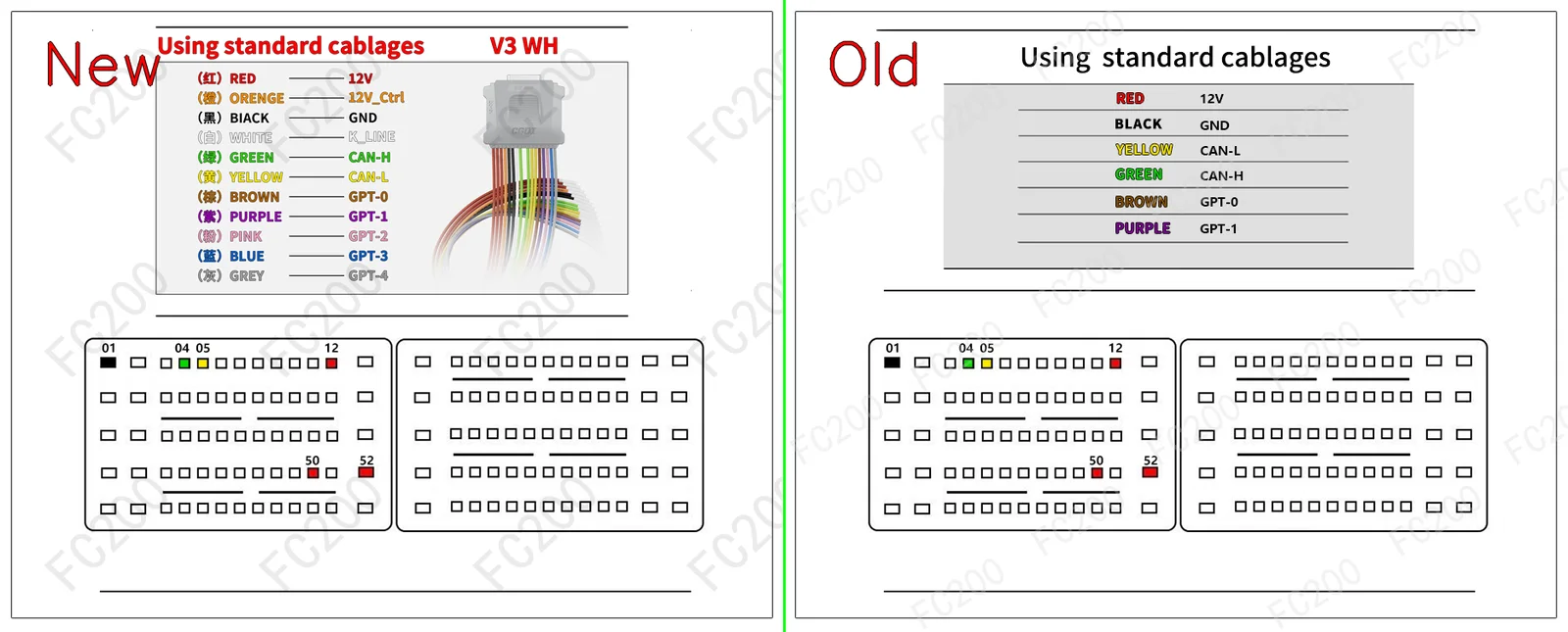

OFFICIAL PINOUT DIAGRAM: BOSCH MG1UA-UP8_BootLoader.png (Boot)617,805 bytes
BOSCH MG1UA-UP8_BootLoader.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MG1UA-UP8 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
BESTUNE All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
BESTUNE All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
BYD All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
BYD All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
BAIC SenovaX35 (1500 A151 150) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
BAIC SenovaX35 (1500 A151 150) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
Changan All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
Changan All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
Cirelli 3G01F (1500 g01 156) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
Cirelli 3G01F (1500 g01 156) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
Dongfeng Fengon 500 (1500 E3 116) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
Dongfeng Fengon 500 (1500 E3 116) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
FAW / Jiefang / Xichai All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
FAW / Jiefang / Xichai All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
Feidie All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
Feidie All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
Geely / Lynk&Co Coolray260T (1477 JLH-3G15TD 180) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
Geely / Lynk&Co Coolray260T (1477 JLH-3G15TD 180) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
Great Wall / Haval / Tank Haval Jolion (1497 GW4G15T 143) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
Great Wall / Haval / Tank Haval Jolion (1497 GW4G15T 143) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
JAC All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
JAC All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
Proton X50 (1477 JLH-3G15TD 150) BOSCH MG1UA-UP8_BootLoader (SPC574) Open Vehicle →
Proton X50 (1477 JLH-3G15TD 150) BOSCH MG1UA-UP8 (SPC574) Open Vehicle →
